Subject: | Re: Choosing a switch and learn how to wire it |
--> AeroElectric-List message posted by: BobsV35B@aol.com
In a message dated 12/26/2005 12:34:13 A.M. Central Standard Time,
Speedy11@aol.com writes:
So, I read it that He wants to power both EFIS units simultaneously with
either bus.
It seems as though Larry's solution would work.
Stan Sutterfield
Good Morning Stan,
I agree, but don't you think my solution would work as well? I always
thought simpler was better!
Happy Skies,
Old Bob
AKA
Bob Siegfried
Ancient Aviator
Stearman N3977A
Brookeridge Air Park LL22
Downers Grove, IL 60516
630 985-8503
Message 2
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Choosing a switch and learn how to wire it |
--> AeroElectric-List message posted by: Larry Mac Donald <lm4@juno.com>
Bob,
I have to agree. Your idea is simpler, and better.
Although Carlos should make sure he has a switch that
is rated at 130% of the ampacity of the total load.
Larry Mac Donald
lm4@juno.com
Rochester N.Y.
Do not achcive
On Mon, 26 Dec 2005 08:05:02 EST BobsV35B@aol.com writes:
> --> AeroElectric-List message posted by: BobsV35B@aol.com
>
>
>
> In a message dated 12/26/2005 12:34:13 A.M. Central Standard Time,
> Speedy11@aol.com writes:
>
> So, I read it that He wants to power both EFIS units simultaneously
> with
> either bus.
> It seems as though Larry's solution would work.
> Stan Sutterfield
>
>
>
> Good Morning Stan,
>
> I agree, but don't you think my solution would work as well? I
> always
> thought simpler was better!
>
> Happy Skies,
>
> Old Bob
> AKA
> Bob Siegfried
> Ancient Aviator
> Stearman N3977A
> Brookeridge Air Park LL22
> Downers Grove, IL 60516
> 630 985-8503
>
>
>
>
>
>
>
>
>
>
>
>
>
Message 3
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Alternator torque (switching alternators) |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
At 12:23 AM 12/26/2005 -0500, you wrote:
>--> AeroElectric-List message posted by: "Goguen, Jon"
><Jon.Goguen@umassmed.edu>
>
>I don't know how relevant it is to any particular installation, but if an
>alternator is delivering constant power the torgue will indeed double as
>the RPM is halved. The relevant equation is the same for alternators as
>it is for electric motors: power output is directly proportional to the
>product of RPM and torque. So, if an alternator is capable or delivering
>350 watts (25 amps @ 14 volts) at 1500 RPM, twice the torque is needed to
>yield this power as would required to get 350 watts from the same same
>alternator at 3000 RPM.
You're correct that for speeds ABOVE minimum speed for
full output, Torque(1) * RPM(1) is approximately
equal to Torque(2) * RPM(2). I.e., for a given power
output the torque-rpm product is relatively constant.
> Of course, the alternator may not be capable of twice the power (700
> watts) at the higher RPM due to magnetic saturation etc, but that isn't
> the issue. If one were designing an alternator drive mechanism, the
> power to be delivered by the alternator at low RPM would be a key factor
> in determining the torque requirement for the drive.
Here's the rub . . . define "low rpm". This thread
was based on a supplier use of the term "low rpm"
without giving the user a clue as to what that means.
The supplier's admonition further fails to define the
magnitude of benefit to be derived from observing
the cited concerns. If I pamper your product as
recommended, may I expect twice the life? 1.1 times the
life? 1.00001 times the life? If he can't tell you, then
it's another manifestation of, dare I say ignorance
about the capabilities of his own product.
> The torque required for power generation is much larger than that
> contributed by rotor
> inertia and friction in automotive alternators.
Absolutely. And the major force in a belt, particularly
one with a small wrap angle around a small pulley is
static tension. Any additional forces attributable to
electrical loading of the alternator are a small fraction
of the total.
My points intended to illuminate the vacuousness of this
discussion are:
(1) "extra strain" under extra demand is a foregone
conclusion and should be accommodated by the skilled
designer as an expected and normal condition. The notion
that a customer should be advised to have concerns for
turning ANY electrical device on or off during the course
of normal operations is either baseless or an overt admission
that the alternator is not suited to the task. For example.
Assume XYZ Alternator Co were selling alternators across
the isle from AEC Alternator Co and a customer walked up to
me wanting to talk alternators. He says, "XYZ guys tell
me that it's a good thing to worry about when and
under what conditions I turn their product off and on.
What about YOUR product?"
Aside from an intense curiosity as to why they would so
limit their customer's utilization of their product, I would
confidently say, "Our alternators are as robust as any
offered to the DC powered vehicles market. We have no
such restrictions no matter what kind of system you anticipate
will utilize our product. I have no idea why they would make
such an assertion. However, knowing what I do about
alternators in general, I'll bet a dollar to a donut that
the folks in XYZ booth haven't a clue as to the physics
that control the functionality of their product and they're
simply repeating some hangar myth or mis-understanding."
(2) We can hypothesize about the term 'low rpm' and
accurately deduce that below minimum speed for regulation,
the constant speed-torque product does not apply and
there is no way that turning the alternator on-off
under any conditions exerts any more "strain" on the
system than when the alternator is turning faster than
minimum speed for full output. If they're talking about
speeds right at minimum speed for full output, then it's
true that maximum torque demanded by the alternator is
at its peak value. Depending on whether you have a 7.5"
or 9.7" ring gear pulley, and assuming 2.5" alternator
pulley and 6000 rpm for full output, this calls for prop
rpms of 2000 and 1540 as the "areas of concern" for
indiscriminate flipping of alternator switches.
If this is a REAL concern, then they should further
advise their customers to tape a colored arc to the
face glass of their tachometer to remind them when
alternator operating caution is called for. Hmmmm . . .
now, shall we make it 2000-2100? How about 2000 to
2200? I know, let's recommend switching the alternator
ON before engine start up, and OFF after engine shut down.
Switch at all other times is deleterious to system
longevity and to be avoided. This is silly on the face
of it. Anyone dispensing such advice is hurting both
themselves and their customers.
As I mentioned in another post, should I suggest
such a caution be added to the POH of any product I've
worked on, at a minimum I could expect a serious talk
between my boss and myself in his office . . . but
it would get a good laugh in a engineering coordination
meeting as my fellow designers would believe I was
making a joke.
I'll remind readers that while this thread title originally
suggested this is an issue for internally regulated
alternators. The physics that control mechanical
stresses is the same for both internally and externally
regulated machines. We've always designed DC power
generation systems for aircraft to accommodate positive
control by the pilot under any and all conditions
with both generators and alternators. If the OBAM
aircraft community is striving for performance and
utility equal to or better than what spam cans since
day-one, then trash-canning the "extra strain" concerns
for alternator operations is a good thing to do.
Bob . . .
Message 4
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Choosing a switch and learn how to |
wire it
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
wire it
At 10:32 AM 12/26/2005 -0800, you wrote:
>--> AeroElectric-List message posted by: Larry Mac Donald <lm4@juno.com>
>
>Bob,
> I have to agree. Your idea is simpler, and better.
> Although Carlos should make sure he has a switch that
>is rated at 130% of the ampacity of the total load.
>Larry Mac Donald
Switch "ratings" for use in personally owned and
operated light aircraft are almost meaningless.
Most switches in airplanes die of old age and effects
of the environment in which they live. I've replaced
or "cleaned" far more switches due to corroded contacts
and dis-use that switches that wore out due to failure
to observe ratings. See:
http://aeroelectric.com/articles/swtchrat.pdf
Bob . . .
Message 5
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Choosing a switch and learn how to |
wire it
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
wire it
At 01:29 AM 12/26/2005 -0500, you wrote:
>--> AeroElectric-List message posted by: Speedy11@aol.com
>
>"But it was my understanding that Carlos wanted to run one unit off one buss
>and both units off the other buss. Maybe I got that screwed up !"
>
>
>Larry and Old Bob,
>What Carlos said was,
>
>"what I want is a switch that has 1
>OFF position (no power for both EFIS units), 1 ON position (power from one
>source bus is feeding both units) and other ON position (power from 2nd
>source bus is feeding both units"
>
>So, I read it that He wants to power both EFIS units simultaneously with
>either bus.
>It seems as though Larry's solution would work.
If the goal is to insure SYSTEM reliability, has anyone
considered the potential consequences for driving power for
both systems through a single switch? May I suggest that
the idea of independent power sources via either dual batteries
or perhaps dual alternator is sufficient to insure that
power adequate to comfortably terminate any flight is always
available. After that, SYSTEM reliability benefits most
by hard-wiring dual systems to each of dual power sources
WITHOUT intermediate switches . . . and one certainly wants
to avoid single points of failure for both systems.
Bob . . .
Message 6
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | brass straps between contactors |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
Bob,
The lister was inquiring about "strapping" between the contactors. I wonder
if a 1/2" width is suffcient given the size of Contactor posts. It seems at
least a 3/4" or maybe 1" strip should be used. K&N has this in 0.64"
thicknesses. Here's a picture of what I just did. Do you think this will be
ok?
Good catch! Of course, cutting a .312" hole in a piece of material
only .500" wide doesn't leave much hole edge margin . . . only
about .090" per side. If done carefully, it's going to be okay.
Outcome of the task in .032" material may be problematic. Of course
it's okay to go both thicker and wider. Electrically, .032 x .50
(.016 square-in) is sufficient to the current carrying task given
the surface area and heat sinking afforded by the installation.
But as a practical matter, the neophyte builder will have a better
probability of success with .75" wide material (.22" edge margins)
and .064" thick for easier hole drilling (by all means use a
Unibit).
I've added your photo to the collection of examples for contactor
interconnect strapping at:
http://www.aeroelectric.com/Pictures/Wiring_Technique/Contactor_Interconnect
Thanks for sharing this with us. What you've fabricated is
most assuredly adequate to the task . . . perhaps bordering
on overkill but I wouldn't suggest you change a thing.
Bob . . .
Message 7
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Terminals for M22520/5-100 die |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
At 12:54 AM 12/26/2005 -0500, you wrote:
>--> AeroElectric-List message posted by: "Goguen, Jon"
><Jon.Goguen@umassmed.edu>
>
>Thanks Bob. I had a very curious conversation with Daniels trying to get
>this information. I told them which tool and die I had, and asked for
>reccomended terminals. I was told that they couldn't provide this
>information. However, they did say offer to confirm if the die would
>crimp a specific terminal if I provided the part number. I told them I
>had consulted their catalog, and that this die was the only one listed for
>crimping pre-insulated terminals from 10-26 AWG. No good. I was told
>that the proper sequence is to specifiy my terminals, then buy the
>tool. I suggested that if their computer could work the problem one way,
>it ought to also be workable the other way around. Nope. They then asked
>if I was in the aircraft industry, and I admitted my outsider
>status. They seemed releived to know this, and provided no more information.
>
>I was also unsuccessful in finding mil-spec status for either the PIDG or
>Avicrimp terminals, so would have been reduced to the experimental route
>if you hadn't come through. By the way, the Daniels HX-4 with this die
>seems to be quite common on Ebay and sells in $50 range.
I'm not surprised. In an world that seems hell-bent on "reducing cost"
by outsourcing and driving job descriptions out of policy and procedure
manuals, I'm finding that less and less folks who interact with
customers know much about the products they're offering.
With respect to your specific need for data, I found an AMP catalog
at:
http://www.tycoelectronics.com/aerospace/pdf/1308940_Sec_09.pdf
Do a search on "25036" and you'll discover that the AMP PIDG,
Ampli-Bond and Terminyl products have dash numbers under
MS25036. Given the nature of your tool's description and
compatibility with other mil-specs for the smaller terminals
suggests that the dash-numbers that Daniels had in mind for
your die-set include the PIDG series.
Do some test crimps and pull tests. The end result should not
look mashed (over crimped) and it should pass the pull tests
for up to 20 pounds of pull on 22AWG in a red PIDG terminal.
I'm 99% certain that your tool is find for this task.
Bob . . .
Message 8
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Canadian Aero (Niagara Air Parts) |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
Found installation instructions for the CAM-040 series
alternators here:
http://www.canadianaeromanufacturing.com/alt-instr.pdf
The most noteworthy items in the instructions is at the bottom
where we see the statement:
Conditions in which a very high draw is being made of the alternator at low
RPM will cause extra
strain on the alternator and drive belt. Consider reducing the total load
in these situations, or
switching the alternator off and drawing from the battery only, if the high
load will be brief.
I'll write to the technical support folks and see if they
can offer any clarification of the recommendation with either
better numbers on "high draw", "low rpm", "extra strain" etc.
I'll inquire further as to what benefits might be expected from
adopting an operating philosophy that embraces the cautionary
paragraph.
Finally, in other places on the website we see a link for an
overvoltage protection system:
http://www.canadianaeromanufacturing.com/ASP101-PIT%201.pdf
Amazingly similar to figure Z-24. I'll inquire also as to their
experience and recommendations for incorporating OV protection
with their product.
Watch this space . . .
Bob . . .
Message 9
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: More SD8 Installation Questions |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
>
> >
> > The safe, conservative thing to do is mount it inside. Lots
> > of folks have mounted them outside and have not reported
> > unsatisfactory service life . . . but this is purely anecdotal
> > along with any opinions offered one way or the other. If you WANT
> > to put it outside, then give it a try. Let us know what you
> > discover.
>
>But, most people install the SD-8 to have as a backup in case the
>main alternator fails. Main alternators don't fail that often, so I
>bet most installed SD-8s have never been used for very long. The
>apparently good service history might not mean that much.
You should understand that the SD-8 was the very first product
B&C brought to the OBAM aviation community. This would have
been about 25 years ago. This alternator was very popular
with Rutan's Variez builders looking for the ultimate in
light weight installations with no starter and minimum
battery. As the ONLY source of engine driven power, many
of these builders flew VFR night conditions where nav lts,
strobe and one radio were the only loads.
The SD-8 has a very long history as primary source of power
for some aircraft . . . it wasn't until I suggested the
all-electric airplane on a budget in 1999 . . .
http://aeroelectric.com/articles/allelect.pdf
. . . that the idea of replacing a vacuum pump with
the SD-8 really took off.
>No matter where you install it, if you are counting on it to power
>your electrical system with a certain electrical load, for a given
>duration, you should demonstrate this capability by actual test. If
>you haven't demonstrated the capability, including electrical load,
>duration and ambient temperature, you have no way of knowing whether
>the SD-8 (and regulator) will be able to do the job when needed. A
>short test is not sufficient, as it might not get the regulator up to
>its stabilized temperature.
Absolutely! We have to do this all the time in the certified
side. Confirming achievement of one's design goals by considered
testing is required for certified ships . . . the only thing that
keeps it from being "required" of OBAM aircraft is (1) the fact that
the FAA hasn't figured out a way to make it happen and/or (2)
the willingness some folks have to assume that all the stuff
they install will do the expected job. This works MOST of the
time but when it doesn't work, the problem invariably rests
on unanticipated installation variables . . . like the ability
of the rectifier-regulator to dump heat.
Nothing builds more confidence than going out to measure something
followed by another investigator's CONFIRMATION of results.
Variez builders have conducted the repeatable experiment on the
SD-8 for two decades . . . but when it comes to installation variables
we can only deduce that it's possible to duplicate the performance
in an RV-8 after we've taken the data and shared it for others
to confirm and/or rely on.
Bob . . .
Message 10
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re:More SD8 Installation Questions |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
At 09:21 AM 12/25/2005 -0800, you wrote:
>--> AeroElectric-List message posted by: "Mike Holland" <hollandm@pacbell.net>
>
>The poster doesn't indicate what flavor of RV he is building. If you
>install the regulator/capacitor/relay combination (and the relay is flimsy
>plastic)
"Flimsy"? Look under the hood of your car and find out how many
relays are non-flimsy metal. The S704-1 relay is a member of
a large family of products designed to live in the automotive
world. See:
http://relays.tycoelectronics.com/schrack/pdf/T9A.pdf
>, on the left side of the firewall of a 6,7 or 9, it will sit behind the
>oil cooler outlet and exposed to a blast of 150 - 200F+ air(on a hot
>climb-day).
Do you have some measured data on these temperatures? Is
there a cooler location forward of the firewall?
>If it were me, I'd find an "accessible" location on the cold side and put
>it there. The upper right side on a 7/9 might be OK but you'd need to
>move the brake reservoir.
>
>All this depends on battery location. If it's on the hotside you should
>watch out that you don't hang something above it too close that you can't
>remove it from the case for service or replacement.
Yup, the conservative thing to do is get it out of
the engine compartment . . . but this does not guarantee
anything. The rectifier-regulator generates its own heat
and unless accommodated for heat transfer into the mounting
surface, ambient temps won't have much to do with the
device's ultimate performance.
Bob . . .
Message 11
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Choosing a switch and learn how to wire it |
--> AeroElectric-List message posted by: "Carlos Trigo" <trigo@mail.telepac.pt>
----- Original Message -----
From: "Robert L. Nuckolls, III <nuckollsr@cox.net>
Subject: Re: AeroElectric-List: Re: Choosing a switch and learn how to wire
it
>>"what I want is a switch that has 1
>>OFF position (no power for both EFIS units), 1 ON position (power from one
>>source bus is feeding both units) and other ON position (power from 2nd
>>source bus is feeding both units"
>>
>>So, I read it that He wants to power both EFIS units simultaneously with
>>either bus.
>>It seems as though Larry's solution would work.
>
> If the goal is to insure SYSTEM reliability, has anyone
> considered the potential consequences for driving power for
> both systems through a single switch? May I suggest that
> the idea of independent power sources via either dual batteries
> or perhaps dual alternator is sufficient to insure that
> power adequate to comfortably terminate any flight is always
> available. After that, SYSTEM reliability benefits most
> by hard-wiring dual systems to each of dual power sources
> WITHOUT intermediate switches . . . and one certainly wants
> to avoid single points of failure for both systems.
>
> Bob . . .
Bob
This is not a Dual System. This is a system (GRT-EFIS) with 2 separate
units, the Multi Function Display and the AHRS (actually 3 but the
magnetometer gets power from the AHRS), both needing power, and both
admitting 3 sources of power. I intend to use 2 sources of power in each
unit, coming from 2 different busses (the ExpBus and the Aux Battery bus).
Are you suggesting that I should connect the MFD Unit and the AHRS unit
directly to both power busses?
In that case, from what source are both units going to get the juice?
And what about if I want to fly with the EFIS turned Off (for example in a
local flight or a simple test flight) ? Or in a cross country flight if the
alternator go south and I simply need to turn Off the EFIS to save power?
How can I achieve it without a switch?
Thanks
Carlos
Message 12
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Requesting Peer Review of Electrical Architecture |
INNOCENT GLOBAL 0.0433 1.0000 -1.7424
--> AeroElectric-List message posted by: <bakerocb@cox.net>
Responding to an AeroElectric-List message previously posted by Jeff Smith
<SMITHBKN@aol.com
<<A new Email List Photo Share is available:
Poster: Jeff Smith <SMITHBKN@aol.com>
Lists: AeroElectric-List
Subject: Requesting Peer Review of Electrical Architecture
http://www.matronics.com/photoshare/SMITHBKN@aol.com.12.25.2005/index.html>>
12/26/2005
Hello Jeff, It appears that when you are operating on the endurance bus only
(altitude encoder not functioning) that you will not be in compliance with
14 CFR Sec. 91.215. Do you concur? Is this of concern to you?
OC
Message 13
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: More SD8 Installation Questions |
--> AeroElectric-List message posted by: Werner Schneider <glastar@gmx.net>
Hello Bob
> This alternator was very popular
> with Rutan's Variez builders looking for the ultimate in
> light weight installations with no starter and minimum
> battery. As the ONLY source of engine driven power, many
> of these builders flew VFR night conditions where nav lts,
> strobe and one radio were the only loads.
>
>
As far as I know they had a Conti O-200 so they had the 1 : 1.5 gear
From my old load analysis this would be (measured with 12.5 V):
Strobes 3.1 A
Nav 3.96 A
Position 3.44 A
KX-125 0.4 A
In cruise with 12.5 V I see that the SD-8 delivers around 10.6 A the
load without transmission would be according the numbers I measured on
my Aeroflash units 10.9 A. Did I calculate someting wrong or did they
use lower consumation units? The advantage without starter is, that the
battery is still plenty full, but on the ground we would drain the whole
load on the battery only and in cruise we just generate as much energy
as in a NVFR situation is used. I guess this is a thight situation on
the electrical side and one has to make a good calculation as to decide
what to do.
Werner
Message 14
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Choosing a switch and learn how to |
wire it
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
wire it
>
>Bob
>
>This is not a Dual System. This is a system (GRT-EFIS) with 2 separate
>units, the Multi Function Display and the AHRS (actually 3 but the
>magnetometer gets power from the AHRS), both needing power, and both
>admitting 3 sources of power. I intend to use 2 sources of power in each
>unit, coming from 2 different busses (the ExpBus and the Aux Battery bus).
>Are you suggesting that I should connect the MFD Unit and the AHRS unit
>directly to both power busses?
What does the manufacturer suggest? When I design gizmos for multiple
power sources, there are two or more pins that hard-wire to two or
more sources and automatic switching inside my product. Any need for
pilot intervention is avoided where ever possible.
Can you send me wiring diagrams? Are installation instructions
downloadable from their website?
>In that case, from what source are both units going to get the juice?
>And what about if I want to fly with the EFIS turned Off (for example in a
>local flight or a simple test flight) ? Or in a cross country flight if the
>alternator go south and I simply need to turn Off the EFIS to save power?
>How can I achieve it without a switch?
How does your load analysis stack up that you would
find yourself in a "save power" mode? These devices
use so little energy that I would think you can easily
craft an endurance mode that would make shutting the
EFIS off unnecessary.
If there are no EFIS controls for independent control of
activity and you believe there is value in shutting the system
off, then a switch becomes necessary. I'd like to understand
the imperative for ever shutting it off. We don't do it
on any of our glass-cockpits at RAC.
Bob . . .
Message 15
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Yet another crimper question |
--> AeroElectric-List message posted by: MLWynn@aol.com
Hi Bob,

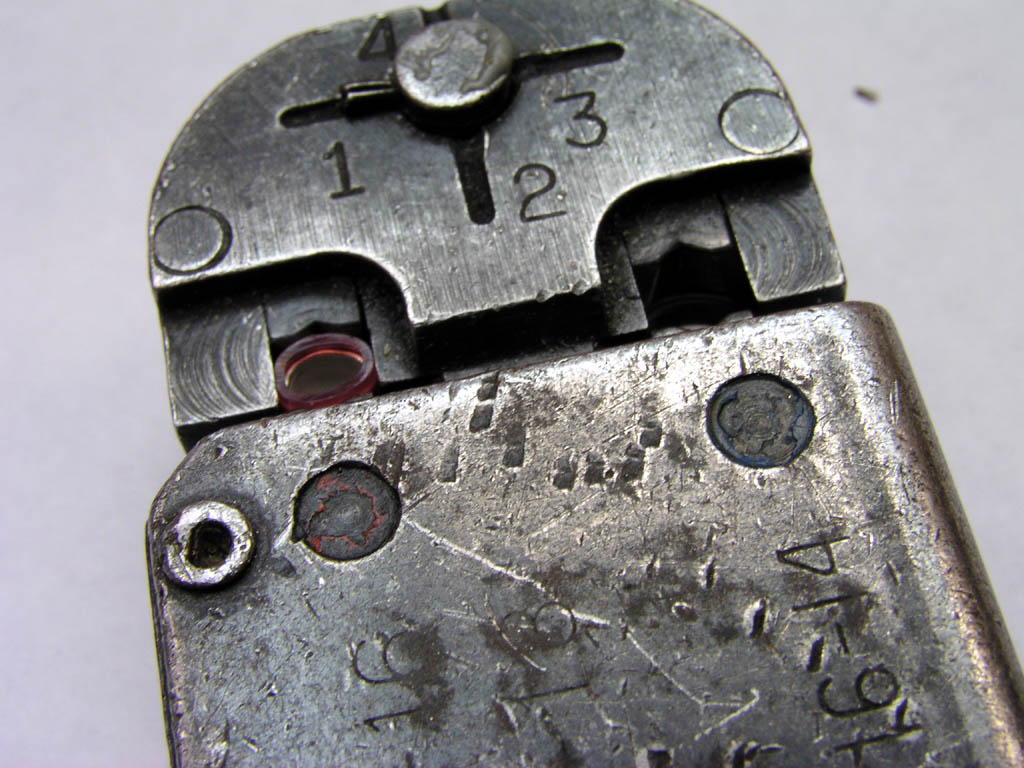

I acquired a used AMP 59250 T-head crimper. Seems to be in almost new
condition. It did not come with instructions and I have been puzzling about what
the little dial at the top is for (for that matter, how exactly do I use this
thing in general). Do you know of somewhere that TYCO/AMP has instructions
for use? I couldn't find it anywhere on their web site. Meanwhile, I sent
to B & C for a bunch of connectors and will start experimenting with the
crimper.
An ongoing thanks for all your time and insights.
Regards,
Michael Wynn
RV 8 Wings
San Ramon, CA 94583
Message 16
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Requesting Peer Review of Electrical Architecture |
--> AeroElectric-List message posted by: Kevin Horton <khorton01@rogers.com>
On 26 Dec 2005, at 16:06, <bakerocb@cox.net> <bakerocb@cox.net> wrote:
> --> AeroElectric-List message posted by: <bakerocb@cox.net>
>
> Responding to an AeroElectric-List message previously posted by
> Jeff Smith
> <SMITHBKN@aol.com
>
> <<A new Email List Photo Share is available:
>
> Poster: Jeff Smith <SMITHBKN@aol.com>
>
> Lists: AeroElectric-List
>
> Subject: Requesting Peer Review of Electrical Architecture
>
> http://www.matronics.com/photoshare/SMITHBKN@aol.com.
> 12.25.2005/index.html>>
>
> 12/26/2005
>
> Hello Jeff, It appears that when you are operating on the endurance
> bus only
> (altitude encoder not functioning) that you will not be in
> compliance with
> 14 CFR Sec. 91.215. Do you concur? Is this of concern to you?
But, this should only occur following an electrical failure. If we
have to comply with all the FARs following a systems failure, we had
better install dual transponders, dual everything else, and a second
engine.
Kevin Horton RV-8 (finishing kit)
Ottawa, Canada
http://www.kilohotel.com/rv8
Message 17
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Manual Battery switches |
--> AeroElectric-List message posted by: Speedy11@aol.com
I can attempt to describe my manual battery switch plan. Alternatively, if
you are familiar with RV-8 construction, you can see how I've installed the
switches at www.rv-8a.net at the end of the Chronology page. You can also find
electrical info on the Electrical page.
I have two battery switches, one for the front (I call it the Main) battery
and one for the aft (I call it the Standby) battery. I'm planning a 4AWG (or
maybe 6AWG) cable from the main battery to the manual switch (distance of about
22") with a 200A fuse at the battery end. Then from the manual switch back
to the battery compartment to attach to the starter contactor (hmmm...I suppose
I could use a manual switch instead of a contactor for the starter). At that
same connction to the starter contactor, I would take power to the main bus.
Is 22" too far from the battery to have manual switches?
For the aft standby battery, the manual switch is even farther from the
battery - about six feet of #8 wire.
Stan Sutterfield
>Have any builders opted to use manual battery switches? If so, do they work
>well? Any problem with the "keys?" Is there a way to paint the red plastic
>keys?
>I'm thinking about having a key machined out of aluminum if the plastic key
>cannot be painted.
>Stan Sutterfield
????Why???? . . . manual battery switches are perfectly
fine replacements for contactors. Many of the first
electrically fitted airplanes used them along with
manual starter switches.
But a manual battery switch needs to be as close to
the battery as your contactor would have been. Unless
your battery is handy to the pilot's seat, the battery
switch is not going to be handy either. I've known
several builders over the years who have crafted
Bowden controls to remotely operate a manual battery
switch. In this case, the 'key' was replaced with
a belcrank that translated the push-pull action of
a Bowden control into a rotary motion required by
the battery switch.
Can you describe your proposed installation in more
detail?
Message 18
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Ground Fault Protection For Rear Battery Cable |
--> AeroElectric-List message posted by: "Jerry Grimmonpre" <jerry@mc.net>
Bob and everyone else ...
When considering a ground fault, what is best used to protect a #4 cable
run, from the rear battery, in an RV, while powering a bus?
What is best used to protect this same #4 cable, when it is in parallel with
the front battery and charging current is flowing to the rear batt?
Thanks ...
Jerry Grimmonpre'
RV8A
Message 19
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Yet another crimper question |
--> AeroElectric-List message posted by: "Robert L. Nuckolls, III" <nuckollsr@cox.net>
At 05:52 PM 12/26/2005 -0500, you wrote:
>--> AeroElectric-List message posted by: MLWynn@aol.com
>
>Hi Bob,
>
>I acquired a used AMP 59250 T-head crimper. Seems to be in almost new
>condition. It did not come with instructions and I have been
>puzzling about what
>the little dial at the top is for (for that matter, how exactly do I use
>this
>thing in general). Do you know of somewhere that TYCO/AMP has instructions
>for use? I couldn't find it anywhere on their web site. Meanwhile, I sent
>to B & C for a bunch of connectors and will start experimenting with the
>crimper.
>
>An ongoing thanks for all your time and insights.
The "dial" is used to set crimp height on insulation only.
This allows the fabricator to accommodate the thinnest (22769/16)
to thickest (automotive PVC) wires. For 99% of your terminals,
"1" is appropriate. If you want to put multiple wires into a
single crimp as described in:
http://aeroelectric.com/articles/multiplewires/multiplewires.html
Then some number above "1" will open the dies as appropriate
to the bulkier insulations. This feature is discussed in:
http://www.aeroelectric.com/articles/CrimpTools/crimptools.html
and illustrated close up in:
http://www.aeroelectric.com/articles/CrimpTools/JR.jpg
Bob . . .
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
