Subject: | Re: PTT Y adapter for RST intercom |
I read this in the RST 442 documentation this morning:
Some push-to-transmit switches are designed only for use with headsets and radios
and leave the
microphone audio line (this is the "ring" portion of the microphone plug) connected
to the radio even
when the radio is not transmitting. Since some radios ground (disable) the microphone
audio in receive
mode, this type of PTT switch is unsuitable for use with an intercom system. If
you already have PTT
switches in the aircraft you may wish to try them with your intercom. If, however,
you find that you
lose intercom function (microphones are weak, distorted, or dead) when you plug
the "PILOT ICS" and
"COPILOT ICS" plugs into the COM radio via these PTT switches you will need to
either 1) change to a
model switch which opens the audio line when not transmitting or 2) consult your
local radio shop and
have a relay installed to achieve the same effect.
I found out my Dynon DX15 handheld radio sends power to the mic only when transmitting,
so my last schematic wouldn't work. They suggested using DPDT switches
for the PTT's. Unfortunately, the gatekeeper to the engineer I was corresponding
with has cut me off, so I can't get any more answers from them.

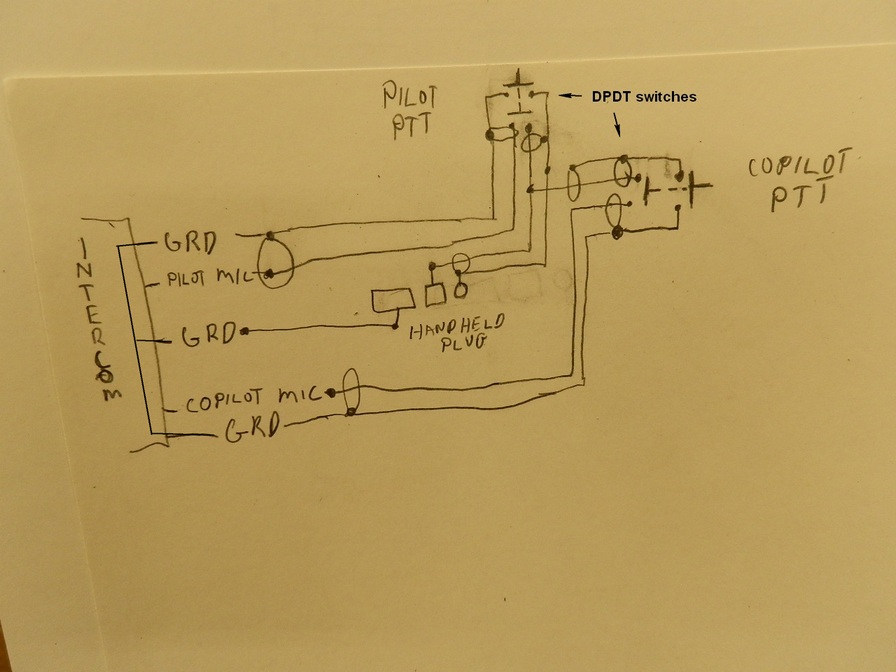

I drew what I hope will work for me. I would use 4 pieces of single conductor shielded
wire with the braided shield carrying ground current. The intercom has
extra ground wires coming out of it, so that's already set. An additional unshielded
ground wire would go from the intercom to the shell of the plug to the
handheld radio.
How does this look?
BTW, is it common for radios to operate this way?
--------
Dan
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=359044#359044
