AeroElectric-List Digest Archive

Sat 01/21/17


Total Messages Posted: 9



Today's Message Index:
----------------------

     1. 03:27 AM - schematic software (Roger Sherriff)
     2. 04:30 AM - Visio symbols (Josh Tinkham)
     3. 05:18 AM - Re: Re: Dual Battery design (Robert L. Nuckolls, III)
     4. 05:26 AM - Re: Re: Starter Contactors (Robert L. Nuckolls, III)
     5. 05:45 AM - Re: Re: Starter Contactors (C&K)
     6. 09:26 AM - Re: Starter Contactors (reaper)
     7. 09:37 AM - Re: schematic software (reaper)
     8. 10:02 AM - Re: Re: Starter Contactors (Charlie England)
     9. 10:12 AM - Re: Starter Contactors (reaper)





Message 1


  • INDEX
  • Back to Main INDEX
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 03:27:23 AM PST US
    From: Roger Sherriff <rogsherriff@hotmail.com>
    Subject: schematic software
    Hi List, Where can I get hold of the software for a Macbook used to make the schemat ics often seen here and in the AEC? Thank you, Roger.


    Message 2


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 04:30:58 AM PST US
    From: Josh Tinkham <unitink72@gmail.com>
    Subject: Visio symbols
    Starting to draw out my power distrobution diagram, would like to use the AeroElectric symbols. I found them on github (https://github.com/ crrobinson14/aeroelectric_visio) but they are a really old version. My visio install has a security setting (that I cannot change) that won't allow pre-2002 files to be imported. Does anyone have a newer version of this library?


    Message 3


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 05:18:03 AM PST US
    From: "Robert L. Nuckolls, III" <nuckolls.bob@aeroelectric.com>
    Subject: Re: Dual Battery design
    At 03:42 PM 1/20/2017, you wrote: > >Thanks Bob. I remember reading sometime back about a proposed >alternative to the Z-19 dual battery design. Is there one that has >still not been published in the book? Let's back up a bit. What is it about Z-19 that makes it attractive to your project? Keep in mind that the z-figures are not 'wire books'. They do not propose to SPECIFY sizes of wires, size/style of protection, size or type of battery(ies), size of alternators, style of switches, etc. They are illustrations that suggest architectures that strive for the elegant solution to meeting design goals that FIT your machine/mission profiles. M/MP. Z-14 MIGHT make sense for a Lancair IVP, but Z-13/8 could very well accomplish the builder's M/MP. The Z-figures do indeed show some SIZED protective devices and similarly sized wires . . . but EVERY component you choose to install should be verified for suitability to task and evaluated for how it fits into your failure mode effects analysis. How can it fail? How would I know it failed in flight? Would failure present an unacceptable level of risk to comfortable termination of flight? Is the failure pre-flight detectable? What is my Plan-B for making such failures a simple maintenance issue as opposed to an emergency? So tell us about your project. How to do plan to use it? In your cruise down the isles of simple ideas in the 'Connection, what features offered seem a best-fit for design goals based on your M/MP? The Dual battery concepts were crafted in response to the rise in interest for using electrically dependent engines in aircraft. HOWEVER, having an electrically dependent engine does not necessarily dictate that two batteries are the best choice. Let's talk about it . . . Bob . . .


    Message 4


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 05:26:18 AM PST US
    From: "Robert L. Nuckolls, III" <nuckolls.bob@aeroelectric.com>
    Subject: Re: Starter Contactors

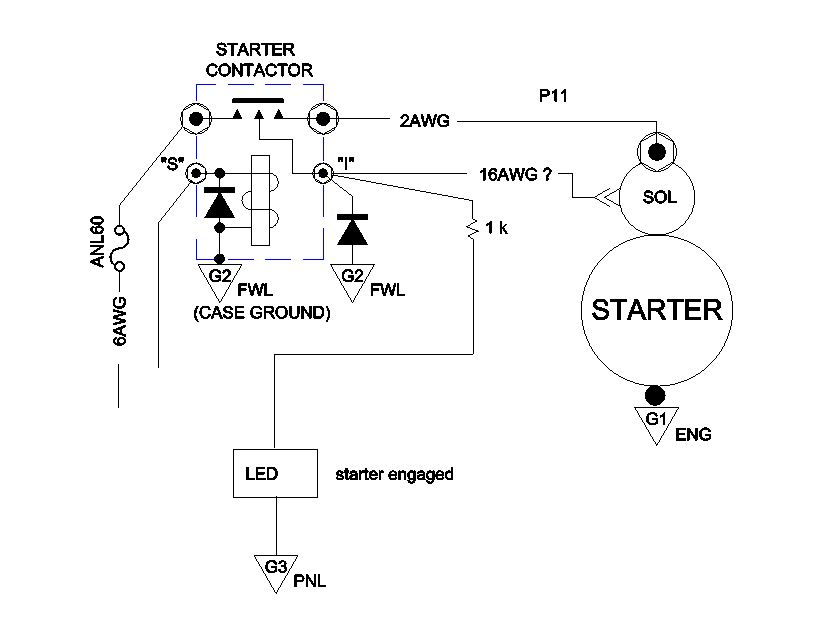

    >If I wanted to add a starter engaged light connected to "I" while >using that terminal to engage the starter solenoid would it work to >place a good sized resistor in series with the lamp? If your 'lamp' is an LED, it will REQUIRE some series resistance to set the operating current for the device. Some LED fixtures offered as "12 volt" operation already have a resistor installed. If your proposed LED installation does not have the necessary resistor, then you'll need to add it. Putting it into the wire at or near the "I" terminal. Here's one way to do it. http://tinyurl.com/kyc6tq6 If there's already a resistor in your fixture, ADDING some more ohms at the "I" terminal would eliminate the need for a fuse while not seriously affecting LED intensity in the cockpit. A 100 ohm, 1-Watt resistor is mechanically robust and easy to incorporate into the wire. Bob . . .


    Message 5


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 05:45:25 AM PST US
    Subject: Re: Starter Contactors
    From: C&K <yellowduckduo@gmail.com>
    Many marine and aftermarket key switches have a substantial rating such as 25 Amps on the package which has mislead me in the past. That rating is often the total contact rating. ie 5 for starter, 10 for ignition, and 10 for accessories. Nevertheless in my case the starting contacts are still working fine after several thousand starts wired directly to the solenoid and with the recommended diode. My subaru starter solenoid has two windings so that the pull in current is quite high (more than 30 amps) but then after pull in, only the second winding flows current (about 9 amps) . Ken On 20/01/2017 11:21 PM, reaper wrote: > > > nuckolls.bob(at)aeroelect wrote: >> At 03:51 PM 6/25/2015, you wrote: >> >>> >>> Just curious what the advantage might be to wiring according to Skytec. You get rid of starter relay, but you have to replace standard aviation mag/starter switch with one that will carry 30 amps of current, or roughly 360 watts. Does anyone even make an ignition switch that can handle that load, or would you have to split off the starter to a separate toggle that can handle the current? >> That 30A number is exceedingly transient. >> Further, switches are 'rated' in rather >> conventional sense that strives for tens >> of thousands of operating cycles at the >> specified load. >> >> The starter engagement switch in an airplane >> sees only hundreds of cycles per year and >> most even fewer. >> >> The AD against the legacy ACS510 was a response >> to the extra ordinary wear for having been >> tasked with controlling the modern solenoid- >> contactor where a major improvement in service >> life was achieved by simply adding the diode to >> mitigate contact-opening stress as opposed >> to contact closure stresses. This fix alone seems >> to have achieve a satisfactory service life >> when driving the solenoid-contactor. >> >> There are some solid state options for relieving >> stresses on the starter switch. A device like >> the BTS50055 hi-side switch from Infineon can >> be incorporated as a robust, solid state switch >> to handle the solenoid-coil current thus dropping >> switch current to mere milliamps. >> >> http://tinyurl.com/q9q5h74 >> >> There is another option for adding the external >> contactor on a PM starter and dealing with the >> run-on problem. >> >> [img]cid:.0[/img] >> >> You can use the contactor's "I" terminal >> to energize the solenoid-contactor yet >> release it the same time that the starter >> switch opens. >> >> It seems that there are a lot more after market >> opportunities to buffer the load presented >> to and EXISTING or legacy start switch than >> there is to replace it with something with >> an extra-ordinary specification for robustness. >> >> >> >> >> Bob . . . > > If I wanted to add a starter engaged light connected to "I" while using that terminal to engage the starter solenoid would it work to place a good sized resistor in series with the lamp? > > dave > > > Read this topic online here: > > http://forums.matronics.com/viewtopic.php?p=465297#465297 > >


    Message 6


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 09:26:58 AM PST US
    Subject: Re: Starter Contactors
    From: "reaper" <grimmer.de@gmail.com>
    nuckolls.bob(at)aeroelect wrote: > > > If I wanted to add a starter engaged light connected to "I" while using that terminal to engage the starter solenoid would it work to place a good sized resistor in series with the lamp? > > If your 'lamp' is an LED, it will REQUIRE > some series resistance to set the operating > current for the device. Some LED fixtures > offered as "12 volt" operation already have > a resistor installed. > > If your proposed LED installation does not > have the necessary resistor, then you'll need > to add it. Putting it into the wire at or near > the "I" terminal. Here's one way to do it. > > http://tinyurl.com/kyc6tq6 (http://tinyurl.com/kyc6tq6) > > If there's already a resistor in your fixture, > ADDING some more ohms at the "I" terminal > would eliminate the need for a fuse while > not seriously affecting LED intensity in > the cockpit. A 100 ohm, 1-Watt resistor is > mechanically robust and easy to incorporate > into the wire. > > > Bob . . . Something along these lines? Read this topic online here: http://forums.matronics.com/viewtopic.php?p=465311#465311 Attachments: http://forums.matronics.com//files/strwrn_729.jpg


    Message 7


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 09:37:55 AM PST US
    Subject: Re: schematic software
    From: "reaper" <grimmer.de@gmail.com>
    Dassault Draftsight: I've been using the Windows version, but they have a beta OsX version which I expect would work. Opens the 'connection dwg files just fine. http://www.3ds.com/products-services/draftsight-cad-software/free-download/ Read this topic online here: http://forums.matronics.com/viewtopic.php?p=465312#465312


    Message 8


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 10:02:17 AM PST US
    From: Charlie England <ceengland7@gmail.com>
    Subject: Re: Starter Contactors
    On Sat, Jan 21, 2017 at 11:24 AM, reaper <grimmer.de@gmail.com> wrote: > > > nuckolls.bob(at)aeroelect wrote: > > > > > If I wanted to add a starter engaged light connected to "I" while > using that terminal to engage the starter solenoid would it work to place a > good sized resistor in series with the lamp? > > > > If your 'lamp' is an LED, it will REQUIRE > > some series resistance to set the operating > > current for the device. Some LED fixtures > > offered as "12 volt" operation already have > > a resistor installed. > > > > If your proposed LED installation does not > > have the necessary resistor, then you'll need > > to add it. Putting it into the wire at or near > > the "I" terminal. Here's one way to do it. > > > > http://tinyurl.com/kyc6tq6 (http://tinyurl.com/kyc6tq6) > > > > If there's already a resistor in your fixture, > > ADDING some more ohms at the "I" terminal > > would eliminate the need for a fuse while > > not seriously affecting LED intensity in > > the cockpit. A 100 ohm, 1-Watt resistor is > > mechanically robust and easy to incorporate > > into the wire. > > > > > > Bob . . . > > > Something along these lines? > Why the anl60? Starter current could blow it, and if the start contactor > is next to the master contactor, no protection is needed.


    Message 9


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 10:12:37 AM PST US
    Subject: Re: Starter Contactors
    From: "reaper" <grimmer.de@gmail.com>
    Sorry, The wire from the battery is not depicted. The battery is 12 feet away. The ANL 60 is from the Alternator B lead. Read this topic online here: http://forums.matronics.com/viewtopic.php?p=465314#465314
