| Subject: | Do I need a Pull Up resistor? |
Hi All,
Still plugging along...I know you all have been pulling for me!!!
The question is...did I buy the wrong magnetic sensor...or...do I need the
"Pull Up Resistor" as shown in the attached "Open Collector Sinking Block
Diagram"?
As a recap on my project
I built a fiberglass air filter box with a small door that will be pop open
if the air filter becomes blocked with ice and I bought a MP1007 Series
Magnetic sensor to monitor my air filter bypass door through my Dynon
Skyview Engine Monitor System.
I am currently bench testing the sensor with it hanging in open air and I
hold a small magnet near the sensor or away from the sensor.
Pin 8 of my Dynon EMS is going to monitor the following two items:
-Dynon Pitot tube heater failure. The Dynon pitot tube control box has a
white wire that is open when the heater is working properly and then when
the heater system is off or failed the system connects the white wire to
ground. Because of the logic of the Dynon pitot heater system I set up the
EMS Pin 8 to watch for a ground and if it sees a path to ground the
indicator on my EMS screen shows an amber dot and the word "ICE" (indicating
a failure of the Dynon pitot tube heater) and when the pin does not register
a path to ground the indicator is black and disappears from the screen.
This setup is working perfectly.
-Air filter door position. This will be monitored by the MP1007 sensor
however the sensor logic is working opposite of what I expected. I thought
the black output wire of the MP1007 sensor would be open when the magnet
target is close to the sensor (like when the air door is closed) and then
when the magnet is pulled away from the sensor (like when the air door pops
open) the black output wire would connect to ground...however it is exactly
opposite meaning magnet close = black wire grounded and magnet away = black
wire is open.
IF...this sensor works like I want it to then the it would work perfectly
and in parallel with my Dynon pitot heater.
I have connected the following wires of the sensor to my airplane system:
Sensor Wire Airplane Wire
BRN Pin 18 of the Dynon EMS system (this is a 5 VDC source)
BLK Pin 8 of the Dynon EMS (this is a "general purpose" sensor
described above)
BLU Ground
The MP1007 sensor instructions state:
Open Collector (NPN)
-Output switches low (off) when the magnetic field at the sensor exceeds the
operate point threshold
-Output switches high (on) when the magnetic field is reduced to below the
release point threshold
Any help or well wishes would be GREATLY APPRECIATED!!!
..
Cheers!!!
Bill Hunter
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Do I need a Pull Up resistor? |
Bill,
Do you have a SkyView or D-180 or what?
Do you have to connect the pitot sensor and magnetic sensor to the same EMS input?
Is there another input that you can use?
Yeah, the data sheet is confusing. It says "OFF" when the transistor is actually
on. If you ignore the "ON" and "OFF" and just read the rest of the text, it
makes sense. It sounds like the sensor is working properly, a close magnet
causes the output to go low. If you want the signal inverted, another transistor
can do it.
--------
Joe Gores
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=471418#471418
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Do I need a Pull Up resistor? |
Thanks Joe I knew I could count on you!!!
> Do you have a SkyView or D-180 or what?
Skyview 1000
>Do you have to connect the pitot sensor and magnetic sensor to the same
EMS input? Is there another input that you can use?
I have used all of the input pins so I thought that it would be cleaver to
combine the ice systems into one sensor pin.
>Yeah, the data sheet is confusing. It says "OFF" when the transistor is
actually on. If you ignore the "ON" and "OFF" and just read the rest of
the text, it makes sense. It sounds like the sensor is working properly, a

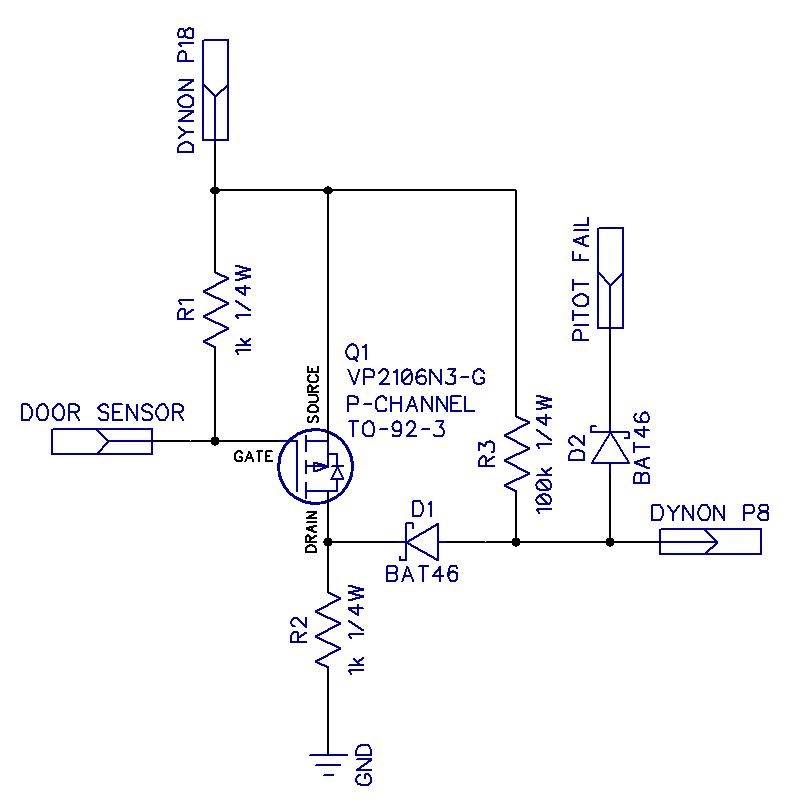

close magnet causes the output to go low. If you want the signal
inverted, another transistor can do it.
I assume that "another transistor" means I need to buy a "another sensor"?
Do you by chance know what the name of the correct unit will be? Regular
switches are called Normally Open or Normally Open so what would a Normally
Closed sensor be called?
THANKS AGAIN!!!
Bill Hunter
On Aug 1, 2017 8:27 PM, "user9253" <fransew@gmail.com> wrote:
>
> Bill,
> Do you have a SkyView or D-180 or what?
> Do you have to connect the pitot sensor and magnetic sensor to the same
> EMS input? Is there another input that you can use?
> Yeah, the data sheet is confusing. It says "OFF" when the transistor is
> actually on. If you ignore the "ON" and "OFF" and just read the rest of
> the text, it makes sense. It sounds like the sensor is working properly, a
> close magnet causes the output to go low. If you want the signal inverted,
> another transistor can do it.
>
> --------
> Joe Gores
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=471418#471418
>
>
