Subject: | Re: Bose ANR Jacks and Grounding, Alternator AC Limits |
Roger... Thanks Don!
I'm attempting to keep good notes on what you have done for possible troubleshooting
later on.
--------
Airdog
Wade Parton
Building Long-EZ N916WP
www.longezpush.com
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=476356#476356
Message 2
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: stacking ring terminals or ? |
Ken, The rectifier/regulator output will be unstable without a battery. The voltage
will fluctuate plus and minus about one volt. At least it did in my Rotax
powered RV-12 without the battery connected. Maybe your Silent-Hektik regulator
will do better. Even if the voltage is unstable, chances are that the fuel
pump will still operate normally. The capacitor does not seem to help much.
--------
Joe Gores
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=476357#476357
Message 3
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: diode vs snapjack |
At 03:54 PM 12/11/2017, you wrote:
>Which is better for use on relays, the "standard" diode or the
>"snapjack" (bi-directional zener transient voltage suppressor)?
>
>Ken
Diodes are fine . . . there were some lengthy discussions
on the 'advantages' of voltage compliant spike suppression
about 10 years. A great deal of homage was paid
to a document published by Tyco no less wherein the author
claimed that hard clamping of the coil spike by diode
slowed contact spreading velocity and increased wear and
tear on the relay.
Yes, the diode causes a DELAY in the first motion
of the opening contacts . . . but before the contacts
start to move, an AIR GAP is introduced into the
magnetic circuit that generates the closing force.
This air gap has many times more effect on contact
spreading velocity than does the decay rate of current
in the coil.
The Tyco author laid all his eggs in the magnetic
force decay due to current in the coil and totally
ignored the air gap effects. A simple workbench
experiment would have illuminated his attribution
error for cause/effect.
I spent a few years sifting the sands of relay performance
and failures at Beech. Many of the young bucks wearing the
boots of their predecessors as engineering reps for relay
and contactor manufacturers were glaringly deficient in
mentorship by those predecessors . . .
Bob . . .
Message 4
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: stacking ring terminals or ? |
Joe, I followed your testing. Most people I have talked to agree with you
that the fuel pump should perform normally even with the unstable voltage.
It will be interesting to see what happens.
The Silent-Hektik calls for a larger 33000 capacitor. I wonder if a larger
capacitor might smooth out the Ducati. Speaking of capacitors, I spent some
time yesterday trying to figure out which one to buy for the Silent-Hektik
reg/rect. The selection is mind boggling. I currently have a 22000
purchased from B&C. It is a Mallory which apparently is made by Cornell
Dubilier. Based on that I came up with this one for the Silent-Hektik: [link
to mouser].
<https://www.mouser.com/ProductDetail/Cornell-Dubilier/CGS333U040V4C/?qs=LBSuk5OfdfspV7J1vBwfvw%3d%3d>
Do
you think this is the right one? Is there any reason that I could not use
the 33000 with the Ducati reg/rect?
For those interested in the Silent-Hektik, it looks like they have changed
the charging profile to be more friendly with lithium batteries. Here is a
google translation of some text from their website talking about this new
charging profile:
<snip>
The Silent Hustle 5Step charging technology for lithium-ion batteries
The new controller can be used by the 5Step charging technology as well as
for previous lead batteries, but especially for the modern ion batteries.
The ion batteries have the advantage of delivering a very high starting
current for small hubs and low weight. However, this low battery impedance
has a serious disadvantage when charging. After starting the battery is
dead and it can float well over 20A. Therefore, the ion battery is
initially pre-charged with 13V, which significantly reduces the initial
charging current and overheating. Then with five steps in about 30 minutes
to 14.2V gently recharged. After 90 minutes, then on trickle loading
switched. This is a perfect ion battery charging management with charging
current control that reduces overheating and overcharging to 90%. The
development of the new regulator was carried out in our house with A123
LiFePO4 cells, 14V 7.5Hh, and is recommended as a very reliable lithium-ion
starter battery.
<snip>
Ken
On Tue, Dec 12, 2017 at 6:54 AM, user9253 <fransew@gmail.com> wrote:
>
> Ken, The rectifier/regulator output will be unstable without a battery.
> The voltage will fluctuate plus and minus about one volt. At least it did
> in my Rotax powered RV-12 without the battery connected. Maybe your
> Silent-Hektik regulator will do better. Even if the voltage is unstable,
> chances are that the fuel pump will still operate normally. The capacitor
> does not seem to help much.
>
> --------
> Joe Gores
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=476357#476357
>
>
Message 5
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: diode vs snapjack |
Thanks Bob. Is there any disadvantage to the snapjacks?
On Tue, Dec 12, 2017 at 7:57 AM, Robert L. Nuckolls, III <
nuckolls.bob@aeroelectric.com> wrote:
> At 03:54 PM 12/11/2017, you wrote:
>
> Which is better for use on relays, the "standard" diode or the "snapjack"
> (bi-directional zener transient voltage suppressor)?
>
> Ken
>
>
> Diodes are fine . . . there were some lengthy discussions
> on the 'advantages' of voltage compliant spike suppression
> about 10 years. A great deal of homage was paid
> to a document published by Tyco no less wherein the author
> claimed that hard clamping of the coil spike by diode
> slowed contact spreading velocity and increased wear and
> tear on the relay.
>
> Yes, the diode causes a DELAY in the first motion
> of the opening contacts . . . but before the contacts
> start to move, an AIR GAP is introduced into the
> magnetic circuit that generates the closing force.
> This air gap has many times more effect on contact
> spreading velocity than does the decay rate of current
> in the coil.
>
> The Tyco author laid all his eggs in the magnetic
> force decay due to current in the coil and totally
> ignored the air gap effects. A simple workbench
> experiment would have illuminated his attribution
> error for cause/effect.
>
> I spent a few years sifting the sands of relay performance
> and failures at Beech. Many of the young bucks wearing the
> boots of their predecessors as engineering reps for relay
> and contactor manufacturers were glaringly deficient in
> mentorship by those predecessors . . .
>
> Bob . . .
>
Message 6
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: diode vs snapjack |
At 11:37 AM 12/12/2017, you wrote:
>Thanks Bob. Is there any disadvantage to the snapjacks?
costs more
Bob . . .
Message 7
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: stacking ring terminals or ? |
I am not an expert on capacitors, so maybe someone more knowledgeable will chime
in. I do not think replacing the 22,000 microfarad capacitor with a 33000 will
affect the Ducati regulator. I don't know how much good a capacitor does
in smoothing out the voltage. A capacitor would have to accept and store a whole
lot of electrons being pushed out by the dynamo voltage peaks. And then the
capacitor would have to supply that stored energy to the pump motor during
voltage sags. The capacitor just doesn't seem big enough compared to the size
of dynamo and motor. If the capacitor is big enough, then why is the voltage
unstable when the battery is disconnected?
--------
Joe Gores
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=476364#476364
Message 8
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | RE: AeroElectric-List Digest: Garmin SL-30 |
Andy:
I bought an SL-30 brand new when I was building my RV but it sat on the
shelf for 5 years before the airplane flew. I did the wiring of the
airplane, which has a full IFR stack of UPS AT gear. The radio received
well but had a bit of scratchy transmission and there were a couple times
that I noticed it causing my electric pitch trim to move when I keyed the
Mike. Also, I have a comant dual element VOR/ILS antenna under the vertical
stabilizer on the bottom of the fuselage. While this would seem like a good
place to put it, my VOR reception has not been great out past 25 miles or so
from a VOR. Spotty between 20 and 25 but rock solid below 20 miles out (3500
MSL). Since most VORs are supposed to be good for about 40 miles out and I
live in the flat lands of Florida this is a bit disconcerting. The radio
display quit working around 200 hours and Garmin fixed it, only to have it
crap out again about 6 months later (Garmin fixed it free the second time).
Later I did find that the coax connector to my bent whip (com) antenna was
not crimped well and replaced it, seemed to cure the pitch trim interference
but transmission still scratchy. VOR reception about the same, I inspected
both ends of the coax and connectors but can't see anything obvious. I
assume if the COAX or connectors were shorted I wouldn't get any reception
on the Nav at all. I did use RG-58 and it's a long run from the instrument
panel down the firewall and the length of the fuselage to the VOR antenna so
maybe there is a bit too much attenuation there to get a full 40 mile
reception range. I'm going to rework the radio stack to put in a new ADS-B
out transponder and I think I'll replace the RG-58 with RG-400 to see if
that helps. My GX-65 GPS/COM radio works fine and it also uses RG-58 to the
bent whip and has an Icom splitter box in the line (for plugging a handheld
into the bent whip when an electrical or complete COM radio failure occurs).
So...I use the SL-30 for AWOS/ATIS reception and ground control and the
GX-65 for air to air/ground. Given what the SL-30 cost it's a little
disappointing but the avionic shop (Gulf Coast avionics in Lakeland FL has a
test fixture for UPS AT gear) plugged it into their test fixture and said
that there is nothing wrong with the radio so all I can think is that the
wiring may be the issue. Have not tried installing an SWR meter in the line,
might give a better clue but the bent whip has no way to adjust SWR so I
don't know how I would fix that if it was a problem (the GX-65 uses the same
brand of bent whip for COM so I don't know why the SL-30 would have a
problem). Just some data points from my experience, let me know if you
find out anything on your setup. Regards
Dean Psiropoulos
RV-6A N197DM
Tarpon Springs, FL
________________________________ Message 2
_____________________________________
Time: 08:04:30 AM PST US
From: "Andy Elliott" <a.s.elliott@cox.net>
Subject: AeroElectric-List: Debug plan for flaky NavCom operation?
I have recently purchased an RV with an SL-30 as the #2 radio. Operation of
this radio is very inconsistent. Typically on the ground on battery power I
get good reception and transmission on local frequencies. Sometime after
engine start, I pick up a *lot* of background static on some, but not all,
frequencies. At least on the ground, I can still talk and receive on these
frequencies, overcoming the static.
But in the air, this radio is very flaky, both com and nav. Sometimes it
seems to work OK, but sometimes I can't receive the local ATIS from 10 miles
away when it is clear on the #1 radio. The static sometimes is there and
sometimes not. Sometimes the VOR reception is good and correct, and
sometimes it loses lock or report an obviously wrong radial. (I haven't
tried the ILS yet.)
My first thought was that there must be a bad ground somewhere, but before
going in with the flashlight and meter (which is not a trivial process, of
course), and before considering pulling the radio and having it tested
(Garmin's flat repair prices are $$$.), I thought I would try to get a debug
plan from the group here. Basically, I need a sequence of things to check
in order, hopefully going from simple to more difficult, which would lead to
(a) resolution of the problem or (b) a decision to send the radio for
check/repair.
Anyone have such a plan??
Thanks,
Andy Elliott
--------------------------
Andy Elliott, RV-8, N303RV
CL: 480-695-9568
Message 9
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Constructing an automatic RCA video camera feed |
splitter

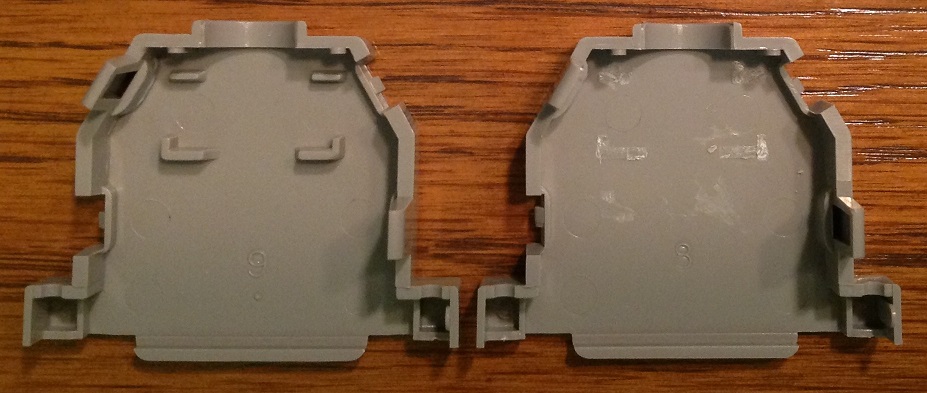

Components for the video mux arrived today. The DB-25 backshell has four small
plastic bosses inside each half to locate the included cable clamp; these are
easily removed with a small flush cutter or X-Acto blade.
I made a CAD template for the PCB to fit this backshell and the DB-25 connector,
then printed it at 100% and cut it out to verify fitment. Pads for the connector's
solder cups align well and the PCB fills the shell nicely. Drawing is
attached.
My PCB layout for the mux will need a little finessing to fit this board outline,
which I'll do in the next couple of days. I expect to have boards ordered
by Fri, then I'll assemble one and send it to Alec for firmware testing.
Eric
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=476370#476370
Attachments:
http://forums.matronics.com//files/norcomp_956_025_010r031_191.jpg
http://forums.matronics.com//files/db_25_pcb_blank_106.pdf
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
