AeroElectric-List Digest Archive

Sat 11/10/18


Total Messages Posted: 13



Today's Message Index:
----------------------

     1. 02:46 AM - Wig-Wag wiring (JOHN TIPTON)
     2. 05:39 AM - Re: Wig-Wag wiring (Robert L. Nuckolls, III)
     3. 07:37 AM - Re: Wig-Wag wiring (user9253)
     4. 07:47 AM - Re: LED Noise Filter (Sebastien)
     5. 08:03 AM - Re: Wig-Wag wiring (user9253)
     6. 09:28 AM - Re: Wig-Wag wiring (John Tipton)
     7. 10:08 AM - Re: AeroElectric-List Digest: 7 Msgs - 11/09/18 (Ida May Covey)
     8. 10:30 AM - Re: Wig-Wag wiring (Robert L. Nuckolls, III)
     9. 12:19 PM - Re: Re: Wig-Wag wiring (Robert L. Nuckolls, III)
    10. 02:21 PM - Re: Wig-Wag wiring (John Tipton)
    11. 02:30 PM - Re: Wig-Wag wiring (John Tipton)
    12. 03:15 PM - Re: Wig-Wag wiring (Charlie England)
    13. 04:10 PM - Re: Wig-Wag wiring (user9253)





Message 1


  • INDEX
  • Back to Main INDEX
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 02:46:22 AM PST US
    Subject: Wig-Wag wiring
    From: "JOHN TIPTON" <jmtipton@btopenworld.com>
    Hi Guys (Bob) I'm going to incorporate the Perihelion design Wig-Wag (c version) module Http://www.periheliondesign.com/wigwagmnl.htm in my landing lights, the call out, wiring diagram 'B' for a single switch is a DP3T, I'm trying to relate this to 'Table 11-1' (S700 series toggle switches) is it a 2-10, if so can you help with the connections John Read this topic online here: http://forums.matronics.com/viewtopic.php?p=484736#484736


    Message 2


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 05:39:29 AM PST US
    From: "Robert L. Nuckolls, III" <nuckolls.bob@aeroelectric.com>
    Subject: Re: Wig-Wag wiring
    At 04:45 AM 11/10/2018, you wrote: ><jmtipton@btopenworld.com> > >Hi Guys (Bob) > >I'm going to incorporate the Perihelion design Wig-Wag (c version) module > >Http://www.periheliondesign.com/wigwagmnl.htm > >in my landing lights, the call out, wiring diagram 'B' for a single >switch is a DP3T, I'm trying to relate this to 'Table 11-1' (S700 >series toggle switches) is it a 2-10, if so can you help with the connections > >John > Emacs! To the best of my knowledge, the device depicted does not exist in a toggle switch. A 2-10 can be wired for SINGLE pole, three position operation which would need a couple of diodes added to implement the 'both-on' function in the center with the OFF being full down. A 2-1 switch can be used with no added diodes but the operation would be BOTH (down), OFF (center) and WIGWAG (up). I can sketch a schematic for either . . . your choice. What kind of landing lights are you installing? Bob . . .


    Message 3


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 07:37:33 AM PST US
    Subject: Re: Wig-Wag wiring
    From: "user9253" <fransew@gmail.com>
    I do not trust switches that depend entirely on rivets to conduct current. http://www.bandc.aero/toggleswitch-doublepole.aspx Click on the small pictures on the above website. Notice that the rivets go through plastic. If that plastic flows over time, the electrical connection could fail. The most economical and perhaps easiest to wire switch is a DPDT with center off. ON-OFF-ON Do NOT buy a switch that has parentheses, for instance (ON)-OFF-ON. Parentheses indicates a momentary position. Once you have the switch in hand, it is easy to figure out how to connect it by using a test light or ohm meter. DP3T switches are available from electronic parts suppliers like Mouser and Digikey. https://www.mouser.com/Electromechanical/Switches/Toggle-Switches/_/N-5g2jZ1yzvvqx?P=1z0z28fZ1z0z2o3&Ns=Pricing|0 DPDT switches: https://www.mouser.com/Electromechanical/Switches/Toggle-Switches/_/N-5g2jZ1yzvvqx?P=1z0z2xkZ1z0z2qcZ1z0z810Z1z0z80lZ1yy48toZ1yyg5u9Z1z0jl5uZ1z0zlgaZ1z0sf9tZ1z0zlgkZ1yzs6ii&Ns=Pricing%7c0 A center off switch could be mounted so that the on positions are left and right instead of up and down. -------- Joe Gores Read this topic online here: http://forums.matronics.com/viewtopic.php?p=484740#484740


    Message 4


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 07:47:14 AM PST US
    From: Sebastien <cluros@gmail.com>
    Subject: Re: LED Noise Filter
    Thought I should update the list with our results. I manufactured a couple filters as per the diagram above and Bob's suggested components. Took our noisiest light to my friends avionics shop and powered it without the filter while looking for noise on the power lines. We saw very very little noise on the power lines so we decided to have a look at the frequency noise and from 5 feet away the radio noise was very noticeable. Wish I had recorded the actual numbers. In any case the noise from one light was enough to break the squelch on a radio, and enough to noticeable hear even while listening to a strong radio signal. So while loosing hope that the filters would cure the problem but without being able to come up with a better plan, we installed them in the aircraft and gave them a try. Total success. It is now barely possible to hear any noise when operating the lights in the hangar, once the engine is started no noise is noticeable. Thank you all for your help. On Mon, Oct 1, 2018 at 6:53 AM William Daniell <wdaniell.longport@gmail.com> wrote: > for anyone that's interested this one worked for me. I have all Dynon > instruments and comms > > Amazon: "Abrams T3-W Led Grille Emergency Vehicle Warning Strobe Lights > - White" > > > William Daniell > LONGPORT > +57 310 295 0744 > > > On Sun, Sep 30, 2018 at 7:18 PM Ernest Christley <echristley@att.net> > wrote: > >> I've had excellent results using these devices. N167EZ uses them for >> marker, strobe, taxi and landing lights. I've inspected them with an >> oscilloscope. Nothing but DC. And, I've never heard radio inteference >> from them. Especially of interest, I built the strobe by using an >> electronic automotive turn signal flasher to alternate between two 30W >> supplies, that each drive an array of three 10W LEDs. While testing them >> out in the sunlight, the easiest way to know they were working (a 601XL is >> hard to turn around and look back in) was to take my headset off and listen >> for the flasher's clacking. >> >> >> >> http://www.mpja.com/LED-Driver-30W-Output-12-24VDC-Input/productinfo/31559+PS/ >> >> >> On Sunday, September 30, 2018 9:58 AM, Sebastien <cluros@gmail.com> >> wrote: >> >> >> Certainly Will. We already have 2 batches of these trying to randomly >> find some that are better. No noise at all sounds ideal :). >> >> On Sun, Sep 30, 2018, 04:35 William Daniell <wdaniell.longport@gmail.com> >> wrote: >> >> Having been through this one (cheap chinese landing light)... >> I bought an USD20 light which completely blocked all comms within 20 feet. >> I bought another one, American designed made in China for USD30 - and no >> noise at all. I can dig out the manufacturer if youre interested. >> Will >> William Daniell >> LONGPORT >> +57 310 295 0744 >> >> >> On Sun, Sep 30, 2018 at 12:16 AM Sebastien <cluros@gmail.com> wrote: >> >> >> https://www.amazon.com/gp/product/B01KJ94Q1K/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1 >> >> If they were the +$300 ones made for aircraft I would call the >> manufacturer but these are 15% of the price of the aviation ones so I >> understand why the builder chose them. If we can fix this for $20 worth of >> parts it makes sense to me. >> >> On Sat, Sep 29, 2018 at 8:43 PM Robert L. Nuckolls, III < >> nuckolls.bob@aeroelectric.com> wrote: >> >> At 03:52 PM 9/29/2018, you wrote: >> >> VHF Radio. Basically background static. On some of the lights it's barely >> noticeable and you have to listen carefully to hear it, on at least one >> light it creates enough VHF noise to break squelch on the radio and creates >> a very noticeable amount of static. >> >> >> Okay, and what is the LED product we're talking about? >> Have you had any conversation wthe the manufacturer? >> >> >> Bob . . . >> >> >> >>


    Message 5


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 08:03:30 AM PST US
    Subject: Re: Wig-Wag wiring
    From: "user9253" <fransew@gmail.com>

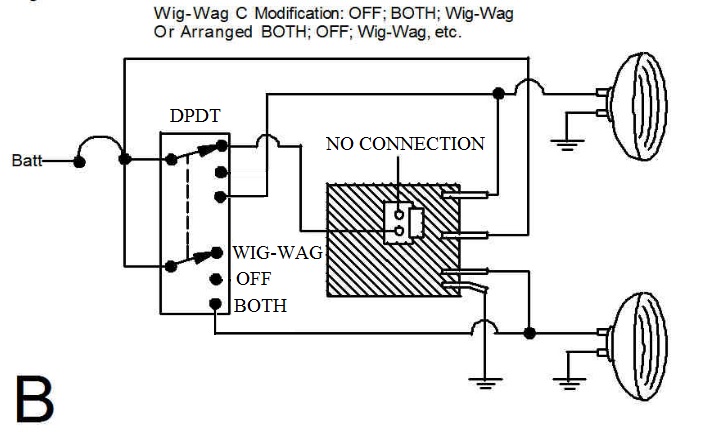

    Wiring diagram using a DPDT switch. -------- Joe Gores Read this topic online here: http://forums.matronics.com/viewtopic.php?p=484743#484743 Attachments: http://forums.matronics.com//files/wig_wag_343.jpg


    Message 6


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 09:28:44 AM PST US
    From: John Tipton <john@tiptonuk.eu>
    Subject: Re: Wig-Wag wiring
    Hi Bob Thank you for your prompt reply: the (ongoing) build is a RV9a currently wit h the =98Duckworks=99 standard fit, traditional landing lights, w ith 100w HID bulbs, through 14awg and a 2-10 (MS spec) switch al a figure: 1 1-17 Our intention is to (as technology has moved on) to fit LED landing lights, t herefore your wiring of a 2-10 for LED=99s with the Wig-Wag would be a ppreciated Regards: John Sent from my iPad ----x--O--x---- > On 10 Nov 2018, at 1:38 pm, Robert L. Nuckolls, III <nuckolls.bob@aeroelec tric.com> wrote: > > At 04:45 AM 11/10/2018, you wrote: rld.com> >> >> Hi Guys (Bob) >> >> I'm going to incorporate the Perihelion design Wig-Wag (c version) module >> >> Http://www.periheliondesign.com/wigwagmnl.htm >> >> in my landing lights, the call out, wiring diagram 'B' for a single switc h is a DP3T, I'm trying to relate this to 'Table 11-1' (S700 series toggle s witches) is it a 2-10, if so can you help with the connections >> >> John >> > > <337ad9d.jpg> > > To the best of my knowledge, the device > depicted does not exist in a toggle switch. > A 2-10 can be wired for SINGLE pole, three > position operation which would need a > couple of diodes added to implement the > 'both-on' function in the center with the > OFF being full down. > > A 2-1 switch can be used with no added > diodes but the operation would be BOTH (down), > OFF (center) and WIGWAG (up). > > I can sketch a schematic for either . . . > your choice. > > What kind of landing lights are you installing? > > > > > Bob . . .


    Message 7


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 10:08:46 AM PST US
    From: Ida May Covey <icovey@embarqmail.com>
    Subject: Re: AeroElectric-List Digest: 7 Msgs - 11/09/18
    What a wonderful World! > On Nov 10, 2018, at 2:30 AM, AeroElectric-List Digest Server <aeroelectric-list@matronics.com> wrote: > > * > > ================================================= > Online Versions of Today's List Digest Archive > ================================================= > > Today's complete AeroElectric-List Digest can also be found in either of the > two Web Links listed below. The .html file includes the Digest formatted > in HTML for viewing with a web browser and features Hyperlinked Indexes > and Message Navigation. The .txt file includes the plain ASCII version > of the AeroElectric-List Digest and can be viewed with a generic text editor > such as Notepad or with a web browser. > > HTML Version: > > http://www.matronics.com/digest/digestview.php?Style=82701&View=html&Chapter 18-11-09&Archive=AeroElectric > > Text Version: > > http://www.matronics.com/digest/digestview.php?Style=82701&View=txt&Chapter 18-11-09&Archive=AeroElectric > > > =============================================== > EMail Version of Today's List Digest Archive > =============================================== > > > ---------------------------------------------------------- > AeroElectric-List Digest Archive > --- > Total Messages Posted Fri 11/09/18: 7 > ---------------------------------------------------------- > > > Today's Message Index: > ---------------------- > > 0. 04:05 AM - List Contribution - Value of the List... (Matt Dralle) > 1. 06:47 AM - Re: Re: Dual Battery Dual Alternator Power Distribution System (Robert L. Nuckolls, III) > 2. 07:36 AM - Re: Dual Battery Dual Alternator Power Distribution System (DAVIDSON)


    Message 8


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 10:30:46 AM PST US
    From: "Robert L. Nuckolls, III" <nuckolls.bob@aeroelectric.com>
    Subject: Re: Wig-Wag wiring
    At 11:27 AM 11/10/2018, you wrote: >Hi Bob > >Thank you for your prompt reply: the (ongoing) >build is a RV9a currently with the >=98Duckworks=99 standard fit, traditional >landing lights, with 100w HID bulbs, through >14awg and a 2-10 (MS spec) switch al a figure: 11-17 > >Our intention is to (as technology has moved on) >to fit LED landing lights, therefore your wiring >of a 2-10 for LED=99s with the Wig-Wag would be appreciated > >Regards: John Here 'tis . . . Emacs! Bob . . .


    Message 9


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 12:19:02 PM PST US
    From: "Robert L. Nuckolls, III" <nuckolls.bob@aeroelectric.com>
    Subject: Re: Wig-Wag wiring
    At 09:36 AM 11/10/2018, you wrote: > >I do not trust switches that depend entirely on rivets to conduct current. It is true that we've chronicled a hand full of failures in the S700 series switches here on the List over the years . . . but few of the total were precipitated by loosening of the rivets. Here is one failure analysis conducted on a Lister's experience: https://tinyurl.com/2a2qqp This style of switch by Carling was used on tens of thousands of TC aircraft for a couple decades. Aircraft represent a tiny fraction of total sales for the product line. The failure rate, while not zero, has been exceedingly small and driven mostly by the latest generation of strobe lights that feature constant power high voltage supplies . . . they draw substantially more current during pre-flight ops with the engine not running. I think a search of the List archives will turn up some threads on other failures, most having root cause OTHER than loose rivets. Bottom line is that while there is good cause to be skeptical of the rivets-thru- plastic joints, experience has demonstrated the mechanical stability of Carling's choice of plastic. Bob . . .


    Message 10


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 02:21:16 PM PST US
    From: John Tipton <john@tiptonuk.eu>
    Subject: Re: Wig-Wag wiring
    Brilliant - thank you John Sent from my iPad ----x--O--x---- > On 10 Nov 2018, at 6:30 pm, Robert L. Nuckolls, III <nuckolls.bob@aeroelec tric.com> wrote: > > At 11:27 AM 11/10/2018, you wrote: >> Hi Bob >> >> Thank you for your prompt reply: the (ongoing) build is a RV9a currently w ith the =98Duckworks=99 standard fit, traditional landing lights , with 100w HID bulbs, through 14awg and a 2-10 (MS spec) switch al a figure : 11-17 >> >> Our intention is to (as technology has moved on) to fit LED landing light s, therefore your wiring of a 2-10 for LED=99s with the Wig-Wag would b e appreciated >> >> Regards: John > > Here 'tis . . . > > <44257b6.jpg> > > > Bob . . .


    Message 11


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 02:30:52 PM PST US
    From: John Tipton <john@tiptonuk.eu>
    Subject: Re: Wig-Wag wiring
    PS: I have a spare Bridge Rectifier, can I use two of the diodes John Sent from my iPad ----x--O--x---- > On 10 Nov 2018, at 6:30 pm, Robert L. Nuckolls, III <nuckolls.bob@aeroelec tric.com> wrote: > > At 11:27 AM 11/10/2018, you wrote: >> Hi Bob >> >> Thank you for your prompt reply: the (ongoing) build is a RV9a currently w ith the =98Duckworks=99 standard fit, traditional landing lights , with 100w HID bulbs, through 14awg and a 2-10 (MS spec) switch al a figure : 11-17 >> >> Our intention is to (as technology has moved on) to fit LED landing light s, therefore your wiring of a 2-10 for LED=99s with the Wig-Wag would b e appreciated >> >> Regards: John > > Here 'tis . . . > > <44257b6.jpg> > > > Bob . . .


    Message 12


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 03:15:40 PM PST US
    From: Charlie England <ceengland7@gmail.com>
    Subject: Re: Wig-Wag wiring
    John, Those are Schottky diodes (which sow up as 'obsolete' on the Digikey web page). Lots of Shottky dual diodes, and singles as well, on ebay & Amazon. ex (but no provision for heat sink): https://smile.amazon.com/AKOAK-Schottky-Blocking-Diodes-15SQ045/dp/B01CXOQM J8/ref=sr_1_4?ie=UTF8&qid=1541891561&sr=8-4&keywords=schottky+dio de On Sat, Nov 10, 2018 at 4:35 PM John Tipton <john@tiptonuk.eu> wrote: > PS: I have a spare Bridge Rectifier, can I use two of the diodes > > John > > Sent from my iPad > > ----x--O--x---- > > On 10 Nov 2018, at 6:30 pm, Robert L. Nuckolls, III < > nuckolls.bob@aeroelectric.com> wrote: > > At 11:27 AM 11/10/2018, you wrote: > > Hi Bob > > Thank you for your prompt reply: the (ongoing) build is a RV9a currently > with the =98Duckworks=99 standard fit, traditional landing li ghts, with 100w > HID bulbs, through 14awg and a 2-10 (MS spec) switch al a figure: 11-17 > > Our intention is to (as technology has moved on) to fit LED landing > lights, therefore your wiring of a 2-10 for LED=99s with the Wig-Wa g would be > appreciated > > Regards: John > > > Here 'tis . . . > > <44257b6.jpg> > > > Bob . . . > >


    Message 13


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 04:10:48 PM PST US
    Subject: Re: Wig-Wag wiring
    From: "user9253" <fransew@gmail.com>
    How abouit DSTF3060CR Schottky, 2 diodes in one TO-220-2 package, available at Mouser? Save on shipping cost by ordering Schottky diodes and current limiters from same source. -------- Joe Gores Read this topic online here: http://forums.matronics.com/viewtopic.php?p=484765#484765
