| Subject: | Transponder and/or ADSB Antenna Installation |
and Radiation
Thanks Bob for the information.greatly appreciated.
From: owner-aeroelectric-list-server@matronics.com
<owner-aeroelectric-list-server@matronics.com> On Behalf Of Robert L.
Nuckolls, III
Sent: Wednesday, July 22, 2020 9:17 PM
Subject: Re: AeroElectric-List: Transponder and/or ADSB Antenna Installation
and Radiation
So the questions are:
-Is the ground plane better to be square/ round/ or hexagon/ or some other
shape?
Why not eliminate the need for ground planes with
vertically polarized dipoles mounted to inside surfaces
of empannage?
https://tinyurl.com/y3w4hf8y
-If the diameter of the ground plane cannot be exactly a square and the same
dimension as indicated on the installation guide what is the problem(s) with
it being slightly to wide or slightly too narrow than spec, or if the
antenna is not installed in the exact center?
ditch the ground planes
-The book says the two antennae should be mounted at least two feet from
each other so what if they were installed closer.or even co-located on the
same ground plane?
Mount one on left side forward, the other
right side aft. Getting separation shouldn't
be a problem.
-What about mounting these masts near human body parts (ouch)?
-What about mounting these masts near other avionics or other electrical
equipment?
back in the tail?
Bob . . .
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Smoker GFCI question |
Last step, if you're motivated, would be to swap the locations of the new
GFI and one of the older ones, and re-test.
On Sun, Jul 26, 2020 at 7:24 AM Charlie England <ceengland7@gmail.com>
wrote:
> Good point! I haven't had to buy a gfi since the new stuff came out.
>
> https://www.google.com/search?client=ms-android-google&sxsrf=ALeKk03W
mQrYXzER-XzhWixqNY56dEw4OA%3A1595765931111&ei=q3QdX834BfC3ggf5p5_gAw&q=
gfci+arc+fault+outlet&oq=gfci+arc+fault+outlet&gs_lcp=ChNtb2JpbGUtZ3dzL
Xdpei1zZXJwEAEYADICCAAyBggAEBYQHjIGCAAQFhAeMgYIABAWEB4yBggAEBYQHjIGCAAQFhAe
MgYIABAWEB4yBQghEKABOgQIABBHOgQIABBDUMFMWKVtYLyDAWgAcAF4AIABtAGIAZsIkgEDMC4
3mAEAoAEBwAEB&sclient=mobile-gws-wiz-serp
>
>
> Sent from BlueMail <http://www.bluemail.me/r?b=15726>
> On Jul 26, 2020, at 12:39 AM, ashleysc@broadstripe.net wrote:
>>
>> Hi Art Z;
>> There's a good possibility that it's the circuit breaker that is causing
>> the problem. Newer style circuit breakers are very sensitive to arcing,
>> even very insignificant arcing such as caused by a switch or thermostat.
My
>> neighbor brought over a heater that he used in a fruit dryer. It was
>> tripping circuits in his new house. After taking it apart and finding
>> nothing wrong, we plugged it in at my home, and it ran fine. We have old
er
>> circuit breakers. So he took it home, changed one of his circuit breaker
s
>> to the older style, and the problem disappeared.
>> Cheers! Stu..
>>
>> ------------------------------
>> *From: *"Art Zemon" <art@zemon.name>
>> *To: *aeroelectric-list@matronics.com
>> *Sent: *Friday, July 24, 2020 6:07:10 PM
>> *Subject: *AeroElectric-List: Smoker GFCI question
>>
>> Non aviation question for y'all: I just installed a new outlet on my
>> patio, so I can use my electric smoker and an electric fan without an
>> extension cord. The fan works great. The smoker is ok when first plugged
in
>> and turned on so it connects to the WiFi. But a few minutes after turnin
g
>> the smoker's heating element in, the GFCI trips.
>>
>> It's a Char-Broil electric smoker, 750W. It's a new, weatherproof 15A
>> GFCI.
>>
>> Thoughts?
>>
>> -- Art Z.
>>
>> Sent from my phone. Please excuse brevity and bizarre typos.
>>
>>
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Battery Contactor Location |

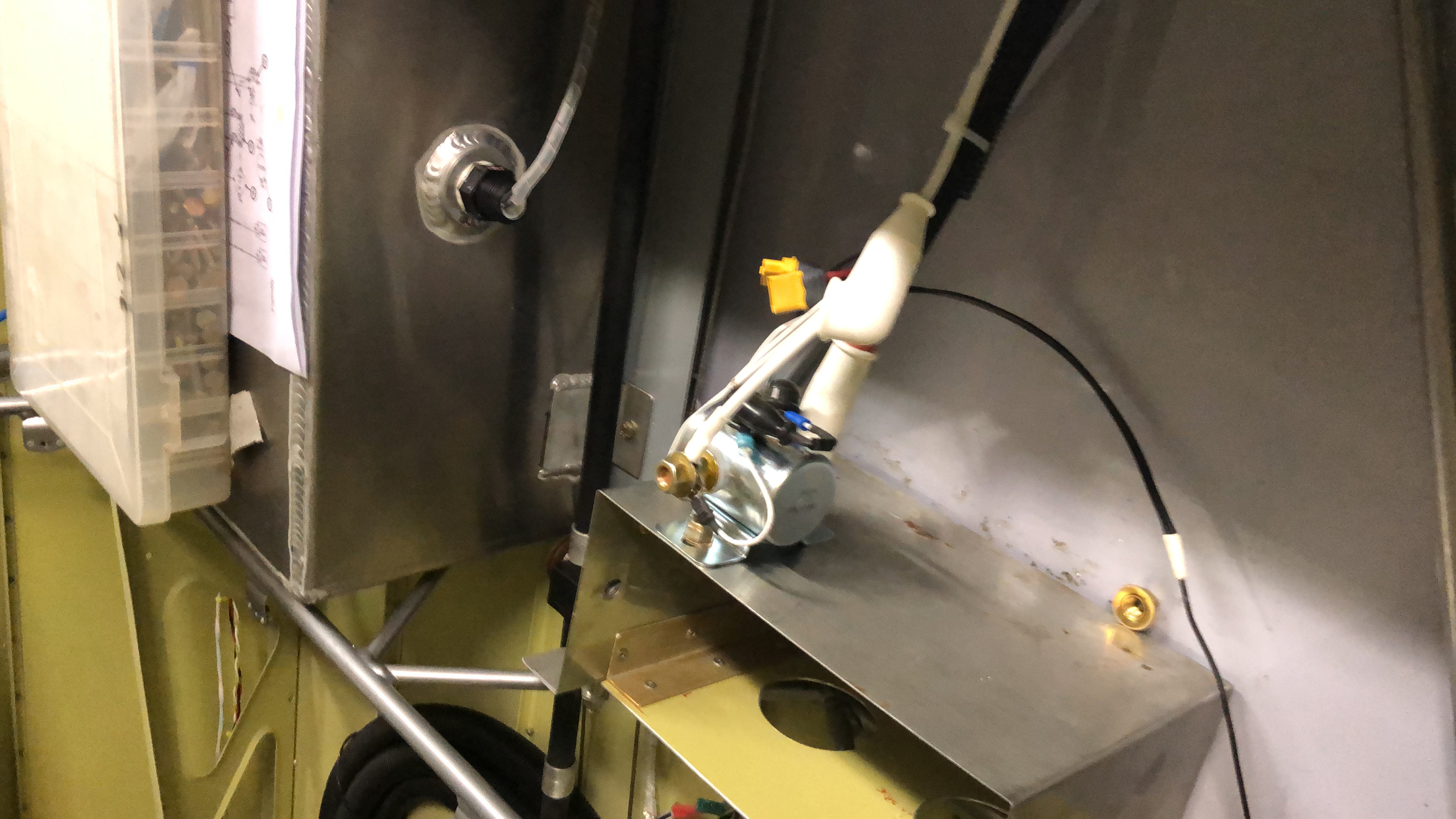

Im building a Rans S21 and the battery is located behind the seats in the baggage
area. As per standard practice I installed the contactor (relay) next to the
battery. But this places it right next to the header fuel tank. Although this
is an aluminum tank it still concerns me that I have a live electrical device
next to 6 gals of avgas. Am I being overly worried?
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=497421#497421
Attachments:
http://forums.matronics.com//files/e2cb2b51_8467_4674_9576_d9e5fd7593d2_178.jpeg
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RV10 primary elec sys wiring |
At 09:57 AM 7/23/2020, you wrote:
>Recently friend of mine asked me to help with his RV-10 electrical
>and avionics hookup. Most of works are done except all wiring work.
>I spent many hours doing research and stuck...we have perhaps unusual
>config with one regular battery(RG-25XC)with Batteryminder charging
>kit BM-AIK2A, just one primary alternator Plane Power 99-1012 with
>built-in voltage regulator (unfortunately) and small cmart backup
>battery TCW IBBA-12v-6AH. Ignition - Champion slick magnetos (6393 and 6350)
> lefthand one with SS1001 booster.
Alex, there's another simple process that will help
move planning and design for your project forward.
It's called a Load Analysis . . . an activity that
starts early on in the design of a TC aircraft.
It's simply an organized listing of every anticipated
electrical load. For our purposes, I've expanded the
data set to separate out load groups by the bus that
powers the group. I've added space to call out the
proposed size of circuit protection and the wire
size for the feeder.
There are examples of these studies in Excel on
my website at
https://tinyurl.com/9rt6ymn
browse through those and you'll get the idea.
You MIGHT want to do three load-sheets. One for
the main bus, endurance bus and battery bus.
Here's a blank form that helps put the thing
together.
https://tinyurl.com/7jqypwj
If you know some current draws, fill them in
but for now . . . just identify every electrical
demand and hypothesize how you'll get power
to each device.
Use a pencil and keep clean-rub eraser handy.
You may revise this thing several times. Alternatively,
do your own in Excel.
Later on, you'll want to consider filling the
columns as operating requirements for the various
flight conditions are defined.
Once the architecture and energy management
details are known, you'll be 90% of the way
there . . . all the rest is wires, terminals,
crimp tools and string ties.
Bob . . .
Bob . . .
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Smoker GFCI question |
Yeah... no. I'm not that motivated. LOL.
I used a short extension cord this afternoon (instead of the long one with
a droplight that I used for testing yesterday. The smoker is working fine
and the four trout are looking finer!
My guess is that the smoker's cord is stiffer than the extension cords so,
when I shut the weather cover on the outlet, the cord is putting some
mechanical stress on the outlet. Nothing else makes any sense to me.
Cheers,
-- Art Z.
On Sun, Jul 26, 2020 at 3:31 PM Charlie England <ceengland7@gmail.com>
wrote:
> Last step, if you're motivated, would be to swap the locations of the new
> GFI and one of the older ones, and re-test.
>
> On Sun, Jul 26, 2020 at 7:24 AM Charlie England <ceengland7@gmail.com>
> wrote:
>
>> Good point! I haven't had to buy a gfi since the new stuff came out.
>>
>> https://www.google.com/search?client=ms-android-google&sxsrf=ALeKk03
WmQrYXzER-XzhWixqNY56dEw4OA%3A1595765931111&ei=q3QdX834BfC3ggf5p5_gAw&q
=gfci+arc+fault+outlet&oq=gfci+arc+fault+outlet&gs_lcp=ChNtb2JpbGUtZ3
dzLXdpei1zZXJwEAEYADICCAAyBggAEBYQHjIGCAAQFhAeMgYIABAWEB4yBggAEBYQHjIGCAAQF
hAeMgYIABAWEB4yBQghEKABOgQIABBHOgQIABBDUMFMWKVtYLyDAWgAcAF4AIABtAGIAZsIkgED
MC43mAEAoAEBwAEB&sclient=mobile-gws-wiz-serp
>>
>>
>> Sent from BlueMail <http://www.bluemail.me/r?b=15726>
>> On Jul 26, 2020, at 12:39 AM, ashleysc@broadstripe.net wrote:
>>>
>>> Hi Art Z;
>>> There's a good possibility that it's the circuit breaker that is causin
g
>>> the problem. Newer style circuit breakers are very sensitive to arcing,
>>> even very insignificant arcing such as caused by a switch or thermostat
. My
>>> neighbor brought over a heater that he used in a fruit dryer. It was
>>> tripping circuits in his new house. After taking it apart and finding
>>> nothing wrong, we plugged it in at my home, and it ran fine. We have ol
der
>>> circuit breakers. So he took it home, changed one of his circuit breake
rs
>>> to the older style, and the problem disappeared.
>>> Cheers! Stu..
>>>
>>> ------------------------------
>>> *From: *"Art Zemon" <art@zemon.name>
>>> *To: *aeroelectric-list@matronics.com
>>> *Sent: *Friday, July 24, 2020 6:07:10 PM
>>> *Subject: *AeroElectric-List: Smoker GFCI question
>>>
>>> Non aviation question for y'all: I just installed a new outlet on my
>>> patio, so I can use my electric smoker and an electric fan without an
>>> extension cord. The fan works great. The smoker is ok when first plugge
d in
>>> and turned on so it connects to the WiFi. But a few minutes after turni
ng
>>> the smoker's heating element in, the GFCI trips.
>>>
>>> It's a Char-Broil electric smoker, 750W. It's a new, weatherproof 15A
>>> GFCI.
>>>
>>> Thoughts?
>>>
>>> -- Art Z.
>>>
>>> Sent from my phone. Please excuse brevity and bizarre typos.
>>>
>>>
--
https://CheerfulCurmudgeon.com/
*If I am not for myself, who will be for me? If I am only for myself, what
am I? If not now, when?*
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Transponder and/or ADSB Antenna Installation and |
Radiation
Don't forget that while a homebrew ELT antenna may work better than the
supplied version, it probably isn't legal. Unlike most radio stuff, the
antenna is usually part of the certification of the ELT, and ELTs must be
certificated in the USA; even in homebuilts.
Won't matter until that picky a/w inspector comes to sign off the plane, or
if you get past that, dealing with the Insurance company after you survive
a crash.
Charlie
On Sun, Jul 26, 2020 at 11:42 AM <billhuntersemail@gmail.com> wrote:
> Thanks Bob for the informationgreatly appreciated.
>
>
> *From:* owner-aeroelectric-list-server@matronics.com <
> owner-aeroelectric-list-server@matronics.com> *On Behalf Of *Robert L.
> Nuckolls, III
> *Sent:* Wednesday, July 22, 2020 9:17 PM
> *To:* aeroelectric-list@matronics.com
> *Subject:* Re: AeroElectric-List: Transponder and/or ADSB Antenna
> Installation and Radiation
>
>
> So the questions are:
>
> -Is the ground plane better to be square/ round/ or hexagon/ or some othe
r
> shape?
>
>
> Why not eliminate the need for ground planes with
> vertically polarized dipoles mounted to inside surfaces
> of empannage?
>
> https://tinyurl.com/y3w4hf8y
>
>
> -If the diameter of the ground plane cannot be exactly a square and the
> same dimension as indicated on the installation guide what is the
> problem(s) with it being slightly to wide or slightly too narrow than spe
c,
> or if the antenna is not installed in the exact center?
>
>
> ditch the ground planes
>
>
> -The book says the two antennae should be mounted at least two feet from
> each other so what if they were installed closeror even co-locat
ed on the
> same ground plane?
>
>
> Mount one on left side forward, the other
> right side aft. Getting separation shouldn't
> be a problem.
>
>
> -What about mounting these masts near human body parts (ouch)?
>
> -What about mounting these masts near other avionics or other electrical
> equipment?
>
>
> back in the tail?
>
>
> Bob . . .
>
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RV10 primary elec sys wiring |
At 04:06 PM 7/26/2020, you wrote:
>Oh, thank you, this will be my main task for now
>- load analysis=C2 and a wise idea on how to power every unit...
>started to make the ELA list, then will think
>how to divide load between buses...=C2
It gets even better. Your architecture and loads
documents are the foundation for expeditious
generation of a ship's wire book.
As an electron herder on the heavy iron, you'll
already have a reverence for the universal
language of schematics for describing the
ship's electrics.
Take a peek at the documents posted at:
https://tinyurl.com/yytrxofg
https://tinyurl.com/y23kjwu6
These are examples of how your architecture
drawing (road map) and loads analysis (table
of contents) become the first sheets to a
page-per-system wirebook that would make your
project easily understood, repaired or modified
in the future no matter what language was
spoken by the technician.
If you're a CAD driver that will import
.dwg files, 95% of the work on your projects
documents is already done. You can download
the AutoCAD files from my website for importing
appropriate pages into your own work.
Bob . . .
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
