Today's Message Index:
----------------------
1. 09:08 AM - Re: TR-1 Incident down under (Mike Pienaar)
2. 01:04 PM - Re: TR-1 Incident down under (Scott Stearns)
3. 08:45 PM - Bolt Preload (Owen Baker)
Message 1
INDEX | Back to Main INDEX |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: TR-1 Incident down under |
Thanks Scott,
What do you mean by "they allow the bolts to be properly preloaded"
Thanks for your help
Mike
----- Original Message -----
From: Scott Stearns
To: kis-list@matronics.com
Sent: Sunday, December 14, 2014 4:21 PM
Subject: Re: KIS-List: TR-1 Incident down under
Yes, but grove does not make a 1.25" version so you would have to make
a 0.25" spacer.
Scott
-------------------------------------------------------------------------
-----
From: Mike Pienaar <mjpienaar@shaw.ca>
To: kis-list@matronics.com
Sent: Monday, December 8, 2014 4:49 PM
Subject: Re: KIS-List: TR-1 Incident down under
Hi Scott
Would you recommend these gear installation blocks for the TR4 as
well?
Thanks
Mike
----- Original Message -----
From: "Scott Stearns" <sstearns2@yahoo.com>
To: <kis-list@matronics.com>
Sent: Thursday, November 27, 2014 11:58 AM
Subject: Re: KIS-List: TR-1 Incident down under
>
> I would recommend updating the gear installation using these gear
blocks.
> The blocks allow the gear to flex without affecting the bolts and
they
> allow the bolts to be properly preloaded.
>
> http://www.groveaircraft.com/radiusplates.html
>
> Scott
>
>> On Nov 26, 2014, at 6:38 AM, "mark_trickel" <marktrickel@gmail.com>
>> wrote:
>>
<marktrickel@gmail.com>
>>
>> KIS Incident Down Under
>>
>> With regret, I post this news from Australia - Michael
Patten=99s TR-1 main
>> gear collapsed during roll out after touchdown when one of the
attach
>> bolts let lose:
>>
>> Airframe event involving a Amateur Built Aircraft KIS TR-1, VH-AIG,
>> Taree, Aerodrome, NSW on 9 September 1996.
>> Following an uneventful flight, the pilot reported that the
aircraft
>> touched down normally. After rolling about 80 m the right wing
dropped
>> and the pilot suspected a tire had failed. But about 50 m further
on he
>> heard pronounced scraping noises and the aircraft slewed right then
left
>> before finally coming to a halt about 10 m to the left of the
runway. A
>> subsequent inspection of the aircraft revealed that the fixed
landing
>> gear attachment bolts had failed at the countersunk heads. The
failure
>> faces contained rust deposits, indicating the bolts had been
cracked for
>> some time prior to the accident. The manufacturer has subsequently
>> changed the design specification to fit standard flat head bolts in
place
>> of countersunk bolts.
>>
>> The complete report is located here:
>>
http://www.atsb.gov.au/publications/investigation_reports/1996/aair/19960
2857.aspx
>>
>> I ran out to my hanger/shed, and checked mine (my TR-1C is a very
early
>> kit #23), it has the round Allen head bolts which are recessed into
the
>> attach bracket =93 I will be checking them for any signs of
corrosion or
>> cracking, and I recommend you check yours too. Can anybody confirm
that
>> there was a change to a counter sunk flat head bolt??? Galin
=93 while you
>> are down for repairs you may want to consider replacing these main
gear
>> bolts.
>>
>> Mark T.
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=434702#434702
>>
>>
>>
>>
>>
>>
>>
>>
>>-> hbsp;
========================h
ttp://www.matronics.com/Navigator?KIS-List<;
http://forums.====================
Message 2
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: TR-1 Incident down under |
Hi Mike,
The proper use of a bolt is to=C2-clamp parts directly together. =C2-Pr
eloading a bolt is what we really do when we tighten a nut down to a certai
n torque value. =C2-The bolt stretches as you tighten the nut and the bol
t provides a constant clamping force (preload) as long the load on the join
t never exceeds the clamping force provided by preloaded bolt. =C2-=C2-
A great example is the bolts that clamp the main rod bearings around the cr
ankshaft of an engine. =C2-Lycoming is very specific on the procedure for
torquing these bolts right down to specifying a specific thread lubricatio
n fluid. =C2-You can imagine if half the nut torque is going into moving
a burr through the threads and not into stretching the bolt then you will n
ot get the correct bolt preload. =C2- In this case the joint will not be
clamped together with a load greater than the load from moving the piston a
nd the joint will open slightly and stretch the bolt with each load applica
tion. Now the load on the bolt is cycling instead of the bolt being under a
constant preload keeping the joint clamped together. =C2-Eventually the
bolt will fatigue and fail. =C2-As I recall this is what happened to the
400 hour since factory new engine in the original factory demo Cruiser lead
ing to an off field landing. =C2-
The landing gear bolts of course do not go through anywhere near the load c
ycles that the main bearing bolts do, but it is still good engineering to h
ave bolted joints under a constant preload rather than cycling with every l
oad cycle. =C2-This=C2-requires a continuous joint and not leaving any
part of the bolt in the open air as in the factory landing gear installatio
n.

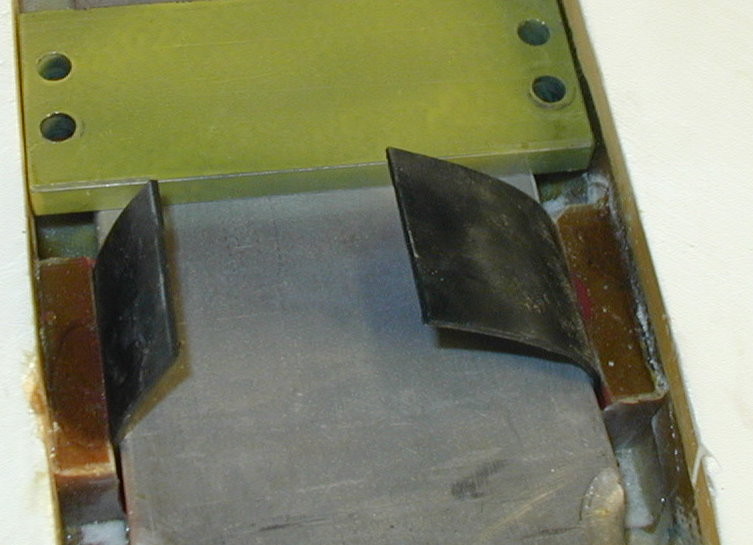

Here is a picture of my landing gear installation on my TR-1. =C2-The bol
ts clamp the steel plate onto the flox pads and allow the bolts to be under
a constant preload. =C2-The grove parts are a better option today though
since they have a built in radius that allows the gear to flex so you don'
t need the rubber pad. =C2- The rubber pad goes around the landing gear a
nd not under the bolts. =C2-http://www.kisbuild.r-a-reed-assoc.com/KIS-TR
1-Web/ScottSterns/landinggear1.JPG
| =C2- |
| =C2- | | =C2- | =C2- | =C2- | =C2- | =C2- |
| |
| |
| View on www.kisbuild.r-a-reed... | Preview by Yahoo |
| |
| =C2- |
=C2-Anyhow, this was probably more than you were asking for, but I hope
it helps.
Cheers,Scott
From: Mike Pienaar <mjpienaar@shaw.ca>
To: kis-list@matronics.com
Sent: Sunday, December 14, 2014 5:54 PM
Subject: Re: KIS-List: TR-1 Incident down under
Thanks Scott, =C2-What do you mean by "they allow the bolts to be proper
ly preloaded"=C2-Thanks for your help=C2-Mike=C2-=C2-
=C2-
----- Original Message ----- From: Scott Stearns To: kis-list@matronics.
com Sent: Sunday, December 14, 2014 4:21 PM Subject: Re: KIS-List: TR-1 In
cident down under
Yes, but grove does not make a 1.25" version so you would have to=C2-ma
ke a 0.25" spacer.
Scott
From: Mike Pienaar <mjpienaar@shaw.ca>
Sent: Monday, December 8, 2014 4:49 PM
Subject: Re: KIS-List: TR-1 Incident down under
Hi Scott
Would you recommend these gear installation blocks for the TR4 as well?
Thanks
Mike
----- Original Message -----
From: "Scott Stearns" <sstearns2@yahoo.com>
Sent: Thursday, November 27, 2014 11:58 AM
Subject: Re: KIS-List: TR-1 Incident down under
>
> I would recommend updating the gear installation using these gear blocks.
> The blocks allow the gear to flex without affecting the bolts and they
> allow the bolts to be properly preloaded.
>
> http://www.groveaircraft.com/radiusplates.html
>
> Scott
>
>> On Nov 26, 2014, at 6:38 AM, "mark_trickel" <marktrickel@gmail.com>
>> wrote:
>>
>>
>> KIS Incident Down Under
>>
>> With regret, I post this news from Australia - Michael Patten=99s
TR-1 main
>> gear collapsed during roll out after touchdown when one of the attach
>> bolts let lose:
>>
>> Airframe event involving a Amateur Built Aircraft KIS TR-1, VH-AIG,
>> Taree, Aerodrome, NSW on 9 September 1996.
>> Following an uneventful flight, the pilot reported that the aircraft
>> touched down normally. After rolling about 80 m the right wing dropped
>> and the pilot suspected a tire had failed. But about 50 m further on he
>> heard pronounced scraping noises and the aircraft slewed right then left
>> before finally coming to a halt about 10 m to the left of the runway. A
>> subsequent inspection of the aircraft revealed that the fixed landing
>> gear attachment bolts had failed at the countersunk heads. The failure
>> faces contained rust deposits, indicating the bolts had been cracked for
>> some time prior to the accident. The manufacturer has subsequently
>> changed the design specification to fit standard flat head bolts in plac
e
>> of countersunk bolts.
>>
>> The complete report is located here:
>> http://www.atsb.gov.au/publications/investigation_reports/1996/aair/1996
02857.aspx
>>
>> I ran out to my hanger/shed, and checked mine (my TR-1C is a very early
>> kit #23), it has the round Allen head bolts which are recessed into the
>> attach bracket =93 I will be checking them for any signs of corros
ion or
>> cracking, and I recommend you check yours too. Can anybody confirm that
>> there was a change to a counter sunk flat head bolt???=C2- Galin
=93 while you
>> are down for repairs you may want to consider replacing these main gear
>> bolts.
>>
>> Mark T.
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=434702#434702
>>
>>
>>
>>
>>
>>
>>
>>
>>-> hbsp; =C2- =C2- =C2- =C2- =C2- =C2- =C2- =C2- =C2-
=C2- ======================
== http://www.matronics.com/Navigator?KIS-List<; http://forums.==
==================
href="http://www.aeroelectric.com">www.aeroelectric.com
href="http://www.buildersbooks.com">www.buildersbooks.com
href="http://www.homebuilthelp.com">www.homebuilthelp.com
href="http://www.mypilotstore.com">www.mypilotstore.com
href="http://www.mrrace.com">www.mrrace.com
href="http://www.matronics.com/contribution">http://www.matronics.com/chr
ef="http://www.matronics.com/Navigator?KIS-List">http://www.matronics.com
/Navigator?KIS-List
href="http://forums.matronics.com">http://forums.matronics.com
Message 3
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
12/15/2014
Hello Scott, Thank you for your very pertinent posted comments on bolt
preloads copied below. Please allow me to pick some nits / raise some
questions. You wrote:
1) This requires a continuous joint and not leaving any part of the bolt in
the open air as in the factory landing gear installation."
I either don't understand or I disagree with the above statement. In a
normal installation the pre load tension force on the bolt is applied at two
locations, the bolt head and the nut, normally by rotating the nut while
holding the bolt head from rotating. The entire length of the bolt between
those two points is then loaded to a certain stress level created by the
torque that has been applied to the nut. Obviously there must be some
material (the items being held together by the bolt) that prevents the nut
from being rotated until it contacts the bolt head. But that stacked up
material (usually a minimum of two pieces with maybe some additional pieces
being squeezed between them) does not need to extend along and cover the
entire length of the bolt, from nut to bolt head, when proper torqueing of
the nut is completed. An air gap in the stack up will not, by itself,
prevent a proper bolt preload from being created.
Such an air gap exists even in your stack up and can be seen in the photo in
your original email where the bolts will pass through open air along side of
the aluminum gear cross piece. See the picture in the link here (need to
click on search by image):
http://www.kisbuild.r-a-reed-assoc.com/KIS-TR1-Web/ScottSterns/landinggear1.JPG
2) "The bolts clamp the steel plate onto the flox pads and allow the bolts
to be under a constant preload."
Not quite correct. Here is the probable entire stack up sequence as I see it
starting from the interior of the fuselage and working our way down.
(Realize that not everything in this stack up is placed immediately on top
of each other, but all parts or pieces are being ultimately clamped between
the bolt head and nut):
a) Bolt head.
b) Probably a large area steel washer.
c) Fuselage bottom shell (either fiberglass or carbon fiber). May be
reinforced in the vicinity of the landing gear cross slot.
d) Flox pad.
e) Rubber pad.
f) Aluminum landing gear cross piece.
g) Steel plate (with four bolt holes).
h) Probable steel washer.
i) Nut (either self locking metal or nylon, or castellated with a cotter
key).
How close did I come?
3) "The rubber pad goes around the landing gear and not under the bolts."
The rubber pad may not be directly under the bolts, but the pad definitely
is in the stack up and is being ultimately clamped between the bolt head and
nut.
4) "The bolts clamp the steel plate onto the flox pads and allow the bolts
to be under a constant preload."
It is interesting to speculate just how much relevant preload (stretch -- in
the conventional sense of preloading a steel bolt) can be created on a steel
bolt that has a rubber pad as part of the stack up between the bolt head and
nut.
5) "The grove parts are a better option today though since they have a built
in radius that allows the gear to flex so you don't need the rubber pad."
I would take the position that any time you are clamping a hard metal
object, steel or aluminum, against an epoxied fiberglass structure or flox
pad that a flexible interface (rubber or elastomeric) pad is desirable in
order to avoid crumbling any high spots or uneven areas.
OC
================================================================
From: Scott Stearns
Sent: Monday, December 15, 2014 4:04 PM
Subject: Re: KIS-List: TR-1 Incident down under
Hi Mike,
The proper use of a bolt is to clamp parts directly together. Preloading a
bolt is what we really do when we tighten a nut down to a certain torque
value. The bolt stretches as you tighten the nut and the bolt provides a
constant clamping force (preload) as long the load on the joint never
exceeds the clamping force provided by preloaded bolt.
A great example is the bolts that clamp the main rod bearings around the
crankshaft of an engine. Lycoming is very specific on the procedure for
torquing these bolts right down to specifying a specific thread lubrication
fluid. You can imagine if half the nut torque is going into moving a burr
through the threads and not into stretching the bolt then you will not get
the correct bolt preload. In this case the joint will not be clamped
together with a load greater than the load from moving the piston and the
joint will open slightly and stretch the bolt with each load application.
Now the load on the bolt is cycling instead of the bolt being under a
constant preload keeping the joint clamped together. Eventually the bolt
will fatigue and fail. As I recall this is what happened to the 400 hour
since factory new engine in the original factory demo Cruiser leading to an
off field landing.
The landing gear bolts of course do not go through anywhere near the load
cycles that the main bearing bolts do, but it is still good engineering to
have bolted joints under a constant preload rather than cycling with every
load cycle. This requires a continuous joint and not leaving any part of
the bolt in the open air as in the factory landing gear installation.
Here is a picture of my landing gear installation on my TR-1. The bolts
clamp the steel plate onto the flox pads and allow the bolts to be under a
constant preload. The grove parts are a better option today though since
they have a built in radius that allows the gear to flex so you don't need
the rubber pad. The rubber pad goes around the landing gear and not under
the bolts.
http://www.kisbuild.r-a-reed-assoc.com/KIS-TR1-Web/ScottSterns/landinggear1.JPG
View on www.kisbuild.r-a-reed...
Anyhow, this was probably more than you were asking for, but I hope it
helps.
Cheers,
Scott
From: Mike Pienaar <mjpienaar@shaw.ca>
Sent: Sunday, December 14, 2014 5:54 PM
Subject: Re: KIS-List: TR-1 Incident down under
Thanks Scott,
What do you mean by "they allow the bolts to be properly preloaded"
Thanks for your help
Mike
----- Original Message -----
From: Scott Stearns
Sent: Sunday, December 14, 2014 4:21 PM
Subject: Re: KIS-List: TR-1 Incident down under
Yes, but grove does not make a 1.25" version so you would have to make a
0.25" spacer.
Scott
From: Mike Pienaar <mjpienaar@shaw.ca>
Sent: Monday, December 8, 2014 4:49 PM
Subject: Re: KIS-List: TR-1 Incident down under
Hi Scott
Would you recommend these gear installation blocks for the TR4 as well?
Thanks
Mike
----- Original Message -----
From: "Scott Stearns" <sstearns2@yahoo.com>
Sent: Thursday, November 27, 2014 11:58 AM
Subject: Re: KIS-List: TR-1 Incident down under
>
> I would recommend updating the gear installation using these gear blocks.
> The blocks allow the gear to flex without affecting the bolts and they
> allow the bolts to be properly preloaded.
>
> http://www.groveaircraft.com/radiusplates.html
>
> Scott
>
>> On Nov 26, 2014, at 6:38 AM, "mark_trickel" <marktrickel@gmail.com>
>> wrote:
>>
>>
>> KIS Incident Down Under
>>
>> With regret, I post this news from Australia - Michael Pattens TR-1 main
>> gear collapsed during roll out after touchdown when one of the attach
>> bolts let lose:
>>
>> Airframe event involving a Amateur Built Aircraft KIS TR-1, VH-AIG,
>> Taree, Aerodrome, NSW on 9 September 1996.
>> Following an uneventful flight, the pilot reported that the aircraft
>> touched down normally. After rolling about 80 m the right wing dropped
>> and the pilot suspected a tire had failed. But about 50 m further on he
>> heard pronounced scraping noises and the aircraft slewed right then left
>> before finally coming to a halt about 10 m to the left of the runway. A
>> subsequent inspection of the aircraft revealed that the fixed landing
>> gear attachment bolts had failed at the countersunk heads. The failure
>> faces contained rust deposits, indicating the bolts had been cracked for
>> some time prior to the accident. The manufacturer has subsequently
>> changed the design specification to fit standard flat head bolts in place
>> of countersunk bolts.
>>
>> The complete report is located here:
>> http://www.atsb.gov.au/publications/investigation_reports/1996/aair/199602857.aspx
>>
>> I ran out to my hanger/shed, and checked mine (my TR-1C is a very early
>> kit #23), it has the round Allen head bolts which are recessed into the
>> attach bracket I will be checking them for any signs of corrosion or
>> cracking, and I recommend you check yours too. Can anybody confirm that
>> there was a change to a counter sunk flat head bolt??? Galin while you
>> are down for repairs you may want to consider replacing these main gear
>> bolts.
>>
>> Mark T.
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=434702#434702
>>
>>
>>
>>
>>
>>
>>
>>
>>-> hbsp; ========================
>>http://www.matronics.com/Navigator?KIS-List<;
>>http://forums.====================
href="http://www.aeroelectric.com">www.aeroelectric.com
href="http://www.buildersbooks.com">www.buildersbooks.com
href="http://www.homebuilthelp.com">www.homebuilthelp.com
href="http://www.mypilotstore.com">www.mypilotstore.com
href="http://www.mrrace.com">www.mrrace.com
href="http://www.matronics.com/contribution">http://www.matronics.com/chref="http://www.matronics.com/Navigator?KIS-List">http://www.matronics.com/Navigator?KIS-List
href="http://forums.matronics.com">http://forums.matronics.com k"
href="http://www.aeroelectric.com/">www.aeroelectric.com et="_blank"
href="http://www.buildersbooks.com/">www.buildersbooks.com nk"
href="http://www.homebuilthelp.com/">www.homebuilthelp.com ank"
href="http://www.mypilotstore.com/">www.mypilotstore.com lank"
href="http://www.mrrace.com/">www.mrrace.com
"http://www.matronics.com/contribution">http://www.matronics.com/contribution
"http://www.matronics.com/Navigator?KIS-List">http://www.matronics.com/Navigator?KIS-List
"http://forums.matronics.com/">http://forums.matronics.com
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
