Today's Message Index:
----------------------
1. 06:42 AM - Firefly tube (Jimmy)
2. 07:03 AM - Re: Firefly tube (John Hauck)
3. 07:59 AM - Re: Firefly tube (Jim Dunn)
4. 09:55 AM - Re: HKS Engine Report (Harry Griffin-Beale)
5. 12:15 PM - Re: Re: Kolb model differences Converting a FireStar to an Ultra Light Vehicle? (Jack B. Hart)
6. 07:02 PM - Re: Firestar II HKS Conversion (Dave Bigelow)
7. 07:10 PM - Re: HKS Engine Report (Dave Bigelow)
8. 07:23 PM - Re: Re: Firestar II HKS Conversion (Herb Gayheart)
9. 07:26 PM - Re: Re: Firestar II HKS Conversion (Herb Gayheart)
10. 07:44 PM - Re: Kolb Flying (GeoR38@aol.com)
11. 08:19 PM - Re: Winter high speed taxi (GeoR38@aol.com)
12. 11:04 PM - HKS engine install (Richard Girard)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
To anyone on the list:
How thick is the boom tube on a Firefly?
Thanks,
Jimmy Hankinson
912-863-7384
Firefly #035, (N6007L)
JYL (Plantation Air Park)
Pegasus Field (Home)
2000 Feet X 100 Feet- Grass
Rocky Ford, Georgia
Do Not Archive
--------------------------------------------------------------------------------
Try SPAMfighter for free now!
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Firefly tube |
|
| Thanks,
|
| Jimmy Hankinson
Jimmy:
I don't know about the FF specifically, but most 5 and 6 inch tail
booms are .058" wall thickness, I think.
john h
mkIII
PS: Winter returned to hauck's holler over night. Glad I am in the
"mole hole" (basement) working on the mkIII.
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Firefly tube |
The Fireflys use 6061-T6 Aluminum. The tube used to be 0.049" which is a
non standard size. They are now 0.052" wall thickness, which is a
standard size made by Alcoa.
Jim Dunn
N. Idaho
>
> | How thick is the boom tube on a Firefly?
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: HKS Engine Report |
Hi Guys,
Have been a member of this list for a couple of years. Really am
thankful for all the info available and I guess it is time to ask for
some feedback on this subject.
I am flying a Twinstar MKII with a Rotax 532. I have put 340 hrs of
great flying on this engine with no problems. I am now looking at a 300
TBO as that is what is recommended. I fly on the West Coast of Vancouver
British Columbia, Canada. Most of my flying is in the mountains or over
water. I will fly 27 miles across the strait of Georgia to Vancouver
Island. or over 6000ft passes to get somewhere.
Always in the back of my mind is when is this little 2 stroke going to
quite. Most of my fellow pilots here have gone over to the 4 stroke
Rotax and can't say enough about it. I can't go up
as I am already over the recomended power for this aircraft. I yearn for
the peace of mind that a 4 stroke delivers so I have been looking for
something better for a couple of years now.
The HKS700E seems to be the answer, my only reservation regarding this
engine is the air cooled system. Any feedback would be appreciated
Regards
Harry
Twinstar MKII
Vancouver, BC
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Kolb model differences Converting a FireStar to an |
Ultra Light Vehicle?
At 01:07 PM 3/16/07 -0700, you wrote:
............................
John,
Thank you for the info. It looks like a FireStar could be easily be moved
into the ultra light vehicle 103.7 category by getting rid of 21 pounds.
This could be done by smaller wheels, less paint and a lighter engine.
Using AC 103-7 Appendix 1, 2, 3 & 4, a 33 hp Mini III Simonini engine would
push it 63 mph. Changing to this engine would put the FireStar under the
weight limit.
Calculations for a gross weight of 550 pounds gives a stall speed of 27.5
mph. If one assumes a converted (re-engined) FireStar weighs 248 pounds
dry, with five gallons of fuel and flown by a standard FAA 170 pound pilot,
the wing loading would be 3.2 pounds per square foot. This would give a
stall speed of 25 mph with out flaperons.
One major advantage to converting is the extra load carrying capacity of
fifty pounds over a FireFly.
Jack B. Hart FF004
Winchester, IN
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Firestar II HKS Conversion |
Herb,

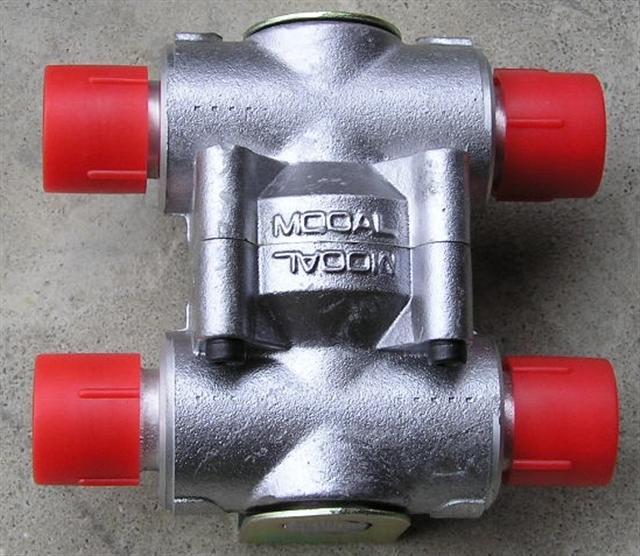

There is no housing for an oil thermostat on the HKS that I know of - an oil thermostat
can be plumbed externally. Tuning the airflow through the radiator to
maintain an acceptable range of temperature is simple, and seems to work well
for most people.
--------
Dave Bigelow
Kamuela, Hawaii
FS2, HKS 700E
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=101318#101318
Attachments:
http://forums.matronics.com//files/oilthermostat_1_283.jpg
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: HKS Engine Report |
> "Kitplanes magazine" did a thorough engine report on the HKS 700E in the
> latest edition.
Mike, would you scan and post the HKS report? I couldn't get your email address
to work.
Harry, look here: http://forums.matronics.com/viewtopic.php?t=13013. So far, I haven't had any cooling issues with my HKS.
--------
Dave Bigelow
Kamuela, Hawaii
FS2, HKS 700E
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=101321#101321
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Firestar II HKS Conversion |
Dave
Pretty sure I saw it on a dealer page somewhere? Maybe a user page?
It does exist... Herb
On Sat, 17 Mar 2007 19:01:28 -0700 "Dave Bigelow"
<up_country@hotmail.com> writes:
> <up_country@hotmail.com>
>
> Herb,
>
> There is no housing for an oil thermostat on the HKS that I know of
> - an oil thermostat can be plumbed externally. Tuning the airflow
> through the radiator to maintain an acceptable range of temperature
> is simple, and seems to work well for most people.
>
> --------
> Dave Bigelow
> Kamuela, Hawaii
> FS2, HKS 700E
>
>
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=101318#101318
>
>
>
>
> Attachments:
>
> http://forums.matronics.com//files/oilthermostat_1_283.jpg
>
>
>
>
>
>
>
>
>
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Firestar II HKS Conversion |
Here it is Dave///
http://world.std.com/~ejb/odyssey/ody_xo4_oil_system.html
Herb
On Sat, 17 Mar 2007 19:01:28 -0700 "Dave Bigelow"
<up_country@hotmail.com> writes:
> <up_country@hotmail.com>
>
> Herb,
>
> There is no housing for an oil thermostat on the HKS that I know of
> - an oil thermostat can be plumbed externally. Tuning the airflow
> through the radiator to maintain an acceptable range of temperature
> is simple, and seems to work well for most people.
>
> --------
> Dave Bigelow
> Kamuela, Hawaii
> FS2, HKS 700E
>
>
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=101318#101318
>
>
>
>
> Attachments:
>
> http://forums.matronics.com//files/oilthermostat_1_283.jpg
>
>
>
>
>
>
>
>
>
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
In a message dated 2/18/2007 11:49:42 A.M. Eastern Daylight Time,
emailbill@chartermi.net writes:
Hi Gang
I took this rear view picture while flying my plane over the Upper Peninsula
of Michgan. You can see the redish blur of my red IVO Prop.
Bill Vincent
FS II
DO NOT ARCHIVE
************************************** AOL now offers free email to everyone.
Find out more about what's free from AOL at http://www.aol.com.
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Winter high speed taxi |
Very very pretty,Indeed!!
George Randolph
florida
Do not archive
************************************** AOL now offers free email to everyone.
Find out more about what's free from AOL at http://www.aol.com.
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | HKS engine install |
Herb, Harry, Dave et al, Here are the addresses of the HKS Installation and
Operation Manuals.
Installation manual
http://www.hpower-ltd.com/pdf%20files/IManual_Eng.pdf
Operation manual
http://www.hpower-ltd.com/pdf%20files/OManual_Eng.pdf
In the current version of the installation manual there is no mention of an
oil thermostat. Unlike the Oddysey install, the second inlet to the oil tank
is not plugged, but is used for a line coming directly from the engine. What
you get is one line coming from the engine going directly to the oil tank
and another going to the oil cooler and then to the tank. The oil temp
sensor is at the bottom of the tank along with the line returning oil to the
engine. When I talked to Dana at Flightstar he advised doing the same thing
Dave has done, just cover a portion of the oil cooler to bring the temps up.
Harry, I'm unsure of how to answer your question about cooling, but perhaps
this will help a little.
The Rotax 912 has air cooled cylinders and water cooled heads. The HKS has
air cooled cylinders and oil cooled heads. In truth all "air cooled" engines
get roughly 30% or their cooling from their oil, the HKS just goes one step
further and circulates the oil through passages in the heads just as Rotax
does the same with water (water and ethylene glycol mix) The principle
difference between the two engines oiling systems is that the Rotax is a wet
sump engine and the HKS is a dry sump i.e. Rotax pressure feeds oil to the
engine after which it drains into the sump where it is picked up by the oil
pump and the circulation begins again. The HKS has a second scavenging pump
that picks up the oil from the sump and sends it to the oil tank, hence
"dry" sump.
Rick
--
Rick Girard
"Ya'll drop on in"
takes on a whole new meaning
when you live at the airport.
