Today's Message Index:
----------------------
1. 03:45 AM - Re: ADIZ Helicopter interception (JetPilot)
2. 05:12 AM - Re: Airworthiness Certificate (ElleryWeld@aol.com)
3. 06:26 AM - Re: Airworthiness Certificate (planecrazzzy)
4. 07:17 AM - Re: Re: Kolb Twinstar Should I get it? (Craig Nelson)
5. 10:40 AM - Re: New Warp Drive (JetPilot)
6. 10:52 AM - Re: New Warp Drive (Richard Girard)
7. 12:40 PM - Re: Re: New Warp Drive (Richard Girard)
8. 04:06 PM - Re: Re: New Warp Drive (possums)
9. 05:33 PM - Re: Airworthiness Certificate (George Alexander)
10. 06:03 PM - Re: Airworthiness Certificate (Jim ODay)
11. 07:14 PM - Re: Re: Primer (Dana Hague)
12. 07:27 PM - Re: Re: Firefly Landing speed (possums)

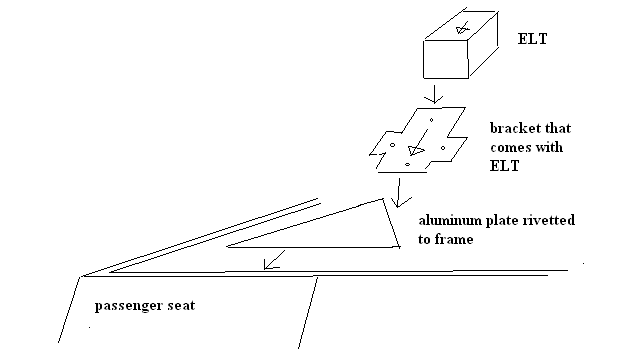

13. 07:47 PM - Re: ELT Installation (cristalclear13)
14. 08:35 PM - Re: Re: ELT Installation (Bob Noyer)
15. 08:36 PM - Re: Re: ELT Installation (Bob Noyer)
16. 08:46 PM - Re: Re: New Warp Drive (Richard Girard)
17. 09:42 PM - Re: Re: New Warp Drive (DAquaNut@aol.com)
18. 10:27 PM - Re: Re: New Warp Drive (Richard Girard)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: ADIZ Helicopter interception |
They want to make sure you do not spot the Mexican citizens the Mexican government
is helping to cross the border... Mexicans working in this country and sending
money back home is Mexico's second largest source of income after oil exports.
You could also spot some shipments of drugs coming across the border,
which would also be bad for the Mexican economy.
Mike
--------
"NO FEAR" - If you have no fear you did not go as fast as you could
have !!!
Kolb MK-III Xtra, 912-S
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=137245#137245
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Airworthiness Certificate |
I used the 3D drawing that came with the plans and I never got questions
about it but You never know with the FAA I think the inspections vary from one
another even with the same inspector as I have seen being involved with 7
different planes this year
The same inspector didnt have a problem with my 3D drawing but told another
guy he should have pics of his plane with his N-Number in them I didnt
Ellery in Maine
do not archive
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Airworthiness Certificate |
Hey Guys,

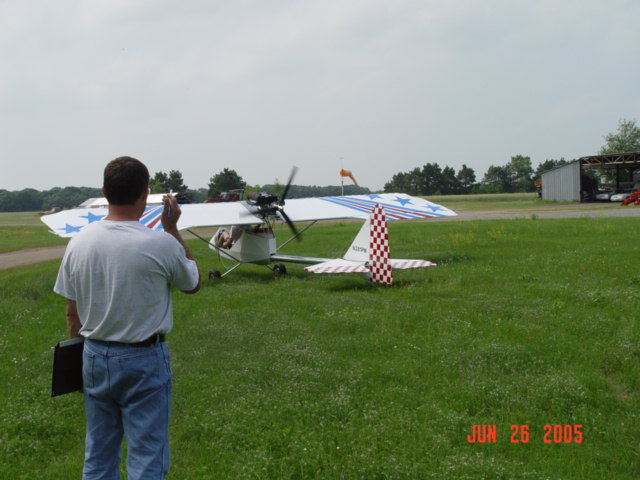

I had to deal with the FAA guy first...Then , last thing was
the DAR to look it over, and the FAA guy wanted him to Witness a taxi too
But the FAA guy wanted pictures....( 3 views )
Gotta Fly...
Mike & "Jaz" in MN
.
.
.
.
.
--------
.
.
.
.
.
Do Not Archive
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=137254#137254
Attachments:
http://forums.matronics.com//files/airworthinessinspection_052_137.jpg
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Kolb Twinstar Should I get it? |
Grant r u a dental tec?
Craig Nelson
Technical Representative
Heraeus
99 Business Park Drive
Armonk, NY 10504
Phone: (800) 431-1785 x 739
Direct: 623-764-0680
Craig.Nelson@heraeus.com
-----Original Message-----
From: owner-kolb-list-server@matronics.com
[mailto:owner-kolb-list-server@matronics.com] On Behalf Of grantr
Sent: Friday, September 28, 2007 8:03 AM
Subject: Kolb-List: Re: Kolb Twinstar Should I get it?
I am in Plains, GA. I work in Americus.
Ive been through Waycross a few times going to Savannah. I will be
heading to St Simmons soon for a work conference.
yes I am the same guy. I watch that add for a while. I almost called the
guy but I was a bit weary of it be the older model.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=136997#136997
The information transmitted is intended only for the person or entity to which
it is addressed and may contain confidential and/or privileged material. Any review,
retransmission, dissemination, or other use of, or taking of any action
in reliance upon this information by persons or entities other than the intended
recipient is prohibited. If you receive this in error, please contact the
sender and delete the material from any computer.
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
Here is a report of someone using a Warp Drive prop on a B - Gear box. I agree
very strongly with his suggestion of using Synthetic Mobil 1 Gearbox oil, not
just with a warp drive, but with any prop !
" I'm not John, but try a two blade 64" Warp, (or be really conservative and use
a 62" two blade Warp) and use only Mobil One synthetic in your gearbox, and
you'll probably get by without hurting the gearbox, and you'll probably be very
satisfied. I got a couple hundred hours out of my B box with a Warp 66" two
blade, but that was with ordinary gearbox lube. A shorter prop and better lube
and you ought to do OK.
Richard Pike
MKIII N420P (42oldpoops) "
--------
"NO FEAR" - If you have no fear you did not go as fast as you could
have !!!
Kolb MK-III Xtra, 912-S
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=137281#137281
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
The second sentence should read, "from the old days".
On 9/30/07, Richard Girard <jindoguy@gmail.com> wrote:
>
> I made an attachment plate from a piece of scrap plywood. The two smaller
> holes at 90 degrees to the centerline were used to test an old Soarmaster
> prop from the olds when you had to foot launch ultralights. I used .032
> safety wire to suspend the prop being tested from a piece of square steel
> tubing I "C" clamped from the hangar frame and braced the tube with a couple
> of pieces of steel flat stock I took from my scrap bin. The whole apparatus
> took about 15 minutes to make. I used the stop watch I bought for testing Vx
> and Vy speeds during phase 1 testing of my mk 3 and repeated the test 3
> times and took the average time. About the hardest thing about it all was
> trying to eliminate as much of any extraneous side to side rocking as
> possible. With a little practice I got pretty good at eyeballing the center
> mark as being in the center of the twisting motion. Once you get it moving
> with the center mark as still as possible you can count 30 swings, write
> down the time, count 30 more, write down the second time and count 30 more.
> Like any pendulum, as the arc gets shorter the speed the arc slows down. In
> doing 95 to 100 total swings to get three 30 swing tests each set was within
> a few tenths of a second for each of the three. With mounting and
> dismounting, I tested five props in about an hour and a half, and that
> included a break to make a pot of coffee in the middle of the testing.
>
> Rick
>
> On 9/30/07, DAquaNut@aol.com <DAquaNut@aol.com> wrote:
> >
> > In a message dated 9/29/2007 9:02:14 P.M. Central Standard Time,
> > jindoguy@gmail.com writes:
> >
> > Ed, There's one more thing I forgot to mention. Did you get the blades
> > tapered? If not, you might want to consider sending the blades back to warp
> > and getting it done. This will take weight off the area that has the largest
> > effect on the inertia of the prop.
> >
> > Rick
> >
> > Rick,
> >
> > Yes I did get the blades tapered . Thanks for your replies and the
> > info on inertia testing. I plan on testing as soon as I can. It is not real
> > clear as to how they attach the wires to the prop but I will try to rig it
> > like the diagram.
> >
> > Ed
> >
> >
> >
> > ------------------------------
> > See what's new at AOL.com and Make AOL Your Homepage.
> >
> > *
> >
> >
> > http://www.matronics.com/Navigator?Kolb-List
> > http://forums.matronics.com
> >
> > *
> >
> >
>
>
> --
> Rick Girard
> "Ya'll drop on in"
> takes on a whole new meaning
> when you live at the airport.
>
>
--
Rick Girard
"Ya'll drop on in"
takes on a whole new meaning
when you live at the airport.
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
Another question occurred to me while out walking the dog, just now. Ed, you
didn't mention whether your 447 is a single carb or dual. If it's the dual
carb, make sure and do the carb synchronization as accurately as you
possibly can. Anything you can do to make the engine run as smooth as
possible is going to make the loads on the gearbox that much less. Of
course, if you have a single carb, in the words of Emily Littela, "Never
mind".
Rick
On 9/30/07, JetPilot <orcabonita@hotmail.com> wrote:
>
>
> Here is a report of someone using a Warp Drive prop on a B - Gear box. I
> agree very strongly with his suggestion of using Synthetic Mobil 1 Gearbox
> oil, not just with a warp drive, but with any prop !
>
>
> " I'm not John, but try a two blade 64" Warp, (or be really conservative
> and use a 62" two blade Warp) and use only Mobil One synthetic in your
> gearbox, and you'll probably get by without hurting the gearbox, and you'll
> probably be very satisfied. I got a couple hundred hours out of my B box
> with a Warp 66" two blade, but that was with ordinary gearbox lube. A
> shorter prop and better lube and you ought to do OK.
>
> Richard Pike
> MKIII N420P (42oldpoops) "
>
> --------
> "NO FEAR" - If you have no fear you did not go as fast as you could have
> !!!
>
> Kolb MK-III Xtra, 912-S
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=137281#137281
>
>
--
Rick Girard
"Ya'll drop on in"
takes on a whole new meaning
when you live at the airport.
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
At 03:40 PM 9/30/2007, you wrote:
>Another question occurred to me while out walking the dog, just now.
>Ed, you didn't mention whether your 447 is a single carb or dual. If
>it's the dual carb, make sure and do the carb synchronization as
>accurately as you possibly can. Anything you can do to make the
>engine run as smooth as possible is going to make the loads on the
>gearbox that much less. Of course, if you have a single carb, in the
>words of Emily Littela, "Never mind".
>
>Rick
I've got a 68" three blade Warp Drive on mine.
I've also got a 503 dual carb and an "E" (same as "C" with a starter) gear box.
700 + hours so far and no problems.
I wouldn't think a two blade 64" Warp would hurt - even if it is a
lowly, finicky 447.
If it so - we surely would have heard about it by now.
I use to run a two blade 68" Warp on my old single carb 447 Firestar
and never had any problems. It might sink a little faster than an Ivo if you
land in the water........but other than that?
Besides, I've sealed my wings now - so I can float !
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Airworthiness Certificate |
Kolbers and Kolbettes:
I sent a copy of the FS II document that I used to Matt for posting on Photoshare.
(Beauford had given me a copy from a brochure, I think.)
For those who can't wait, you can see it/download it by going to:
http://kolbplanes.home.comcast.net/FSII_3_View_bw.jpg
and if you have trouble handling that, send me an email, off list, and I will email
you a copy. (Apprx 200K in size.)
lcottrell wrote:
>
> >
> > Today I had my airworthiness inspection. Everything was in working order
> > and passed the DAR's inspection.
> >
> >
>
>
>
> Did you need a three view line drawing of your plane, if so where did you
> get it and how can I get one?
> Larry C
--------
George Alexander
http://gtalexander.home.att.net
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=137333#137333
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Airworthiness Certificate |
The 3 View DWG I used is posted here ...
http://forums.matronics.com/viewtopic.php?t=29607&highlight
do not archive
--------
Jim O'Day
Fargo, ND
Firestar II
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=137337#137337
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
At 02:24 PM 9/29/2007, R. Hankins wrote:
>...a contact number for Mark Smith?
Mark's mainly a Quicksilver guy, his website is http://trikite.com/ .
-Dana
do not archive
--
--
"I'm a lawyer." "Honest?" "No, the usual kind."
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Firefly Landing speed |
At 08:50 PM 5/5/2007, you wrote:
-----
Howbout this one?
This is the explanation of a pretty neat card trick you can do for
friends over the Web.
In order to do the trick, you'll need five things:
* a deck of cards;
* access to the Web;
* someone to show the trick to;
* an understanding of the trick's secret; and
* practice.
The effect of the trick is as follows: the magician opens this Web
page but doesn't touch the computer for the duration of the trick.
The spectator is given a deck of cards, and asked to choose any five
cards; these cards can be chosen at random, or the spectator can
choose five cards he wants to use.
The magician takes one of the five cards out of the set, and asks his
friend to enter the other four cards into a form on the Web page (a
working version can be found below). The Guess button is pressed, and
a picture of the fifth card is displayed.
In this document, I explain everything about the trick except for its
secret. But hints are given to figure out how the trick is done, and
you can always beg me to tell you.
http://www.minortriad.com/cards.html
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yeah - you can beg all you want - but he won't tell you - hints come
slow and hard
took me two years to figure it out!
How about if I give you a clue - ?
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: ELT Installation |
Hi guys. Sorry if I'm boring you with this thread. I had a mechanic come out
and look at my plane. He seemed to think it would NOT be a good idea to put any
holes in the boom tube (to install my ELT) or thought I should at least call
Kolb company and see if they would tell me where a good place to put my ELT
would be. Has anyone done that (don't want to bother them if they've already
answered that question a hundred times)? If I did install the ELT to the boom
tube, is there a place where I should/shouldn't put any holes?
I've attached Plan B. We came up with the idea to make an aluminum plate and rivet
it to the frame just behind the passenger's head (I have a Kolb Mark II two-seater
side-by-side). Thought there might be enough room on there to also
attach the antenna. Only drawback would be it would block where my left gas tank
comes in and out. I don't plan on taking that in and out much though.
--------
Cristal
Mark II Twinstar
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=137353#137353
Attachments:
http://forums.matronics.com//files/elt_installation_plan_b_185.bmp
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: ELT Installation |
To rivet, you'll have to drill holes in the cage tubes...possibly
weakening them. How about making/buying some clamps that will go
around/grip the tubes and can be riveted to the mounting plate? If
behind the pax seat, you most certainly don't want to give him/her a
"shot to the head" on a sudden halt!
regards,
Bob N. FireFly 070 Old Kolb
http://www.angelfire.com/rpg/ronoy/
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: ELT Installation |
There are much better places to mount the ELT antenna than in among
the cage tubing. Tip of fin, on a big clamp around boom, belly (if
you land on yer back!).
regards,
Bob N. FireFly 070 Old Kolb
http://www.angelfire.com/rpg/ronoy/
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
I run a 68" 3 blade un tapered Warp Drive on my 582 with a "C" gearbox and
have had no problems The Warp has high inertia but it falls within limits,
barely. Even so I always change throttle settings smooth and gradual. I was
running a Rice King clutch but I worked a trade for the standard rubber
donut drive damper and some flying time at Wallaby Ranch when I go to Sun n
Fun 2008 next April so I've got to follow all the advice I've been handing
out to Ed. :-)
Rick
On 9/30/07, possums <possums@bellsouth.net> wrote:
>
> At 03:40 PM 9/30/2007, you wrote:
> >Another question occurred to me while out walking the dog, just now.
> >Ed, you didn't mention whether your 447 is a single carb or dual. If
> >it's the dual carb, make sure and do the carb synchronization as
> >accurately as you possibly can. Anything you can do to make the
> >engine run as smooth as possible is going to make the loads on the
> >gearbox that much less. Of course, if you have a single carb, in the
> >words of Emily Littela, "Never mind".
> >
> >Rick
>
> I've got a 68" three blade Warp Drive on mine.
> I've also got a 503 dual carb and an "E" (same as "C" with a starter) gear
> box.
> 700 + hours so far and no problems.
> I wouldn't think a two blade 64" Warp would hurt - even if it is a
> lowly, finicky 447.
> If it so - we surely would have heard about it by now.
> I use to run a two blade 68" Warp on my old single carb 447 Firestar
> and never had any problems. It might sink a little faster than an Ivo if
> you
> land in the water........but other than that?
> Besides, I've sealed my wings now - so I can float !
>
--
Rick Girard
"Ya'll drop on in"
takes on a whole new meaning
when you live at the airport.
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
In a message dated 9/30/2007 10:46:30 P.M. Central Standard Time,
jindoguy@gmail.com writes:
I run a 68" 3 blade un tapered Warp Drive on my 582 with a "C" gearbox and
have had no problems The Warp has high inertia but it falls within limits,
barely. Even so I always change throttle settings smooth and gradual. I was
running a Rice King clutch but I worked a trade for the standard rubber donut
drive damper and some flying time at Wallaby Ranch when I go to Sun n Fun 2008
next April so I've got to follow all the advice I've been handing out to Ed.
:-)
Rick
At this point I would like to know if I have enough clearance on my
firefly, to run the 64"Warp without a spacer. It doesn't seem to flex at all !
If
In fact I do need a spacer can I use grade 5 bolts?
Ed
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Warp Drive |
Ed, I don't run a spacer on my Warp Drive and the prop blades don't seem to
flex at all.
I would run the 8.8 spec metric bolts that came with the prop (equivalent to
grade 6 AN bolts). Grade 5 bolts are a carbon steel bolt, while the 8.8,
like the AN's are an alloy steel. The difference is in the alloy steels
ability to bend without getting brittle as the grade 5's do.
Rick
On 10/1/07, DAquaNut@aol.com <DAquaNut@aol.com> wrote:
>
> In a message dated 9/30/2007 10:46:30 P.M. Central Standard Time,
> jindoguy@gmail.com writes:
>
> I run a 68" 3 blade un tapered Warp Drive on my 582 with a "C" gearbox and
> have had no problems The Warp has high inertia but it falls within limits,
> barely. Even so I always change throttle settings smooth and gradual. I was
> running a Rice King clutch but I worked a trade for the standard rubber
> donut drive damper and some flying time at Wallaby Ranch when I go to Sun n
> Fun 2008 next April so I've got to follow all the advice I've been handing
> out to Ed. :-)
>
> Rick
>
> At this point I would like to know if I have enough
> clearance on my firefly, to run the 64"Warp without a spacer. It doesn't
> seem to flex at all ! If In fact I do need a spacer can I use grade 5
> bolts?
>
> Ed
>
>
> ------------------------------
> See what's new at AOL.com and Make AOL Your Homepage.
>
> *
>
>
> *
>
>
--
Rick Girard
"Ya'll drop on in"
takes on a whole new meaning
when you live at the airport.
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
