Boy you can really see the resemblance to the Jenny there in that
picture.The Jenny was the plane that Bernard Pietenpol started with.
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of jimd
Sent: October 23, 2007 7:05 PM
Subject: Pietenpol-List: Grega GN-1 Biplane Questions
Hi,
There was some discussion on the list of the Grega gn-1 biplane that was
for sale on Barnstormers recently. I bought it and managed to get it
home and have some questions as a new builder.
First some background;
I found it is pretty much a plans-built Grega GN-1 with steel tube
fuselage and a larger/heavier engine than is typical. The biplane part
is from the St. Croix/Chad Willie "Aeriel Pietenpol" plans, which came
with the plane and now make more sense, as essentially they are add on
wings for a regular Pietenpol, along with some stuts and wires.
I did manage to find a similar plane, in that it has same rigging and
basic configuration. (Its in St. Louis at a museum.. seems odd to be
building something others put in museums..).
http://www.airandspacemuseum.org/photos%20Aug%2007/aPietenpol.jpg
Anyway to my questions;
There were two Grega specific items I wondered about; First, it has an
.026 aircraft aluminum leading edge, which is attached with lots of
brads, but not glued. I recall the Grega plans specify that kind of
leading edge, but should it be glued? From moving it is coming kind of
loose, it would be easy to retack it or to glue it, but wondered what
the opinions would be on this.
Second, the passenger seat base is supported by a couple diagonal steel
tubes that are too close to the sides of the fuselage for me to
comfortably fit my legs in. Is there any way to know if they are load
bearing and their design is key to safety, they look like they could
easily be cut/replaced with the same weight tubes arched a bit to make
for more leg room.
Any tips on creating the leading edge? Think it would be odd to have one
wing skinned in wood and one in aluminum, and suspect I will end up
going aluminum to match the one that is done. While by bottom Aeriel/St.
Croix wing is pretty well built, it doesn't have the leading edge spar
built. I have head bannister railing is commonly used, but would like
more information, like .. if you use aluminum for a leading edge, and
you use a bannister railing for the spar, is it supposed to support the
leading edge.. meaning having same profile.. and would it then be
bradded and/or glued (T-88 I presume.)
This list is one of the things that helped convince me to go for the
plane, in that I saw a lot of good information flowing back and forth. I
am in the EAA and it is a great place to be to build high perf metal kit
planes, or composite ones, but they were kind of light on folks
interested in wood, steel tube and fabric, though there are a lot of
good guys there.
Any suggestions would be appreciated.
Thanks,
Jim
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=141388#141388
Attachments:
http://forums.matronics.com//files/p19_132.jpg
Message 2
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Stuck on fuselage joining dimensions |
Thanks for the help Dick and Ben. So far I have used the dimensions at the top
and bottom of the pilots, seat brought the tail together, and let everything else
fall into place, then squared things up. My dimensions are just over an inch
or so of the prints. I haven't glued anything yet so nothing's final. I was
concerned about adding any more stress into the longerons than needed to be there.
Thanks again,
Ryan Michals
NXxxxCC
Clover Clipper
*Message sent from a mobile device.
-----Original Message-----
From: "Ben Charvet" <bcharvet@bellsouth.net>
Sent: 10/22/2007 6:21 PM
Subject: Re: Pietenpol-List: Stuck on fuselage joining dimensions
I just used the dimensions on the original plans at each station.
Seemed to work out fine
Ben
Ryan Michals wrote:
>
> I am building a standard width, long "improved" Piet. The sup. Plans don't
have measurements for the width of the joined fuselage sides, in particular, the
empennage. What has everyone else done?
>
>
> Ryan Michals
> NXxxxCC
> Clover Clipper
>
>
>
Message 3
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Hello everyone!
I will carve a prop for a model A (maybe a 76 x42), but firstly I need to find
some drawings. If someone has for sale please let me know. I really like an antique
look prop, but any is wellcome.
Remember, I'm in Argentina (where some brave men have already sent things for me,
so it shouldn't be a problem : )
Saludos!
Santiago
---------------------------------
Los referentes ms importantes en compra/venta de autos se juntaron:
Demotores y Yahoo!.Ahora comprar o vender tu auto es ms fcil.
Visit http://ar.autos.yahoo.com/
Message 4
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Grega GN-1 Biplane Questions |
Jim,
My Grega plans call out .013 alum secured with 20 ga. 3/4" nails. Drawing
No. 800-20.
Skip
> Anyway to my questions;
> First, it has an
> .026 aircraft aluminum leading edge, which is attached with lots of
> brads, but not glued. I recall the Grega plans specify that kind of
> leading edge, but should it be glued? From moving it is coming kind of
> loose, it would be easy to retack it or to glue it, but wondered what
> the opinions would be on this.
>
> Thanks,
>
> Jim
Message 5
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Grega GN-1 Biplane Questions |
Thanks for the info.
Bet those brads I mentioned are really the same nails you refer to. They are a
little loose, but I think they will tighten back up.. suspect the wood went from
somewhere normal to Arizona where the wings were built and then shrank a little.
I am in Missouri, where the humidity varies a bit, but is much more humid
than AZ. Will tap them back in and see.
For the lower wing, the one without the leading edge, I am leaning toward doing
it exactly the same way, so will have to figure out how to shape and mount the
leading edge wood spar. Will look at the Aeriel plans and see what they specify,
probably talk to a DAR before going very far.
Thanks again,
Jim
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=141489#141489
Message 6
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Grega GN-1 Biplane Questions |

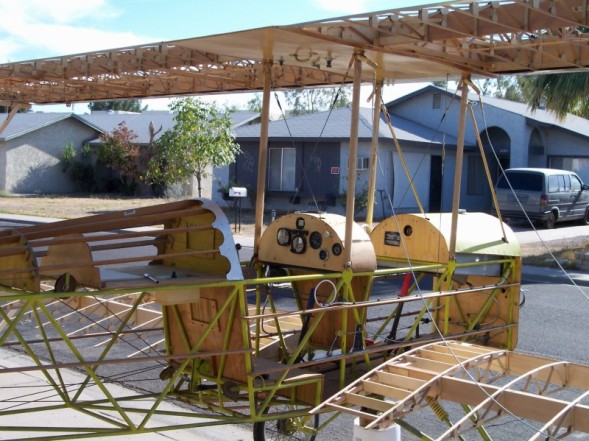

Some pics of the bipe.
