Today's Message Index:
----------------------
1. 02:32 AM - Re: Re: cables (Jack)
2. 04:40 AM - Re: Re: cables (Greg Cardinal)
3. 05:19 AM - Re: Landing Gear Brackets (skellytown flyer)
4. 05:21 AM - Re: cables (Gene Rambo)
5. 07:29 AM - Re: cables (TriScout)
6. 09:38 AM - Re: onr more thing.... cables (Billy McCaskill)
7. 11:17 AM - Fuel cap vent (Jack)
8. 12:25 PM - Re: Fuel cap vent (gboothe5@comcast.net)
9. 01:02 PM - Re: Re: cables (Doug Dever)
10. 01:06 PM - Re: cables (Dan Yocum)
11. 01:15 PM - Re: Fuel cap vent (Dale Johnson)

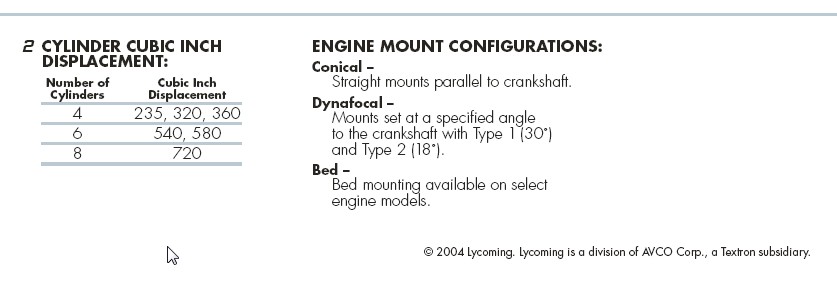

12. 03:14 PM - 0-235 info (carson)
13. 03:26 PM - Re: cables (Gene Rambo)
14. 04:11 PM - Re: Fuel cap vent (helspersew@aol.com)
15. 05:10 PM - Re: Fuel cap vent (Rick Holland)
16. 06:15 PM - Fuselage question (KM Heide CPO/FAAOP)
17. 06:21 PM - Re: 0-235 info (Jerry Dotson)
18. 06:42 PM - Re: Fuselage question (Chris)
19. 07:34 PM - Re: Re: 0-235 info (Clif Dawson)
20. 07:56 PM - Corvair Engine (KM Heide CPO/FAAOP)
21. 08:02 PM - Re: cables (Clif Dawson)
22. 08:10 PM - Westcoastpiet Website (Chris)
23. 08:20 PM - Re: Fuselage question (K5YAC)
24. 08:36 PM - Re: Fuselage question (K5YAC)
25. 08:47 PM - Re: Fuselage question (Ben Charvet)
26. 09:02 PM - Re: 0-235 info (carson)
27. 11:00 PM - Re: Re: 0-235 info (Clif Dawson)
Message 1
INDEX | Back to Main INDEX |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Van,
Tried your site and it's a bad link. Have you got it going yet?
Jack
DSM
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of VanDy
Sent: Saturday, September 25, 2010 12:35 AM
Subject: Pietenpol-List: Re: cables
thanks for all the great feedback, as always :) i think im going to go with
stainless though, the extra cost seems to be worth it in this case, although
im going to do some weight research and what not as well.
One of the reasons im steering away from galvanized is that over the winter
i found the Pietenpol with a broken tailwheel steering cable (galvanized)
and it really made me think, ok so what do the ones in the wing look
like.... they didnt look bad, but enough to make me replace them. A quick
history about the plane. It has sat in an open T-hangar, the kind where
there is another plane 180 facing 180 degrees on either side. for the last
8 years. Although i'll be storing it in a closed hangar, it makes me think!
Now im about to go out and take a rough measurement of just how much I need
and add 25%, although will probly end up ordering what i can afford when i
can!
Thanks again!!
AN hardware (short of turn buckles) are in the mail.
Corvair is ready to come off.
Carb is waiting to be rebuilt.
tail feathers ready for cover
thanks for all the great feedback and advice!!
--------
www.vansavition.com follow my Piet rebuild there!
almost dissasembled, getting ready to order all AN hardware and SS cable
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313679#313679
Message 2
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Try this link...
http://www.vansaviation.com/
----- Original Message -----
From: "VanDy" <matthew.vandervort@gmail.com>
Sent: Saturday, September 25, 2010 12:34 AM
Subject: Pietenpol-List: Re: cables
> <matthew.vandervort@gmail.com>
>
> thanks for all the great feedback, as always :) i think im going to go
> with stainless though, the extra cost seems to be worth it in this case,
> although im going to do some weight research and what not as well.
>
> One of the reasons im steering away from galvanized is that over the
> winter i found the Pietenpol with a broken tailwheel steering cable
> (galvanized) and it really made me think, ok so what do the ones in the
> wing look like.... they didnt look bad, but enough to make me replace
> them. A quick history about the plane. It has sat in an open T-hangar,
> the kind where there is another plane 180 facing 180 degrees on either
> side. for the last 8 years. Although i'll be storing it in a closed
> hangar, it makes me think!
>
> Now im about to go out and take a rough measurement of just how much I
> need and add 25%, although will probly end up ordering what i can afford
> when i can!
>
> Thanks again!!
> AN hardware (short of turn buckles) are in the mail.
> Corvair is ready to come off.
> Carb is waiting to be rebuilt.
> tail feathers ready for cover
>
> thanks for all the great feedback and advice!!
>
> --------
> www.vansavition.com follow my Piet rebuild there!
>
> almost dissasembled, getting ready to order all AN hardware and SS cable
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=313679#313679
>
>
>
Message 3
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Landing Gear Brackets |
Well I haven't worked with Iron rivets in a long time but as a kid I set many of
them with a Ball Peen hammer.of course they were going through steel sickle
bars holding the cutters on but i seems to me like as long as you have an anvil
to set the head against the method should work about the same.it didn't take
long to do one,the only think I can think of that might be a problem is what
keeps the rivet from trying to swell inside the wood and split it? I never tried
to rivet something like that but I would think if you don't have the equipment
described it would be easy to make up a sample piece and just give the hammer
method a try. it is pretty easy with practice to work around the end of the
rivet with the round head and make a good shop head. Raymond
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313688#313688
Message 4
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
what does going around a pulley have to do with galvanized vs stainless???
Gene
do not archive
Subject: Re: Pietenpol-List: cables
From: at7000ft@gmail.com
Should use galvanized cable on any control cable that has to flex around a
pully. Am using stainless on the cabane (3/32") and wing strut cross brace
cables (1/8").
rick
On Thu=2C Sep 23=2C 2010 at 10:55 PM=2C VanDy <matthew.vandervort@gmail.com
> wrote:
>
So i did a couple of searches on here and found what looked like people are
using both 3/32 and 1/8 stainless steel cables=2C so my question in what i
s the common that most are using?
Thanks in advance@@
--------
www.vansavition.com follow my Piet rebuild there!
almost dissasembled=2C getting ready to order all AN hardware and SS cable
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313554#313554
st" target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
http://forums.matronics.com
le=2C List Admin.
="_blank">http://www.matronics.com/contribution
--
Rick Holland
Castle Rock=2C Colorado
"Logic is a wreath of pretty flowers=2C that smell bad"
Message 5
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
That reminds me. It finally dawned on me that the GN-1 that I bought is the only
one I've ever seen w/out the cross bracing cables that crisscross between the
wing struts. The fella that I bought it from told me to keep in mind that if
a wing drops, or when you level it out after a bank, that it "takes all she got"
to get that wing up level again. He put in some quick gap seals on the airlerons
using dope/fabric, and said that it helps a little, but he said to just
be aware of it when the time comes to fly it. The airframe does have about 480hrs
on it, so it IS a proven airframe, but I am wondering if this lack of cross
bracing may be contributing to the wing possibly warping slightly with aileron
use, etc..
also, before the last person bought it and rebuilt it, it was in a mishap back
in '02. This, in my mind confirms my theory about the lack of cross bracing. Here's
an excerpt of the accident back then:
[b]He began the takeoff roll and initiated a
normal climb until about 20 feet above ground level (agl) when the airplane suddenly
and violently
banked to the left. He applied full right rudder and also right aileron input but
was not able to
recover before the left wing impacted the ground. He then reduced power and the
airplane then
nosed over and came to rest on a closed runway. Postcrash, he checked the flight
controls and
stated, "they moved correctly and freely." He also stated that there was no evidence
of pre-impact
structural failure or malfunction.
Any thoughts on this?
Larry
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313699#313699
Attachments:
http://forums.matronics.com//files/1_132.jpg
Message 6
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: onr more thing.... cables |
Why did you remove the cardboard leading edge material? Was it deteriortated?
If it were plywood, it would probably still be in good shape.
Also, I think that the plywood will add more strength to the wing and also probably
be a few pounds lighter.
--------
Billy McCaskill
Urbana, IL
tail section almost done, starting on ribs soon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313703#313703
Message 7
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
All,
I plan to install a ram vent in my fuel cap, which is galvanized. Looking
for the best way to secure the line. Braze solder? Will I need to grind
the galvanized coating off? Any help would be great!
Go Hawks!
Jack
DSM
Jack Textor
29 SW 58th Drive
Des Moines, IA 50312
www.textors.com
Message 8
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Fuel cap vent |
SSBzb2xkZXJlZCBhIHdhc2hlciB0byBhIGJyYXNzIHR1YmUsIHRoZW4gZXBveGllZCB0byB0aGUg
aW5zaWRlIG9mIHRoZSBjYXAuDQoNCkdhcnkgQm9vdGhlDQpTZW50IG9uIHRoZSBTcHJpbnSuIE5v
dyBOZXR3b3JrIGZyb20gbXkgQmxhY2tCZXJyea4NCg0KLS0tLS1PcmlnaW5hbCBNZXNzYWdlLS0t
LS0NCkZyb206ICJKYWNrIiA8amFja0B0ZXh0b3JzLmNvbT4NClNlbmRlcjogb3duZXItcGlldGVu
cG9sLWxpc3Qtc2VydmVyQG1hdHJvbmljcy5jb20NCkRhdGU6IFNhdCwgMjUgU2VwIDIwMTAgMTI6
NTg6MDggDQpUbzogPHBpZXRlbnBvbC1saXN0QG1hdHJvbmljcy5jb20+DQpSZXBseS1UbzogcGll
dGVucG9sLWxpc3RAbWF0cm9uaWNzLmNvbVN1YmplY3Q6IFBpZXRlbnBvbC1MaXN0OiBGdWVsIGNh
cCB2ZW50DQoNClRoaXMgaXMgYSBtdWx0aS1wYXJ0IG1lc3NhZ2UgaW4gTUlNRSBmb3JtYXQuDQoN
Cg=
Message 9
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Someone else pipe up here if Im wrong=2C but I have no idea what would keep
the wing from twisting around the vertical axis relative to the fuselage.
With the configuration of a Piet or a GN-1 and parallel lift struts it wou
ld appear to me that you would have to have the cross bracing. Other desig
ns get around this of course by the "V" configuration of the lift struts.
Doug Dever
In beautiful Stow Ohio
> Subject: Pietenpol-List: Re: cables
> From: apfelcyber@yahoo.com
> Date: Sat=2C 25 Sep 2010 07:27:28 -0700
> To: pietenpol-list@matronics.com
>
>
> That reminds me. It finally dawned on me that the GN-1 that I bought is t
he only one I've ever seen w/out the cross bracing cables that crisscross b
etween the wing struts. The fella that I bought it from told me to keep in
mind that if a wing drops=2C or when you level it out after a bank=2C that
it "takes all she got" to get that wing up level again. He put in some quic
k gap seals on the airlerons using dope/fabric=2C and said that it helps a
little=2C but he said to just be aware of it when the time comes to fly it.
The airframe does have about 480hrs on it=2C so it IS a proven airframe=2C
but I am wondering if this lack of cross bracing may be contributing to th
e wing possibly warping slightly with aileron use=2C etc..
>
> also=2C before the last person bought it and rebuilt it=2C it was in a mi
shap back in '02. This=2C in my mind confirms my theory about the lack of c
ross bracing. Here's an excerpt of the accident back then:
>
>
> [b]He began the takeoff roll and initiated a
> normal climb until about 20 feet above ground level (agl) when the airpla
ne suddenly and violently
> banked to the left. He applied full right rudder and also right aileron i
nput but was not able to
> recover before the left wing impacted the ground. He then reduced power a
nd the airplane then
> nosed over and came to rest on a closed runway. Postcrash=2C he checked t
he flight controls and
> stated=2C "they moved correctly and freely." He also stated that there wa
s no evidence of pre-impact
> structural failure or malfunction.
>
> Any thoughts on this?
>
> Larry
>
>
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=313699#313699
>
>
>
>
> Attachments:
>
> http://forums.matronics.com//files/1_132.jpg
>
>
>
>
===========
===========
===========
===========
>
>
>
Message 10
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Doesn't the zinc coating on the galvanized "lubricate" the cable?
--
Dan Yocum
yocum137@gmail.com
"I fly because it releases my mind from the tyranny of petty things."
On Sep 25, 2010, at 7:14 AM, Gene Rambo <generambo@msn.com> wrote:
> what does going around a pulley have to do with galvanized vs stainless???
>
> Gene
> do not archive
>
> Date: Fri, 24 Sep 2010 10:17:36 -0600
> Subject: Re: Pietenpol-List: cables
> From: at7000ft@gmail.com
> To: pietenpol-list@matronics.com
>
>
> Should use galvanized cable on any control cable that has to flex around a
pully. Am using stainless on the cabane (3/32") and wing strut cross brace c
ables (1/8").
>
> rick
>
> On Thu, Sep 23, 2010 at 10:55 PM, VanDy <matthew.vandervort@gmail.com> wro
te:
m>
>
> So i did a couple of searches on here and found what looked like people ar
e using both 3/32 and 1/8 stainless steel cables, so my question in what is t
he common that most are using?
> Thanks in advance@@
>
> --------
> www.vansavition.com follow my Piet rebuild there!
>
> almost dissasembled, getting ready to order all AN hardware and SS cable
>
>
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=313554#313554
>
>
>
>
>
>
>
> ==========
> st" target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
> ==========
> http://forums.matronics.com
> ==========
> le, List Admin.
> ="_blank">http://www.matronics.com/contribution
> ==========
>
>
>
>
>
>
> --
> Rick Holland
> Castle Rock, Colorado
>
> "Logic is a wreath of pretty flowers, that smell bad"
>
>
> st" target=_blank>http://www.matronics.com/Navigator?Pietenpol-List
> ttp://forums.matronics.com
> =_blank>http://www.matronics.com/contribution
>
>
>
==========================
=========
==========================
=========
==========================
=========
==========================
=========
>
Message 11
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Jack
You can soft solder galvanized coating. If you grind the galvanized coating of
you will
have to brass braze it. I soft soldered a copper tube to the cap.
Dale
----- Original Message -----
From: Jack
Sent: 9/25/2010 1:45:32 PM
Subject: Pietenpol-List: Fuel cap vent
All,
I plan to install a ram vent in my fuel cap, which is galvanized. Looking for
the best way to secure the line. Braze solder? Will I need to grind the galvanized
coating off? Any help would be great!
Go Hawks!
Jack
DSM
Jack Textor
29 SW 58th Drive
Des Moines, IA 50312
www.textors.com
Message 12
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Hi guys
Hoping someone can help
I have an L2A Lycoming 235 and am not sure if it is a type 1 or 2 dynafocal ring
I have searched high and low and think it should be a type 1 but am not sure.
Does anyone have the answer?
Carson
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313725#313725
Message 13
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
no=2C the zinc is for corrosion protection. Aircraft cables are supposedly
lubricated internally=2C which might be necessary for going around pulleys
. For stays=2C cables that only hold something in position=2C but don't go
around pulleys=2C like the tail brace wires and even the rear elevator wir
es=2C I don't see why lubricated=2C i.e. "aircraft" cable would be required
. Non "aircraft" cable which has the exact same breaking strength as aircr
aft cable=2C should be fine for tail brace wires=2C cabane wires=2C wing dr
ag/anti-drag wires=2C strut brace wires=2C etc.
Gene
Subject: Re: Pietenpol-List: cables
From: yocum137@gmail.com
Doesn't the zinc coating on the galvanized "lubricate" the cable?
--
Dan Yocum
yocum137@gmail.com
"I fly because it releases my mind from the tyranny of petty things."
On Sep 25=2C 2010=2C at 7:14 AM=2C Gene Rambo <generambo@msn.com> wrote:
what does going around a pulley have to do with galvanized vs stainless???
Gene
do not archive
Subject: Re: Pietenpol-List: cables
From: at7000ft@gmail.com
Should use galvanized cable on any control cable that has to flex around a
pully. Am using stainless on the cabane (3/32") and wing strut cross brace
cables (1/8").
rick
On Thu=2C Sep 23=2C 2010 at 10:55 PM=2C VanDy <matthew.vandervort@gmail.com
> wrote:
>
So i did a couple of searches on here and found what looked like people are
using both 3/32 and 1/8 stainless steel cables=2C so my question in what i
s the common that most are using?
Thanks in advance@@
--------
www.vansavition.com follow my Piet rebuild there!
almost dissasembled=2C getting ready to order all AN hardware and SS cable
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313554#313554
st" target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
http://forums.matronics.com
le=2C List Admin.
="_blank">http://www.matronics.com/contribution
--
Rick Holland
Castle Rock=2C Colorado
"Logic is a wreath of pretty flowers=2C that smell bad"
st" target=_blank>http://www.matronics.com/Navigator?Pietenpol-List
ttp://forums.matronics.com
=_blank>http://www.matronics.com/contribution
=========
>http://www.matronics.com/Navigator?Pietenpol-List
=========
ums.matronics.com">http://forums.matronics.com
=========
http://www.matronics.com/contribution">http://www.matronics.com/contributio
n
=========
Message 14
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Fuel cap vent |
Hi Jack,
The fuel cap I used is aluminum, from Wag Aero I think. I fabricated a cur
ved aluminum ram-air tube to fit on the top of the cap. I actually epoxied
it together. Works well.
Dan Helsper
Poplar Grove, IL.
-----Original Message-----
From: Jack <jack@textors.com>
Sent: Sat, Sep 25, 2010 12:58 pm
Subject: Pietenpol-List: Fuel cap vent
All,
I plan to install a ram vent in my fuel cap, which is galvanized. Looking
for the best way to secure the line. Braze solder? Will I need to grind
the galvanized coating off? Any help would be great!
Go Hawks!
Jack
DSM
Jack Textor
29 SW 58th Drive
Des Moines, IA 50312
www.textors.com
========================
===========
-= - The Pietenpol-List Email Forum -
-= Use the Matronics List Features Navigator to browse
-= the many List utilities such as List Un/Subscription,
-= Archive Search & Download, 7-Day Browse, Chat, FAQ,
-= Photoshare, and much much more:
-
-= --> http://www.matronics.com/Navigator?Pietenpol-List
-
-========================
========================
===========
-= - MATRONICS WEB FORUMS -
-= Same great content also available via the Web Forums!
-
-= --> http://forums.matronics.com
-
-========================
========================
===========
-= - List Contribution Web Site -
-= Thank you for your generous support!
-= -Matt Dralle, List Admin.
-= --> http://www.matronics.com/contribution
-========================
========================
===========
Message 15
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Fuel cap vent |
J.B. Weld works too.
On Sat, Sep 25, 2010 at 5:08 PM, <helspersew@aol.com> wrote:
> Hi Jack,
>
> The fuel cap I used is aluminum, from Wag Aero I think. I fabricated a
> curved aluminum ram-air tube to fit on the top of the cap. I actually
> epoxied it together. Works well.
>
> Dan Helsper
> Poplar Grove, IL.
>
>
> -----Original Message-----
> From: Jack <jack@textors.com>
> To: pietenpol-list@matronics.com
> Sent: Sat, Sep 25, 2010 12:58 pm
> Subject: Pietenpol-List: Fuel cap vent
>
> All,
> I plan to install a ram vent in my fuel cap, which is galvanized. Looking
> for the best way to secure the line. Braze solder? Will I need to grind
> the galvanized coating off? Any help would be great!
> Go Hawks!
> Jack
> DSM
> Jack Textor
> 29 SW 58th Drive
> Des Moines, IA 50312
> www.textors.com
>
> *
>
> ===================================
> t" target=_blank>http://www.matronics.com/Navigator?Pietenpol-List
> ===================================
> tp://forums.matronics.com
> ===================================
> _blank>http://www.matronics.com/contribution
> ===================================
> *
>
> *
>
> *
>
>
--
Rick Holland
Castle Rock, Colorado
"Logic is a wreath of pretty flowers, that smell bad"
Message 16
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Fuselage question |
Members of the list:
-
While cutting and piecing together the fuselage, it is my understanding the
struts and side braces are to have wedges inserted between them before you
glue on the plywood gusset. Question: Do you apply these wedges between al
l struts and braces on both the top and bottom of each side? Not sure where
these wedge pieces belong and, if they should be included in all areas whe
re the struts and bracing come in contact with the longerons.
Any advice is much needed advice.....
-
KMHeide
-
=0A=0A=0A
Message 17
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Here is a link to Lycoming's website with an explanation at the very bottom. I
copied just that portion of the page.
http://www.lycoming.textron.com/engines/series/pdfs/320ci%20Engine%20Insert.pdf
--------
Jerry Dotson
59 Daniel Johnson Rd
Baker, FL 32531
Started building NX510JD July, 2009
wing, tailfeathers done
using Lycoming O-235
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313732#313732
Attachments:
http://forums.matronics.com//files/a47_168.jpg
Message 18
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Fuselage question |
There are no wedges on the plans. The only place I added wedges are the
cluster where the landing gear/wing strut fitting is bolted on and where the
engine mount fittings bolt on.
Chris
Sacramento, Ca
Westcoastpiet.com
_____
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of KM Heide
CPO/FAAOP
Sent: Saturday, September 25, 2010 6:12 PM
Subject: Pietenpol-List: Fuselage question
Members of the list:
While cutting and piecing together the fuselage, it is my understanding the
struts and side braces are to have wedges inserted between them before you
glue on the plywood gusset. Question: Do you apply these wedges between all
struts and braces on both the top and bottom of each side? Not sure where
these wedge pieces belong and, if they should be included in all areas where
the struts and bracing come in contact with the longerons.
Any advice is much needed advice.....
KMHeide
Message 19
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
I think this one is what you want. It's O-235.
http://www.lycoming.textron.com/engines/series/pdfs/235ci%20Insert.pdf
Interesting to see that they've made your engine with
dynafocal mounts. My O-290 has conical.
Clif
> Here is a link to Lycoming's website with an explanation at the very
> bottom. I copied just that portion of the page.
> http://www.lycoming.textron.com/engines/series/pdfs/320ci%20Engine%20Insert.pdf
>
> --------
> Jerry Dotson
> 59 Daniel Johnson Rd
> Baker, FL 32531
>
> Started building NX510JD July, 2009
> wing, tailfeathers done
> using Lycoming O-235
Message 20
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Fellow Pieters,
-
-
I met up with an old time friend today for some Corvair talk. Vern is a ret
ired GM Factory Corvair engineer and engine specialist for over 30 years! A
walking Corvair guru!
-
Anyhow, here is what $125.00 bucks will get you! You should of heard it run
! He has a barn full of parts!
-
KMHeide
-
-
=0A=0A=0A
Message 21
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
It's not the lubrication that's the problem.
We all know that a piece of wire will break if it's bent
back and forth a number of times. Well, stainless will
crystalize and break a lot sooner than non stainless.
As the cable moves back and forth over a pulley it is
doing the same thing a little bit at a time. The question
is, how long before that break will happen? The other
question is, how long before your cables, in your
location, where your plane will spend the rest of it's
days, will rust and need replacement? To me, the
former is of greater concern and my plane will live
500 ft from the shoreline of the Salish Sea in the
company of forty others, some of which have been
there since the fifties. There's also a hundred or so
aircraft at Boundary Bay that are within a quarter mile
of the same salty waters. All cabled with galvanized
and 85% of them have never seen the inside of a
hanger.
Ask around. I think for a lot of you, strange looks will
be the order of the day with the question, " Why do
you want to do that? It's not a seaplane is it?"
Clif
"Things which matter most must never be at the mercy of things which
matter least."
~ Johann Wolfgang von Goethe
Doesn't the zinc coating on the galvanized "lubricate" the cable?--
Dan Yocum
yocum137@gmail.com
"I fly because it releases my mind from the tyranny of petty things."
what does going around a pulley have to do with galvanized vs
stainless???
Gene
Message 22
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Westcoastpiet Website |
I finally got the website mostly working again. There are some links I need
to redo but the majority of it is back. I will have to fix it later because
I need to get my ailerons finished before it starts to rain, and the wife's
car needs to be back in the garage.
Chris
Sacramento, Ca
Westcoastpiet.com
Message 23
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Fuselage question |
Actually, there are wedges mentioned in the plans. The only place I have seen
them noticed for the fuse sides are the three in the cockpit area. I glued these
in after the gussets were glued in place, but I suppose they could be added
at any time.
--------
Mark Chouinard
Wings, Center Section and Empannage framed up - Working on Fuselage
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313743#313743
Attachments:
http://forums.matronics.com//files/fuse_186.jpg
Message 24
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Fuselage question |
After reading Chris' note again, I think we are talking about the same wedges.
Maybe we are all talking of the same wedges? Not sure.
--------
Mark Chouinard
Wings, Center Section and Empannage framed up - Working on Fuselage
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313744#313744
Message 25
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Fuselage question |
The wedges are necessary at the stations where the landing gear bolts
on on the bottom of the fuselage. I don't have my plans in front of me,
but I believe that is all that is called for.
Ben
On 9/25/2010 9:12 PM, KM Heide CPO/FAAOP wrote:
> Members of the list:
> While cutting and piecing together the fuselage, it is my
> understanding the struts and side braces are to have wedges inserted
> between them before you glue on the plywood gusset. Question: Do you
> apply these wedges between all struts and braces on both the top and
> bottom of each side? Not sure where these wedge pieces belong and, if
> they should be included in all areas where the struts and bracing come
> in contact with the longerons.
> Any advice is much needed advice.....
> KMHeide
> */ /*
> *//*
>
>
> *
>
>
> *
Message 26
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Thanks for the replies but it still doesn't help me to determine if it is a type
1 or 2
I have found this but am not sure if I am reading it correctly
If you look at L2A It reads similar to J2A then J2A is similar to J2B that has
a type 1 ring. So I read it as the L2A has the type 1
http://150cessna.tripod.com/e-223.pdf
I can't get it to work as a link so hope it will work if you cut and paste
What do you guys think
Carson
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=313748#313748
Message 27
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Why not ask Lycoming themselves? Give 'em the serial#.
Clif
> Thanks for the replies but it still doesn't help me to determine if it is
> a type 1 or 2
> What do you guys think
> Carson
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
