Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Avionics package |
Hi Jeff,
Pictures please? I love this stuff.
Dan Helsper
Poplar Grove, IL.
-----Original Message-----
From: bender <jfaith@solairusaviation.com>
Sent: Thu, Nov 11, 2010 3:25 pm
Subject: Pietenpol-List: Avionics package
>
made some ebay purchases.... scored an altimeter from the 40's
nd a tach and an airspeed indicator that were supposed to be for a tiger
oth... new in boxes.. the airspeed indicator has a 1931 manufacture date..
they
ook really groovy
8 ribs done since nov 1st
icked up wood for the longerons today and tore down the A engine..
makin sawdust in louisville
eff
ead this topic online here:
http://forums.matronics.com/viewtopic.php?p=319049#319049
ttachments:
http://forums.matronics.com//files/gauge_120.jpg
-========================
-
-= -- Please Support Your Lists This Month --
-= (And Get Some AWESOME FREE Gifts!)
-
-= November is the Annual List Fund Raiser. Click on
-= the Contribution link below to find out more about
-= this year's Terrific Free Incentive Gifts provided
-= by:
-=
-= * AeroElectric www.aeroelectric.com
-= * The Builder's Bookstore www.buildersbooks.com
-= * HomebuiltHELP www.homebuilthelp.com
-
-= List Contribution Web Site:
-
-= --> http://www.matronics.com/contribution
-
-= Thank you for your generous support!
-
-= -Matt Dralle, List Admin.
-
-========================
-= - The Pietenpol-List Email Forum -
-= Use the Matronics List Features Navigator to browse
-= the many List utilities such as List Un/Subscription,
-= Archive Search & Download, 7-Day Browse, Chat, FAQ,
-= Photoshare, and much much more:
-
-= --> http://www.matronics.com/Navigator?Pietenpol-List
-
-========================
-= - MATRONICS WEB FORUMS -
-= Same great content also available via the Web Forums!
-
-= --> http://forums.matronics.com
-
-========================
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Fuselage Sides |
Howdy,When I built my sides,I went with the 13'5" and after they were put together
the fuselage was 13'4 3/8". So 5/8" short.dave
--------
Building a Piet
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319098#319098
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Big and Tall Steel Fuselage |
If you are big and tall,I'd think about making the rear cockpit longer,like the
long fuselage drawings or a bit more.I'm 5-9 built the long fuselage and there
isn't much room for my skinny self.dave
--------
Building a Piet
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319099#319099
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Fuselage Sides |
Mr Craig.
I have been remiss in my welcoming you to this rather humble asylum of
builders.bumblers.experts and buddies. It is a place comprised of dreamers
from all walks of life and disciplines each have learned one basic rule
which I will take the liberty of sharing with you.
Don't waste your time and energy over thinking it just start building!
Its easy to spot the newbie we have all been there. Just build and enjoy the
process the fruits of your labors and the adventure of achieving your dream
one step at a time
John
Do not archive this is a lesson many of us have learned and many more will
never learn
Sent via DROID on Verizon Wireless
-----Original message-----
From: "Mr. Craig" <acwelder@cableone.net>
Sent: Fri, Nov 12, 2010 04:40:39 GMT+00:00
Subject: Pietenpol-List: Fuselage Sides
The 1932 Glider Manual shows the fuselage on the Air Camper as being 13' 5"
long. When the sides are built flat and then bowed from front to rear, the
fuselage will become shorter. How much longer does the upper and lower
longerons need to be in order for the overall length to be correct after the
sides are bent in?
Thanks Craig
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319079#319079
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Avionics package |

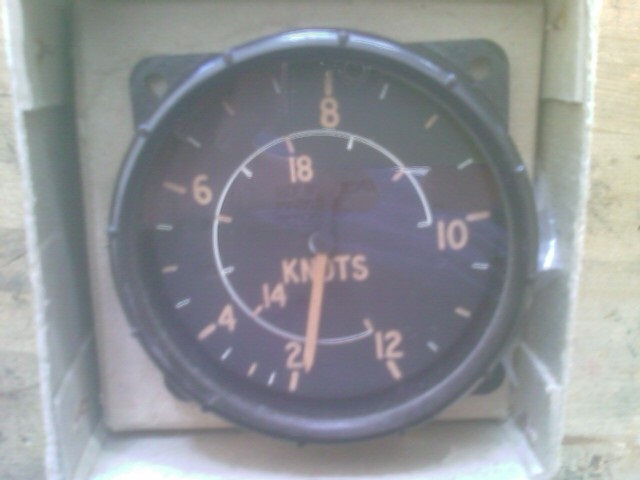

yup.... it reads in tens of knots... from 20 to 120 on the outer scale then up
to 195 on the inner scale as it goes around again..i can't believe these are NOS..
the boxes are even cool
jeff
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319124#319124
Attachments:
http://forums.matronics.com//files/speed_182.jpg
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
Fellow workers in the field of Piet:
I am having trouble finding a source that carries 5/16" steel as required
for two small parts of the split landing gear. Everybody has 1/8" or 1/4"
or 1/2" but no 5/16" so this must be a communist plot of some kind.
Anyway, to the question. Is it at all acceptable to edge weld smaller
stock into a piece of the required thickness? The final piece would be 1"
x 2" x 5/16" and there would be a single bolt hole in one end. The part
gets welded to the axle.
All you metal workers out there, please chime in.
Tom Stinemetze
N328X
McPherson, KS.
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
I do not have the plans with me to look at, so I do not know where on the gear
these parts go, nor what stresses they will subject to, however I would bet that
edge welding said parts would be OK. Some of the wing strut/landing gear fittings
for the wood gear have some edge welding done to them.
If you can find larger steel stock, I could machine these two parts for you. Email
me off list if interested.
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
Hi Tom,
Did you call Dillsburg Aero?
Ryan
On Fri, Nov 12, 2010 at 10:59 AM, TOM STINEMETZE <TOMS@mcpcity.com> wrote:
> *Fellow workers in the field of Piet:*
> **
> *I am having trouble finding a source that carries 5/16" steel as required
> for two small parts of the split landing gear. Everybody has 1/8" or 1/4"
> or 1/2" but no 5/16" so this must be a communist plot of some kind. Anyway,
> to the question. Is it at all acceptable to edge weld smaller stock into a
> piece of the required thickness? The final piece would be 1" x 2" x 5/16"
> and there would be a single bolt hole in one end. The part gets welded to
> the axle.*
> **
> *All you metal workers out there, please chime in.*
> **
> *Tom Stinemetze*
> *N328X*
> *McPherson, KS.*
>
> *
>
>
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | airworthiness aplication |
I am in the middle of filling out my form 8130-6 and have some questions I could
sure use help with. if anyone has been through this recently and has time for
a phone call I would sure appreciate you e-mailing me with your phone number.
Raymond. my address is skellflyer1(at)yahoo.com
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319139#319139
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
Wilco in Wichita, KS is supposed to be getting some in. They have good prices on
4130 steel.
http://www.wilcoaircraftparts.com/4130-steel.htm
The Yard, also in Wichita may have smaller pieces.
http://www.yardstore.com/about.htm
or
http://www.benemiller.com/aircraft_alloy.htm
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319142#319142
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
Great sources Mr. Mr. Craig. And close to home as well.
Stinemetze
>>> "Mr. Craig" <acwelder@cableone.net> 11/12/2010 12:45 PM >>>
Wilco in Wichita, KS is supposed to be getting some in. They have good
prices on 4130 steel.
http://www.wilcoaircraftparts.com/4130-steel.htm
The Yard, also in Wichita may have smaller pieces.
http://www.yardstore.com/about.htm
or
http://www.benemiller.com/aircraft_alloy.htm
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
Ryan:
I forgot about Dillsburg. Thanks!
Tom
>>> Ryan Mueller <rmueller23@gmail.com> 11/12/2010 12:27 PM >>>
Hi Tom,
Did you call Dillsburg Aero?
Ryan
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Avionics package |
HeyJeff,
that's pretty cool. What kind of wood did you pick up, and where did you get it.
Thanks!
John in Louisville
--------
I just hope when it's my turn to reach up and touch the face of God, I don't poke
him in the eye on accident.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319154#319154
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
Tom,
As a rule, edge welding two smaller thicknesses to obtain one thicker finished
piece does not equal the strength of a solid piece. The only place the two pieces
are joined is at the outside edges, so, in bending, the resulting piece is
weaker than a solid piece. This would be like making a sheet of plywood, but
only gluing the layers together at the outside edges, with no glue in the middle.
Now, if the part will ONLY be loaded in tension (no bending forces), then the two-piece
part will be able to carry basically the same load as the solid piece.

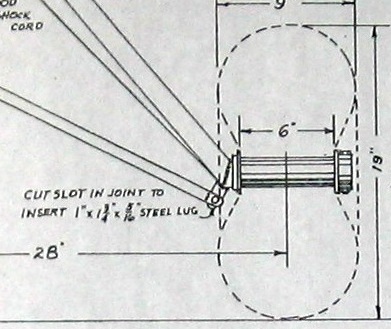

The piece that you are referring to (see attached images) will be primarily loaded
in tension, so you might be all right with two thinner pieces edge-welded
together. But a better solution would be to use a solid piece. The title block
of Drawing No. 3 calls for 1020 steel, not 4130. So, if you can't find a piece
of 5/16" steel locally, I'm sure you could find a piece of 3/8" thick steel.
That would provide 20% more strength, and only add one ounce to the total weight
of your plane. Alternately, if you can get your hands on a bit of 1/4" thick
4130, that would also work, since that would be stronger than 5/16" thick 1020
steel.
Bill C.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319156#319156
Attachments:
http://forums.matronics.com//files/lg_175.jpg
http://forums.matronics.com//files/lg_lug_158.jpg
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Avionics package |
I got a 15 foot 5/4 by 6 poplar board from boland malhony... and a poplar 1 by
6.. cut them up today
Also got another western red cedar board to finish my ribs... i get the cedar in
6' 5/4 by 4 and crazy straight tight grain..like 25 rings per inch...it's pretty
wood
got an old Wico model c 1128 magneto in the mail today too...
cleaned it up, gapped the points and it throws a huge spark
it's CCW rotation and has an adjustable impulse coupling
jeff
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319158#319158
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Fuselage Sides |
Craig,

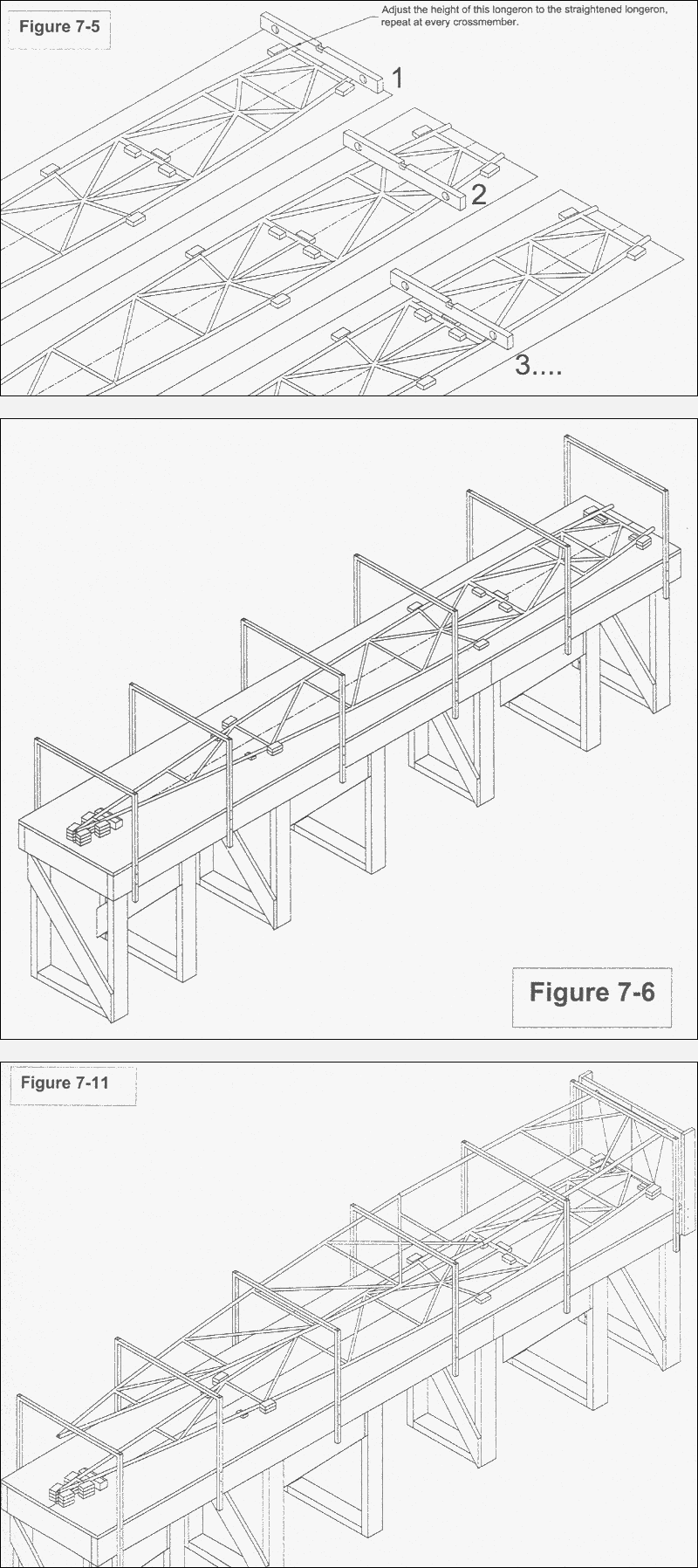

If you build the sides flat, using the dimensions on the plans, you will find that
when you join the sides, and bow them together to meet at the tail, that the
overall length will become shorter by "just the right amount". :D
While it is normal drafting practice to draw an assembly in its assembled state,
and it does appear that the FGM plans do show that, I feel pretty safe in assuming
that anyone that has built a plane from those plans built their fuselage
sides using the side view as though it was a flat plan. The Pietenpol is built
just like a giant model airplane. If you've ever built a stick and tissue
model airplane, you will know that you build the fuselage sides flat on top of
the plans, and then when you join the sides, your main concern is that the two
sides are the same length (whatever that length is), and that they both flex
equally (symmetrical).
I just checked the "improved" Air Camper plans, and the overall length on the view
labeled "layout for side of fuselage" actually is 1/2" longer than the overall
length of the finished fuselage. I have built my fuselage basic structure,
and joined the sides. But I have not measured the overall finished length.
I also do not plan to measure the overall finished length. It doesn't really matter
that much. Plus or minus half an inch will not matter on the overall length
of the fuselage. Making sure that the fuselage is symmetrical does matter.
In short, trying to compensate for the shortening effect is WAAAAY more work than
it's worth. How would you decide where to add the extra length?
Bill C.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319159#319159
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Avionics package |
Since your ASI and Tach were originally destined for a Tiger Moth, maybe you should
consider putting a Gipsy Major on the nose...
Bill C.
do not archive.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319161#319161
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
Bill:
Precise and to the point. EXACTLY what I needed to hear. It also
occurred to me that multiple pieces of metal welded together on their
edges still leaves internal spaces which could corrode from the inside out
with no visible sign. I'm going to find some solid metal somewhere. By
the way, that is exactly the part that I am concerned with. There will be
both tension and compression loads but there should be no bending forces
unless one of the gear legs lets go. (Which I have heard can happen to
certain nefarious persons named Axel.)
Tom Stinemetze
N328X
>>> "Bill Church" <billspiet@sympatico.ca> 11/12/2010 3:49 PM >>>
Tom,
As a rule, edge welding two smaller thicknesses to obtain one thicker
finished piece does not equal the strength of a solid piece. The only
place the two pieces are joined is at the outside edges, so, in bending,
the resulting piece is weaker than a solid piece. This would be like
making a sheet of plywood, but only gluing the layers together at the
outside edges, with no glue in the middle.
Now, if the part will ONLY be loaded in tension (no bending forces), then
the two-piece part will be able to carry basically the same load as the
solid piece.
The piece that you are referring to (see attached images) will be
primarily loaded in tension, so you might be all right with two thinner
pieces edge-welded together. But a better solution would be to use a solid
piece. The title block of Drawing No. 3 calls for 1020 steel, not 4130.
So, if you can't find a piece of 5/16" steel locally, I'm sure you could
find a piece of 3/8" thick steel. That would provide 20% more strength,
and only add one ounce to the total weight of your plane. Alternately, if
you can get your hands on a bit of 1/4" thick 4130, that would also work,
since that would be stronger than 5/16" thick 1020 steel.
Bill C.
Message 19
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: airworthiness aplication |
I got my reply- thanks Ben you were very helpful. maybe I can help you some time.
Raymond
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=319167#319167
Message 20
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Metal question |
HOW ABOUT IF YOU BRAZED THEM TOGETHER???
IT WOULD WICK IN BETWEEN THE 2 PIECES.
WOULD BE DAMN STRONG!!!
JUST A THOUGHT.....
3 YEAR PIET BUILDER
DAVE
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com]On Behalf Of TOM
STINEMETZE
Sent: Friday, November 12, 2010 2:30 PM
To: pietenpol-list@matronics.com
Subject: Pietenpol-List: Re: Metal question
Bill:
Precise and to the point. EXACTLY what I needed to hear. It also
occurred to me that multiple pieces of metal welded together on their edges
still leaves internal spaces which could corrode from the inside out with no
visible sign. I'm going to find some solid metal somewhere. By the way,
that is exactly the part that I am concerned with. There will be both
tension and compression loads but there should be no bending forces unless
one of the gear legs lets go. (Which I have heard can happen to certain
nefarious persons named Axel.)
Tom Stinemetze
N328X
>>> "Bill Church" <billspiet@sympatico.ca> 11/12/2010 3:49 PM >>>
Tom,
As a rule, edge welding two smaller thicknesses to obtain one thicker
finished piece does not equal the strength of a solid piece. The only place
the two pieces are joined is at the outside edges, so, in bending, the
resulting piece is weaker than a solid piece. This would be like making a
sheet of plywood, but only gluing the layers together at the outside edges,
with no glue in the middle.
Now, if the part will ONLY be loaded in tension (no bending forces), then
the two-piece part will be able to carry basically the same load as the
solid piece.
The piece that you are referring to (see attached images) will be
primarily loaded in tension, so you might be all right with two thinner
pieces edge-welded together. But a better solution would be to use a solid
piece. The title block of Drawing No. 3 calls for 1020 steel, not 4130. So,
if you can't find a piece of 5/16" steel locally, I'm sure you could find a
piece of 3/8" thick steel. That would provide 20% more strength, and only
add one ounce to the total weight of your plane. Alternately, if you can get
your hands on a bit of 1/4" thick 4130, that would also work, since that
