Today's Message Index:
----------------------
1. 03:45 AM - Re: Re: Tailwheel connection (Ben Charvet)
2. 03:56 AM - Re: Stromberg carb. NA-S3 B (Jack)
3. 04:23 AM - Re: Florida sales tax (helspersew@aol.com)
4. 05:39 AM - Re: Re: Tailwheel connection (Ben Charvet)
5. 05:45 AM - Stromberg NA-S3 B (Oscar Zuniga)
6. 07:26 AM - Re: Re: Wing Position (brian.e.jardine@l-3com.com)
7. 07:30 AM - Re: Stromberg carb. NA-S3 B (vagabondpa15)
8. 08:14 AM - Re: Re: Wing Position (airlion)
9. 01:45 PM - Big Piet article from Sport Aviation Magazine (May 2009) (Cuy, Michael D. (GRC-RXD0)[ASRC AEROSPACE CORP])
10. 02:55 PM - Re: Speaking of Wing Sweep and CG (Michael Perez)
11. 03:42 PM - Re: Big Piet article from Sport Aviation Magazine (May 2009) (regchief)
12. 06:01 PM - Re: Speaking of Wing Sweep and CG (Pieti Lowell)
13. 06:35 PM - Re: Speaking of Wing Sweep and CG (Dan Yocum)
14. 06:44 PM - FYI: New FAA AD web site (Dan Yocum)

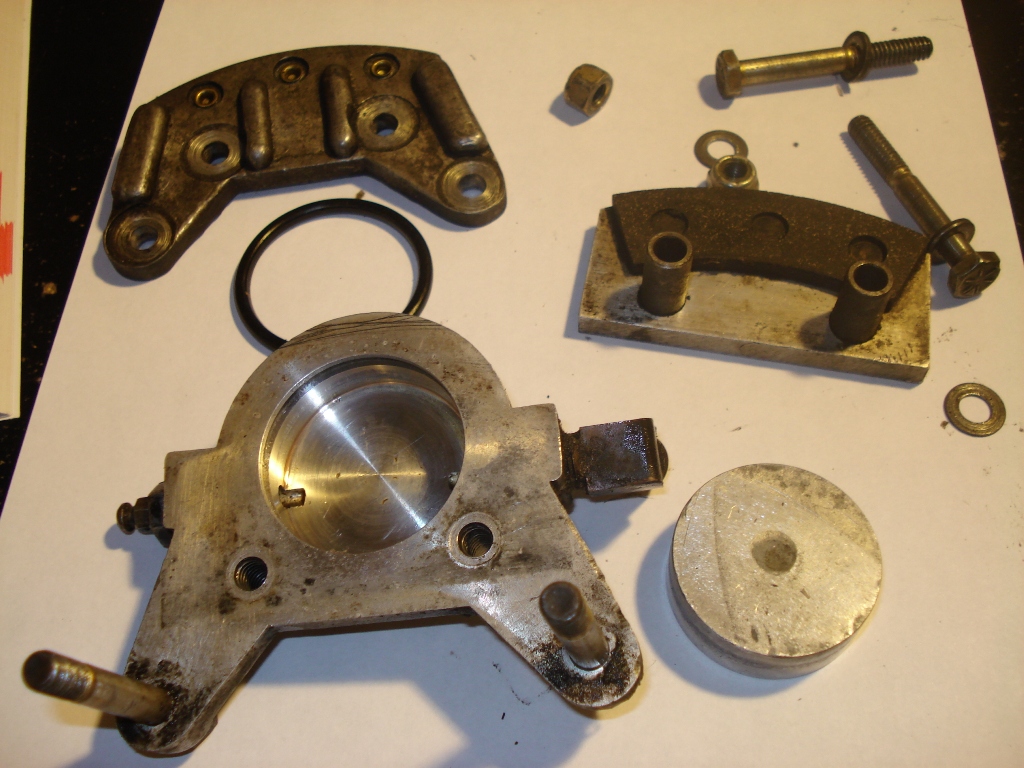

15. 07:44 PM - help identifying disk brake caliper (ldmill)
16. 10:25 PM - Re: Big Piet article from Sport Aviation Magazine (May 2009)x2 (jorge lizarraga)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Tailwheel connection |
Whoops, what I was referring to is mentioned in the Bingelis books, and
is a type of phenolic material, maybe micartis? My Bingelis books are
out at the airport, so I'll get back to you with the correct term.
Ben
On 4/10/2011 11:10 PM, kevinpurtee wrote:
> --> Pietenpol-List message posted by: "kevinpurtee"<kevin.purtee@us.army.mil>
>
> Ironic that he's a PhD pharmacist....
>
> do not archive
>
> --------
> Kevin"Axel" Purtee
> NX899KP
> Austin/Georgetown, TX
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=336593#336593
>
>
--
Ben Charvet, PharmD
Staff Pharmacist
Parrish Medical center
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Stromberg carb. NA-S3 B |
Google it Dave...
http://luscombe.org/index.php?page=stromberg-carburetors-article-1-7-07
http://www.aeronca.com/k/Aeronca_Engines/manual/om-p5s10.htm
http://www.7ts0.com/manuals/continental/A-50-65-75/Instruction_Stromberg.pdf
Jack
DSM
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of vagabondpa15
Sent: Sunday, April 10, 2011 7:39 PM
Subject: Pietenpol-List: Stromberg carb. NA-S3 B
<vagabondpa15@verizon.net>
I have a Vagabond PA-15 with C-85-12 using a Stromberg carburetor.
I need to know all the set up spec. such as float drop dim. any SB bulletins
& AD if any. Also any tips on how to..........
Thanking you all in advance.... Dave H
--------
Dave Harmon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336583#336583
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Florida sales tax |
Jerry,
Tell them that the airplane is a homebuilt from plans. You bought everythin
g needed locally within the state at retail locations and have already paid
sales tax on all of the components. That is a bunch of crap. Florida is fa
mous for this kind of chicanery.
Dan Helsper
Puryear, TN
-----Original Message-----
From: Jerry Dotson <jdotson@centurylink.net>
Sent: Sat, Apr 9, 2011 7:36 pm
Subject: Pietenpol-List: Florida sales tax
et>
I registered my airplane with the FAA and guess what.....Florida Department
of
evenue sends me forms to fill out as to what I paid for the airplane. Then
ultiply that by 6% and send it in. Life is never dull.
--------
erry Dotson
9 Daniel Johnson Rd
aker, FL 32531
Started building NX510JD July, 2009
ing, tailfeathers done, fuselage rolling
sing Lycoming O-235
ead this topic online here:
http://forums.matronics.com/viewtopic.php?p=336486#336486
-= - The Pietenpol-List Email Forum -
-= Use the Matronics List Features Navigator to browse
-= the many List utilities such as List Un/Subscription,
-= Archive Search & Download, 7-Day Browse, Chat, FAQ,
-= Photoshare, and much much more:
-
-= --> http://www.matronics.com/Navigator?Pietenpol-List
-
-========================
-= - MATRONICS WEB FORUMS -
-= Same great content also available via the Web Forums!
-
-= --> http://forums.matronics.com
-
-========================
-= - List Contribution Web Site -
-= Thank you for your generous support!
-= -Matt Dralle, List Admin.
-= --> http://www.matronics.com/contribution
-========================
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Tailwheel connection |
I meant micarta, not micardis.
Sent from my iPhone
On Apr 10, 2011, at 10:56 PM, Ryan M <aircamperace@yahoo.com> wrote:
> Micardis (telmisartan) is used to treat high blood pressure (hypertension)
?
>
> From: Ben Charvet <bencharvet@gmail.com>
> To: pietenpol-list@matronics.com
> Sent: Sun, April 10, 2011 10:16:36 PM
> Subject: Re: Pietenpol-List: Re: Tailwheel connection
>
>
> I attached my tailwheel cables like Jerry, but I added pulleys towards
> the rear so the tailwheel cables exit the bottom of the fuselage. I
> made some fairleads out of some micardis that I found in an old cabinet
> I inherited from my grandfather who's been dead for 30 years, which
> works well and ads a little more nostalgia to the airplane. He was a
> pilot back in the late 30's.
>
> Ben Charvet
> Titusville, Fl
> On 4/10/2011 8:21 PM, Jerry Dotson wrote:
> > --> Pietenpol-List message posted by: "Jerry Dotson"<jdotson@centurylin
k.net>
> >
> > Mine has yet to fly but I have only wooden guides on my rudder cables. T
he
> > tail
>
>
==========================
=========
==========================
=========
==========================
=========
==========================
=========
>
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Stromberg NA-S3 B |
Dave:
Everything you ever wanted to know about setting up the float level
on Strombergs is in Neal Wright's tech info and tips on the Bowers
Flybaby site, under 'carburetors', here:
http://www.bowersflybaby.com/tech/engines.htm
Harry Fenton also answers numerous tech questions about those carbs
on the same website.
Oscar Zuniga
Air Camper NX41CC "Scout", A75/Stromberg NA-S3A1
San Antonio, TX
website at http://www.flysquirrel.net
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Wing Position |
Gardiner,
Sorry for the demise of your Piet. My question is when you rebuild will
you do it again just the same, or will you make any changes? I am also a
200lb pilot.
Brian
SLC-UT
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of airlion
Sent: Saturday, April 09, 2011 7:43 AM
Subject: Re: Pietenpol-List: Re: Wing Position
Hi Jack, Mine was the long fuse, corvair moved forward 1 in., wings
tilted back
3.5 in. Taller cabanes, 36 in center section with 20 gal aluminum tank,
26 in
wide fuse, and Scott 2000 tailwheel, 600-6 wheels,and CGcame in within
limits
for my 200 lb body. Of course all that is history now due to that
tornado.
Gardiner Mason
----- Original Message ----
From: Jack Phillips <pietflyr@bellsouth.net>
Sent: Sat, April 9, 2011 8:22:34 AM
Subject: RE: Pietenpol-List: Re: Wing Position
<pietflyr@bellsouth.net>
Hi Jack,
Mine is the long fuselage. Cabanes are 2-1/2" longer and the wing is
3-3/4"
aft of vertical. Centersection tank, small (4") tailwheel). A65
Continental.
Jack Phillips
NX899JP "Icarus Plummet"
Raleigh, NC
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of Don Emch
Sent: Saturday, April 09, 2011 8:11 AM
Subject: Pietenpol-List: Re: Wing Position
Hi Jack,
I built the long fuselage. Axle is 1" forward, cabanes are 2" longer,
and
wing is positioned back 3 1/2", as per the Pietenpols' recommendations.
I
put the tank in the nose, 14.5 gallons. If you keep the tail very light
and
use a small tailwheel you shouldn't have any trouble with c.g.
Don Emch
NX899DE
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336438#336438
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Stromberg carb. NA-S3 B |
Thanks so much Jack, This just what I 'm looking for excellent info.
Thank you again..........Dave H
--------
Dave Harmon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336628#336628
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Wing Position |
Brian, I have not decided yet. Tim Willis is sending me some wing ribs, jig. and
tail feathers and I will decide a little later on. Cheers, Gardiner
----- Original Message ----
From: "brian.e.jardine@l-3com.com" <brian.e.jardine@l-3com.com>
Sent: Mon, April 11, 2011 10:20:12 AM
Subject: RE: Pietenpol-List: Re: Wing Position
Gardiner,
Sorry for the demise of your Piet. My question is when you rebuild will
you do it again just the same, or will you make any changes? I am also a
200lb pilot.
Brian
SLC-UT
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of airlion
Sent: Saturday, April 09, 2011 7:43 AM
Subject: Re: Pietenpol-List: Re: Wing Position
Hi Jack, Mine was the long fuse, corvair moved forward 1 in., wings
tilted back
3.5 in. Taller cabanes, 36 in center section with 20 gal aluminum tank,
26 in
wide fuse, and Scott 2000 tailwheel, 600-6 wheels,and CGcame in within
limits
for my 200 lb body. Of course all that is history now due to that
tornado.
Gardiner Mason
----- Original Message ----
From: Jack Phillips <pietflyr@bellsouth.net>
Sent: Sat, April 9, 2011 8:22:34 AM
Subject: RE: Pietenpol-List: Re: Wing Position
<pietflyr@bellsouth.net>
Hi Jack,
Mine is the long fuselage. Cabanes are 2-1/2" longer and the wing is
3-3/4"
aft of vertical. Centersection tank, small (4") tailwheel). A65
Continental.
Jack Phillips
NX899JP "Icarus Plummet"
Raleigh, NC
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of Don Emch
Sent: Saturday, April 09, 2011 8:11 AM
Subject: Pietenpol-List: Re: Wing Position
Hi Jack,
I built the long fuselage. Axle is 1" forward, cabanes are 2" longer,
and
wing is positioned back 3 1/2", as per the Pietenpols' recommendations.
I
put the tank in the nose, 14.5 gallons. If you keep the tail very light
and
use a small tailwheel you shouldn't have any trouble with c.g.
Don Emch
NX899DE
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336438#336438
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Big Piet article from Sport Aviation Magazine (May 2009) |
Erkki from France & Group. Here is the article written by Barry Davis (th
anks Barry !) about the Big Piets that appeared in the May 2009 issue of E
AA's Sport Aviation magazine. I hope you find it helpful Erkki and to ot
hers who may not have read about this wonderful
undertaking by a great EAA Chapter from Georgia.
I was able to speak with Barry at Brodhead and see some of these Big Piets
up close and they are really a neat idea and well-thought out if you want a
slightly bigger version of a Pietenpol. The Big Piet Group used Corvair
engines for power but I believe that a Continental 0-200 100 hp engine woul
d also be an excellent choice for the larger airplane.
Mike C. Ohio
[cid:image004.jpg@01CBF867.6DCCCF50]
[cid:image003.jpg@01CBF867.6AD58850]
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Speaking of Wing Sweep and CG |
Thanks for the replies.- I have a different trailing edge on a Ribblet-
airfoil and I think the % of chord will help me more in estimating CG whil
e setting up the wing location relative to the fuselage.
Michael Perez
Karetaker Aero
www.karetakeraero.com
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Big Piet article from Sport Aviation Magazine (May |
2009)
I have a question regarding the big Piets. I know there has been a lot of discussion
on the boards about increasing certain dimensions, such as taller cabanes,
increased fuselage width and wingspan.. I was wondering if anyone has just
increased all dimensions by say 10%. The articles and posts I have read about
the big Piets mention changes, but I was wondering if they had increased overall
dimensions or just modified a few as others have done.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336667#336667
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Speaking of Wing Sweep and CG |
Mike,
What lengths are your Cabanes ?
Pieti Lowell
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336676#336676
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Speaking of Wing Sweep and CG |
Michael, et al.,
There's a pretty good online tool for estimating the MAC of your
aircraft, here:
http://www.geistware.com/rcmodeling/cg_super_calc.htm
Just be sure to use the same length units throughout - put everything in
inches or feet or meters or leagues or furlongs.
Cheers,
Dan
On 04/11/2011 04:52 PM, Michael Perez wrote:
> Thanks for the replies. I have a different trailing edge on a Ribblet
> airfoil and I think the % of chord will help me more in estimating CG
> while setting up the wing location relative to the fuselage.
>
> Michael Perez
> Karetaker Aero
> www.karetakeraero.com
>
> *
>
>
> *
--
Dan Yocum
Fermilab 630.840.6509
yocum@fnal.gov, http://fermigrid.fnal.gov
"I fly because it releases my mind from the tyranny of petty things."
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | FYI: New FAA AD web site |
All,
Another dame has caught my eye - without going into too much detail,
I've been weighing the pros and cons of bedding this steed in my hangar
and during the courtship process discovered that the FAA.gov site has
done a very good job of listing all the applicable airworthiness
directives on a make and model basis. Check it out:
http://www.faa.gov/regulations_policies/airworthiness_directives/index.cfm/go/document.browseByMake/
Cheers,
Dan
--
Dan Yocum
Fermilab 630.840.6509
yocum@fnal.gov, http://fermigrid.fnal.gov
"I fly because it releases my mind from the tyranny of petty things."
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | help identifying disk brake caliper |
Folks - this may seem like a newbe question - and it probably is - but I need some
assistance from those more experienced.
First some background: I purchased a GN-1 (vintage 1986 build) last year that came
with 15-6.00x6 tires/wheels. Right brake was always a little spongy - I bled
it several times and it helped temporarily. At the end of the season I noticed
brake fluid starting to show up on the side of my tire. Pulled it off and
found the fluid was leaking between brake cylinder and the piston - meaning the
o-ring seal. When I looked closer - I also noticed that the casting has a small
split where the brake bleeder was overtightened at some point. Basically,
I need to replace the assembly.
Problem - this looks like a Matco assembly - but there is no identification that
I can find on the assembly. The piston is 1.5" dia. Axle it was mounted on is
1.25" dia. The brake rotor on the wheels isn't the tophat kind like what it
appears that Cleveland uses - but a ring style with three cap screws to attach
to the wheel.
Anybody have a clue what this is? I 'd like to replace somewhat in kind so the
master cylinder pressure matches and I don't have different braking loads on each
side of the plane.
Attached are pics for reference. Help?
FYI- intending to fly to Brodhead this year - then to Oshkosh with the group.
--------
Lorin Miller
Waiex N81YX
GN-1 N30PP
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=336688#336688
Attachments:
http://forums.matronics.com//files/cylinder_160.jpg
http://forums.matronics.com//files/assembly_122.jpg
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Big Piet article from Sport Aviation Magazine (May |
2009)x2
tanks michael for another wonderfull mail , if you have another way to see
pictures you send my laptop jus only cand se the logo to adobe rider som ca
nd openin but tanks ani way and like all way you all right seyou jorge from
hanford
--- On Mon, 4/11/11, Cuy, Michael D. (GRC-RXD0)[ASRC AEROSPACE CORP] <micha
el.d.cuy@nasa.gov> wrote:
From: Cuy, Michael D. (GRC-RXD0)[ASRC AEROSPACE CORP] <michael.d.cuy@nasa.g
ov>
Subject: Pietenpol-List: Big Piet article from Sport Aviation Magazine (May
2009)
Erkki from France & Group.=C2-=C2- Here is the article written by Barry
Davis (thanks Barry !) =C2-about the Big Piets that appeared in the May
2009 issue of EAA=99s =C2-Sport Aviation magazine.=C2-=C2- I ho
pe you find it helpful Erkki and to others who may not have read about this
wonderful
undertaking by a great=C2- EAA Chapter from Georgia.=C2-=C2-
=C2-
I was able to speak with Barry at Brodhead and see some of these Big Piets
up close and they are really a neat idea and well-thought out if you want a
slightly bigger version of a Pietenpol.=C2-=C2- The Big Piet Group use
d Corvair engines for power but I believe that a Continental 0-200 100 hp e
ngine would also be an excellent choice for the larger airplane.
=C2-
Mike C.=C2-=C2-=C2- Ohio
=C2-
=C2-
=C2-
=C2-
=C2-=0A=0A=0A
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
