Today's Message Index:
----------------------
1. 12:17 AM - Re: Re: rib jig (Clif Dawson)
2. 05:39 AM - Re: Re: rib jig (Gboothe5)
3. 05:57 AM - Re: Steam box for bending plywood (Michael Perez)
4. 06:04 AM - Ford question (Douwe Blumberg)
5. 06:33 AM - Re: Question about lower fork ends- aluminum struts (C N Campbell)
6. 06:44 AM - Re: Ford question (899PM)
7. 06:44 AM - Re: rib jig (Jerry Dotson)
8. 06:46 AM - Re: Ford question (l.morlock)
9. 09:15 AM - plywood wrap-around leading edge idea (Cuy, Michael D. (GRC-RXD0)[ASRC AEROSPACE CORP])
10. 09:48 AM - thinking outside the hatbax (Lawrence Williams)
11. 11:49 AM - Re: thinking outside the hatbax (kevinpurtee)
12. 02:59 PM - Re: plywood wrap-around leading edge idea (Michael Perez)
13. 03:45 PM - Piper Lift struts on a Piet (brian.e.jardine@l-3com.com)
14. 04:16 PM - Re: Piper Lift struts on a Piet (airlion)
15. 04:45 PM - Re: Piper Lift struts on a Piet (John Kuhfahl)
16. 04:47 PM - Re: Piper Lift struts on a Piet (Jack)
17. 06:43 PM - Re: Piper Lift struts on a Piet (shad bell)
18. 09:19 PM - Steel LG Lug Thickness (Mark Roberts)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
You mean like this??? :-)
http://www.youtube.com/watch?v=IygxRUnpoDA&feature=related
Clif
do not archive
> Isn't a "rib jig" the dance that Gary did when he finally got all of his
> ribs built?
>
> DO NOT ARCHIVE
>
> BC
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
Triplane? Hell! My wife thinks I have wigged out..."If they want ribs, I'll
make ribs!"
Building Ribs.jpg
Do not archive
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of Billy
McCaskill
Sent: Monday, January 30, 2012 10:02 PM
Subject: Pietenpol-List: Re: rib jig
I'm not sure if I am supposed to divulge this, but Gary is still building
ribs because he is secretly planning to turn his Piet into a triplane. He
just doesn't want to be outdone by Shad with his Jungster biplane.
do not archive
--------
Billy McCaskill
Urbana, IL
tail section almost done, starting on ribs soon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=365286#365286
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Steam box for bending plywood |
Nice work Chuck. About the only thing you did different then me was soaking the
plywood. I soaked mine only an hour...or less.
Michael Perez
Karetaker Aero
www.karetakeraero.com
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
Welcome "new guy"
My plane started off with a Ford, so I did quite a bit of research, But it's
been a while, so triple ck these numbers. Dan, Larry and some of those
current Ford drivers would be the ones to listen to.
I THINK Larry Williams tried Lion Head, but not dual holes (I THINK) helped
a "tad" if I remember correctly, but didn't turn it into a fire breathing
dragon.
76X42 or 44 seems to be the prop range
I seem to remember that a strong Ford should turn one of those props around
1800 static. If you can get between 2000 and 2100 dynamic, you're doing
well I think. Again, these numbers are old memories now, so anyone else
pipe in. This doesn't count Lowell's Funk/ford which is putting out a whole
lot more hp.
My response to the double mag question is that it is up to you. Some argue
that one mag is a simpler installation with less to go wrong, and done
correctly is fine. Some argue that two mags, though more complex gives the
redundancy. Probably depends on how many guys you know who have lost mags
in flight. By far most Fords have historically flown with one and the
number one cause of mag issues in my reading of twenty five years of
newsletter back issues has been the mag adaptor loosening up, or the mag
coming loose and getting out of time.
Good luck!
Douwe
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Question about lower fork ends- aluminum struts |
Graham, thanks a bunch for your advice. I'm using the T-craft struts
for both the front and rear. The outside ends of the front struts will
work as is. I'll have to do something at the inside ends -- probably
the same as the Pietenpol plans.
----- Original Message -----
From: Graham Hansen
To: pietenpol-list@matronics.com
Sent: Monday, January 30, 2012 11:19 PM
Subject: Re: Pietenpol-List: Question about lower fork ends- aluminum
struts
Chuck,
I used those Taylorcraft adjustable strut ends on my Pietenpol rear
struts. I simply cut them out of the old struts and removed the old weld
bead with a file, and polished them. Then, using the rear T-Craft strut
material cut to the proper length, I installed these adjustable units at
the outboard end with an AN 5 bolt installed vertically through the
minor axis of the streamline tubing. This hole is 90 degrees to the
slotted hole in the adjustable fitting and provides a universal,
self-aligning, strut end similar in function to the strut ends shown on
the plans. I welded teardrop-shaped reinforcement doublers at both ends
of the rear struts. The inboard ends were pinched in a bit to fit over
the fuselage fittings. It was necessary to provide a spacer at the
outboard ends to fill the space between the spar fittings and the
T-Craft adjustable strut ends.
The front struts are similar, but are made from Aeronca front strut
material (I used what was available "at the right price" because I was
poor at the time). For the outboard end, I used 1 inch square tubing
with holes drilled at 90 degrees to provide the self-aligning feature.
Any adjustment can be made by simply cutting and drilling another piece
of square tubing to the desired length. (This method could also be used
for the rear struts.)
Since these struts are open at both ends, it is a good idea to coat
the inside with linseed oil or something similar for corrosion
protection.
This arrangement has worked well for over 41 years and 800+ hours of
fun flying. It also provides flexibility if the wing is moved fore and
aft for CG adjustment by loosening (and, of course, retightening) the
vertical bolts.
Cheers,
Graham Hansen (Pietenpol CF-AUN in Alberta, Canada)
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Ford question |
Douwe,
My lightly modified Ford is tuning a Sensenich 76-42 prop at 1960 rpm's static.
I mounted this same prop on my A-65 Taylorcraft and got just shy of 1900 static.
Engine includes an aluminum Winfield head that started life at 7:1 (now 6.7:1),
a modified "B" carb, a log style manifold, SS modern style vales and seats,
inserted rods and mains, full pressure to the mains only, and .080 over "A" pistons.
--------
PAPA MIKE
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=365300#365300
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|

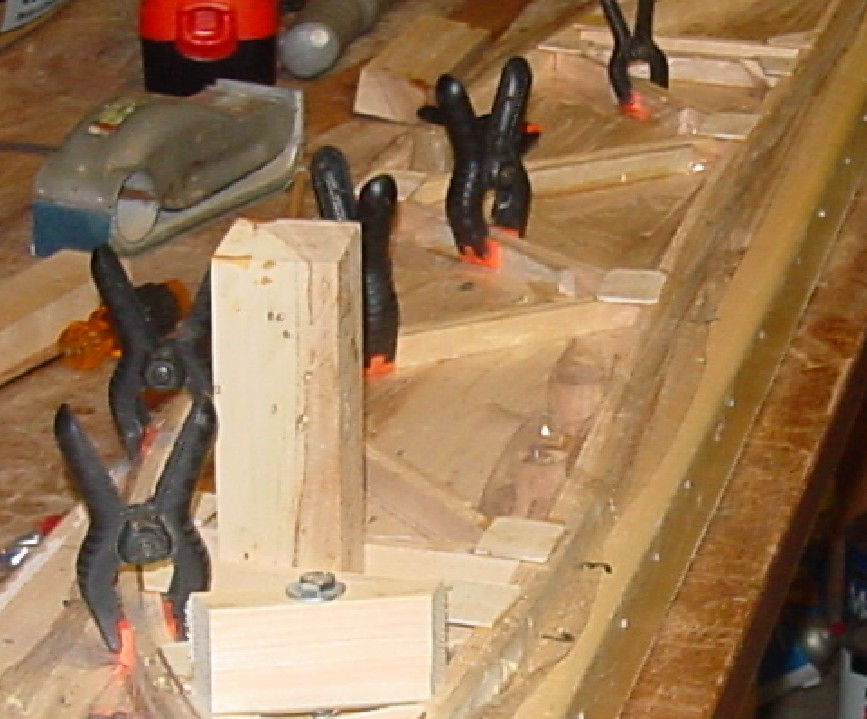

Quote----Why not put the Saran wrap right on top of the drawn rib and put the
blocks on top of the wrap? That way one piece of Saran wrap for
30-howevermany ribs. C
That is exactly what I did. Just used a new piece for each rib. Cost was maybe
$3. It took maybe 10 seconds to get the jig ready with a new piece.
do not archive
--------
Jerry Dotson
59 Daniel Johnson Rd
Baker, FL 32531
Started building NX510JD July, 2009
now covering and painting
21" wheels
Lycoming O-235 C2C
Jay Anderson CloudCars prop 76 X 44
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=365301#365301
Attachments:
http://forums.matronics.com//files/a45_211.jpg
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Ford question |
Welcome to the "new guy" with the Ford question.
I acquired Douwe's Model A engine and put in in my Pietenpol. It turns
1860 static rpm with a 76 x 44 Hegy prop and a Ken Perkins B carb.
Haven't flown it yet. One of the reasons I bought it was to get an A
engine with modern bearing shells vs babbit bearings. I did have an A
engine on it with babbit bearings and a high compression head, and I was
not comfortable with that combination. Does your engine have babbit or
modern bearings?
Larry Morlock
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | plywood wrap-around leading edge idea |
I've had the pleasure of periodically seeing Mike Perez's progress on h
is Pietenpol and was very impressed with the design idea and the fit and fi
nish of Mike's all-plywood leading edge wrap-around
technique. (the method that Chuck Campbell recently copied) It sure is ref
reshing to see what innovations builders come up with because just when you
think you've seen it all, you probably haven't. EAA's French Valley, CA
Chapter 1279's Pietenpol is like that and has some very clever, simple, and
elegant modifications that simplicate and add lightness!
http://www.eaa1279.org/pietenpol_project.html
Mike C.
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | thinking outside the hatbax |
Just remember a couple of things:
1. It's not going to matter to anyone if you have a hatbox or not in 50 years.
2. The rib jig you spent a month to build will in all likelyhood not be in the
Smithsonian but will set you back a month on your project.
ie. Keep your eye on the donut, not the hole.
Larry (Top Curmudgeon)
@ D.H. You said that you used props to brace your wings for strut measurements.
How many props do you have? Can I borrow a couple?
do not archive
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: thinking outside the hatbax |
That's all fine and good, Larry, but what exactly is a "hatbax?"
do not archive
--------
Kevin "Axel" Purtee
NX899KP
Austin/Georgetown, TX
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=365318#365318
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: plywood wrap-around leading edge idea |
Thanks Mike! Nice to get credit when credit is due.- The link you sent is
very cool as well, thanks.
Michael Perez
Karetaker Aero
www.karetakeraero.com
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Piper Lift struts on a Piet |
Group,
Has anyone used Piper lift struts on their Piet..... I have a chance to
buy a set of 4 nice struts off a Piper Colt, just wondering if they are
a little too wide and beefy for the Piet? The Piper's struts seem
almost double the size of my struts on my Taylorcraft. See attached
pic.
Brian
SLC-UT
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Piper Lift struts on a Piet |
I used piper J3 struts on my piet and would like to use them again but can'
t =0Afind any. So I will be using the Carlson aluminium struts. Gardiner=0A
=0A=0A=0A=0A________________________________=0AFrom: "brian.e.jardine@l-3co
m.com" <brian.e.jardine@l-3com.com>=0ATo: pietenpol-list@matronics.com=0ASe
nt: Tue, January 31, 2012 6:42:09 PM=0ASubject: Pietenpol-List: Piper Lift
struts on a Piet=0A=0A=0AGroup,=0AHas anyone used Piper lift struts on thei
r Piet.. I have a chance to buy a set =0Aof 4 nice struts off a Pi
per Colt, just wondering if they are a little too wide =0Aand beefy for th
e Piet? The Piper=99s struts seem almost double the size of my =0Ast
ruts on my Taylorcraft. See attached pic.=0A =0ABrian=0ASLC-UT=0A =0Ahttp:
//www.matronics.com/Navigator?Pietenpol-List=0Ahttp://forums.matronics.com
=0Ahttp://www.matronics.com/contribution
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Piper Lift struts on a Piet |
They will be too short--I tried it John
On Tue, Jan 31, 2012 at 5:42 PM, <brian.e.jardine@l-3com.com> wrote:
> Group,****
>
> Has anyone used Piper lift struts on their Piet=85.. I have a chance to b
uy
> a set of 4 nice struts off a Piper Colt, just wondering if they are a
> little too wide and beefy for the Piet? The Piper=92s struts seem almost
> double the size of my struts on my Taylorcraft. See attached pic.****
>
> ** **
>
> Brian****
>
> SLC-UT****
>
> ** **
>
> **
>
> **
>
> **
>
> **
>
> **
>
> *http://www.matronics.com/Navigator?Pietenpol-List*
>
> **
>
> **
>
> *http://forums.matronics.com*
>
> **
>
> **
>
> **
>
> **
>
> *http://www.matronics.com/contribution*
>
> **
>
> * *
>
>
--
John Kuhfahl, Lt Col USAF (Ret),
President, KUHLCOUPER LLC
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Piper Lift struts on a Piet |
Brian,
You will be very unhappy with those struts, waaaay toooo wide. Do you have
the name of the fellow that is selling them?
Jack Textor
DSM
NX1929T
do not archive
_____
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of
brian.e.jardine@l-3com.com
Sent: Tuesday, January 31, 2012 5:42 PM
Subject: Pietenpol-List: Piper Lift struts on a Piet
Group,
Has anyone used Piper lift struts on their Piet... I have a chance to buy a
set of 4 nice struts off a Piper Colt, just wondering if they are a little
too wide and beefy for the Piet? The Piper's struts seem almost double the
size of my struts on my Taylorcraft. See attached pic.
Brian
SLC-UT
http://www.matronics.com/Navigator?Pietenpol-List
http://forums.matronics.com
http://www.matronics.com/contribution
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Piper Lift struts on a Piet |
I think that is what Ed Delnacy has on his yellow pietenpol, but I am not s
ure, Ed, or Skip, You can field this one....
=C2-
Shad
Do not archive
--- On Tue, 1/31/12, Jack <jack@textors.com> wrote:
From: Jack <jack@textors.com>
Subject: RE: Pietenpol-List: Piper Lift struts on a Piet
Brian,
You will be very unhappy with those struts, waaaay toooo wide.=C2- Do you
have the name of the fellow that is selling them?
Jack Textor
DSM
NX1929T
do not archive
From: owner-pietenpol-list-server@matronics.com [mailto:owner-pietenpol-lis
t-server@matronics.com] On Behalf Of brian.e.jardine@l-3com.com
Sent: Tuesday, January 31, 2012 5:42 PM
Subject: Pietenpol-List: Piper Lift struts on a Piet
=C2-
Group,
Has anyone used Piper lift struts on their Piet.. I have a chance
to buy a set of 4 nice struts off a Piper Colt, =C2-just wondering if the
y are a little too wide and beefy for the Piet?=C2- The Piper=99s s
truts seem almost double the size of my struts on my Taylorcraft.=C2- See
attached pic.
=C2-
Brian
SLC-UT
=C2- =C2-http://www.matronics.com/Navigator?Pietenpol-List =C2-http:/
/forums.matronics.com =C2-http://www.matronics.com/contribution =C2-
=C2-
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Steel LG Lug Thickness |
Hi All:
Can't find 5/16" 4130 steel for the split gear lugs at the wheel joint as
called for on the split gear plans (1" x 1 1/4" x 5/16" steel)...
I can only find 1/4" 4130. Considering this is stronger steel than the
original called out, am I assuming ya'll would be using the 1/4" 4130
steel... So it's shy a 1/16"... Am I on track?
Sorry if this one is a no brainer, but you know: a guy that doesn't seek
wisdom from others is likely to have a landing gear failure :o)
Mark
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
