Today's Message Index:
----------------------
1. 04:06 AM - Gear angle (Jack)
2. 06:04 AM - Re: Re: on beating dead horses...But smaller horses (Amsafetyc)
3. 08:39 AM - Easy Way to Make Round Gussets (jarheadpilot82)
4. 08:48 AM - Re: "Mighty Corvair Again Roars to Life After 6 Months" (curtdm(at)gmail.com)
5. 11:38 AM - aluminum struts, cont. (Lawrence Williams)
6. 11:52 AM - Re: "Mighty Corvair Again Roars to Life After 6 Months" (Jim Boyer)
7. 11:58 AM - off topic but of interest to pilots (John Greenlee)
8. 12:49 PM - 14 YEAR UPDATE (899PM)
9. 01:43 PM - Re: off topic but of interest to pilots (Catdesigns)
10. 03:22 PM - Re: 14 YEAR UPDATE (helspersew@aol.com)
11. 05:57 PM - Re: off topic but of interest to pilots (joe motis)
12. 06:08 PM - Re: off topic but of interest to pilots (joe motis)
13. 06:27 PM - Re: off topic but of interest to pilots (Dan Yocum)
14. 06:44 PM - Re: off topic but of interest to pilots (gboothe5@comcast.net)
15. 08:29 PM - Re: off topic but of interest to pilots (Steve Ruse)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
Getting closer to drilling the lower gear lugs to set the angle of the
wheels at 2 degrees. I plan to use a digital angle gauge but wanted a
double check. I plan to install a wedge shim on top of the axle and then
top it with a piece of angle the full length across the top of both axles
side to side. 2 percent would be the angle. To determine the height of the
wedge, what figure would I use for the base? The distance to the fuselage
side?
Thanks!
Jack Textor
DSM
NX1929T
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: on beating dead horses...But smaller horses |
I liked it, I found it enjoyable and informative yet I have not a clue as to its
relevance or connection to Beating dead horses.
Please explain the connection
John
Do not archive
Sent from my iPhone
On May 4, 2012, at 10:29 PM, "Dortch, Steven D MAJ NG NG NGB" <steven.d.dortch@us.army.mil>
wrote:
>
> A 27 min Video on WWII contstruction of a piper cub.
>
> http://www.youtube.com/watch?v=Q6q1VKsTeKQ
>
> I just hope I am not stoned in the public square for posting this.
>
> Blue Skies,
> Steve D
>
> Do Not Archive
>
>
>
>
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Easy Way to Make Round Gussets |
I saw this on the ragandtubesociety Yahoo Group forum, and thought that it might
apply to someone on this forum. I am not using round gussets on my wings, but
thought someone out there might be thinking about it. I have not tried it, but
it looks like a reasonable method. I will make sure and give credit where credit
is due. Someone named OzarkFlyer2 posted the response as well as the drawing,
so I take no credit for being smart enough to come up with the answer. I
just hope it helps someone. Here is the entire thread with drawing-
-------------------
-------------------
"I need to make about 1100 2" round gussets for a Chief wing I'm building. I have
a method for squared and triangular gussets to mass produce them using my chop
saw with a fine tooth blade, but round ones have me stumped how I can "mass"
produce them. Hole saws are slow even when stacking the plywood. They still
tend to be a little rough from the hole saw cut and need to be hand-sanded. Maybe
there's a fine hole saw that doesn't require the subsequent hand sanding.
And then they need to be cut in half, which is time consuming too. Again they
can be stacked to speed up the process, but I am looking for a method that will
yield 1100 perfect gussets in 3-4 hours max. Anyone have a "killer" method
for round gussets?"
_________________________
"This is real easy to do and you don't need anything but access to a band saw or
a scroll saw. You need a 1 X 4 or wider board as long as your saw table is deep.
Run it part way through the saw like your were ripping it, and stop when
it lines up with the sides of the table. Stop the saw, take the board off, and
with your drill press drill a 1/8" hole with the center one inch to the side
of the end of the kerf, measured from the side of the kerf. Insert a short dowel
(a couple of inches or so)in the hole,with a drop of glue. With the saw off,
insert the kerf on the blade, and slide the board down the blade until the board
ends match the table top, then clamp securely to the saw top. Drill a 1/8"
inch hole in a stack of 2" plywood squares, slip them over the dowel in the
board. The edge of the squares should just be touching the saw blade. Turn the
saw on and spin the squares around the dowel. You can easily cut 10 or fifteen
with a band saw (1/8" blade works best, but you can use a 1/4"), or a half-dozen
or so with a scroll saw. I can cut a 100 5" circles out of 1/4" ply in less
than ten minutes. About 5 minutes to make the jig. You want to have a kerf
in the board, and not use the edge of the board against the blade (keeps the bottom
side of the bottom circle from splintering. This is a terrible description
of how to do it, and I put an equally terrible photo called "Circle cutter"
up. If you have any questions, let me know and I will try to describe a little
better..."
--------
Do Not Archive
Semper Fi,
Terry Hand
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=372552#372552
Attachments:
http://forums.matronics.com//files/circlecutter_142.jpg
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: "Mighty Corvair Again Roars to Life After 6 Months" |
Unfortunately too far away!
Curt
Do not archive
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=372553#372553
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | aluminum struts, cont. |
Dang it Helsper, don't try to soften me up. It just makes me more curmudgeo
nier and we don't need that.
All of you polished alum. strut guys; they are great until you go to a fly
-in and some ham-fisted lout who just ate a greasy burger wraps his paw aro
und one as he starts a dissertation to his buddies. I have found that a goo
d antidote is to let him finish his story and just hand him a can of polish
and a rag.- I have toyed with the idea of painting mine but then my bloo
d pressure might drop to a dangerously low level which would be detrimental
to my position in this organization.
AUMMMMMM
Larry in wonderland
do not archive
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: "Mighty Corvair Again Roars to Life After 6 Months" |
Hi Gary,
Glad you got the electrical loose ends fixed. Also the Corviar sounds good. I have
my forward cabanes (to motor mount) ready to weld along with a step on right
gear leg. As soon as they are done will put on the motor mount and try to get
engine hung.
I like the light green and trim. How about a close up of your logo so I can read
it; promise not to copy it.
cheers,
Jim
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | off topic but of interest to pilots |
This was a portion of an email I received from the TX Chapter of the Antique
Airplane Association. I don't know this individual or other details. Can
anyone verify what is going on here? Have any of y'all heard of situations
like this?
Heads up from Dick Stephens:
What you don't know could cost you $10,000 TSA Fine
TSA is policing Tyler airport and gave a person a $10,000 ticket.
I was there on a cross country flight with a student and parked at the base
of the tower. The restaurant was closed at 2:00 in the afternoon. We decided
to walk around the static aircraft exhibit to Tyler Jet. When we entered
Tyler Jet they were surprised and said "Where did you come from? We didn't
see you taxi in." We told them and they asked if we had an airport
clearance. They told us TSA had given a man a $10,000 fine and put him on a
no fly list. There were no signs or warnings. We were told we had to stay in
the foot print of our plane or have an escort. Tyler Jet said they would
take us back to our plane when we were ready.
That was a Big Surprise that could have cost us. Spread the word.
Dick Stephens
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|

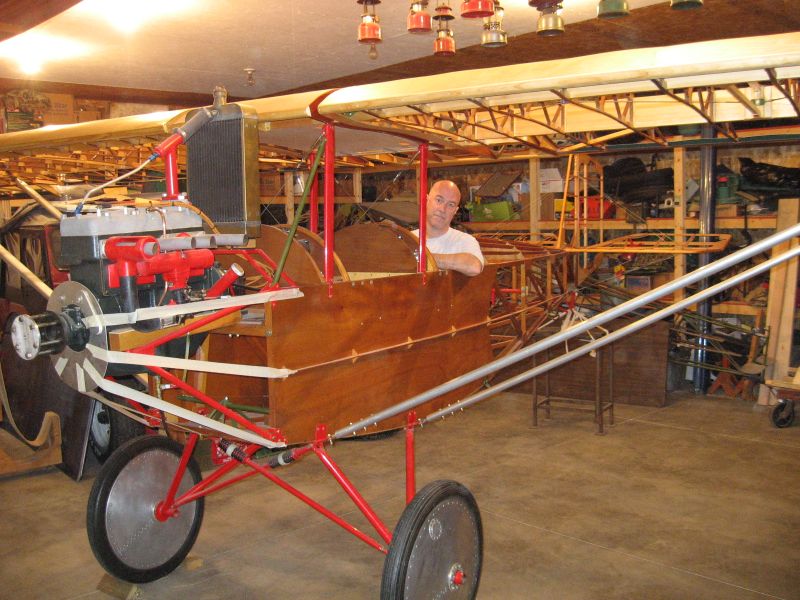

Had a great weekend. Got the wings mounted, struts cut and strut fittings drilled.
While sitting back with a cold Porter and reflecting on the years, I could
swear I saw 899PM strain at the tail tiedown!
--------
PAPA MIKE
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=372568#372568
Attachments:
http://forums.matronics.com//files/img_4244_177.jpg
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: off topic but of interest to pilots |
According to AOPA Trler Tx airport is a commercial-service airport (has commercial passenger operations) http://www.aopa.org/airports/KTYR and is therefore subject to TSA Security Directive 1542-04-08G that went into effect in 2009. In a nutshell, at commercial airports TSA allows for transient pilots to move about for refueling, an emergency, direct access the FBO or exit. ( http://www.aopa.org/advocacy/security/brief_sd.html ) Several sources say walking unescorted is acceptable. Other than that you could be in trouble if your wandering around.
TSA Airport Badging Program: Security Directive 1542-04-08G
http://www.nbaa.org/ops/security/airport-badges/
May 29, 2009
On May 28, 2009, the Transportation Security Administration (TSA) issued Security
Directive (SD) 1542-04-08G, which modifies security protocols for transient
aircraft and after-hours operations at commercial-service airports. This newest
revision of the security directive "Version G" clarifies the TSA's initial
security directive, SD 1542-04-08F, and addresses some of the immediate, top-level
concerns raised by NBAA and other general aviation groups about how the
TSA's "badging" program would be implemented and what impact it might have on
security and safety.
Note: Due to the sensitive nature of the information included in the directive,
the TSA has not made the full content of the document widely available.
TSA has provided additional clarification on the impact of the SD to general aviation
operations:
As previously discussed, the purpose of the SD is to require background checks
and identification for All PERSONS with UNESCORTED ACCESS to the SIDA and
AOA at Commercial Airports. The affect of these badging SD's on General Aviation
pilots will depend upon where they are operating:
> For HOME-BASED PILOTS, the badging requirements will apply if you have
leased space or are part of a tenant program unless alternate measures have been
approved by the airport operator. An example of an alternative measure would
be an escort program.
> For TRANSIENT PILOTS, they will not be required to have airport badges
or background checks from any of the NON Home-Based airports they visit. Transient
pilots are advised to remain in the footprint of their aircraft and to and
from fixed-based operator, service provider or airport exit. Special allowance
will be given to transient pilot operators in the AOA who are fueling or in
emergency status.
--------
Chris
Sacramento, CA
WestCoastPiet.com
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=372577#372577
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 14 YEAR UPDATE |
Mike,
Veeerrrrry cool. Love the unique wheel coverings. Nobody else has this to m
y knowledge. Congratulations on your progress. Good job.
Dan Helsper
Puryear, TN
-----Original Message-----
From: 899PM <rockriverrifle@hotmail.com>
Sent: Mon, May 7, 2012 2:49 pm
Subject: Pietenpol-List: 14 YEAR UPDATE
Had a great weekend. Got the wings mounted, struts cut and strut fittings
rilled. While sitting back with a cold Porter and reflecting on the years,
I
ould swear I saw 899PM strain at the tail tiedown!
--------
APA MIKE
ead this topic online here:
http://forums.matronics.com/viewtopic.php?p=372568#372568
ttachments:
http://forums.matronics.com//files/img_4244_177.jpg
-========================
-= - The Pietenpol-List Email Forum -
-= Use the Matronics List Features Navigator to browse
-= the many List utilities such as List Un/Subscription,
-= Archive Search & Download, 7-Day Browse, Chat, FAQ,
-= Photoshare, and much much more:
-
-= --> http://www.matronics.com/Navigator?Pietenpol-List
-
-========================
-= - MATRONICS WEB FORUMS -
-= Same great content also available via the Web Forums!
-
-= --> http://forums.matronics.com
-
-========================
-= - List Contribution Web Site -
-= Thank you for your generous support!
-= -Matt Dralle, List Admin.
-= --> http://www.matronics.com/contribution
-========================
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: off topic but of interest to pilots |
Hold on , they were standing at the base of the tower?? Who exactly did
they talk to to get permission to land if it is a towered airport? At 2:00
in the afternoon one could assume the tower was open . Footprint of your
airplane??? Do they have drive thru or folks on roller skates to bring you
food anddo they roll the porta potty out to you ?No hundred dollar
hamburger for you since they are closed at 2:00 I guess
I am just kidding but have never heard of anything like this. Perhaps a
TFR was in effect.
No Archive
Joe Motis
On Mon, May 7, 2012 at 11:57 AM, John Greenlee <jmgreenlee@sbcglobal.net>wr
ote:
> ** **
>
> This was a portion of an email I received from the TX Chapter of the
> Antique Airplane Association. I don=92t know this individual or other
> details. Can anyone verify what is going on here? Have any of y=92all h
eard
> of situations like this? ****
>
> ** **
>
> ** **
>
> ** **
>
> Heads up from Dick Stephens:
>
> What you don't know could cost you $10,000 TSA Fine
>
> TSA is policing ****Tyler**** airport and gave a person a $10,000 ticket.
>
> I was there on a cross country flight with a student and parked at the
> base of the tower. The restaurant was closed at 2:00 in the afternoon. We
> decided to walk around the static aircraft exhibit to Tyler Jet. When we
> entered Tyler Jet they were surprised and said "Where did you come from?
We
> didn't see you taxi in." We told them and they asked if we had an airport
> clearance. They told us TSA had given a man a $10,000 fine and put him on
a
> no fly list. There were no signs or warnings. We were told we had to stay
> in the foot print of our plane or have an escort. Tyler Jet said they wou
ld
> take us back to our plane when we were ready.
>
> That was a Big Surprise that could have cost us. Spread the word.
>
> Dick Stephens****
>
> ** **
>
> *
>
===========
===========
===========
===========
> *
>
>
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: off topic but of interest to pilots |
I love the internet
>From good the good old EAA too.
EAA News - TSA Issues Revised *Airport* Security Directive
8G<http://www.eaa.org/news/2009/2009-05-29_8g.asp>
www.eaa.org/news/2009/2009-05-29_8g.asp
May 29, 2009 ' =93For *transient pilots*, *they will not* be *required* t
o *have
airport badges* or *background checks* from *any* of the *non Home*-*Based
airports they visit*.*Transient pilots* are *advised* to *remain* in the *
footprint* of *their aircraft* and to and from *fixed*-*based
operator*, *service
provider* or *airport exit*. Special allowance will be*...*
*
*
*No archive*
*
*
*Joe Motis*
On Mon, May 7, 2012 at 11:57 AM, John Greenlee <jmgreenlee@sbcglobal.net>wr
ote:
> ** **
>
> This was a portion of an email I received from the TX Chapter of the
> Antique Airplane Association. I don=92t know this individual or other
> details. Can anyone verify what is going on here? Have any of y=92all h
eard
> of situations like this? ****
>
> ** **
>
> ** **
>
> ** **
>
> Heads up from Dick Stephens:
>
> What you don't know could cost you $10,000 TSA Fine
>
> TSA is policing ****Tyler**** airport and gave a person a $10,000 ticket.
>
> I was there on a cross country flight with a student and parked at the
> base of the tower. The restaurant was closed at 2:00 in the afternoon. We
> decided to walk around the static aircraft exhibit to Tyler Jet. When we
> entered Tyler Jet they were surprised and said "Where did you come from?
We
> didn't see you taxi in." We told them and they asked if we had an airport
> clearance. They told us TSA had given a man a $10,000 fine and put him on
a
> no fly list. There were no signs or warnings. We were told we had to stay
> in the foot print of our plane or have an escort. Tyler Jet said they wou
ld
> take us back to our plane when we were ready.
>
> That was a Big Surprise that could have cost us. Spread the word.
>
> Dick Stephens****
>
> ** **
>
> *
>
===========
===========
===========
===========
> *
>
>
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: off topic but of interest to pilots |
No radio in my Piet. Can't land at anything but airports in Class E or
G airspace. Usually on grass. Problem solved.
<dusts hands off>
do not archive
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: off topic but of interest to pilots |
[LIKE]
------Original Message------
From: Dan Yocum
Sender: owner-pietenpol-list-server@matronics.com
ReplyTo: pietenpol-list@matronics.com
Subject: Re: Pietenpol-List: off topic but of interest to pilots
Sent: May 7, 2012 6:26 PM
No radio in my Piet. Can't land at anything but airports in Class E or
G airspace. Usually on grass. Problem solved.
<dusts hands off>
do not archive
Sent on the Sprint Now Network from my BlackBerry
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: off topic but of interest to pilots |
I've read 3rd-hand information of a GA pilot who went through something
similar after landing at KDAL. Bad deal...TSA/Homeland Security have
been given far too much power. These are agencies that never should've
been created and now they will never go away. Here are some more
details on the incidents I've heard of:
http://www.dfwpilots.com/board/index.php?showtopic=5184
http://forums.aopa.org/showthread.php?t=52546
Google Scott Morse & Colorado Pilots Association for another similar
story. Apparently pilots are being fined outrageous amounts for
unknowingly being in the wrong place at towered airports.
Sorry for the off-topic post. Then again, maybe it isn't off topic.
There are plenty of these people who think we shouldn't be allowed to
fly at all. Stuff like this puts us on a slippery slope.
What I don't know is what I can do about it. Writing your
representatives seems ineffective.
Steve Ruse
Norman, OK
From: John Greenlee
Sent: Monday, May 07, 2012 1:57 PM
Subject: Pietenpol-List: off topic but of interest to pilots
This was a portion of an email I received from the TX Chapter of the
Antique Airplane Association. I don't know this individual or other
details. Can anyone verify what is going on here? Have any of y'all
heard of situations like this?
Heads up from Dick Stephens:
What you don't know could cost you $10,000 TSA Fine
TSA is policing Tyler airport and gave a person a $10,000 ticket.
I was there on a cross country flight with a student and parked at the
base of the tower. The restaurant was closed at 2:00 in the afternoon.
We decided to walk around the static aircraft exhibit to Tyler Jet.
When we entered Tyler Jet they were surprised and said "Where did you
come from? We didn't see you taxi in." We told them and they asked if we
had an airport clearance. They told us TSA had given a man a $10,000
fine and put him on a no fly list. There were no signs or warnings. We
were told we had to stay in the foot print of our plane or have an
escort. Tyler Jet said they would take us back to our plane when we were
ready.
That was a Big Surprise that could have cost us. Spread the word.
Dick Stephens
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
