Subject: | Re: Glue and Varnish Test |
I don't have my plans in front of me, but I bolted my leading edge to
the ribs,using #8 or #10 stainless screws and I'm sure that wasn't an
original idea. I believe I glued it too. I think your testing proves
you have nothing to worry about.
Ben
NX866BC, flying for 3 years.
On 3/26/2013 12:24 PM, dgaldrich wrote:
>
> Several days ago, I revealed that I had "dunked" my ribs in varnish. Someone
pointed out that the varnish might pose a problem with future glue. In order
to determine whether I'd have to sand all the nose portions of the ribs, I did
an experiment, or rather two.
>
> I had some turtle deck stringers that were varnished and almost 1/4 inch thick
-- .220-.245 inch -- that were laying around so I ripped them into 1/2 inch
pseudo cap strips and glued 6 inches of them to a piece of 1/4 okoume plywood.
That length was chosen to approximate the amount of rib that would be glued
to the plywood leading edge. Since I had some mixed up, I used West System epoxy
as well as T-88. Glued 3 each for a total of 6. Also had some douglas fir
that was approximately .285 thick so I ripped some of that into 1/2 inch strips
and also glued them to the same piece of 1/4. After the glue had cured for
24 hours, I marked the sticks at 6 inches out from the plywood, put the plywood
in a vice and hung a water bucket at the 6 inch mark.
>
> I chose this particular test, rather than a tension or compression arrangement
with the thought that the primary strain on the glue joint would be a side load
on the nose part of the rib where it's nominally glued to the leading edge
plywood.
>
> After hanging the water bucket on the cap strip, I added water to it until the
wood or joint failed and then weighed the bucket on a bathroom scale. Did it
for the twelve samples and the results are pictured below. ALL of the test
pieces failed in the same manner. They all broke at the "hinge" point where the
cap strip met the plywood. NONE of the glue joints failed.
>
> Conclusion: Since this was more of a qualitative experiment than a serious quantitative
one, the primary one that I reached is that a T-88/West System glue
joint with varnished wood is strong enough for the intended purpose and I don't
have to sand off my ribs.
>
> Observations: The Douglas fir pieces were approximately 25 percent thicker than
the Sitka and yet failed at an average of 70 percent higher load. This lends
credence to the AC 43-13 note that Douglas is stronger and those that use
it could probably use slightly thinner longerons and diagonals in the fuselage.
>
> Notes: This test was for ONE failure mode and the data samples were not tightly
grouped so the quantitative reliability is not very accurate and any calculations
should be based on much more rigorous testing. Since the glue joints
did not fail, this is confirmation that West System is suitable for at least this
sort of application.
>

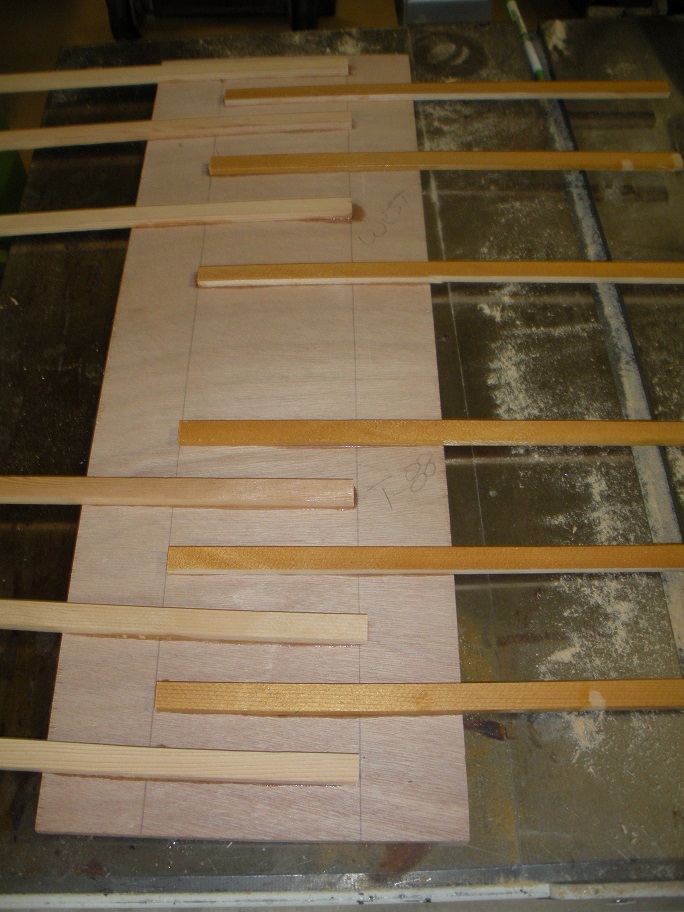

> Pictures: Glue 1 is the board before testing. Glue 2 is the varnished pieces
after failure. Glue 3 is the Douglas fir pieces after failure. The numbers
are the weights at failure.
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=397093#397093
>
>
> Attachments:
>
> http://forums.matronics.com//files/glue_3_734.jpg
> http://forums.matronics.com//files/glue_2_176.jpg
> http://forums.matronics.com//files/glue_1_717.jpg
>
>
--
Ben Charvet, PharmD
Staff Pharmacist
Parrish Medical center
Message 2
INDEX | Back to Main INDEX |
PREVIOUS | Skip to PREVIOUS Message |
NEXT | Skip to NEXT Message |
LIST | Reply to LIST Regarding this Message |
SENDER | Reply to SENDER Regarding this Message |
|
Subject: | Re: Glue and Varnish Test |
Ben,

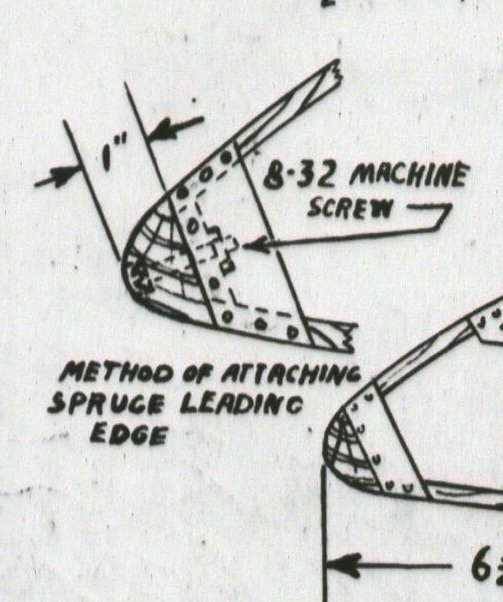

Maybe this is where you got the idea.
