Subject: | More files from the Galacticly inept Piet builder |
To paraphrase Forest Gump, I'm not a smart man...but I know where to find advice
from Tony Bingellis...

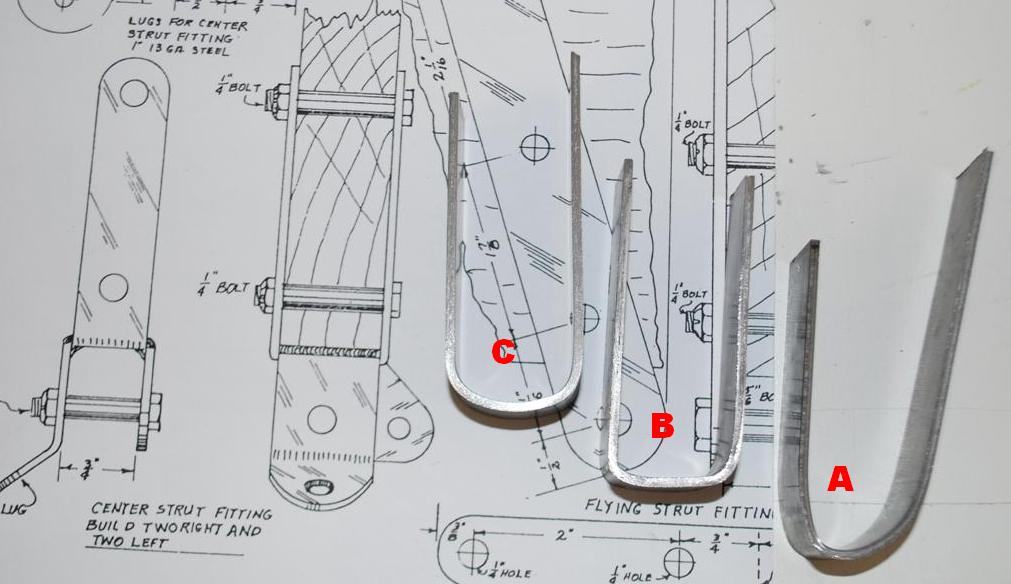

The photo below show my progress attempting to make the center section "U" fitting.
I made some progress from A to B to C.
Just like the public defender said in the movie "My Cousin Vinnie"... I'm getting
better...
A is my first attempt without the guidance of Tony.

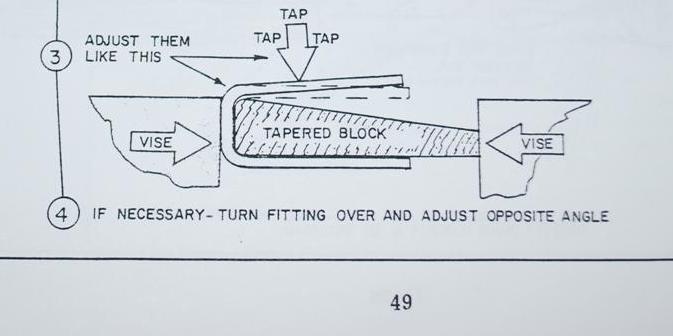

B is my seconds attempt AFTER reading page 48 and 49 of the Yellow Bingellis book.
One of the two bends has too little radius.
C is a decent fitting needing more polishing of the edges with some 200 grit sandpaper.
I'm trying to get all these pieces ready for 'Tools' Toolapalooza 2014 coming up
Feb 20-24 in GA. I'm going to see about getting some welding experience on
some scraps of 4130 and if I'm lucky get these fitting done that weekend.
--------
Bob 'Early Builder' Dewenter
Dayton OH
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=418458#418458
Attachments:
http://forums.matronics.com//files/bingellis_yellow_page49_159.jpg
http://forums.matronics.com//files/abc_751.jpg
