| Subject: | Re: Aluminum Wing Strut/Jury Strut Attachment |
Picture please!
Scott Knowlton
Sent from my iPhone
> On Jun 27, 2014, at 5:11 PM, "Ken Bickers" <bickers.ken@gmail.com> wrote:
>
> My thinking on this. I'm not a structural engineer. I don't know how muc
h a hole through the strut near its midpoint might weaken it, nor do I know h
ow to calculate such a figure. I do know that the jury strut is there to ke
ep the strut from collapsing near its midpoint when experiencing negative lo
ads (i.e., when in compression). I figured that putting a hole at the exact
spot that I was trying to keep the strut from collapsing was a bad idea. S
o I used straps to secure the jury struts. They were easy to make and easy t
o assemble.
>
>
>> On Fri, Jun 27, 2014 at 8:42 AM, Brian Kenney <brian.kenney@live.ca> wrot
e:
>> I don't think you need a 1/4" bolt for a jury strut and I think 3/16" sho
uld be enough. The bigger issue is the internal support if you use a pass th
ru bolt to prevent flattening the strut. One or two strong blind rivets on o
ne side may be better. The critical connections are the strut ends. I am wo
rking on designing them. The limiting issue with them seems to be the crushi
ng of the strut material by the thru bolts as they are in shear. To say it a
nother way, the elongation of the strut holes under maximum load. If anyone
has done this analysis I would like to hear about it.
>>
>> Date: Fri, 27 Jun 2014 07:24:49 -0700
>> From: speedbrake@sbcglobal.net
>> Subject: Pietenpol-List: Aluminum Wing Strut/Jury Strut Attachment
>> To: pietenpol-list@matronics.com
>>
>>
>> I have the smaller aluminum wing struts from Carlson Aircraft, (1.00" X 2
.44") and will also be using their jury struts. My questions are on the use o
f a single hole in each wing strut to use a 1/4" eyebolt to secure the jurys
. Will this hole compromise the strength of the strut? Would I be better off
using straps to secure the jurys?
>>
>> Thanks is advance!
>>
>> If God is your co-pilot...switch seats.
>> Mike Perez
>> Karetaker Aero
>> STILL Building...
>>
>>
>> st" target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
>> http://forums.matronics.com
>> ="_blank">http://www.matronics.com/contribution
>>
>>
>>
>> " target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
>> tp://forums.matronics.com
>> _blank">http://www.matronics.com/contribution
>>
>
>
>
3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3
D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3
D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3
D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3
D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D
>
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: BPA newsletter |
Douwe, I haven't gotten mine, either. Chuck
On Fri, Jun 27, 2014 at 3:42 PM, Douwe Blumberg <douweblumberg@earthlink.ne
t
> wrote:
> Hey John,
>
>
> Have the newsletters gone out? I=99ve been away and didn=99t
see it in the
> mail pile when I returned and was wondering.
>
>
> Douwe
>
> *
>
===========
.matronics.com/Navigator?Pietenpol-List>
===========
===========
om/contribution>
===========
>
> *
>
>
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Aluminum Wing Strut/Jury Strut Attachment |
Look at any Cub. They all have 'em.
Jack Phillips
NX899JP
Smith Mountain Lake (W91), Virginia
_____
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of Scott
Knowlton
Sent: Saturday, June 28, 2014 4:47 AM
Subject: Re: Pietenpol-List: Aluminum Wing Strut/Jury Strut Attachment
Picture please!
Scott Knowlton
Sent from my iPhone
On Jun 27, 2014, at 5:11 PM, "Ken Bickers" <bickers.ken@gmail.com> wrote:
My thinking on this. I'm not a structural engineer. I don't know how much
a hole through the strut near its midpoint might weaken it, nor do I know
how to calculate such a figure. I do know that the jury strut is there to
keep the strut from collapsing near its midpoint when experiencing negative
loads (i.e., when in compression). I figured that putting a hole at the
exact spot that I was trying to keep the strut from collapsing was a bad
idea. So I used straps to secure the jury struts. They were easy to make
and easy to assemble.
On Fri, Jun 27, 2014 at 8:42 AM, Brian Kenney <brian.kenney@live.ca> wrote:
I don't think you need a 1/4" bolt for a jury strut and I think 3/16" should
be enough. The bigger issue is the internal support if you use a pass thru
bolt to prevent flattening the strut. One or two strong blind rivets on one
side may be better. The critical connections are the strut ends. I am
working on designing them. The limiting issue with them seems to be the
crushing of the strut material by the thru bolts as they are in shear. To
say it another way, the elongation of the strut holes under maximum load.
If anyone has done this analysis I would like to hear about it.
_____
From: speedbrake@sbcglobal.net
Subject: Pietenpol-List: Aluminum Wing Strut/Jury Strut Attachment
I have the smaller aluminum wing struts from Carlson Aircraft, (1.00" X
2.44") and will also be using their jury struts. My questions are on the use
of a single hole in each wing strut to use a 1/4" eyebolt to secure the
jurys. Will this hole compromise the strength of the strut? Would I be
better off using straps to secure the jurys?
Thanks is advance!
If God is your co-pilot...switch seats.
Mike Perez
Karetaker Aero
STILL Building...
st" target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
http://forums.matronics.com
="_blank">http://www.matronics.com/contribution
" target="_blank">http://www.matronics.com/Navigator?Pietenpol-List
tp://forums.matronics.com
_blank">http://www.matronics.com/contribution
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Aluminum Wing Strut/Jury Strut Attachment |

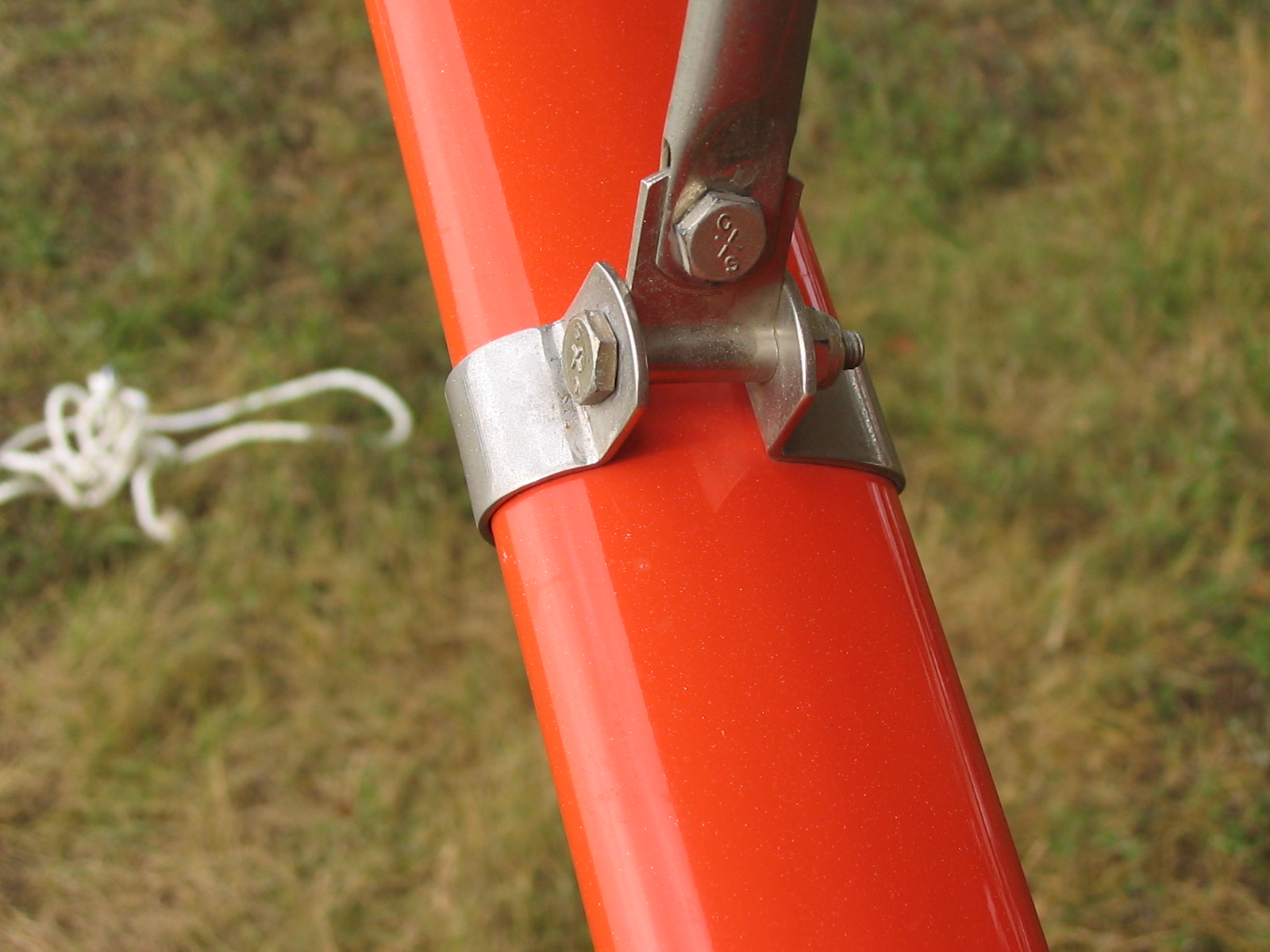

Scott, I don't have a bunch of close ups of the diagonal strut to jury
