I'm just about to finish up building all my wing ribs. I've accomplished the FAA
goal of learning a lot while doing this. Here are a few observations for those
who have not yet reached this milepost:
I steamed, rather than soaked, my capstrips for bending. While many have used the
soaking technique with success, my woodworking background makes me uncomfortable
soaking already dry wood. The heat, not the moisture is what allows the
easy bending of the strip. I already had a steam box (3/4 ply, 8x8x36) from another
old project. You could easily make your own & hook up the steam from a kettle
and hotplate. One end of the box was closed, and the other sealed with a
towel while the strips were steaming for about 30 min.
Somewhere in the 'instructions' I recall reading of the 'buggy whip' test. I have
used this test with good results. Grab one end of a long, properly dimensioned
capstrip and whip it violently once or twice. I found that about 1/3 of the
strips would snap off in my hand. I cut these shattered pieces up later for
use as the shorter cross bracing. The stout pieces that passed the test were
the ones I used for the long, outer capstrips of my ribs.
I used the 2-inch hole saw technique for cutting all the gussets. A cheap set of
hardware store metal hand shears is all that is needed for cutting them all
to final size and shape.
The handiest tool I bought for the Piet project has been a Harbor Freight 12-inch
benchtop disc sander. The heavy cast-iron plate and med-grit paper makes short
work of getting a precise final fit to all those capstrip cross braces (fuselage
pieces, too).

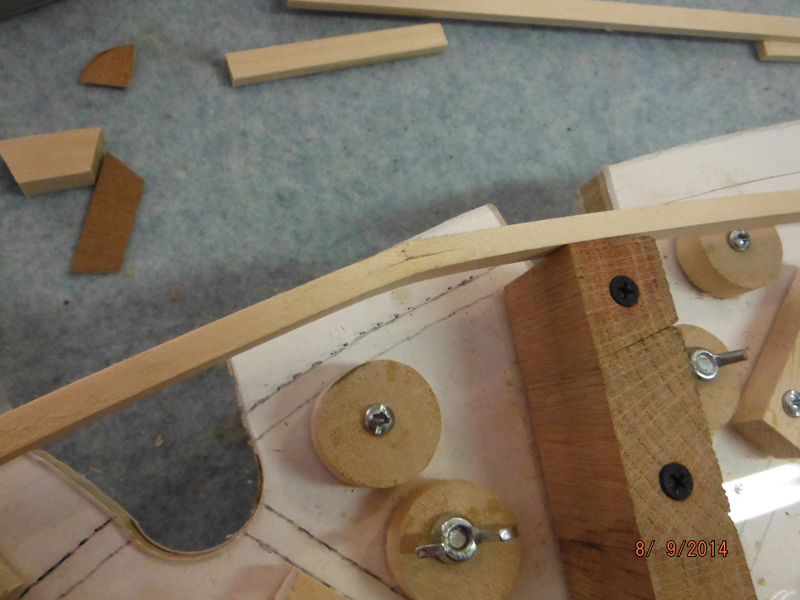

I cut the bending/drying jig to the same profile as the finished rib upper surface.
When removing the steamed capstrips from the jig after drying overnight,
there was a small bit of springback that did not worry me. I found a few cases
where the dried capstrip had broken at the severest part of the curve during
drying. In some other cases, the strip broke when bending it into my assembly
jig, in spite of the steaming and pre-bending. Not to worry. These became more
short cross-bracing.
In one case, after steaming, drying, and assembly of the rib, I found the capstrip
split at the severest curve the next morning after the T-88 had cured. I did
a T-88 repair on this part since it will be under that 9-inch gusset the length
of the leading edge.
Maybe others will chime in this threadwith good techniques of their own.
Lorenzo
