| Subject: | Re: straight axel landing gear fittings---sketches attached |
Michael, I am at the point in my building where I need to fabricate the
landing gear/wing strut fitting shown in your post. I need some dimensions
of the individual members of the fitting. Could I use 2- and 1-inch strip
to fabricate them or are some of the pieces larger/smaller? This might
sound basic, but I want it to be strong enough but as light as possible. I
was thinking or using 0.090 thick steel. OK? Chuck
On Wed, Oct 1, 2014 at 4:08 PM, Cuy, Michael D. (GRC-LME0)[Vantage
Partners, LLC] <michael.d.cuy@nasa.gov> wrote:
> Bob---I hope this helps you out. I built jigs out of leftover longeron
> spruce and plywood and built it up exactly
> like the plane. Of course the wood jigs are sacrificial.
>
> Hope this helps!
>
> Mike C.
> Ohio
>
>
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | straight axel landing gear fittings---sketches attached |
When I built my landing gear for NX40072 I had the supplement plan from Don
P with the full scale drawings of each piece. I just made card patterns of
each piece laid them on the specified thickness of sheet metal and cut the
m out using whatever tools I had=2C shaped and drilled and they were good t
o go.
Subject: Re: Pietenpol-List: straight axel landing gear fittings---sketches
attached
From: charlescampbell1924@gmail.com
Michael=2C I am at the point in my building where I need to fabricate the l
anding gear/wing strut fitting shown in your post. I need some dimensions
of the individual members of the fitting. Could I use 2- and 1-inch strip
to fabricate them or are some of the pieces larger/smaller? This might sou
nd basic=2C but I want it to be strong enough but as light as possible. I
was thinking or using 0.090 thick steel. OK? Chuck
On Wed=2C Oct 1=2C 2014 at 4:08 PM=2C Cuy=2C Michael D. (GRC-LME0)[Vantage
Partners=2C LLC] <michael.d.cuy@nasa.gov> wrote:
Bob---I hope this helps you out. I built jigs out of leftover longeron s
pruce and plywood and built it up exactly
=0A
like the plane. Of course the wood jigs are sacrificial.
=0A
=0A
Hope this helps!
=0A
=0A
Mike C.
=0A
Ohio
=0A
=0A
=0A
=0A
=0A
=0A
=0A
============0A
============0A
============0A
============0A
=0A
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: straight axel landing gear fittings---sketches attached |
Chuck
Do you have a copy of the plans because all this information, and more, is on there.
If not they are in the flying and glider magazine sold by EAA. Not sure
if you can order full size plans or not.
Mike's modification is the same thickness steel. All that changes is the inner
fitting (tabs get bent down) and the additional piece on the inside/top. Just
make this piece so it fits your plane.
--------
Chris
Sacramento, CA
WestCoastPiet.com
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=431445#431445
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: straight axel landing gear fittings---sketches |
attached
Chuck-as Chris said, the straight axel gear fittings are shown on the plans
. I modified mine slightly as shown in my sketches but they are
basically what is shown on the plans.
Mike C.
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|

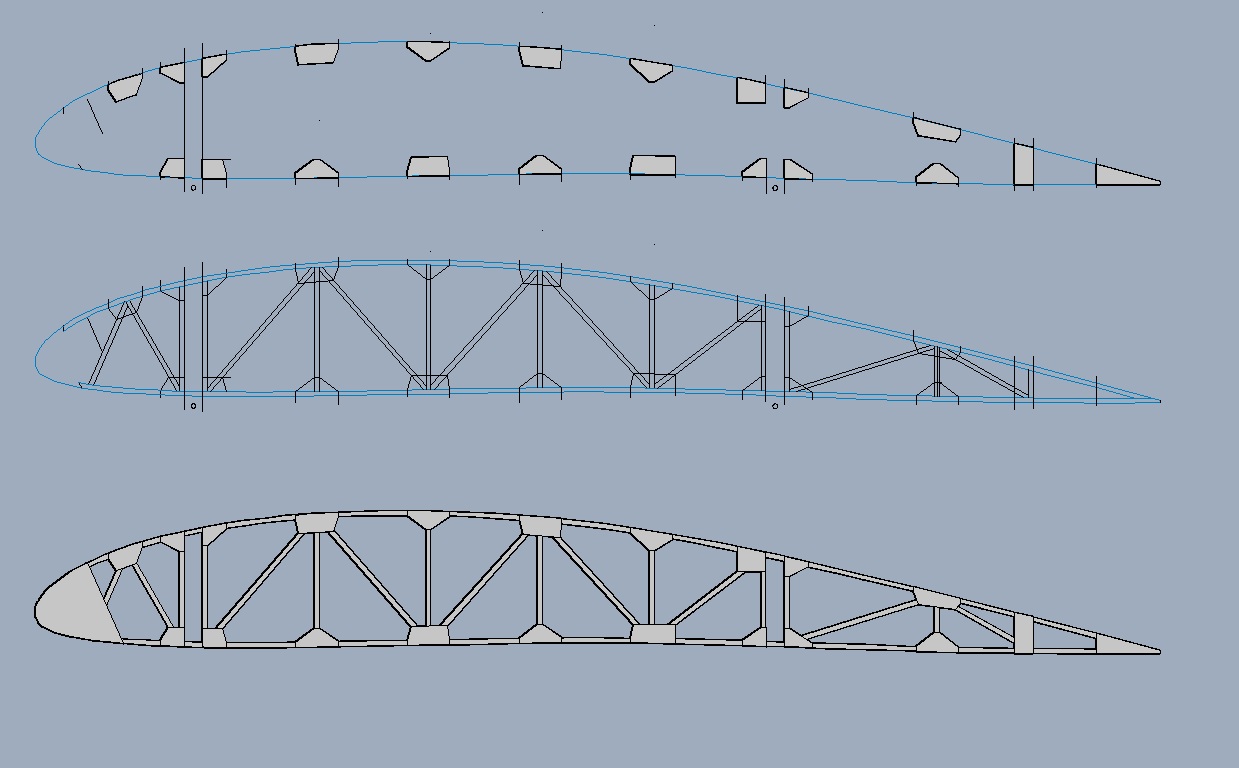

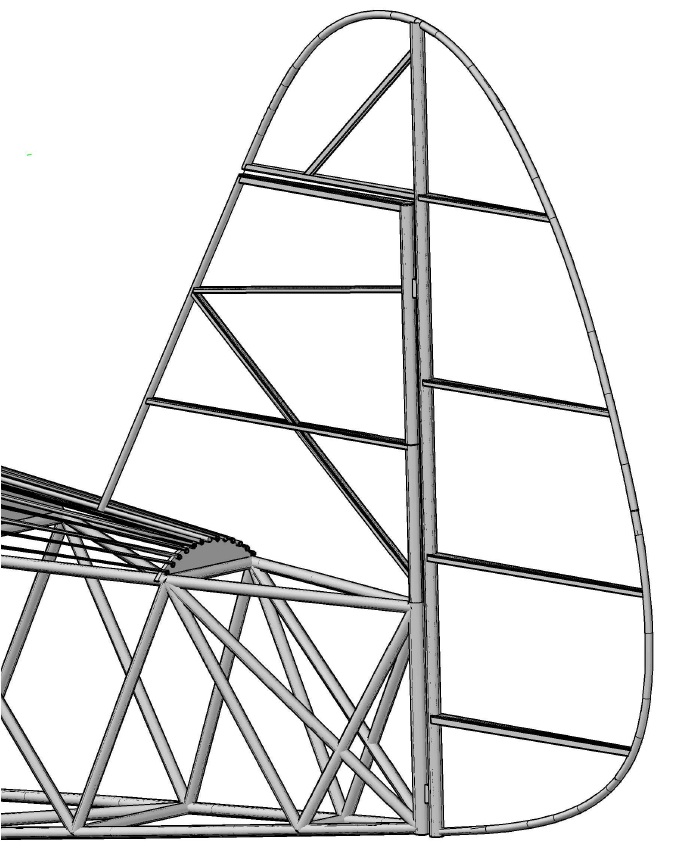

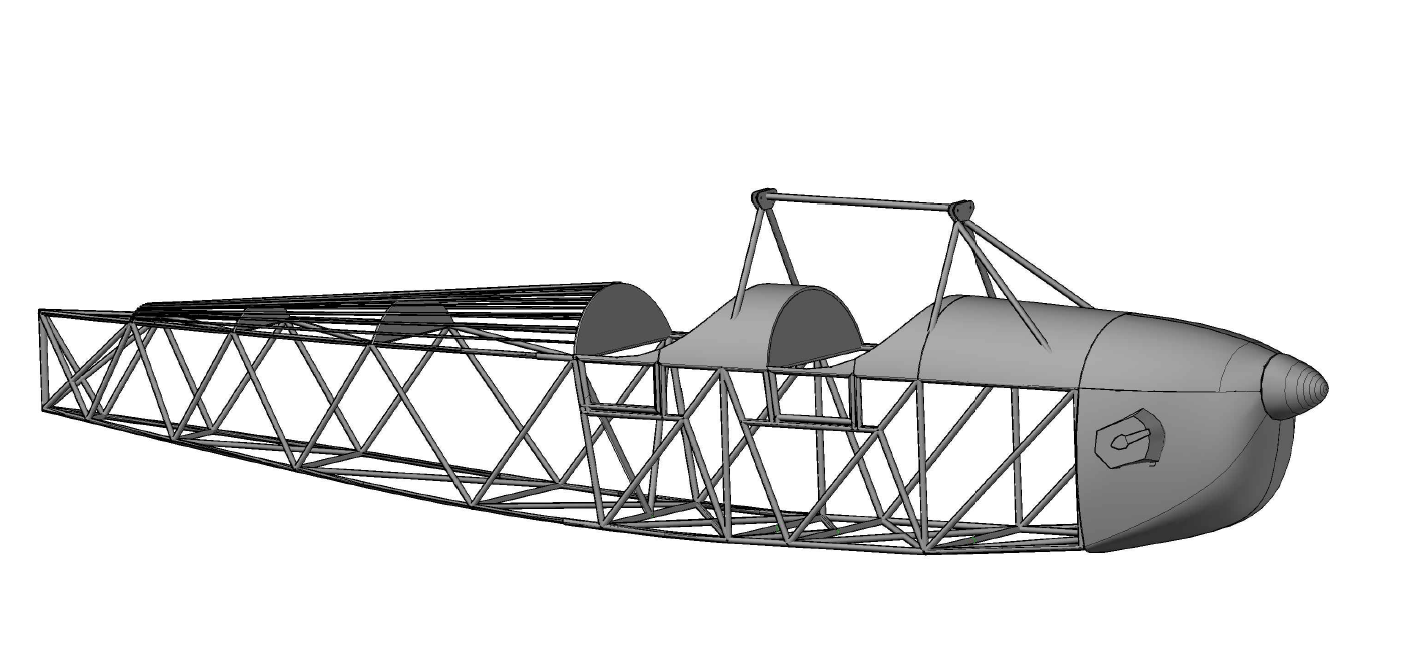

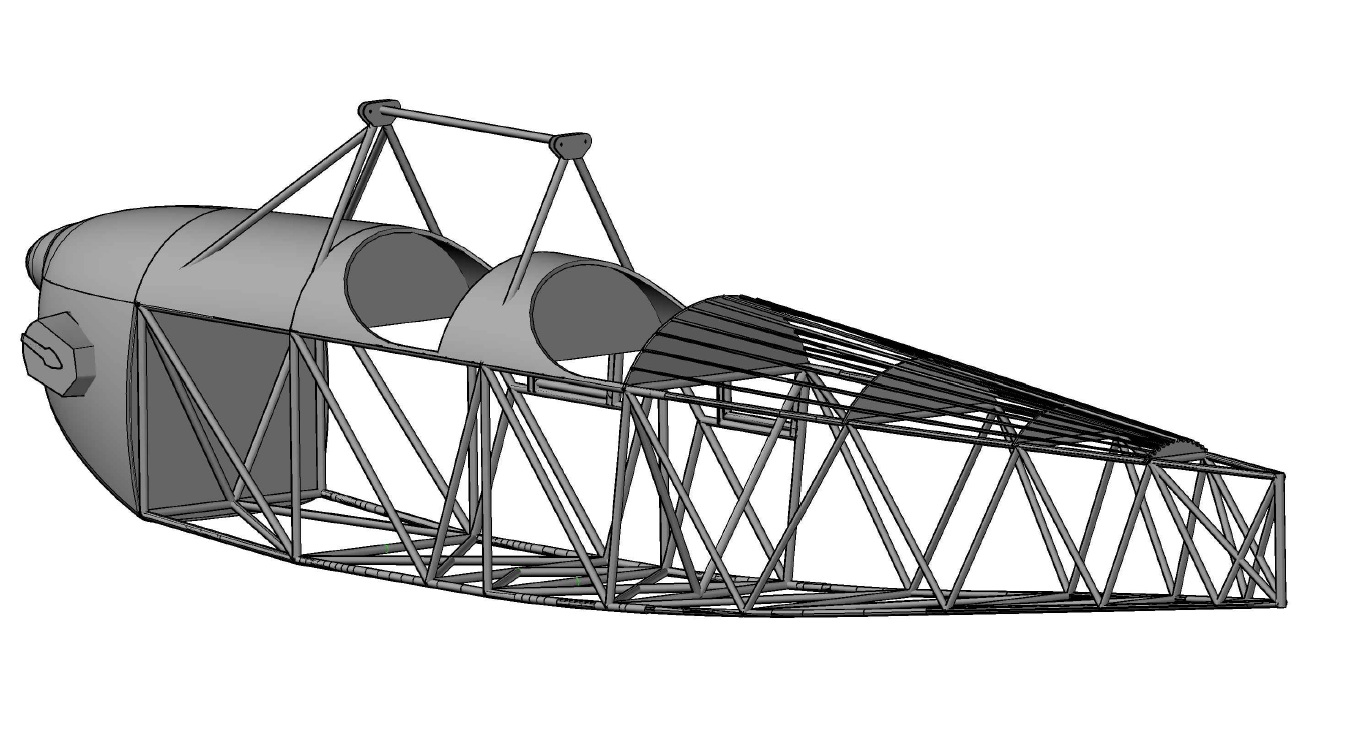

| Subject: | Riblett 612 Incidence? |
I have found various threads discussing this airfoil and I just have not found
a concrete answer to the desired wing incidence while using the Riblett 612. First
let me add that my project started from a set of GN1 plans but, I am going
to use a different strut design similar to the baby ace. This kind of strut
will not allow for ultra easy incidence adjustments to be made so I need to get
this as close as possible in the wing and strut design from the start. I have
the riblett 612 designed with 2deg incidence as of right now. Here is a layout
of what I have so far as well as a Cad model of the steel fuselage that I am
working on. I will also be building a 87% cub steel tail group as well. The
plane will be powered by a BMW R1100S engine which is just shy of 100hp.
Mike
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=431449#431449
Attachments:
http://forums.matronics.com//files/gm_1_02_aircamper_464.jpg
http://forums.matronics.com//files/gm_1_aircamper_157.png
http://forums.matronics.com//files/aircamper_riblett_airfoil_175.jpg
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Jeep Pietenpol engine update |
I love that video I found of this Aircamper on youtube. Looked fun and good music
as well. :D
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=431450#431450
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Jack Textor's Pietenpol progress photos |
http://www.textors.com/PietProject.html
I just spent lunch hour looking thru all of Jack Textor's build photos and
after wiping the druel from my face I can, without doubt, say
that Jack's workmanship is the finest homebuilding I believe I have ever se
en. I can't wait to see this load of sticks and fabric fly into
Brodhead someday.
Mike C.
Ohio
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Jack Textor's Pietenpol progress photos |
110% agreed. His building pictures are the first I look at when I have a
question. Great job Jack, hopefully someday we will meet.
Charles
On 10/3/2014 11:47 AM, Cuy, Michael D. (GRC-LME0)[Vantage Partners, LLC]
wrote:
>
> http://www.textors.com/PietProject.html
>
> I just spent lunch hour looking thru all of Jack Textor's build photos
> and after wiping the druel from my face I can, without doubt, say
>
> that Jack's workmanship is the finest homebuilding I believe I have
> ever seen. I can't wait to see this load of sticks and fabric fly into
>
> Brodhead someday.
>
> Mike C.
>
> Ohio
>
> *
>
>
> *
>
> No virus found in this message.
> Checked by AVG - www.avg.com <http://www.avg.com>
>
--
Charles Burkholder
Visit my blog @ http://missionmechfund.blogspot.ca/
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Piet vs. Riblett angle of incidence----from the archives |
via Bill Church
For those of you who missed this most excellent post (and calculation---tha
nk you Bill!) from Bill Church on July 4th
it might be of possible interest for those using the Riblett airfoil.
Mike C.
Bill writes:
There was a discussion about wing incidence about three years ago, and at t
hat time I created a couple of drawings to illustrate the relationship betw
een the cabane strut lengths, and also between the chord line vs the bottom
of the spars. They are attached again to this posting.
For the "to the plans" Pietenpol, the 1" difference in cabane struts create
s a 2 degree angle. Added to this is a 1 1/2 degree angle formed between th
e chord line and the bottoms of the spars (since that's where the cabanes a
ttach). So the effective angle of incidence between the airfoil chord and t
he top longeron is 3.5 degrees.
For the Riblett 612 airfoil, there is a 2.1 degree angle between the chord
line and the bottoms of the spars. So, if a Riblett 612 airfoil is mounted
on "stock" cabanes (front 1" longer than rear), the effective AofI would be
4.1 degrees.
If the front and rear cabanes are made equal lengths, with the Riblett, the
effective angle would be reduced to only 2.1 degrees - almost 1 1/2 degree
s less than the "to the plans" Piet.
In order to produce the same 3.5 degree angle, but using the Riblett 612, t
here should be a difference of approximately 11/16" difference in cabane le
ngths (front vs back).
Food for thought.
Bill C.
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Riblett 612 Incidence? |
Sounds neat Mike. Where are you located?
Ryan
________________________________
From: MikeHall <Gmhall222@gmail.com>
Sent: Friday, October 3, 2014 12:05 PM
Subject: Pietenpol-List: Riblett 612 Incidence?
I have found various threads discussing this airfoil and I just have not found
a concrete answer to the desired wing incidence while using the Riblett 612. First
let me add that my project started from a set of GN1 plans but, I am going
to use a different strut design similar to the baby ace. This kind of strut
will not allow for ultra easy incidence adjustments to be made so I need to get
this as close as possible in the wing and strut design from the start. I have
the riblett 612 designed with 2deg incidence as of right now. Here is a layout
of what I have so far as well as a Cad model of the steel fuselage that I am
working on. I will also be building a 87% cub steel tail group as well. The
plane will be powered by a BMW R1100S engine which is just shy of 100hp.
Mike
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=431449#431449
Attachments:
http://forums.matronics.com//files/gm_1_02_aircamper_464.jpg
http://forums.matronics.com//files/gm_1_aircamper_157.png
http://forums.matronics.com//files/aircamper_riblett_airfoil_175.jpg
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Riblett 612 Incidence? |
I am located down in Leesburg, GA. I grew up around homebuilt airplanes yet really
never became interested in building my own until now. I have been in the model
airplane industry off and on for over 14 years so i figured its time to design
and build a real one.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=431456#431456
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Riblett 612 Incidence? |
I just finished creating a 3d model of the scaled down piper cub vertical/rudder.
I still need to determine if I am going to cover the vertical separate from
the fuselage or cover it as part of the fuselage. The junction of the vertical
and the turtle deck stringers has yet to be addressed.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=431458#431458
Attachments:
http://forums.matronics.com//files/gm_1_aircamper_vertical_637.jpg
http://forums.matronics.com//files/gm_1_04_aircamper_193.jpg
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
