Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
Terry,
Since I haven't heard back regarding tube diameters, I thought I'd just post this
pic so you may design your own hinges.
As a Design Engineer, I'd use one of these at the top and one at the bottom with
the curved portion of the tab pointing opposite each other. (The center hinge
may be oriented in either direction...) That way, the rudder will be confined
vertically (axially along rearmost vertical stabilizer tube).
>From what I can tell, this part is typically an assembly using a circular section
welded to the hinge pin tab. In order to make that as an assembly, the rounded
piece is to carry any axial load. This prevents welds from shear loads.
Hope this helps.
--------
Tom Kreiner
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469533#469533
Attachments:
http://forums.matronics.com//files/hinge_design_900.jpg
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Prop cover plate |
I'm thinking about having a number of prop cover plates made with an acid etched
design on the surface. This is just a thin cover plate meant to be used over
a standard steel or aluminum prop plate. The diameter will be around 6" and made
for a SAE-1 bolt pattern as used on a corvair prop hub. I need to run at least
25 of these to make it worthwhile. The cost is about $10 each. If there is
enough interest I will have these made. Just send me a pm at lmforge at earthlink.net

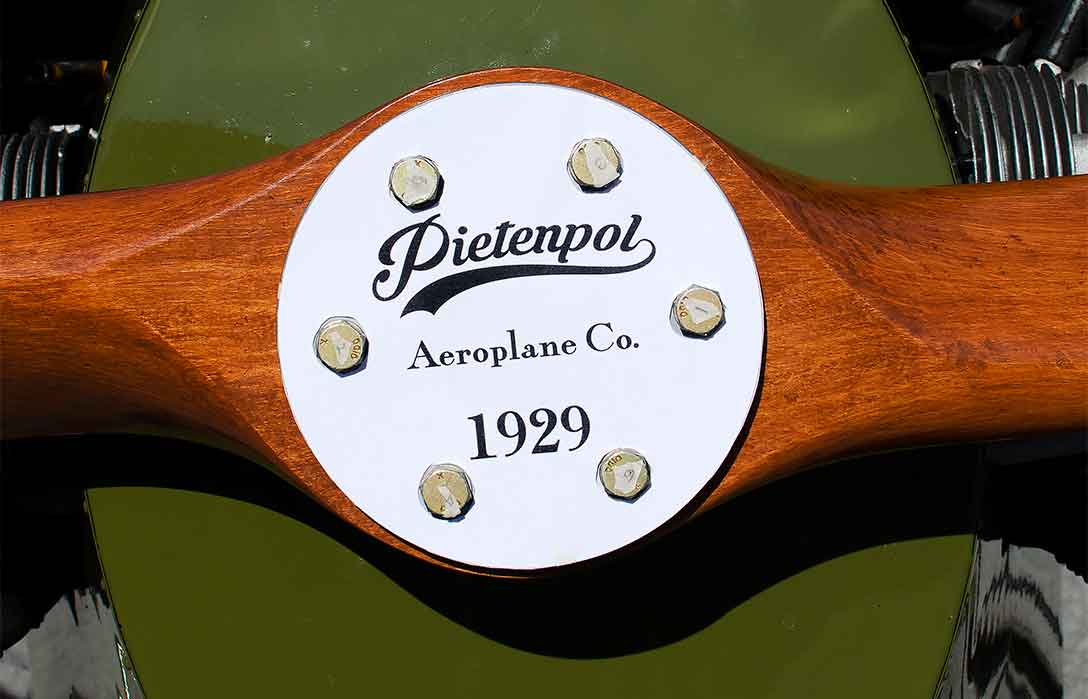

if interested. The attached picture is a paper print of the graphic
taped to the front of my Piet/corvair. The plate will be marked for the prop bolt
holes but will not be drilled or cut out. I want to get these done before
Brodhead so I'll need to hear from those interested soon.
Rick Schreiber
NX478RS
Valparaiso, IN
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469534#469534
Attachments:
http://forums.matronics.com//files/prop_plate_127.jpg
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
Vincent; I also forgot to mention that if it were me, I would use single-ear nutplates
for the hinge mounting screws. Less weight. If you epoxy them in place,
they should be secure without having to mount with two screws. Melt some
candle wax into the threaded part and the epoxy won't stick to the threads and
can be cleared out after it's set. However, if you feel better with two-ear
nutplates, carry on ;o)
--------
Oscar Zuniga
Medford, OR
Air Camper NX41CC "Scout"
A75 power, 72x36 Culver prop
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469535#469535
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
Hello good Piet-ple,
Been out of touch for a while yet still moving forward nicely on my project.
Terry, here is a photo of my tailpost hinge prior to welding. I can't find a good
photo of that specific area after welding...?!?!? The three rudder hinges
line up real well yet you have to be very careful to always mount the horizontal
stabilizer with the same number of washers/shims so the three rudder hinges
are spaced properly.

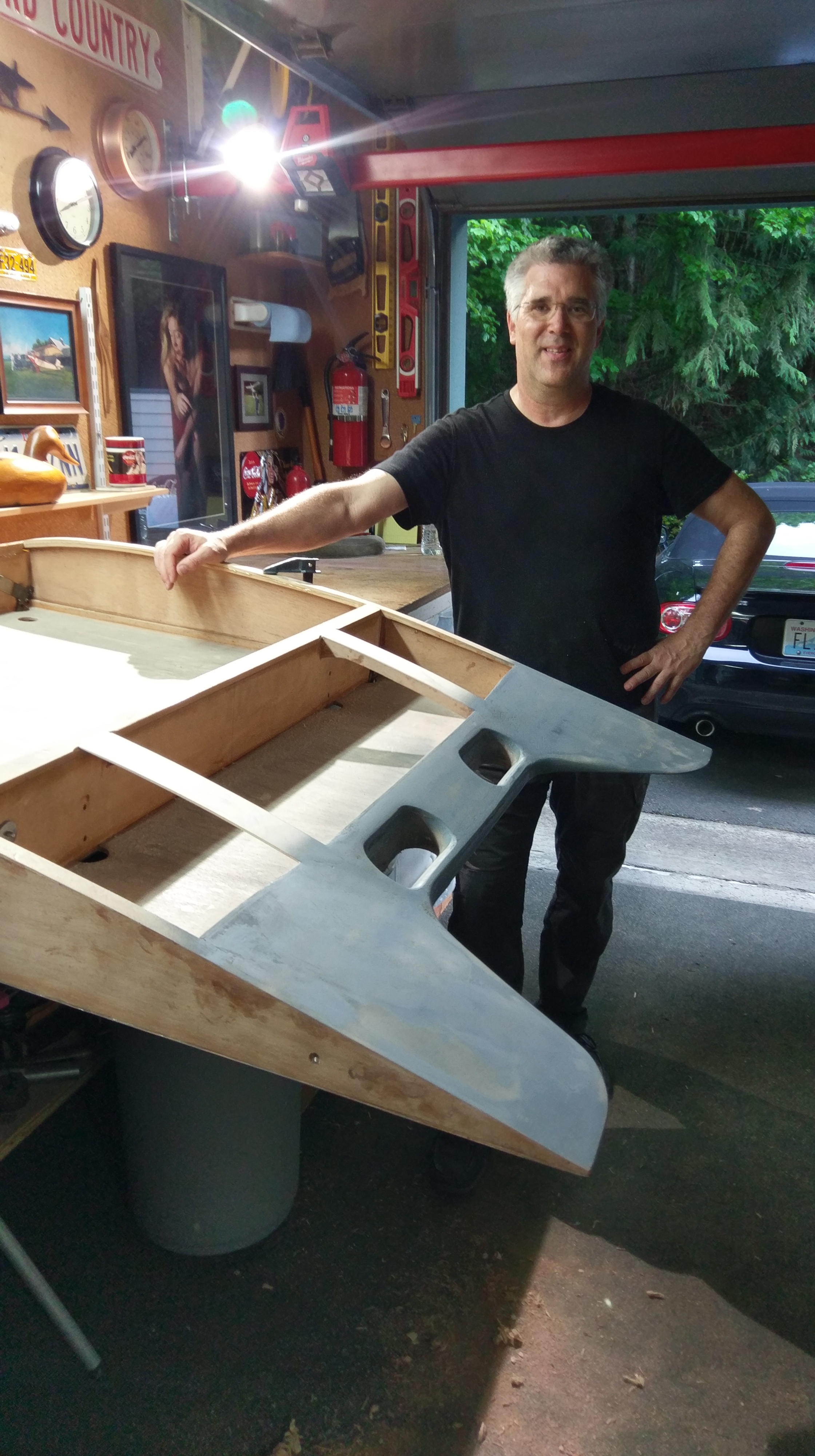

I've been working on my center section for the past many months. There are some
details that are taking more time than normal but "anything worth doing is worth
over-doing...!!!!"
Have fun with the adventure....!
--------
Jake Schultz - curator,
Newport Way Air Museum (OK, it's just my home)
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469539#469539
Attachments:
http://forums.matronics.com//files/tailpost_hinge_606.jpg
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
Yes that is exactly what I was saying. That is the perfect way to do it.
Jerry
Sky Classic
-----Original Message-----
From: owner-pietenpol-list-server@matronics.com
[mailto:owner-pietenpol-list-server@matronics.com] On Behalf Of aerocarjake
Sent: Tuesday, May 23, 2017 2:30 PM
Subject: Pietenpol-List: Re: The Kapler/Zuniga hinge on a steel tube
fuselage
--> <flight.jake@gmail.com>
Hello good Piet-ple,
Been out of touch for a while yet still moving forward nicely on my project.
Terry, here is a photo of my tailpost hinge prior to welding. I can't find a
good photo of that specific area after welding...?!?!? The three rudder
hinges line up real well yet you have to be very careful to always mount the
horizontal stabilizer with the same number of washers/shims so the three
rudder hinges are spaced properly.
I've been working on my center section for the past many months. There are
some details that are taking more time than normal but "anything worth doing
is worth over-doing...!!!!"
Have fun with the adventure....!
--------
Jake Schultz - curator,
Newport Way Air Museum (OK, it's just my home)
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469539#469539
Attachments:
http://forums.matronics.com//files/tailpost_hinge_606.jpg
---
This email has been checked for viruses by AVG.
http://www.avg.com
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
Somewhat on the same subject...since the location of this hinge half is done pre-covering,
does the thickness of covering on fuselage and horizontal and vertical
stab add enough thickness to make alignment off? In other words, does any
allowance need to be made for covering, or is it insignificant enough it doesn't
matter.
--------
Jon Jones
Ironton, MO
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469541#469541
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
good point... it may not be critical but my horizontal stabilizer is mounted on
washers and I could adjust them if needed. I suspect that will be one of the
many things that crop up when one re-assembles the plane after covering/paint....
I guess I'll just skip the covering altogether - ha!
--------
Jake Schultz - curator,
Newport Way Air Museum (OK, it's just my home)
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469552#469552
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | OT father of jeepenpol |
Luke, I am your father!
1928 overland whippet four. 134 CI. 31 HP. Later developed into the GoDevil
Jeep engine of WW two.
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | OT father of Jeep |
1928 whippet head
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: OT father of Jeep |
UHJldHR5IHN1cmUgdGhhdCB0aGlzIGlzIGEgd2hpcHBldCBoZWFk4oCmDQoNCi0tDQpKZWZmcmV5
IEguIEJvYXRyaWdodCwgUGhELCBGQVJWTw0KUHJvZmVzc29yIG9mIE9waHRoYWxtb2xvZ3kNCkVt
b3J5IFVuaXZlcnNpdHkgU2Nob29sIG9mIE1lZGljaW5lDQpDb3JlIERpcmVjdG9yICYgUmVzZWFy
Y2ggQmlvbG9naXN0DQpBdGxhbnRhIFZBTUMgQ2VudGVyIGZvciBWaXN1YWwgJiBOZXVyb2NvZ25p
dGl2ZSBSZWhhYmlsaXRhdGlvbg0KDQoNCkZyb206IDxvd25lci1waWV0ZW5wb2wtbGlzdC1zZXJ2
ZXJAbWF0cm9uaWNzLmNvbT4gb24gYmVoYWxmIG9mIFN0ZXZlbiBEb3J0Y2ggPHN0ZXZlbi5kLmRv
cnRjaEBnbWFpbC5jb20+DQpSZXBseS1UbzogInBpZXRlbnBvbC1saXN0QG1hdHJvbmljcy5jb20i
IDxwaWV0ZW5wb2wtbGlzdEBtYXRyb25pY3MuY29tPg0KRGF0ZTogVHVlc2RheSwgTWF5IDIzLCAy
MDE3IGF0IDg6MzYgUE0NClRvOiAicGlldGVucG9sLWxpc3RAbWF0cm9uaWNzLmNvbSIgPHBpZXRl
bnBvbC1saXN0QG1hdHJvbmljcy5jb20+DQpTdWJqZWN0OiBQaWV0ZW5wb2wtTGlzdDogT1QgZmF0
aGVyIG9mIEplZXANCg0KMTkyOCB3aGlwcGV0IGhlYWQNCg0KX19fX19fX19fX19fX19fX19fX19f
X19fX19fX19fX18NCg0KVGhpcyBlLW1haWwgbWVzc2FnZSAoaW5jbHVkaW5nIGFueSBhdHRhY2ht
ZW50cykgaXMgZm9yIHRoZSBzb2xlIHVzZSBvZg0KdGhlIGludGVuZGVkIHJlY2lwaWVudChzKSBh
bmQgbWF5IGNvbnRhaW4gY29uZmlkZW50aWFsIGFuZCBwcml2aWxlZ2VkDQppbmZvcm1hdGlvbi4g
SWYgdGhlIHJlYWRlciBvZiB0aGlzIG1lc3NhZ2UgaXMgbm90IHRoZSBpbnRlbmRlZA0KcmVjaXBp
ZW50LCB5b3UgYXJlIGhlcmVieSBub3RpZmllZCB0aGF0IGFueSBkaXNzZW1pbmF0aW9uLCBkaXN0
cmlidXRpb24NCm9yIGNvcHlpbmcgb2YgdGhpcyBtZXNzYWdlIChpbmNsdWRpbmcgYW55IGF0dGFj
aG1lbnRzKSBpcyBzdHJpY3RseQ0KcHJvaGliaXRlZC4NCg0KSWYgeW91IGhhdmUgcmVjZWl2ZWQg
dGhpcyBtZXNzYWdlIGluIGVycm9yLCBwbGVhc2UgY29udGFjdA0KdGhlIHNlbmRlciBieSByZXBs
eSBlLW1haWwgbWVzc2FnZSBhbmQgZGVzdHJveSBhbGwgY29waWVzIG9mIHRoZQ0Kb3JpZ2luYWwg
bWVzc2FnZSAoaW5jbHVkaW5nIGF0dGFjaG1lbnRzKS4NCg=
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
Jake,
A picture is worth a thousand words (maybe two thousand for this air line pilot).
Thanks!
--------
Semper Fi,
Terry Hand
Athens, GA
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469565#469565
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: OT father of Jeep |
Yes, it is. LoL
On May 23, 2017 7:53 PM, "Boatright, Jeffrey" <jboatri@emory.edu> wrote:
> Pretty sure that this is a whippet head
>
>
> --
>
> Jeffrey H. Boatright, PhD, FARVO
>
> Professor of Ophthalmology
>
> Emory University School of Medicine
>
> Core Director & Research Biologist
>
> Atlanta VAMC Center for Visual & Neurocognitive Rehabilitation
>
>
> *From: *<owner-pietenpol-list-server@matronics.com> on behalf of Steven
> Dortch <steven.d.dortch@gmail.com>
> *Date: *Tuesday, May 23, 2017 at 8:36 PM
> *To: *"pietenpol-list@matronics.com" <pietenpol-list@matronics.com>
> *Subject: *Pietenpol-List: OT father of Jeep
>
>
> 1928 whippet head
>
> ------------------------------
>
> This e-mail message (including any attachments) is for the sole use of
> the intended recipient(s) and may contain confidential and privileged
> information. If the reader of this message is not the intended
> recipient, you are hereby notified that any dissemination, distribution
> or copying of this message (including any attachments) is strictly
> prohibited.
>
> If you have received this message in error, please contact
> the sender by reply e-mail message and destroy all copies of the
> original message (including attachments).
>
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Prop cover plate |
Nice design! I'm guessing the Ford builders will be especially interested in these
for the period look that they impart. My A75 sports a thin aluminum reproduction
of the original Continental plate, which I think I got from Wag Aero
or someplace. I don't remember what it cost. It, too, is decorative and goes
over the real crush plate. Obviously, those who are using tapered shaft prop
hubs will be out of luck with something like this, although I guess you could
also design a plate with the graphics positioned around where the nose of the
hub pokes through.
--------
Oscar Zuniga
Medford, OR
Air Camper NX41CC "Scout"
A75 power, 72x36 Culver prop
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469569#469569
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
Jake-! Long time no hear progress report. I was expecting to see a cloud of blue
smoke from your radial engine on the horizon north of me when you fired it
up.
--------
Oscar Zuniga
Medford, OR
Air Camper NX41CC "Scout"
A75 power, 72x36 Culver prop
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469570#469570
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: The Kapler/Zuniga hinge on a steel tube fuselage |
I should probably cover the plane before I fly in....
--------
Jake Schultz - curator,
Newport Way Air Museum (OK, it's just my home)
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=469571#469571
Attachments:
http://forums.matronics.com//files/imag0723_789.jpg
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
