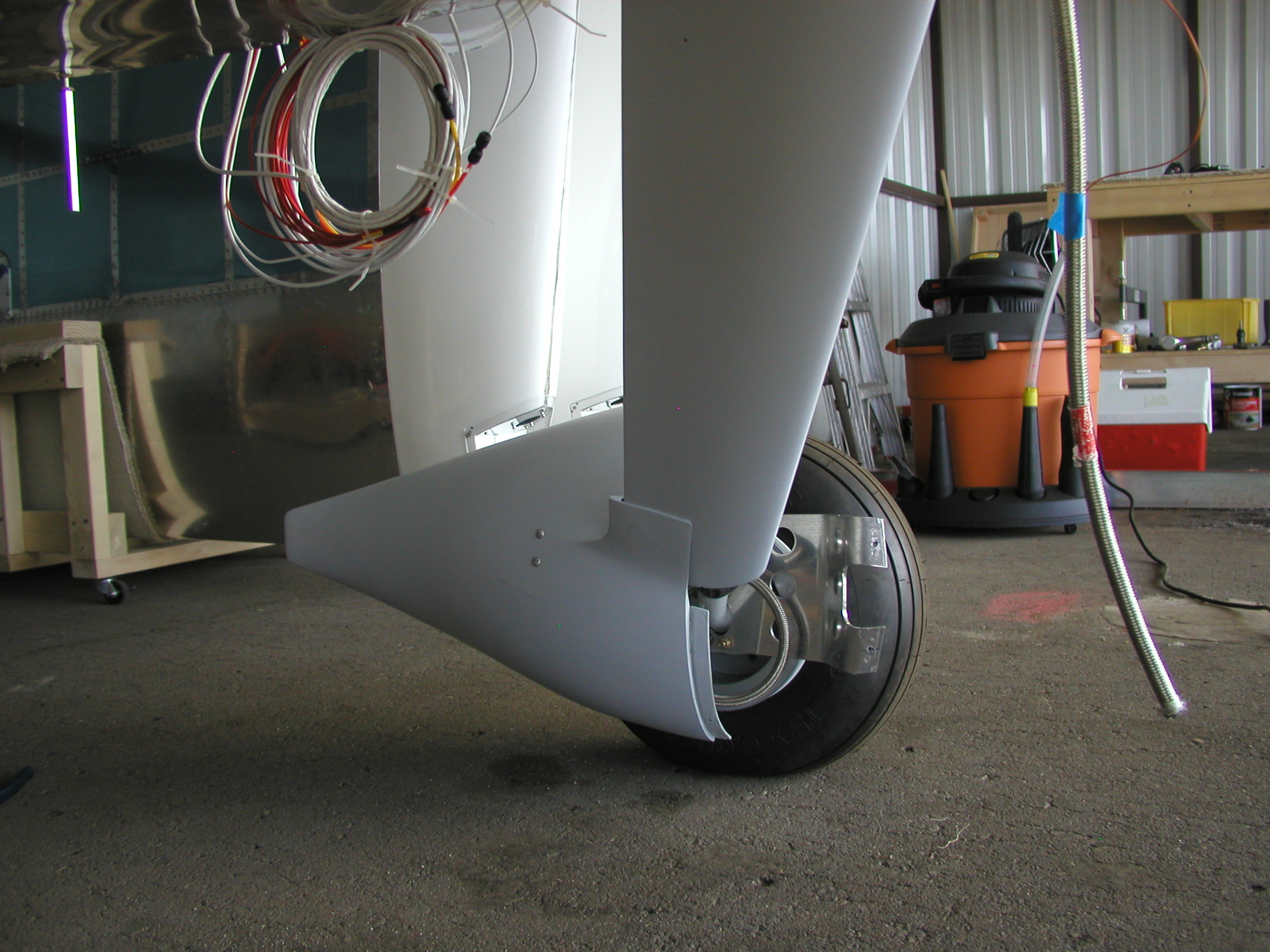

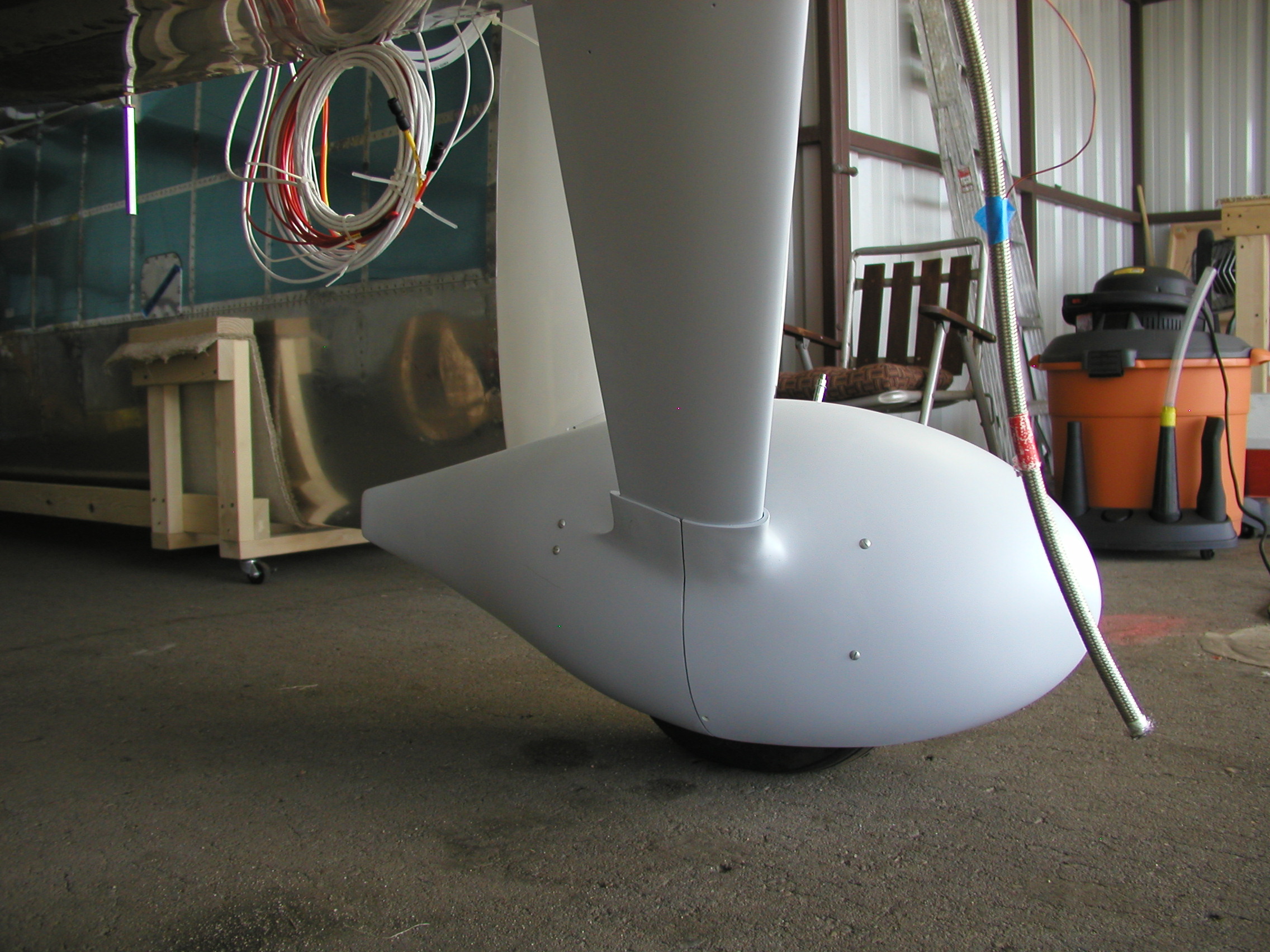

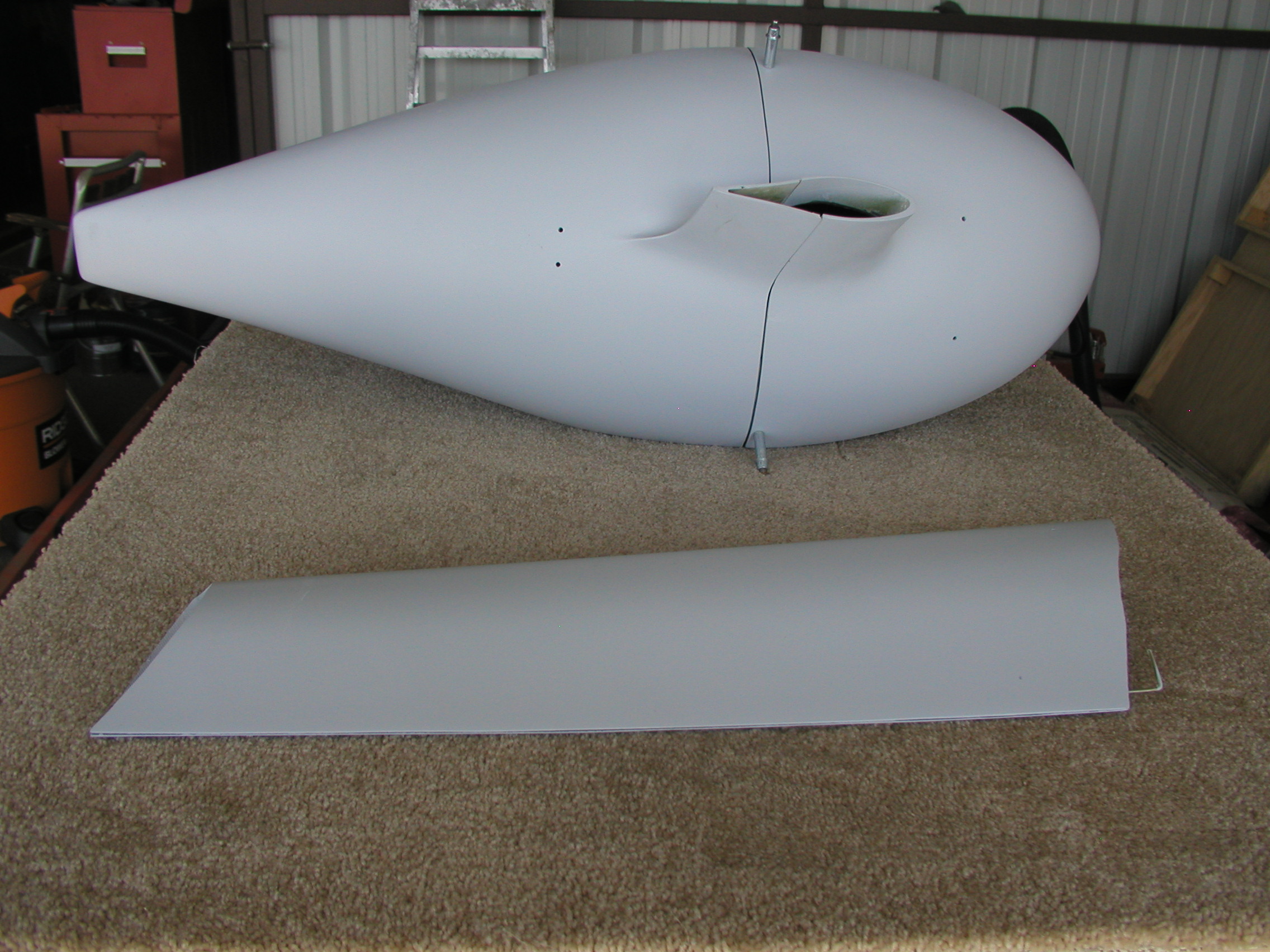

26. 02:33 PM - Gear intersection fairing - bonding lower fairing to wheel pant (Bill Mauledriver Watson)
27. 02:37 PM - Re: Fuel Related Items (Ron B.)
28. 02:54 PM - Re: Gear intersection fairing - bonding lower fairing to wheel pant (Geoff Combs)
29. 03:38 PM - Re: SkyView was Static lines (Kelly McMullen)
30. 03:48 PM - Re: Gear intersection fairing - bonding lower fairing to wheel pant (Don McDonald)
31. 03:58 PM - Re: Gear intersection fairing - bonding lower fairing to wheel pant (Lew Gallagher)
32. 05:17 PM - Re: Johnson Creek, Idaho (Albert Gardner)
33. 06:14 PM - Re: Re: Fuel Related Items (Bill Gipson)
34. 06:54 PM - Re: Re: Fuel Related Items (Perry, Phil)
35. 06:57 PM - Re: Johnson Creek, Idaho (Scott Schmidt)
36. 08:54 PM - Re: Johnson Creek, Idaho (Andy Turner)
37. 09:00 PM - Re: Gear intersection fairing - bonding lower fairing to wheel pant (Dave Saylor)
38. 09:38 PM - Re: Gear intersection fairing - bonding lower fairing to wheel p (Jim Berry)
39. 09:41 PM - Re: Gear intersection fairing - bonding lower fairing to wheel pant (Lew Gallagher)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
There seems to be some confusion between an accelerated stall which can
be performed at any speed up to Va (think snap roll, whip stall,
secondary stall) and a stall performed at minimum controllable
speed. I don't think they are related except in the fact that a
critical angle of attack is exceeded.
I haven't been following this thread but my head started spinning....
There's a good discussion under 'stalls' in the FAA's Airplane Flying
Handbook.
DLM wrote:
>
> According to the Vans site, gross weight stall occurs at 55kts. Assuming a
> 3.8 load factor, the Va number is 55 times the square root of 3.8 or 55*1.95
> or 107 kts. So maybe a call to Krueger is warranted. If the Va of 125 kts is
> accurate then the design load factor is higher than normal category.
>
> -----Original Message-----
> From: owner-rv10-list-server@matronics.com
> [mailto:owner-rv10-list-server@matronics.com] On Behalf Of Bob Turner
> Sent: Saturday, March 27, 2010 8:08 PM
> To: rv10-list@matronics.com
> Subject: RV10-List: Re: Autopilot
>
>
> "Va is *generally* (with some well known exceptions) the maximum airspeed at
> which abrupt max deflection control inputs should not damage your aircraft.
> "
>
> Just to nitpick, someone above has the correct definition of Va. It's the
> speed at which an accelerated stall happens just as you hit the design load
> limit (3.8 g for us).
>
> No need to call Vans about Va at lower weights. It scales exactly as stall
> speed does, e.g., as the square root of the weight. If you are 20% below
> gross then Va goes down about 10% (really 10.56%) (half the percentage being
> an approximation to the square root).
>
> --------
> Bob Turner
> RV-10 QB
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=292026#292026
>
>
>
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Page Update after ACI |
Thanks for the write-ups Tim. I am just reading your Christmas trip.
Nothing like a winter trip to FL, especially Key West which gives you
all the tropical visuals, with a return to winter at the end. Turns
the airplane into a magic carpet.
I was with you on the climbouts thru the icy clouds. I've done the
first penetration in the Maule a couple of times but the jump to 11K
just isn't doable. That's when I learned about the value of excess
horsepower (aka climb capability). It's not fun getting squeezed
between layers and realizing your only option is down. Really key to
working around the ice in winter even down here in NC.
Nice writeup - Thanks much for the inspiration.
Bill "will be flying in 2010" Watson
Tim Olson wrote:
>
> It's been a while since I did a write-up, and now that I'm done with my
> Annual Condition Inspection and a bunch of winter projects, I decided
> to quick do an update.
>
> http://www.myrv10.com/N104CD/index.html
>
> I only make note to this one because it just happens that I covered some
> things like USB panel jacks, brake lines, brake fluid, door latches,
> and lots of topics...some of which some people may have some interest
> in or use it to get ideas from.
>
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: current limiter mount |
Are you talking about the ALT B-lead fuses? If so, here's what I'm using:
http://www.littelfuse.com/data/en/Data_Sheets/498.pdf
www.mouser.com
Part number: 576-04980900Z
Fuse: 576-0498080.M 32V 80A (also bought a 40A from someplace else for the aux
ALT)
Regards,
Jay
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292200#292200
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Page Update after ACI |
Totally right regarding the climb performance. I was just NEVER keen
to the idea of many people early on who wanted that continental with
less H.P. IMHO, one of the absolute best things about the -10 is that
you can do a 260hp engine....and with that you get climb performance.
Get above the bumps, the clouds, and away from summer heat much
faster. Putting lesser HP in would be a big downer to an otherwise
fantastic airplane. It's not nearly sk much about the speed as it is
the climb rate.
Tim
On Mar 29, 2010, at 8:26 AM, Bill Mauledriver Watson <MauleDriver@nc.rr.com
> wrote:
> >
>
> Thanks for the write-ups Tim. I am just reading your Christmas
> trip. Nothing like a winter trip to FL, especially Key West which
> gives you all the tropical visuals, with a return to winter at the
> end. Turns the airplane into a magic carpet.
>
> I was with you on the climbouts thru the icy clouds. I've done the
> first penetration in the Maule a couple of times but the jump to 11K
> just isn't doable. That's when I learned about the value of excess
> horsepower (aka climb capability). It's not fun getting squeezed
> between layers and realizing your only option is down. Really key
> to working around the ice in winter even down here in NC.
>
> Nice writeup - Thanks much for the inspiration.
>
> Bill "will be flying in 2010" Watson
>
> Tim Olson wrote:
>>
>> It's been a while since I did a write-up, and now that I'm done
>> with my
>> Annual Condition Inspection and a bunch of winter projects, I decided
>> to quick do an update.
>>
>> http://www.myrv10.com/N104CD/index.html
>>
>> I only make note to this one because it just happens that I covered
>> some
>> things like USB panel jacks, brake lines, brake fluid, door latches,
>> and lots of topics...some of which some people may have some interest
>> in or use it to get ideas from.
>>
>
>
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Fuel Related Items |
I've put it off as long as I can. Now I'm getting ready to write the
check for the Andair Fuel Valve.
Ordering from the Andair site, you can customize the valve with the
appropriate fittings. Which leads me to the first question.
1) Are most people using the =BC" NPT (FEMALE) fittings on all 3
connections of the FS20x7?
a. This creates a part number of FS20f7F.
Finally I'm going to customize the face plate. This leads me into the
next question.
2) Van's says the fuel capacity of the RV-10 is 60 gallons 30/30.
Is this the usable fuel or the total capacity?
a. I'd like to placard usable fuel on the selector.
Thanks,
Phil
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | RE: Fuel Related Items |
I also see a 3rd question now.......
I thought the extension would be a pretty simple choice between 6" or
12", but I was wrong.
Is there any need for Universal Joints at the Valve or Handle?
I doubt it. It should be a straight shot up through the tunnel cover.
Finally here is a checkbox for a "Coupler Joint", but there is no
description of what it is...
Any ideas?
Phil
From: Perry, Phil
Sent: Monday, March 29, 2010 9:55 AM
Subject: Fuel Related Items
I've put it off as long as I can. Now I'm getting ready to write the
check for the Andair Fuel Valve.
Ordering from the Andair site, you can customize the valve with the
appropriate fittings. Which leads me to the first question.
1) Are most people using the =BC" NPT (FEMALE) fittings on all 3
connections of the FS20x7?
a. This creates a part number of FS20f7F.
Finally I'm going to customize the face plate. This leads me into the
next question.
2) Van's says the fuel capacity of the RV-10 is 60 gallons 30/30.
Is this the usable fuel or the total capacity?
a. I'd like to placard usable fuel on the selector.
Thanks,
Phil
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Static lines |
Plan on TWO lines - one for static going forward, and one for pitot going aft.
Assuming you plan on putting your AHARS in the tail. Can't say for all of them,
but my GRT AHARS is where you connect both pitot & static.
John
--------
#40572 QB. Engine on, wing attach coming soon. Panel delivery soon.
N711JG reserved
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292228#292228
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Johnson Creek, Idaho |
Would those of you that have flown your RV-10 into Johnson Creek/Yellow
Pine, Idaho please contact me off list. I am interested in flying into there
for camping this summer.
Albert Gardner
N991RV
Yuma, AZ
ibspud@roadrunner.com
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Fuel Related Items |
Phil;
I've been able to use the tank until it is dry. (just one at a time :)
). So your usable fuel would be 30 gal. and it is the total capacity.
I can't remember which model valve I have.
Dr Fred
Perry, Phil wrote:
>
> Ive put it off as long as I can. Now Im getting ready to write the
> check for the Andair Fuel Valve.
>
> Ordering from the Andair site, you can customize the valve with the
> appropriate fittings. Which leads me to the first question.
>
> 1) Are most people using the NPT (FEMALE) fittings on all 3
> connections of the FS20x7?
>
> a. This creates a part number of FS20f7F.
>
> Finally Im going to customize the face plate. This leads me into the
> next question.
>
> 2) Vans says the fuel capacity of the RV-10 is 60 gallons 30/30. Is
> this the usable fuel or the total capacity?
>
> a. Id like to placard usable fuel on the selector.
>
> Thanks,
>
> Phil
>
> *
>
>
> *
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
DLM
You are so right, Va is all based upon the wings stalling during a upset
before exceeding design limits. This is the definition of Va. Any time
some on gets into turbulence that requires someone to tighten the seat belts
make sure you slow down.
I have been slammed into the ceiling in a C-5 at altitude more than once and
it really hurts on the down fall. Any and all pilots need to be very speed
aware in bad weather and high winds.
Thats my 2 cents worth.
John G. Cumins
President
2499 B1 Martin Rd
Fairfield Ca 94533
707-425-7100
707-425-7576 Fax
Your Total Technology Solution Provider
-----Original Message-----
From: owner-rv10-list-server@matronics.com
[mailto:owner-rv10-list-server@matronics.com] On Behalf Of rv10flyer
Sent: Saturday, March 27, 2010 4:54 PM
Subject: RV10-List: Re: Autopilot
DLM, you did the right thing! I can see you have done your studying. Slow
down to Va if you feel the need to tighten your seatbelt. Slow down even
more if your light, as your plane will accelerate faster from a gust or
turbulence. If your at Va(higher aoa) your wing will stall before the g load
limit is reached of our airplane(+3.8,-1.9). You can recover from a stall at
altitude, but you won't recover from structural failure. If you are above Va
you run the risk of breaking or bending your airplane. You might get away
with just making it uncomfortable for your passengers and loosening some
rivets. At Vno a 30 fps(which is just a design standard) gust may not hurt
your airplane but that is by no means the highest recorded gust. I don't
want to run into that 50 fps gust in my RV-10 at Vno, and definitely not the
100 fps gust normally found in thunderstorms. Highest recorded was 224 fps.
[/quote]
--------
Wayne Gillispie, A&P 5/93, PPC 10/08
Grayson, KY Bldr# 40983
Ord complete kit 8/24/09; DB Sch del 11/20/09
Emp 12/01/09-3/14/10 332 hrs
Wings 3/14/10-
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=291995#291995
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
I know this is confusing to many people, but in fact, a high performance endorsement
is not required to act as safety pilot in a 10 - just "private, single engine
land" or better.
Likewise, if a private pilot may log as PIC time any time where they are the "sole
manipulator of the controls". A HP endorsement is not necessary. However,
there must be someone onboard with an HP endorsement who is in fact the PIC.
I sure wish the FAA had made the distinction between logging time and being the
actual PIC more clear.
--------
Bob Turner
RV-10 QB
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292241#292241
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Static lines |
I have the Dynon SkyView, and you need pitot, static, and an AOA tube
going to the tailcone area. I also ran the static to the IP area for
an alternate static switch.....
Sent from my iPhone
On Mar 29, 2010, at 12:08 PM, "johngoodman"
<johngoodman@earthlink.net> wrote:
> >
>
> Plan on TWO lines - one for static going forward, and one for pitot
> going aft. Assuming you plan on putting your AHARS in the tail.
> Can't say for all of them, but my GRT AHARS is where you connect
> both pitot & static.
> John
>
> --------
> #40572 QB. Engine on, wing attach coming soon. Panel delivery soon.
> N711JG reserved
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=292228#292228
>
>
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Page Update after ACI |
Tim, as always, thanks for the write ups. I've learned a lot from your web site.
I agree with HP statements. Out here in the west, climb rate and service ceiling
are often important in whether a trip is go or no-go.
--------
Bob Turner
RV-10 QB
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292244#292244
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RE: Fuel Related Items |
The RV-10 will hold about 61 gallons total I think if you
really stuff it in to the brim, but call it 60 as
advertised.
When it comes to useable fuel, almost ALL fuel is useable.
I've flown each tank until dry (on separate test flights
done directly over the airport), and both tanks when I
sumped them after it was out of fuel, had only about
1 cup or so that would come out. Certainly far less than
a quart. So consider that if you fill it pretty full,
you're looking at 60 gallons with 60 useable, if you don't
count the extra .5 gallons that you can squeeze into the
tank.
As for the universal joints, it depends on your setup.
Mine isn't perfectly straight, and it still works
ok with a slight angle between the valve and handle.
If you mount the valve so it's level to the tunnel
cover and directly below the hole, you won't need a
universal. There is a little slop to it for
forgiveness.
If you order a 12" extension, you will likely use
about half of it. I can't remember if I had less
than 6" left, or more than 6" left. But, I'd order
12" either way. That way if you mess up the cut,
you may end up with some excess to play with.
Ordering the extensions is enough of a pain coming
from the U.K. that it pays to waste a couple bucks.
The fitting choice is all up to you based on what
you plan to do with your lines and the style of
the valve that you get. You'll most likely want
downward turning AN fittings, which you can also
do with the 1/4" female NPT, by using an AN822-6D.
That's what I did. Turned out good because I
just replaced one of the fittings to make sure I
had a good one on there. But, on the other hand,
it can sometimes be hard to get an NPT fitting
aligned where you want it without it being too
tight or too loose....so you may consider ordering
their downturned AN fittings. If it were ME buying
it, I guess I'd buy it with the AN type built-in
fittings, but I'd splurge and buy a spare. I
absolutely hate being grounded for stupid things
like that, and since Andair is your sole-source for
the built-in fittings, I'd definitely order a
spare if you go that route.
Tim Olson - RV-10 N104CD
Perry, Phil wrote:
> I also see a 3^rd question now.
>
>
>
> I thought the extension would be a pretty simple choice between 6 or
> 12, but I was wrong.
>
>
>
> Is there any need for Universal Joints at the Valve or Handle?
>
> I doubt it. It should be a straight shot up through the tunnel cover.
>
>
>
> Finally here is a checkbox for a Coupler Joint, but there is no
> description of what it is
>
> Any ideas?
>
>
>
> Phil
>
>
>
> *From:* Perry, Phil
> *Sent:* Monday, March 29, 2010 9:55 AM
> *To:* rv10-list@matronics.com
> *Subject:* Fuel Related Items
>
>
>
> Ive put it off as long as I can. Now Im getting ready to write the
> check for the Andair Fuel Valve.
>
>
>
> Ordering from the Andair site, you can customize the valve with the
> appropriate fittings. Which leads me to the first question.
>
>
>
> 1) Are most people using the NPT (FEMALE) fittings on all 3
> connections of the FS20x7?
>
> a. This creates a part number of FS20f7F.
>
>
>
> Finally Im going to customize the face plate. This leads me into the
> next question.
>
>
>
> 2) Vans says the fuel capacity of the RV-10 is 60 gallons 30/30.
> Is this the usable fuel or the total capacity?
>
> a. Id like to placard usable fuel on the selector.
>
>
>
>
>
> Thanks,
>
> Phil
>
>
>
>
>
> *
>
>
> *
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Johnson Creek, Idaho |
Albert.... and others... please respond on board... lot's of want to know.
- Several people out of Texas, fly there every year.
Don McDonald
--- On Mon, 3/29/10, Albert Gardner <ibspud@roadrunner.com> wrote:
From: Albert Gardner <ibspud@roadrunner.com>
Subject: RV10-List: Johnson Creek, Idaho
Would those of you that have flown your RV-10 into Johnson Creek/Yellow
Pine, Idaho please contact me off list. I am interested in flying into ther
e
for camping this summer.
Albert Gardner
N991RV
Yuma, AZ
ibspud@roadrunner.com
le, List Admin.
=0A=0A=0A
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Static lines |
Is anyone running two pitot lines? I went and installed the Van's pitot as well
as a (not yet purchased) heated one on the other wing. Is there any value in
using an unheated pitot on the back up instruments? (If I lose power there won't
be any electricity to a heated pitot anyway, although certainly the primary
instruments could fail for reasons other than power loss.)
--------
Bob Turner
RV-10 QB
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292250#292250
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | RE: Fuel Related Items |
Yeah I didn't think of using their Banjo connectors, but that's a good idea.
This would let me eliminate the 45 degree elbows on the L&R lines and go directly
to a Male AN6 fitting instead. Good idea.
Also nice that it's adjustable.
I'll keep the female connector on the bottom for the fuel going forward and the
return from the boost pump.
Phil
-----Original Message-----
From: Tim Olson [mailto:Tim@myrv10.com]
Sent: Monday, March 29, 2010 11:59 AM
Subject: Re: RV10-List: RE: Fuel Related Items
The RV-10 will hold about 61 gallons total I think if you
really stuff it in to the brim, but call it 60 as
advertised.
When it comes to useable fuel, almost ALL fuel is useable.
I've flown each tank until dry (on separate test flights
done directly over the airport), and both tanks when I
sumped them after it was out of fuel, had only about
1 cup or so that would come out. Certainly far less than
a quart. So consider that if you fill it pretty full,
you're looking at 60 gallons with 60 useable, if you don't
count the extra .5 gallons that you can squeeze into the
tank.
As for the universal joints, it depends on your setup.
Mine isn't perfectly straight, and it still works
ok with a slight angle between the valve and handle.
If you mount the valve so it's level to the tunnel
cover and directly below the hole, you won't need a
universal. There is a little slop to it for
forgiveness.
If you order a 12" extension, you will likely use
about half of it. I can't remember if I had less
than 6" left, or more than 6" left. But, I'd order
12" either way. That way if you mess up the cut,
you may end up with some excess to play with.
Ordering the extensions is enough of a pain coming
from the U.K. that it pays to waste a couple bucks.
The fitting choice is all up to you based on what
you plan to do with your lines and the style of
the valve that you get. You'll most likely want
downward turning AN fittings, which you can also
do with the 1/4" female NPT, by using an AN822-6D.
That's what I did. Turned out good because I
just replaced one of the fittings to make sure I
had a good one on there. But, on the other hand,
it can sometimes be hard to get an NPT fitting
aligned where you want it without it being too
tight or too loose....so you may consider ordering
their downturned AN fittings. If it were ME buying
it, I guess I'd buy it with the AN type built-in
fittings, but I'd splurge and buy a spare. I
absolutely hate being grounded for stupid things
like that, and since Andair is your sole-source for
the built-in fittings, I'd definitely order a
spare if you go that route.
Tim Olson - RV-10 N104CD
Perry, Phil wrote:
> I also see a 3^rd question now.......
>
>
>
> I thought the extension would be a pretty simple choice between 6" or
> 12", but I was wrong.
>
>
>
> Is there any need for Universal Joints at the Valve or Handle?
>
> I doubt it. It should be a straight shot up through the tunnel cover.
>
>
>
> Finally here is a checkbox for a "Coupler Joint", but there is no
> description of what it is...
>
> Any ideas?
>
>
>
> Phil
>
>
>
> *From:* Perry, Phil
> *Sent:* Monday, March 29, 2010 9:55 AM
> *To:* rv10-list@matronics.com
> *Subject:* Fuel Related Items
>
>
>
> I've put it off as long as I can. Now I'm getting ready to write the
> check for the Andair Fuel Valve.
>
>
>
> Ordering from the Andair site, you can customize the valve with the
> appropriate fittings. Which leads me to the first question.
>
>
>
> 1) Are most people using the " NPT (FEMALE) fittings on all 3
> connections of the FS20x7?
>
> a. This creates a part number of FS20f7F.
>
>
>
> Finally I'm going to customize the face plate. This leads me into the
> next question.
>
>
>
> 2) Van's says the fuel capacity of the RV-10 is 60 gallons 30/30.
> Is this the usable fuel or the total capacity?
>
> a. I'd like to placard usable fuel on the selector.
>
>
>
>
>
> Thanks,
>
> Phil
>
>
>
>
>
> *
>
>
> *
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Static lines |
Would you share on or off list your impressions/ salient points on the
Skyview? On or off list. It is probably at the top of my list right
now, with GRT and AFS close behind. Thanks,
Kelly
On Mon, Mar 29, 2010 at 9:59 AM, Michael Kraus
<n223rv@wolflakeairport.net> wrote:
>
> I have the Dynon SkyView, and you need pitot, static, and an AOA tube going
> to the tailcone area. I also ran the static to the IP area for an alternate
> static switch.....
>
> Sent from my iPhone
>
> On Mar 29, 2010, at 12:08 PM, "johngoodman" <johngoodman@earthlink.net>
> wrote:
>
>>
>> Plan on TWO lines - one for static going forward, and one for pitot going
>> aft. Assuming you plan on putting your AHARS in the tail. Can't say for all
>> of them, but my GRT AHARS is where you connect both pitot & static.
>> John
>>
>> --------
>> #40572 QB. Engine on, wing attach coming soon. Panel delivery soon.
>> N711JG reserved
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=292228#292228
>>
>>
>>
>>
>>
>>
>>
>>
>>
>
>
Message 19
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RE: Fuel Related Items |
I didn't mean banjo with those though....I meant a normal
AN fitting with a screw-together flange to the valve.
I think the Banjos would be the easy ones to install
in some respects, but I was too worried about flow capabilities.
I'm not knowledgeable in banjo fitting flow rates, so I tried
to make sure that all fuel fittings were as free flowing
as possible, avoiding as many 90's as I could. In the
end, I have lots of 45's but only a couple 90's.
But, for none of them do I know what the actual flow
restriction would really be....it's all just in concept.
Tim Olson - RV-10 N104CD
do not archive
Perry, Phil wrote:
> <Phil.Perry@netapp.com>
>
> Yeah I didn't think of using their Banjo connectors, but that's a
> good idea.
>
> This would let me eliminate the 45 degree elbows on the L&R lines and
> go directly to a Male AN6 fitting instead. Good idea.
>
> Also nice that it's adjustable.
>
>
> I'll keep the female connector on the bottom for the fuel going
> forward and the return from the boost pump.
>
> Phil
>
>
>
>
>
>
>
>
> -----Original Message----- From: Tim Olson [mailto:Tim@myrv10.com]
> Sent: Monday, March 29, 2010 11:59 AM To: rv10-list@matronics.com
> Subject: Re: RV10-List: RE: Fuel Related Items
>
>
> The RV-10 will hold about 61 gallons total I think if you really
> stuff it in to the brim, but call it 60 as advertised.
>
> When it comes to useable fuel, almost ALL fuel is useable. I've flown
> each tank until dry (on separate test flights done directly over the
> airport), and both tanks when I sumped them after it was out of fuel,
> had only about 1 cup or so that would come out. Certainly far less
> than a quart. So consider that if you fill it pretty full, you're
> looking at 60 gallons with 60 useable, if you don't count the extra
> .5 gallons that you can squeeze into the tank.
>
> As for the universal joints, it depends on your setup. Mine isn't
> perfectly straight, and it still works ok with a slight angle between
> the valve and handle. If you mount the valve so it's level to the
> tunnel cover and directly below the hole, you won't need a universal.
> There is a little slop to it for forgiveness.
>
> If you order a 12" extension, you will likely use about half of it.
> I can't remember if I had less than 6" left, or more than 6" left.
> But, I'd order 12" either way. That way if you mess up the cut, you
> may end up with some excess to play with. Ordering the extensions is
> enough of a pain coming from the U.K. that it pays to waste a couple
> bucks.
>
> The fitting choice is all up to you based on what you plan to do with
> your lines and the style of the valve that you get. You'll most
> likely want downward turning AN fittings, which you can also do with
> the 1/4" female NPT, by using an AN822-6D. That's what I did. Turned
> out good because I just replaced one of the fittings to make sure I
> had a good one on there. But, on the other hand, it can sometimes be
> hard to get an NPT fitting aligned where you want it without it being
> too tight or too loose....so you may consider ordering their
> downturned AN fittings. If it were ME buying it, I guess I'd buy it
> with the AN type built-in fittings, but I'd splurge and buy a spare.
> I absolutely hate being grounded for stupid things like that, and
> since Andair is your sole-source for the built-in fittings, I'd
> definitely order a spare if you go that route.
>
> Tim Olson - RV-10 N104CD
>
>
>
> Perry, Phil wrote:
>> I also see a 3^rd question now.......
>>
>>
>>
>> I thought the extension would be a pretty simple choice between 6"
>> or 12", but I was wrong.
>>
>>
>>
>> Is there any need for Universal Joints at the Valve or Handle?
>>
>> I doubt it. It should be a straight shot up through the tunnel
>> cover.
>>
>>
>>
>> Finally here is a checkbox for a "Coupler Joint", but there is no
>> description of what it is...
>>
>> Any ideas?
>>
>>
>>
>> Phil
>>
>>
>>
>> *From:* Perry, Phil *Sent:* Monday, March 29, 2010 9:55 AM *To:*
>> rv10-list@matronics.com *Subject:* Fuel Related Items
>>
>>
>>
>> I've put it off as long as I can. Now I'm getting ready to write
>> the check for the Andair Fuel Valve.
>>
>>
>>
>> Ordering from the Andair site, you can customize the valve with the
>> appropriate fittings. Which leads me to the first question.
>>
>>
>>
>> 1) Are most people using the " NPT (FEMALE) fittings on all 3
>> connections of the FS20x7?
>>
>> a. This creates a part number of FS20f7F.
>>
>>
>>
>> Finally I'm going to customize the face plate. This leads me into
>> the next question.
>>
>>
>>
>> 2) Van's says the fuel capacity of the RV-10 is 60 gallons
>> 30/30. Is this the usable fuel or the total capacity?
>>
>> a. I'd like to placard usable fuel on the selector.
>>
>>
>>
>>
>>
>> Thanks,
>>
>> Phil
>>
>>
>>
>>
>>
>> *
>>
>>
>> *
>
>
>
>
>
>
>
>
>
>
>
Message 20
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Johnson Creek, Idaho |
I just put this together for you. I will add to it later but it is a start and
will get you oriented.
http://www.vansairforce.com/community/showthread.php?p=419083#post419083
Scott Schmidt
scottmschmidt@yahoo.com
________________________________
From: Don McDonald <building_partner@yahoo.com>
Sent: Mon, March 29, 2010 11:35:50 AM
Subject: Re: RV10-List: Johnson Creek, Idaho
Albert.... and others... please respond on board... lot's of want to know. Several
people out of Texas, fly there every year.
Don McDonald
--- On Mon, 3/29/10, Albert Gardner <ibspud@roadrunner.com> wrote:
>From: Albert Gardner <ibspud@roadrunner.com>
>Subject: RV10-List: Johnson Creek, Idaho
>To: rv10-list@matronics.com
>Date: Monday, March 29, 2010, 9:27 AM
>
>
>
>Would those of you that have flown your RV-10 into Johnson Creek/Yellow
>Pine, Idaho please contact me off list. I am interested in flying into there
>for camping this summer.
>Albert Gardner
>N991RV
>Yuma, AZ
>ibspud@roadrunneonics.com/Navigator?RV10-List" target=_blank>http://www.matronics.com/Nav - MATRONICS WEB -Matt Dralle, Listm/contribution"
>======
>
>
>
Message 21
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RE: Fuel Related Items |
WWVhaCB0aGF0IHRob3VnaHQgY3Jvc3NlZCBteSBtaW5kIGEgZmV3IG1pbnV0ZXMgYWdvIHRvby4g
IFBsdXMgYSBjb3VwbGUgb2Ygb3RoZXJzLiANCg0KMSkgSXQncyBqdXN0IGFub3RoZXIgcGxhY2Ug
dG8gbGVhay4gQW5kIGlmIGl0IGxlYWtzLCBpdHMgbm90IGVhc2lseSByZXBhaXJhYmxlLiAgIEEg
c3RhbmRhcmQgQU4gdGhyZWFkZWQgZml0dGluZyBpcyBlYXN5IHRvIHJlcGxhY2UuIA0KDQoyKSBJ
IHRoaW5rIHRoZSBiYW5qb3MgKHBvaW50ZWQgc3RyYWlnaHQgZG93bikgbWlnaHQgaW50ZXJmZXJl
IHdpdGggdGhlIHNjYXQgdHViaW5nIGFuZCBvdGhlciBpdGVtcyBydW5uaW5nIGRvd24gdGhlIHR1
bm5lbC4gVGhlIDQ1IGRlZ3JlZSBmaXR0aW5ncyBoZWxwIGdldCB0aGUgZnVlbCBsaW5lcyB0byB0
aGUgc2lkZXMgb2YgdGhlIHR1bm5lbCBhbmQgbm90IGluIHRoZSBtaWRkbGUuIA0KDQpJIHNlZSB3
aGVyZSBWYW5zIGhhcyBhbiBBbmRhaXIgdmFsdmUgd2l0aCA0NSBkZWdyZWUgZml0dGluZ3Mgb24g
aXQuIFRoYXQncyBub3Qgb25lIGF2YWlsYWJsZSBmcm9tIEFuZGFpcidzIHNpdGUsIGJ1dCBzb3Vu
ZHMgbGlrZSB0aGUgcGVyZmVjdCBvbmUgZm9yIHRoZSAtMTAuIA0KDQpOb3cgSSBqdXN0IG5lZWQg
dG8gZmluZCBhIHNvdXJjZSBmb3IgdGhlIGV4dGVuc2lvbi4gICBJJ2QgbGlrZSB0byBoYXZlIG9u
ZSBpbiBteSBpbnZlbnRvcnkganVzdCBpbiBjYXNlIEkgbmVlZCBpdCB3aXRoIGZpdHRpbmcuIA0K
DQpQaGlsDQoNCi0tLS0tIE9yaWdpbmFsIE1lc3NhZ2UgLS0tLS0NCkZyb206IFRpbSBPbHNvbiA8
VGltQG15cnYxMC5jb20+DQpUbzogcnYxMC1saXN0QG1hdHJvbmljcy5jb20gPHJ2MTAtbGlzdEBt
YXRyb25pY3MuY29tPg0KU2VudDogTW9uIE1hciAyOSAxMjozMDo1NSAyMDEwDQpTdWJqZWN0OiBS
ZTogUlYxMC1MaXN0OiBSRTogRnVlbCBSZWxhdGVkIEl0ZW1zDQoNCi0tPiBSVjEwLUxpc3QgbWVz
c2FnZSBwb3N0ZWQgYnk6IFRpbSBPbHNvbiA8VGltQG15cnYxMC5jb20+DQoNCkkgZGlkbid0IG1l
YW4gYmFuam8gd2l0aCB0aG9zZSB0aG91Z2guLi4uSSBtZWFudCBhIG5vcm1hbA0KQU4gZml0dGlu
ZyB3aXRoIGEgc2NyZXctdG9nZXRoZXIgZmxhbmdlIHRvIHRoZSB2YWx2ZS4NCkkgdGhpbmsgdGhl
IEJhbmpvcyB3b3VsZCBiZSB0aGUgZWFzeSBvbmVzIHRvIGluc3RhbGwNCmluIHNvbWUgcmVzcGVj
dHMsIGJ1dCBJIHdhcyB0b28gd29ycmllZCBhYm91dCBmbG93IGNhcGFiaWxpdGllcy4NCkknbSBu
b3Qga25vd2xlZGdlYWJsZSBpbiBiYW5qbyBmaXR0aW5nIGZsb3cgcmF0ZXMsIHNvIEkgdHJpZWQN
CnRvIG1ha2Ugc3VyZSB0aGF0IGFsbCBmdWVsIGZpdHRpbmdzIHdlcmUgYXMgZnJlZSBmbG93aW5n
DQphcyBwb3NzaWJsZSwgYXZvaWRpbmcgYXMgbWFueSA5MCdzIGFzIEkgY291bGQuICAgSW4gdGhl
DQplbmQsIEkgaGF2ZSBsb3RzIG9mIDQ1J3MgYnV0IG9ubHkgYSBjb3VwbGUgOTAncy4NCkJ1dCwg
Zm9yIG5vbmUgb2YgdGhlbSBkbyBJIGtub3cgd2hhdCB0aGUgYWN0dWFsIGZsb3cNCnJlc3RyaWN0
aW9uIHdvdWxkIHJlYWxseSBiZS4uLi5pdCdzIGFsbCBqdXN0IGluIGNvbmNlcHQuDQoNClRpbSBP
bHNvbiAtIFJWLTEwIE4xMDRDRA0KZG8gbm90IGFyY2hpdmUNCg0KDQpQZXJyeSwgUGhpbCB3cm90
ZToNCj4gLS0+IFJWMTAtTGlzdCBtZXNzYWdlIHBvc3RlZCBieTogIlBlcnJ5LCBQaGlsIg0KPiA8
UGhpbC5QZXJyeUBuZXRhcHAuY29tPg0KPiANCj4gWWVhaCBJIGRpZG4ndCB0aGluayBvZiB1c2lu
ZyB0aGVpciBCYW5qbyBjb25uZWN0b3JzLCBidXQgdGhhdCdzIGENCj4gZ29vZCBpZGVhLg0KPiAN
Cj4gVGhpcyB3b3VsZCBsZXQgbWUgZWxpbWluYXRlIHRoZSA0NSBkZWdyZWUgZWxib3dzIG9uIHRo
ZSBMJlIgbGluZXMgYW5kDQo+IGdvIGRpcmVjdGx5IHRvIGEgTWFsZSBBTjYgZml0dGluZyBpbnN0
ZWFkLiAgR29vZCBpZGVhLg0KPiANCj4gQWxzbyBuaWNlIHRoYXQgaXQncyBhZGp1c3RhYmxlLg0K
PiANCj4gDQo+IEknbGwga2VlcCB0aGUgZmVtYWxlIGNvbm5lY3RvciBvbiB0aGUgYm90dG9tIGZv
ciB0aGUgZnVlbCBnb2luZw0KPiBmb3J3YXJkIGFuZCB0aGUgcmV0dXJuIGZyb20gdGhlIGJvb3N0
IHB1bXAuDQo+IA0KPiBQaGlsDQo+IA0KPiANCj4gDQo+IA0KPiANCj4gDQo+IA0KPiANCj4gLS0t
LS1PcmlnaW5hbCBNZXNzYWdlLS0tLS0gRnJvbTogVGltIE9sc29uIFttYWlsdG86VGltQG15cnYx
MC5jb21dIA0KPiBTZW50OiBNb25kYXksIE1hcmNoIDI5LCAyMDEwIDExOjU5IEFNIFRvOiBydjEw
LWxpc3RAbWF0cm9uaWNzLmNvbSANCj4gU3ViamVjdDogUmU6IFJWMTAtTGlzdDogUkU6IEZ1ZWwg
UmVsYXRlZCBJdGVtcw0KPiANCj4gLS0+IFJWMTAtTGlzdCBtZXNzYWdlIHBvc3RlZCBieTogVGlt
IE9sc29uIDxUaW1AbXlydjEwLmNvbT4NCj4gDQo+IFRoZSBSVi0xMCB3aWxsIGhvbGQgYWJvdXQg
NjEgZ2FsbG9ucyB0b3RhbCBJIHRoaW5rIGlmIHlvdSByZWFsbHkNCj4gc3R1ZmYgaXQgaW4gdG8g
dGhlIGJyaW0sIGJ1dCBjYWxsIGl0IDYwIGFzIGFkdmVydGlzZWQuDQo+IA0KPiBXaGVuIGl0IGNv
bWVzIHRvIHVzZWFibGUgZnVlbCwgYWxtb3N0IEFMTCBmdWVsIGlzIHVzZWFibGUuIEkndmUgZmxv
d24NCj4gZWFjaCB0YW5rIHVudGlsIGRyeSAob24gc2VwYXJhdGUgdGVzdCBmbGlnaHRzIGRvbmUg
ZGlyZWN0bHkgb3ZlciB0aGUNCj4gYWlycG9ydCksIGFuZCBib3RoIHRhbmtzIHdoZW4gSSBzdW1w
ZWQgdGhlbSBhZnRlciBpdCB3YXMgb3V0IG9mIGZ1ZWwsDQo+IGhhZCBvbmx5IGFib3V0IDEgY3Vw
IG9yIHNvIHRoYXQgd291bGQgY29tZSBvdXQuICBDZXJ0YWlubHkgZmFyIGxlc3MNCj4gdGhhbiBh
IHF1YXJ0LiAgU28gY29uc2lkZXIgdGhhdCBpZiB5b3UgZmlsbCBpdCBwcmV0dHkgZnVsbCwgeW91
J3JlDQo+IGxvb2tpbmcgYXQgNjAgZ2FsbG9ucyB3aXRoIDYwIHVzZWFibGUsIGlmIHlvdSBkb24n
dCBjb3VudCB0aGUgZXh0cmENCj4gLjUgZ2FsbG9ucyB0aGF0IHlvdSBjYW4gc3F1ZWV6ZSBpbnRv
IHRoZSB0YW5rLg0KPiANCj4gQXMgZm9yIHRoZSB1bml2ZXJzYWwgam9pbnRzLCBpdCBkZXBlbmRz
IG9uIHlvdXIgc2V0dXAuIE1pbmUgaXNuJ3QNCj4gcGVyZmVjdGx5IHN0cmFpZ2h0LCBhbmQgaXQg
c3RpbGwgd29ya3Mgb2sgd2l0aCBhIHNsaWdodCBhbmdsZSBiZXR3ZWVuDQo+IHRoZSB2YWx2ZSBh
bmQgaGFuZGxlLiBJZiB5b3UgbW91bnQgdGhlIHZhbHZlIHNvIGl0J3MgbGV2ZWwgdG8gdGhlDQo+
IHR1bm5lbCBjb3ZlciBhbmQgZGlyZWN0bHkgYmVsb3cgdGhlIGhvbGUsIHlvdSB3b24ndCBuZWVk
IGEgdW5pdmVyc2FsLg0KPiBUaGVyZSBpcyBhIGxpdHRsZSBzbG9wIHRvIGl0IGZvciBmb3JnaXZl
bmVzcy4NCj4gDQo+IElmIHlvdSBvcmRlciBhIDEyIiBleHRlbnNpb24sIHlvdSB3aWxsIGxpa2Vs
eSB1c2UgYWJvdXQgaGFsZiBvZiBpdC4NCj4gSSBjYW4ndCByZW1lbWJlciBpZiBJIGhhZCBsZXNz
IHRoYW4gNiIgbGVmdCwgb3IgbW9yZSB0aGFuIDYiIGxlZnQuDQo+IEJ1dCwgSSdkIG9yZGVyIDEy
IiBlaXRoZXIgd2F5LiAgVGhhdCB3YXkgaWYgeW91IG1lc3MgdXAgdGhlIGN1dCwgeW91DQo+IG1h
eSBlbmQgdXAgd2l0aCBzb21lIGV4Y2VzcyB0byBwbGF5IHdpdGguIE9yZGVyaW5nIHRoZSBleHRl
bnNpb25zIGlzDQo+IGVub3VnaCBvZiBhIHBhaW4gY29taW5nIGZyb20gdGhlIFUuSy4gdGhhdCBp
dCBwYXlzIHRvIHdhc3RlIGEgY291cGxlDQo+IGJ1Y2tzLg0KPiANCj4gVGhlIGZpdHRpbmcgY2hv
aWNlIGlzIGFsbCB1cCB0byB5b3UgYmFzZWQgb24gd2hhdCB5b3UgcGxhbiB0byBkbyB3aXRoDQo+
IHlvdXIgbGluZXMgYW5kIHRoZSBzdHlsZSBvZiB0aGUgdmFsdmUgdGhhdCB5b3UgZ2V0LiAgWW91
J2xsIG1vc3QNCj4gbGlrZWx5IHdhbnQgZG93bndhcmQgdHVybmluZyBBTiBmaXR0aW5ncywgd2hp
Y2ggeW91IGNhbiBhbHNvIGRvIHdpdGgNCj4gdGhlIDEvNCIgZmVtYWxlIE5QVCwgYnkgdXNpbmcg
YW4gQU44MjItNkQuIFRoYXQncyB3aGF0IEkgZGlkLiAgVHVybmVkDQo+IG91dCBnb29kIGJlY2F1
c2UgSSBqdXN0IHJlcGxhY2VkIG9uZSBvZiB0aGUgZml0dGluZ3MgdG8gbWFrZSBzdXJlIEkgDQo+
IGhhZCBhIGdvb2Qgb25lIG9uIHRoZXJlLiAgQnV0LCBvbiB0aGUgb3RoZXIgaGFuZCwgaXQgY2Fu
IHNvbWV0aW1lcyBiZQ0KPiBoYXJkIHRvIGdldCBhbiBOUFQgZml0dGluZyBhbGlnbmVkIHdoZXJl
IHlvdSB3YW50IGl0IHdpdGhvdXQgaXQgYmVpbmcNCj4gdG9vIHRpZ2h0IG9yIHRvbyBsb29zZS4u
Li5zbyB5b3UgbWF5IGNvbnNpZGVyIG9yZGVyaW5nIHRoZWlyDQo+IGRvd250dXJuZWQgQU4gZml0
dGluZ3MuICBJZiBpdCB3ZXJlIE1FIGJ1eWluZyBpdCwgSSBndWVzcyBJJ2QgYnV5IGl0DQo+IHdp
dGggdGhlIEFOIHR5cGUgYnVpbHQtaW4gZml0dGluZ3MsIGJ1dCBJJ2Qgc3BsdXJnZSBhbmQgYnV5
IGEgc3BhcmUuDQo+IEkgYWJzb2x1dGVseSBoYXRlIGJlaW5nIGdyb3VuZGVkIGZvciBzdHVwaWQg
dGhpbmdzIGxpa2UgdGhhdCwgYW5kDQo+IHNpbmNlIEFuZGFpciBpcyB5b3VyIHNvbGUtc291cmNl
IGZvciB0aGUgYnVpbHQtaW4gZml0dGluZ3MsIEknZA0KPiBkZWZpbml0ZWx5IG9yZGVyIGEgc3Bh
cmUgaWYgeW91IGdvIHRoYXQgcm91dGUuDQo+IA0KPiBUaW0gT2xzb24gLSBSVi0xMCBOMTA0Q0QN
Cj4gDQo+IA0KPiANCj4gUGVycnksIFBoaWwgd3JvdGU6DQo+PiBJIGFsc28gc2VlIGEgM15yZCBx
dWVzdGlvbiBub3cuLi4uLi4uDQo+PiANCj4+IA0KPj4gDQo+PiBJIHRob3VnaHQgdGhlIGV4dGVu
c2lvbiB3b3VsZCBiZSBhIHByZXR0eSBzaW1wbGUgY2hvaWNlIGJldHdlZW4gNiINCj4+IG9yIDEy
IiwgYnV0IEkgd2FzIHdyb25nLg0KPj4gDQo+PiANCj4+IA0KPj4gSXMgdGhlcmUgYW55IG5lZWQg
Zm9yIFVuaXZlcnNhbCBKb2ludHMgYXQgdGhlIFZhbHZlIG9yIEhhbmRsZT8NCj4+IA0KPj4gSSBk
b3VidCBpdC4gIEl0IHNob3VsZCBiZSBhIHN0cmFpZ2h0IHNob3QgdXAgdGhyb3VnaCB0aGUgdHVu
bmVsDQo+PiBjb3Zlci4NCj4+IA0KPj4gDQo+PiANCj4+IEZpbmFsbHkgaGVyZSBpcyBhIGNoZWNr
Ym94IGZvciBhICJDb3VwbGVyIEpvaW50IiwgYnV0IHRoZXJlIGlzIG5vIA0KPj4gZGVzY3JpcHRp
b24gb2Ygd2hhdCBpdCBpcy4uLg0KPj4gDQo+PiBBbnkgaWRlYXM/DQo+PiANCj4+IA0KPj4gDQo+
PiBQaGlsDQo+PiANCj4+IA0KPj4gDQo+PiAqRnJvbToqIFBlcnJ5LCBQaGlsICpTZW50OiogTW9u
ZGF5LCBNYXJjaCAyOSwgMjAxMCA5OjU1IEFNICpUbzoqDQo+PiBydjEwLWxpc3RAbWF0cm9uaWNz
LmNvbSAqU3ViamVjdDoqIEZ1ZWwgUmVsYXRlZCBJdGVtcw0KPj4gDQo+PiANCj4+IA0KPj4gSSd2
ZSBwdXQgaXQgb2ZmIGFzIGxvbmcgYXMgSSBjYW4uICBOb3cgSSdtIGdldHRpbmcgcmVhZHkgdG8g
d3JpdGUNCj4+IHRoZSBjaGVjayBmb3IgdGhlIEFuZGFpciBGdWVsIFZhbHZlLg0KPj4gDQo+PiAN
Cj4+IA0KPj4gT3JkZXJpbmcgZnJvbSB0aGUgQW5kYWlyIHNpdGUsIHlvdSBjYW4gY3VzdG9taXpl
IHRoZSB2YWx2ZSB3aXRoIHRoZQ0KPj4gIGFwcHJvcHJpYXRlIGZpdHRpbmdzLiAgV2hpY2ggbGVh
ZHMgbWUgdG8gdGhlIGZpcnN0IHF1ZXN0aW9uLg0KPj4gDQo+PiANCj4+IA0KPj4gMSkgICAgICBB
cmUgbW9zdCBwZW9wbGUgdXNpbmcgdGhlIMK8IiBOUFQgKEZFTUFMRSkgZml0dGluZ3Mgb24gYWxs
IDMNCj4+ICBjb25uZWN0aW9ucyBvZiB0aGUgRlMyMHg3Pw0KPj4gDQo+PiBhLiAgICAgICBUaGlz
IGNyZWF0ZXMgYSBwYXJ0IG51bWJlciBvZiBGUzIwZjdGLg0KPj4gDQo+PiANCj4+IA0KPj4gRmlu
YWxseSBJJ20gZ29pbmcgdG8gY3VzdG9taXplIHRoZSBmYWNlIHBsYXRlLiAgVGhpcyBsZWFkcyBt
ZSBpbnRvDQo+PiB0aGUgbmV4dCBxdWVzdGlvbi4NCj4+IA0KPj4gDQo+PiANCj4+IDIpICAgICAg
VmFuJ3Mgc2F5cyB0aGUgZnVlbCBjYXBhY2l0eSBvZiB0aGUgUlYtMTAgaXMgNjAgZ2FsbG9ucw0K
Pj4gMzAvMzAuIElzIHRoaXMgdGhlIHVzYWJsZSBmdWVsIG9yIHRoZSB0b3RhbCBjYXBhY2l0eT8N
Cj4+IA0KPj4gYS4gICAgICAgSSdkIGxpa2UgdG8gcGxhY2FyZCB1c2FibGUgZnVlbCBvbiB0aGUg
c2VsZWN0b3IuDQo+PiANCj4+IA0KPj4gDQo+PiANCj4+IA0KPj4gVGhhbmtzLA0KPj4gDQo+PiBQ
aGlsDQo+PiANCj4+IA0KPj4gDQo+PiANCj4+IA0KPj4gKg0KPj4gDQo+PiANCj4+ICoNCj4gDQo+
IA0KPiANCj4gDQo+IA0KPiANCj4gDQo+IA0KPiANCj4gDQo+IA0KDQoNCg0KXy09PT09PT09PT09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT0NCl8tPSAg
ICAgICAgICAtIFRoZSBSVjEwLUxpc3QgRW1haWwgRm9ydW0gLQ0KXy09IFVzZSB0aGUgTWF0cm9u
aWNzIExpc3QgRmVhdHVyZXMgTmF2aWdhdG9yIHRvIGJyb3dzZQ0KXy09IHRoZSBtYW55IExpc3Qg
dXRpbGl0aWVzIHN1Y2ggYXMgTGlzdCBVbi9TdWJzY3JpcHRpb24sDQpfLT0gQXJjaGl2ZSBTZWFy
Y2ggJiBEb3dubG9hZCwgNy1EYXkgQnJvd3NlLCBDaGF0LCBGQVEsDQpfLT0gUGhvdG9zaGFyZSwg
YW5kIG11Y2ggbXVjaCBtb3JlOg0KXy09DQpfLT0gICAtLT4gaHR0cDovL3d3dy5tYXRyb25pY3Mu
Y29tL05hdmlnYXRvcj9SVjEwLUxpc3QNCl8tPQ0KXy09PT09PT09PT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT0NCl8tPSAgICAgICAgICAgICAgIC0g
TUFUUk9OSUNTIFdFQiBGT1JVTVMgLQ0KXy09IFNhbWUgZ3JlYXQgY29udGVudCBhbHNvIGF2YWls
YWJsZSB2aWEgdGhlIFdlYiBGb3J1bXMhDQpfLT0NCl8tPSAgIC0tPiBodHRwOi8vZm9ydW1zLm1h
dHJvbmljcy5jb20NCl8tPQ0KXy09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PT09PT09PT09PT0NCl8tPSAgICAgICAgICAgICAtIExpc3QgQ29udHJpYnV0
aW9uIFdlYiBTaXRlIC0NCl8tPSAgVGhhbmsgeW91IGZvciB5b3VyIGdlbmVyb3VzIHN1cHBvcnQh
DQpfLT0gICAgICAgICAgICAgICAgICAgICAgICAgICAgICAtTWF0dCBEcmFsbGUsIExpc3QgQWRt
aW4uDQpfLT0gICAtLT4gaHR0cDovL3d3dy5tYXRyb25pY3MuY29tL2NvbnRyaWJ1dGlvbg0KXy09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PT0NCg0KDQoNCg=
Message 22
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RE: Fuel Related Items |
can anyone tell me if i should set the fuel flow meter to 58 gal or to 60?
On Mar 29, 2010, at 11:59 AM, Tim Olson wrote:
>
> The RV-10 will hold about 61 gallons total I think if you
> really stuff it in to the brim, but call it 60 as
> advertised.
>
> When it comes to useable fuel, almost ALL fuel is useable.
> I've flown each tank until dry (on separate test flights
> done directly over the airport), and both tanks when I
> sumped them after it was out of fuel, had only about
> 1 cup or so that would come out. Certainly far less than
> a quart. So consider that if you fill it pretty full,
> you're looking at 60 gallons with 60 useable, if you don't
> count the extra .5 gallons that you can squeeze into the
> tank.
>
> As for the universal joints, it depends on your setup.
> Mine isn't perfectly straight, and it still works
> ok with a slight angle between the valve and handle.
> If you mount the valve so it's level to the tunnel
> cover and directly below the hole, you won't need a
> universal. There is a little slop to it for
> forgiveness.
>
> If you order a 12" extension, you will likely use
> about half of it. I can't remember if I had less
> than 6" left, or more than 6" left. But, I'd order
> 12" either way. That way if you mess up the cut,
> you may end up with some excess to play with.
> Ordering the extensions is enough of a pain coming
> from the U.K. that it pays to waste a couple bucks.
>
> The fitting choice is all up to you based on what
> you plan to do with your lines and the style of
> the valve that you get. You'll most likely want
> downward turning AN fittings, which you can also
> do with the 1/4" female NPT, by using an AN822-6D.
> That's what I did. Turned out good because I
> just replaced one of the fittings to make sure I
> had a good one on there. But, on the other hand,
> it can sometimes be hard to get an NPT fitting
> aligned where you want it without it being too
> tight or too loose....so you may consider ordering
> their downturned AN fittings. If it were ME buying
> it, I guess I'd buy it with the AN type built-in
> fittings, but I'd splurge and buy a spare. I
> absolutely hate being grounded for stupid things
> like that, and since Andair is your sole-source for
> the built-in fittings, I'd definitely order a
> spare if you go that route.
>
> Tim Olson - RV-10 N104CD
>
>
>
> Perry, Phil wrote:
>> I also see a 3^rd question now.
>> I thought the extension would be a pretty simple choice between 6 or 12, but
I was wrong.
>> Is there any need for Universal Joints at the Valve or Handle?
>> I doubt it. It should be a straight shot up through the tunnel cover.
>> Finally here is a checkbox for a Coupler Joint, but there is no description
of what it is Any ideas?
>> Phil
>> *From:* Perry, Phil
>> *Sent:* Monday, March 29, 2010 9:55 AM
>> *To:* rv10-list@matronics.com
>> *Subject:* Fuel Related Items
>> Ive put it off as long as I can. Now Im getting ready to write the check for
the Andair Fuel Valve. Ordering from the Andair site, you can customize the
valve with the appropriate fittings. Which leads me to the first question.
>> 1) Are most people using the NPT (FEMALE) fittings on all 3 connections
of the FS20x7?
>> a. This creates a part number of FS20f7F.
>> Finally Im going to customize the face plate. This leads me into the next question.
>> 2) Vans says the fuel capacity of the RV-10 is 60 gallons 30/30. Is this
the usable fuel or the total capacity? a. Id like to placard usable fuel
on the selector.
>> Thanks,
>> Phil
>> *
>> *
>
>
>
>
>
>
Message 23
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | SkyView was Static lines |
Don't forget the Garmin G3X series. I am considering the G3X and SkyView
system for an 8A due to fly later this year.
Robin
Would you share on or off list your impressions/ salient points on the
Skyview? On or off list. It is probably at the top of my list right
now, with GRT and AFS close behind. Thanks,
Kelly
Message 24
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RE: Fuel Related Items |
60... it's all usable.
Don
--- On Mon, 3/29/10, Robert Brunkenhoefer <robertbrunk@mac.com> wrote:
From: Robert Brunkenhoefer <robertbrunk@mac.com>
Subject: Re: RV10-List: RE: Fuel Related Items
can anyone tell me if i should set the fuel flow meter to=C2- 58 gal or t
o 60?
On Mar 29, 2010, at 11:59 AM, Tim Olson wrote:
>
> The RV-10 will hold about 61 gallons total I think if you
> really stuff it in to the brim, but call it 60 as
> advertised.
>
> When it comes to useable fuel, almost ALL fuel is useable.
> I've flown each tank until dry (on separate test flights
> done directly over the airport), and both tanks when I
> sumped them after it was out of fuel, had only about
> 1 cup or so that would come out.=C2- Certainly far less than
> a quart.=C2- So consider that if you fill it pretty full,
> you're looking at 60 gallons with 60 useable, if you don't
> count the extra .5 gallons that you can squeeze into the
> tank.
>
> As for the universal joints, it depends on your setup.
> Mine isn't perfectly straight, and it still works
> ok with a slight angle between the valve and handle.
> If you mount the valve so it's level to the tunnel
> cover and directly below the hole, you won't need a
> universal.=C2- There is a little slop to it for
> forgiveness.
>
> If you order a 12" extension, you will likely use
> about half of it.=C2- I can't remember if I had less
> than 6" left, or more than 6" left. But, I'd order
> 12" either way.=C2- That way if you mess up the cut,
> you may end up with some excess to play with.
> Ordering the extensions is enough of a pain coming
> from the U.K. that it pays to waste a couple bucks.
>
> The fitting choice is all up to you based on what
> you plan to do with your lines and the style of
> the valve that you get.=C2- You'll most likely want
> downward turning AN fittings, which you can also
> do with the 1/4" female NPT, by using an AN822-6D.
> That's what I did.=C2- Turned out good because I
> just replaced one of the fittings to make sure I
> had a good one on there.=C2- But, on the other hand,
> it can sometimes be hard to get an NPT fitting
> aligned where you want it without it being too
> tight or too loose....so you may consider ordering
> their downturned AN fittings.=C2- If it were ME buying
> it, I guess I'd buy it with the AN type built-in
> fittings, but I'd splurge and buy a spare.=C2- I
> absolutely hate being grounded for stupid things
> like that, and since Andair is your sole-source for
> the built-in fittings, I'd definitely order a
> spare if you go that route.
>
> Tim Olson - RV-10 N104CD
>
>
>
> Perry, Phil wrote:
>> I also see a 3^rd question now.
>> I thought the extension would be a pretty simple choice between 6
=9D or 12=9D, but I was wrong.
>> Is there any need for Universal Joints at the Valve or Handle?
>> I doubt it.=C2- It should be a straight shot up through the tunnel cov
er.
>> Finally here is a checkbox for a =9CCoupler Joint=9D, but th
ere is no description of what it is Any ideas?
>> Phil
>> *From:* Perry, Phil
>> *Sent:* Monday, March 29, 2010 9:55 AM
>> *To:* rv10-list@matronics.com
>> *Subject:* Fuel Related Items
>> I=99ve put it off as long as I can.=C2- Now I=99m getting
ready to write the check for the Andair Fuel Valve.=C2- Ordering from the
Andair site, you can customize the valve with the appropriate fittings.=C2
- Which leads me to the first question.
>> 1)=C2- =C2- =C2- Are most people using the =C2=BC=9D NPT (FE
MALE) fittings on all 3 connections of the FS20x7?
>> a.=C2- =C2- =C2-=C2-=C2-This creates a part number of FS20f7F.
>> Finally I=99m going to customize the face plate.=C2- This leads
me into the next question.
>> 2)=C2- =C2- =C2- Van=99s says the fuel capacity of the RV-10
is 60 gallons 30/30.=C2- Is this the usable fuel or the total capacity?
a.=C2- =C2- =C2-=C2-=C2-I=99d like to placard usable fuel o
n the selector.
>>=C2- Thanks,
>> Phil
>>=C2- *
>> *
>
>
>
>
>
>
S WEB FORUMS -
on Web Site -
=C2- =C2- =C2- =C2- =C2- -Matt Dralle, List Admin.
=0A=0A=0A
Message 25
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: RE: Fuel Related Items |
Phil, my understanding is that if you want an extention, you MUST order it
=C2-WITH it!=C2- ASK ME how I know!=C2-=C2-=C2- But, in hindsight
, you know how mine came out.... so I was glad I didn't know.... the result
was much better than it otherwise would have been.
Don
--- On Mon, 3/29/10, Perry, Phil <Phil.Perry@netapp.com> wrote:
From: Perry, Phil <Phil.Perry@netapp.com>
Subject: Re: RV10-List: RE: Fuel Related Items
Yeah that thought crossed my mind a few minutes ago too.=C2- Plus a coupl
e of others.
1) It's just another place to leak. And if it leaks, its not easily repaira
ble.=C2-=C2- A standard AN threaded fitting is easy to replace.
2) I think the banjos (pointed straight down) might interfere with the scat
tubing and other items running down the tunnel. The 45 degree fittings hel
p get the fuel lines to the sides of the tunnel and not in the middle.
I see where Vans has an Andair valve with 45 degree fittings on it. That's
not one available from Andair's site, but sounds like the perfect one for t
he -10.
Now I just need to find a source for the extension.=C2-=C2- I'd like to
have one in my inventory just in case I need it with fitting.
Phil
----- Original Message -----
From: Tim Olson <Tim@myrv10.com>
Sent: Mon Mar 29 12:30:55 2010
Subject: Re: RV10-List: RE: Fuel Related Items
I didn't mean banjo with those though....I meant a normal
AN fitting with a screw-together flange to the valve.
I think the Banjos would be the easy ones to install
in some respects, but I was too worried about flow capabilities.
I'm not knowledgeable in banjo fitting flow rates, so I tried
to make sure that all fuel fittings were as free flowing
as possible, avoiding as many 90's as I could.=C2-=C2- In the
end, I have lots of 45's but only a couple 90's.
But, for none of them do I know what the actual flow
restriction would really be....it's all just in concept.
Tim Olson - RV-10 N104CD
do not archive
Perry, Phil wrote:
> <Phil.Perry@netapp.com>
>
> Yeah I didn't think of using their Banjo connectors, but that's a
> good idea.
>
> This would let me eliminate the 45 degree elbows on the L&R lines and
> go directly to a Male AN6 fitting instead.=C2- Good idea.
>
> Also nice that it's adjustable.
>
>
> I'll keep the female connector on the bottom for the fuel going
> forward and the return from the boost pump.
>
> Phil
>
>
> -----Original Message----- From: Tim Olson [mailto:Tim@myrv10.com]
> Sent: Monday, March 29, 2010 11:59 AM To: rv10-list@matronics.com
> Subject: Re: RV10-List: RE: Fuel Related Items
>
>
> The RV-10 will hold about 61 gallons total I think if you really
> stuff it in to the brim, but call it 60 as advertised.
>
> When it comes to useable fuel, almost ALL fuel is useable. I've flown
> each tank until dry (on separate test flights done directly over the
> airport), and both tanks when I sumped them after it was out of fuel,
> had only about 1 cup or so that would come out.=C2- Certainly far less
> than a quart.=C2- So consider that if you fill it pretty full, you're
> looking at 60 gallons with 60 useable, if you don't count the extra
> .5 gallons that you can squeeze into the tank.
>
> As for the universal joints, it depends on your setup. Mine isn't
> perfectly straight, and it still works ok with a slight angle between
> the valve and handle. If you mount the valve so it's level to the
> tunnel cover and directly below the hole, you won't need a universal.
> There is a little slop to it for forgiveness.
>
> If you order a 12" extension, you will likely use about half of it.
> I can't remember if I had less than 6" left, or more than 6" left.
> But, I'd order 12" either way.=C2- That way if you mess up the cut, you
> may end up with some excess to play with. Ordering the extensions is
> enough of a pain coming from the U.K. that it pays to waste a couple
> bucks.
>
> The fitting choice is all up to you based on what you plan to do with
> your lines and the style of the valve that you get.=C2- You'll most
> likely want downward turning AN fittings, which you can also do with
> the 1/4" female NPT, by using an AN822-6D. That's what I did.=C2- Turne
d
> out good because I just replaced one of the fittings to make sure I
> had a good one on there.=C2- But, on the other hand, it can sometimes b
e
> hard to get an NPT fitting aligned where you want it without it being
> too tight or too loose....so you may consider ordering their
> downturned AN fittings.=C2- If it were ME buying it, I guess I'd buy it
> with the AN type built-in fittings, but I'd splurge and buy a spare.
> I absolutely hate being grounded for stupid things like that, and
> since Andair is your sole-source for the built-in fittings, I'd
> definitely order a spare if you go that route.
>
> Tim Olson - RV-10 N104CD
>
>
> Perry, Phil wrote:
>> I also see a 3^rd question now.......
>>
>>
>>
>> I thought the extension would be a pretty simple choice between 6"
>> or 12", but I was wrong.
>>
>>
>>
>> Is there any need for Universal Joints at the Valve or Handle?
>>
>> I doubt it.=C2- It should be a straight shot up through the tunnel
>> cover.
>>
>>
>>
>> Finally here is a checkbox for a "Coupler Joint", but there is no
>> description of what it is...
>>
>> Any ideas?
>>
>>
>>
>> Phil
>>
>>
>>
>> *From:* Perry, Phil *Sent:* Monday, March 29, 2010 9:55 AM *To:*
>> rv10-list@matronics.com *Subject:* Fuel Related Items
>>
>>
>>
>> I've put it off as long as I can.=C2- Now I'm getting ready to write
>> the check for the Andair Fuel Valve.
>>
>>
>>
>> Ordering from the Andair site, you can customize the valve with the
>>=C2- appropriate fittings.=C2- Which leads me to the first question.
>>
>>
>>
>> 1)=C2-=C2-=C2-=C2-=C2- Are most people using the =C3=82=C2=BC"
NPT (FEMALE) fittings on all 3
>>=C2- connections of the FS20x7?
>>
>> a.=C2-=C2-=C2-=C2-=C2-=C2- This creates a part number of FS2
0f7F.
>>
>>
>>
>> Finally I'm going to customize the face plate.=C2- This leads me into
>> the next question.
>>
>>
>>
>> 2)=C2-=C2-=C2-=C2-=C2- Van's says the fuel capacity of the RV-
10 is 60 gallons
>> 30/30. Is this the usable fuel or the total capacity?
>>
>> a.=C2-=C2-=C2-=C2-=C2-=C2- I'd like to placard usable fuel o
n the selector.
>>
>>
>>
>>
>>
>> Thanks,
>>
>> Phil
>>
>>
>>
>>
>>
>> *
>>
>>
>> *
>
>
Email Forum -
-=C2-=C2- - MATRONICS WEB FORUMS -
- - List Contribution Web Site -
-=C2-=C2-=C2-=C2-=C2-=C2-=C2-=C2-=C2-=C2-=C2-=C2-
=C2-=C2-=C2-=C2-=C2- -Matt Dralle, List Admin.
=C2=C2=B7=BA~=B0=C3=AD=C2=B2,=C3=9Eg(=93=C5-=C3=93M4
=C3=93G=C3=9Aq=C3=BC=C2=A2=C3=C3=A2z=C2=B9=C3=9E=C3=81=C3=8A.=C2=AE'=C2
=AB8^E]t.+-f=C2=A2=9DZ+=C2=BAt=C2=B1=C3=ABax=C3=86=C2=AD=C2=AE
=B0=C3=A2r=C3=82=C3=A2=C2=B2=C3=91^j=C3=9B=C2=ABz=C3=83Z=C2=BE(=C2=B6=C5-
=C3=AD=C2=A1=C2=BA=C3=A8=C3=82=C3=87=C2=B6=C2j|=B9=C5-=C3=8Bn=C2
=B6)b=C2=B6'=C2=AC=C2=B2=C3=A7!j=C3=82=C3=A2=C2=B2=C3-'=C3=BD+=BA
=C2=B1=C3=8A=C3=A2=C2=C3=98=C2=A8=C5=93+r=C2=AFy'=C5=A1=C2=AD=C3=88C=C2
=A3 =C3=A5=C2=A1=C2=A7{ =C2=AC=EF=BD=C2=AE=C5=92,x(Z=C2=B4P=0A=0A=0A
Message 26
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Gear intersection fairing - bonding lower fairing to wheel |
pant
I seem to recall that a few people have bonded the lower intersection
fairing to the wheel pant but can't remember who. If you've done it and
have some pics, please share or point me to them.
It's starting to make some sense to me right now.
Thanks
Bill "pants on the ground" Watson
Message 27
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Fuel Related Items |
I purchased my Andair valve not knowing I would need an extension. I ended up ordering
an extension directly from Andair at Sun & Fun. I believe the older models
had to be ordered together but not so for the units sold in the last few
years. There is a way to determine between the units but I forget what the features
are.
Ron
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292287#292287
Message 28
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Gear intersection fairing - bonding lower fairing to wheel |
pant
Bill I did it and love it so far. I am glad I did it. A little more work but
easy on and off. I thought I had a better picture. I will send a few better
picture tomorrow.
Geoff
Geoff Combs
President
Aerosport Modeling & Design
8090 Howe Industrial Parkway
Canal Winchester, Ohio 43110
614-834-5227p
614-834-5230f
www.aerosportmodeling.com
-----Original Message-----
From: owner-rv10-list-server@matronics.com
[mailto:owner-rv10-list-server@matronics.com] On Behalf Of Bill Mauledriver
Watson
Sent: Monday, March 29, 2010 5:29 PM
Subject: RV10-List: Gear intersection fairing - bonding lower fairing to
wheel pant
--> <MauleDriver@nc.rr.com>
I seem to recall that a few people have bonded the lower intersection
fairing to the wheel pant but can't remember who. If you've done it and
have some pics, please share or point me to them.
It's starting to make some sense to me right now.
Thanks
Bill "pants on the ground" Watson
Message 29
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: SkyView was Static lines |
Garmin is a non-starter for me, but on initial price and price of data
updates. Haven't decided on portable system yet either, but it also is
unlikely to be Garmin. One can buy 4-6 years of continuous data
updates from other firms, or a lifetime subscription for less than 1
yr of 696 updates.
On Mon, Mar 29, 2010 at 2:05 PM, Robin Marks <robin@painttheweb.com> wrote:
>
> Don't forget the Garmin G3X series. I am considering the G3X and SkyView
> system for an 8A due to fly later this year.
> Robin
>
>
Message 30
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Gear intersection fairing - bonding lower fairing to wheel |
pant
Nice job Geoff... no big surprise though...- hey, your headset bracket is
in the shop being punched and bent... hope it works for you.
Don McDonald-
--- On Mon, 3/29/10, Geoff Combs <g.combs@aerosportmodeling.com> wrote:
From: Geoff Combs <g.combs@aerosportmodeling.com>
Subject: RE: RV10-List: Gear intersection fairing - bonding lower fairing t
o wheel pant
Bill I did it and love it so far. I am glad I did it. A little more work bu
t
easy on and off. I thought I had a better picture. I will send a few better
picture tomorrow.
Geoff
Geoff Combs
President
Aerosport Modeling & Design
8090 Howe Industrial Parkway
Canal Winchester, Ohio 43110
614-834-5227p
614-834-5230f
www.aerosportmodeling.com
-----Original Message-----
From: owner-rv10-list-server@matronics.com
[mailto:owner-rv10-list-server@matronics.com] On Behalf Of Bill Mauledriver
Watson
Sent: Monday, March 29, 2010 5:29 PM
Subject: RV10-List: Gear intersection fairing - bonding lower fairing to
wheel pant
--> <MauleDriver@nc.rr.com>
I seem to recall that a few people have bonded the lower intersection
fairing to the wheel pant but can't remember who.- If you've done it and
have some pics, please share or point me to them.
It's starting to make some sense to me right now.
Thanks
Bill "pants on the ground" Watson
=0A=0A=0A
Message 31
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Gear intersection fairing - bonding lower fairing to wheel |
pant
Hey Bill "not lookin' like a fool" Watson,
Here are some I made of ours. I added a lip to make a better junction. Be
careful about centering the cut so that the two halves meet without having
to compress one.
Later, - Lew
----- Original Message -----
From: "Bill Mauledriver Watson" <MauleDriver@nc.rr.com>
Sent: Monday, March 29, 2010 5:29 PM
Subject: RV10-List: Gear intersection fairing - bonding lower fairing to
wheel pant
> <MauleDriver@nc.rr.com>
>
> I seem to recall that a few people have bonded the lower intersection
> fairing to the wheel pant but can't remember who. If you've done it and
> have some pics, please share or point me to them.
>
> It's starting to make some sense to me right now.
>
> Thanks
> Bill "pants on the ground" Watson
>
>
>
Message 32
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Johnson Creek, Idaho |
I'm planning on Johnson Creek this summer but Grandma, Mom, and the baby
don't want to camp. Grandpa, Dad, and the kids are looking forward to a few
nights in the tent. I have heard that there is a lodge there or at least
near there so that both groups can be happy. Is that the case? If so, has
anyone stayed at the lodge?
Albert Gardner
N991RV
Yuma, AZ
Message 33
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | RE: Fuel Related Items |
DQpQaGlsLCBJIG9yZGVyZWQgYW4gZXh0ZW5zaW9uIHdpdGggbXkgQW5kYWlyIGFuZCB3b3VuZCB1
cCBub3QgdXNpbmcgaXQuICBOZXh0IHRpbWUgeW91IGFyZSBpbiB0aGUgYXJlYSwgbGV0IG1lIGtu
b3cgYW5kIEknbGwgcmV0cmlldmUgaXQgZm9yIHlvdS4gIENhbid0IHJlbWVtYmVyIGlmIGl0cyBh
IDEyIiBvciA4IiBvciA2IiBleHRlbnNpb24uDQoNCiANCg0KQmlsbCBHaXBzb24NCg0KMjgxLTgx
NC02MDA2DQogDQoNCg0KRGF0ZTogTW9uLCAyOSBNYXIgMjAxMCAxNDoyMzo0MyAtMDcwMA0KRnJv
bTogYnVpbGRpbmdfcGFydG5lckB5YWhvby5jb20NClN1YmplY3Q6IFJlOiBSVjEwLUxpc3Q6IFJF
OiBGdWVsIFJlbGF0ZWQgSXRlbXMNClRvOiBydjEwLWxpc3RAbWF0cm9uaWNzLmNvbQ0KDQoNCg0K
DQoNCg0KUGhpbCwgbXkgdW5kZXJzdGFuZGluZyBpcyB0aGF0IGlmIHlvdSB3YW50IGFuIGV4dGVu
dGlvbiwgeW91IE1VU1Qgb3JkZXIgaXQgV0lUSCBpdCEgIEFTSyBNRSBob3cgSSBrbm93ISAgICBC
dXQsIGluIGhpbmRzaWdodCwgeW91IGtub3cgaG93IG1pbmUgY2FtZSBvdXQuLi4uIHNvIEkgd2Fz
IGdsYWQgSSBkaWRuJ3Qga25vdy4uLi4gdGhlIHJlc3VsdCB3YXMgbXVjaCBiZXR0ZXIgdGhhbiBp
dCBvdGhlcndpc2Ugd291bGQgaGF2ZSBiZWVuLg0KRG9uDQoNCi0tLSBPbiBNb24sIDMvMjkvMTAs
IFBlcnJ5LCBQaGlsIDxQaGlsLlBlcnJ5QG5ldGFwcC5jb20+IHdyb3RlOg0KDQoNCkZyb206IFBl
cnJ5LCBQaGlsIDxQaGlsLlBlcnJ5QG5ldGFwcC5jb20+DQpTdWJqZWN0OiBSZTogUlYxMC1MaXN0
OiBSRTogRnVlbCBSZWxhdGVkIEl0ZW1zDQpUbzogcnYxMC1saXN0QG1hdHJvbmljcy5jb20NCkRh
dGU6IE1vbmRheSwgTWFyY2ggMjksIDIwMTAsIDE6MzUgUE0NCg0KDQoNClllYWggdGhhdCB0aG91
Z2h0IGNyb3NzZWQgbXkgbWluZCBhIGZldyBtaW51dGVzIGFnbyB0b28uICBQbHVzIGEgY291cGxl
IG9mIG90aGVycy4NCg0KMSkgSXQncyBqdXN0IGFub3RoZXIgcGxhY2UgdG8gbGVhay4gQW5kIGlm
IGl0IGxlYWtzLCBpdHMgbm90IGVhc2lseSByZXBhaXJhYmxlLiAgIEEgc3RhbmRhcmQgQU4gdGhy
ZWFkZWQgZml0dGluZyBpcyBlYXN5IHRvIHJlcGxhY2UuDQoNCjIpIEkgdGhpbmsgdGhlIGJhbmpv
cyAocG9pbnRlZCBzdHJhaWdodCBkb3duKSBtaWdodCBpbnRlcmZlcmUgd2l0aCB0aGUgc2NhdCB0
dWJpbmcgYW5kIG90aGVyIGl0ZW1zIHJ1bm5pbmcgZG93biB0aGUgdHVubmVsLiBUaGUgNDUgZGVn
cmVlIGZpdHRpbmdzIGhlbHAgZ2V0IHRoZSBmdWVsIGxpbmVzIHRvIHRoZSBzaWRlcyBvZiB0aGUg
dHVubmVsIGFuZCBub3QgaW4gdGhlIG1pZGRsZS4NCg0KSSBzZWUgd2hlcmUgVmFucyBoYXMgYW4g
QW5kYWlyIHZhbHZlIHdpdGggNDUgZGVncmVlIGZpdHRpbmdzIG9uIGl0LiBUaGF0J3Mgbm90IG9u
ZSBhdmFpbGFibGUgZnJvbSBBbmRhaXIncyBzaXRlLCBidXQgc291bmRzIGxpa2UgdGhlIHBlcmZl
Y3Qgb25lIGZvciB0aGUgLTEwLg0KDQpOb3cgSSBqdXN0IG5lZWQgdG8gZmluZCBhIHNvdXJjZSBm
b3IgdGhlIGV4dGVuc2lvbi4gICBJJ2QgbGlrZSB0byBoYXZlIG9uZSBpbiBteSBpbnZlbnRvcnkg
anVzdCBpbiBjYXNlIEkgbmVlZCBpdCB3aXRoIGZpdHRpbmcuDQoNClBoaWwNCg0KLS0tLS0gT3Jp
Z2luYWwgTWVzc2FnZSAtLS0tLQ0KRnJvbTogVGltIE9sc29uIDxUaW1AbXlydjEwLmNvbT4NClRv
OiBydjEwLWxpc3RAbWF0cm9uaWNzLmNvbSA8cnYxMC1saXN0QG1hdHJvbmljcy5jb20+DQpTZW50
OiBNb24gTWFyIDI5IDEyOjMwOjU1IDIwMTANClN1YmplY3Q6IFJlOiBSVjEwLUxpc3Q6IFJFOiBG
dWVsIFJlbGF0ZWQgSXRlbXMNCg0KLS0+IFJWMTAtTGlzdCBtZXNzYWdlIHBvc3RlZCBieTogVGlt
IE9sc29uIDxUaW1AbXlydjEwLmNvbT4NCg0KSSBkaWRuJ3QgbWVhbiBiYW5qbyB3aXRoIHRob3Nl
IHRob3VnaC4uLi5JIG1lYW50IGEgbm9ybWFsDQpBTiBmaXR0aW5nIHdpdGggYSBzY3Jldy10b2dl
dGhlciBmbGFuZ2UgdG8gdGhlIHZhbHZlLg0KSSB0aGluayB0aGUgQmFuam9zIHdvdWxkIGJlIHRo
ZSBlYXN5IG9uZXMgdG8gaW5zdGFsbA0KaW4gc29tZSByZXNwZWN0cywgYnV0IEkgd2FzIHRvbyB3
b3JyaWVkIGFib3V0IGZsb3cgY2FwYWJpbGl0aWVzLg0KSSdtIG5vdCBrbm93bGVkZ2VhYmxlIGlu
IGJhbmpvIGZpdHRpbmcgZmxvdyByYXRlcywgc28gSSB0cmllZA0KdG8gbWFrZSBzdXJlIHRoYXQg
YWxsIGZ1ZWwgZml0dGluZ3Mgd2VyZSBhcyBmcmVlIGZsb3dpbmcNCmFzIHBvc3NpYmxlLCBhdm9p
ZGluZyBhcyBtYW55IDkwJ3MgYXMgSSBjb3VsZC4gICBJbiB0aGUNCmVuZCwgSSBoYXZlIGxvdHMg
b2YgNDUncyBidXQgb25seSBhIGNvdXBsZSA5MCdzLg0KQnV0LCBmb3Igbm9uZSBvZiB0aGVtIGRv
IEkga25vdyB3aGF0IHRoZSBhY3R1YWwgZmxvdw0KcmVzdHJpY3Rpb24gd291bGQgcmVhbGx5IGJl
Li4uLml0J3MgYWxsIGp1c3QgaW4gY29uY2VwdC4NCg0KVGltIE9sc29uIC0gUlYtMTAgTjEwNENE
DQpkbyBub3QgYXJjaGl2ZQ0KDQoNClBlcnJ5LCBQaGlsIHdyb3RlOg0KPiAtLT4gUlYxMC1MaXN0
IG1lc3NhZ2UgcG9zdGVkIGJ5OiAiUGVycnksIFBoaWwiDQo+IDxQaGlsLlBlcnJ5QG5ldGFwcC5j
b20+DQo+DQo+IFllYWggSSBkaWRuJ3QgdGhpbmsgb2YgdXNpbmcgdGhlaXIgQmFuam8gY29ubmVj
dG9ycywgYnV0IHRoYXQncyBhDQo+IGdvb2QgaWRlYS4NCj4NCj4gVGhpcyB3b3VsZCBsZXQgbWUg
ZWxpbWluYXRlIHRoZSA0NSBkZWdyZWUgZWxib3dzIG9uIHRoZSBMJlIgbGluZXMgYW5kDQo+IGdv
IGRpcmVjdGx5IHRvIGEgTWFsZSBBTjYgZml0dGluZyBpbnN0ZWFkLiAgR29vZCBpZGVhLg0KPg0K
PiBBbHNvIG5pY2UgdGhhdCBpdCdzIGFkanVzdGFibGUuDQo+DQo+DQo+IEknbGwga2VlcCB0aGUg
ZmVtYWxlIGNvbm5lY3RvciBvbiB0aGUgYm90dG9tIGZvciB0aGUgZnVlbCBnb2luZw0KPiBmb3J3
YXJkIGFuZCB0aGUgcmV0dXJuIGZyb20gdGhlIGJvb3N0IHB1bXAuDQo+DQo+IFBoaWwNCj4NCj4N
Cj4NCj4NCj4NCj4NCj4NCj4NCj4gLS0tLS1PcmlnaW5hbCBNZXNzYWdlLS0tLS0gRnJvbTogVGlt
IE9sc29uIFttYWlsdG86VGltQG15cnYxMC5jb21dDQo+IFNlbnQ6IE1vbmRheSwgTWFyY2ggMjks
IDIwMTAgMTE6NTkgQU0gVG86IHJ2MTAtbGlzdEBtYXRyb25pY3MuY29tDQo+IFN1YmplY3Q6IFJl
OiBSVjEwLUxpc3Q6IFJFOiBGdWVsIFJlbGF0ZWQgSXRlbXMNCj4NCj4gLS0+IFJWMTAtTGlzdCBt
ZXNzYWdlIHBvc3RlZCBieTogVGltIE9sc29uIDxUaW1AbXlydjEwLmNvbT4NCj4NCj4gVGhlIFJW
LTEwIHdpbGwgaG9sZCBhYm91dCA2MSBnYWxsb25zIHRvdGFsIEkgdGhpbmsgaWYgeW91IHJlYWxs
eQ0KPiBzdHVmZiBpdCBpbiB0byB0aGUgYnJpbSwgYnV0IGNhbGwgaXQgNjAgYXMgYWR2ZXJ0aXNl
ZC4NCj4NCj4gV2hlbiBpdCBjb21lcyB0byB1c2VhYmxlIGZ1ZWwsIGFsbW9zdCBBTEwgZnVlbCBp
cyB1c2VhYmxlLiBJJ3ZlIGZsb3duDQo+IGVhY2ggdGFuayB1bnRpbCBkcnkgKG9uIHNlcGFyYXRl
IHRlc3QgZmxpZ2h0cyBkb25lIGRpcmVjdGx5IG92ZXIgdGhlDQo+IGFpcnBvcnQpLCBhbmQgYm90
aCB0YW5rcyB3aGVuIEkgc3VtcGVkIHRoZW0gYWZ0ZXIgaXQgd2FzIG91dCBvZiBmdWVsLA0KPiBo
YWQgb25seSBhYm91dCAxIGN1cCBvciBzbyB0aGF0IHdvdWxkIGNvbWUgb3V0LiAgQ2VydGFpbmx5
IGZhciBsZXNzDQo+IHRoYW4gYSBxdWFydC4gIFNvIGNvbnNpZGVyIHRoYXQgaWYgeW91IGZpbGwg
aXQgcHJldHR5IGZ1bGwsIHlvdSdyZQ0KPiBsb29raW5nIGF0IDYwIGdhbGxvbnMgd2l0aCA2MCB1
c2VhYmxlLCBpZiB5b3UgZG9uJ3QgY291bnQgdGhlIGV4dHJhDQo+IC41IGdhbGxvbnMgdGhhdCB5
b3UgY2FuIHNxdWVlemUgaW50byB0aGUgdGFuay4NCj4NCj4gQXMgZm9yIHRoZSB1bml2ZXJzYWwg
am9pbnRzLCBpdCBkZXBlbmRzIG9uIHlvdXIgc2V0dXAuIE1pbmUgaXNuJ3QNCj4gcGVyZmVjdGx5
IHN0cmFpZ2h0LCBhbmQgaXQgc3RpbGwgd29ya3Mgb2sgd2l0aCBhIHNsaWdodCBhbmdsZSBiZXR3
ZWVuDQo+IHRoZSB2YWx2ZSBhbmQgaGFuZGxlLiBJZiB5b3UgbW91bnQgdGhlIHZhbHZlIHNvIGl0
J3MgbGV2ZWwgdG8gdGhlDQo+IHR1bm5lbCBjb3ZlciBhbmQgZGlyZWN0bHkgYmVsb3cgdGhlIGhv
bGUsIHlvdSB3b24ndCBuZWVkIGEgdW5pdmVyc2FsLg0KPiBUaGVyZSBpcyBhIGxpdHRsZSBzbG9w
IHRvIGl0IGZvciBmb3JnaXZlbmVzcy4NCj4NCj4gSWYgeW91IG9yZGVyIGEgMTIiIGV4dGVuc2lv
biwgeW91IHdpbGwgbGlrZWx5IHVzZSBhYm91dCBoYWxmIG9mIGl0Lg0KPiBJIGNhbid0IHJlbWVt
YmVyIGlmIEkgaGFkIGxlc3MgdGhhbiA2IiBsZWZ0LCBvciBtb3JlIHRoYW4gNiIgbGVmdC4NCj4g
QnV0LCBJJ2Qgb3JkZXIgMTIiIGVpdGhlciB3YXkuICBUaGF0IHdheSBpZiB5b3UgbWVzcyB1cCB0
aGUgY3V0LCB5b3UNCj4gbWF5IGVuZCB1cCB3aXRoIHNvbWUgZXhjZXNzIHRvIHBsYXkgd2l0aC4g
T3JkZXJpbmcgdGhlIGV4dGVuc2lvbnMgaXMNCj4gZW5vdWdoIG9mIGEgcGFpbiBjb21pbmcgZnJv
bSB0aGUgVS5LLiB0aGF0IGl0IHBheXMgdG8gd2FzdGUgYSBjb3VwbGUNCj4gYnVja3MuDQo+DQo+
IFRoZSBmaXR0aW5nIGNob2ljZSBpcyBhbGwgdXAgdG8geW91IGJhc2VkIG9uIHdoYXQgeW91IHBs
YW4gdG8gZG8gd2l0aA0KPiB5b3VyIGxpbmVzIGFuZCB0aGUgc3R5bGUgb2YgdGhlIHZhbHZlIHRo
YXQgeW91IGdldC4gIFlvdSdsbCBtb3N0DQo+IGxpa2VseSB3YW50IGRvd253YXJkIHR1cm5pbmcg
QU4gZml0dGluZ3MsIHdoaWNoIHlvdSBjYW4gYWxzbyBkbyB3aXRoDQo+IHRoZSAxLzQiIGZlbWFs
ZSBOUFQsIGJ5IHVzaW5nIGFuIEFOODIyLTZELiBUaGF0J3Mgd2hhdCBJIGRpZC4gIFR1cm5lZA0K
PiBvdXQgZ29vZCBiZWNhdXNlIEkganVzdCByZXBsYWNlZCBvbmUgb2YgdGhlIGZpdHRpbmdzIHRv
IG1ha2Ugc3VyZSBJDQo+IGhhZCBhIGdvb2Qgb25lIG9uIHRoZXJlLiAgQnV0LCBvbiB0aGUgb3Ro
ZXIgaGFuZCwgaXQgY2FuIHNvbWV0aW1lcyBiZQ0KPiBoYXJkIHRvIGdldCBhbiBOUFQgZml0dGlu
ZyBhbGlnbmVkIHdoZXJlIHlvdSB3YW50IGl0IHdpdGhvdXQgaXQgYmVpbmcNCj4gdG9vIHRpZ2h0
IG9yIHRvbyBsb29zZS4uLi5zbyB5b3UgbWF5IGNvbnNpZGVyIG9yZGVyaW5nIHRoZWlyDQo+IGRv
d250dXJuZWQgQU4gZml0dGluZ3MuICBJZiBpdCB3ZXJlIE1FIGJ1eWluZyBpdCwgSSBndWVzcyBJ
J2QgYnV5IGl0DQo+IHdpdGggdGhlIEFOIHR5cGUgYnVpbHQtaW4gZml0dGluZ3MsIGJ1dCBJJ2Qg
c3BsdXJnZSBhbmQgYnV5IGEgc3BhcmUuDQo+IEkgYWJzb2x1dGVseSBoYXRlIGJlaW5nIGdyb3Vu
ZGVkIGZvciBzdHVwaWQgdGhpbmdzIGxpa2UgdGhhdCwgYW5kDQo+IHNpbmNlIEFuZGFpciBpcyB5
b3VyIHNvbGUtc291cmNlIGZvciB0aGUgYnVpbHQtaW4gZml0dGluZ3MsIEknZA0KPiBkZWZpbml0
ZWx5IG9yZGVyIGEgc3BhcmUgaWYgeW91IGdvIHRoYXQgcm91dGUuDQo+DQo+IFRpbSBPbHNvbiAt
IFJWLTEwIE4xMDRDRA0KPg0KPg0KPg0KPiBQZXJyeSwgUGhpbCB3cm90ZToNCj4+IEkgYWxzbyBz
ZWUgYSAzXnJkIHF1ZXN0aW9uIG5vdy4uLi4uLi4NCj4+DQo+Pg0KPj4NCj4+IEkgdGhvdWdodCB0
aGUgZXh0ZW5zaW9uIHdvdWxkIGJlIGEgcHJldHR5IHNpbXBsZSBjaG9pY2UgYmV0d2VlbiA2Ig0K
Pj4gb3IgMTIiLCBidXQgSSB3YXMgd3JvbmcuDQo+Pg0KPj4NCj4+DQo+PiBJcyB0aGVyZSBhbnkg
bmVlZCBmb3IgVW5pdmVyc2FsIEpvaW50cyBhdCB0aGUgVmFsdmUgb3IgSGFuZGxlPw0KPj4NCj4+
IEkgZG91YnQgaXQuICBJdCBzaG91bGQgYmUgYSBzdHJhaWdodCBzaG90IHVwIHRocm91Z2ggdGhl
IHR1bm5lbA0KPj4gY292ZXIuDQo+Pg0KPj4NCj4+DQo+PiBGaW5hbGx5IGhlcmUgaXMgYSBjaGVj
a2JveCBmb3IgYSAiQ291cGxlciBKb2ludCIsIGJ1dCB0aGVyZSBpcyBubw0KPj4gZGVzY3JpcHRp
b24gb2Ygd2hhdCBpdCBpcy4uLg0KPj4NCj4+IEFueSBpZGVhcz8NCj4+DQo+Pg0KPj4NCj4+IFBo
aWwNCj4+DQo+Pg0KPj4NCj4+ICpGcm9tOiogUGVycnksIFBoaWwgKlNlbnQ6KiBNb25kYXksIE1h
cmNoIDI5LCAyMDEwIDk6NTUgQU0gKlRvOioNCj4+IHJ2MTAtbGlzdEBtYXRyb25pY3MuY29tICpT
dWJqZWN0OiogRnVlbCBSZWxhdGVkIEl0ZW1zDQo+Pg0KPj4NCj4+DQo+PiBJJ3ZlIHB1dCBpdCBv
ZmYgYXMgbG9uZyBhcyBJIGNhbi4gIE5vdyBJJ20gZ2V0dGluZyByZWFkeSB0byB3cml0ZQ0KPj4g
dGhlIGNoZWNrIGZvciB0aGUgQW5kYWlyIEZ1ZWwgVmFsdmUuDQo+Pg0KPj4NCj4+DQo+PiBPcmRl
cmluZyBmcm9tIHRoZSBBbmRhaXIgc2l0ZSwgeW91IGNhbiBjdXN0b21pemUgdGhlIHZhbHZlIHdp
dGggdGhlDQo+PiAgYXBwcm9wcmlhdGUgZml0dGluZ3MuICBXaGljaCBsZWFkcyBtZSB0byB0aGUg
Zmlyc3QgcXVlc3Rpb24uDQo+Pg0KPj4NCj4+DQo+PiAxKSAgICAgIEFyZSBtb3N0IHBlb3BsZSB1
c2luZyB0aGUgw4LCvCIgTlBUIChGRU1BTEUpIGZpdHRpbmdzIG9uIGFsbCAzDQo+PiAgY29ubmVj
dGlvbnMgb2YgdGhlIEZTMjB4Nz8NCj4+DQo+PiBhLiAgICAgICBUaGlzIGNyZWF0ZXMgYSBwYXJ0
IG51bWJlciBvZiBGUzIwZjdGLg0KPj4NCj4+DQo+Pg0KPj4gRmluYWxseSBJJ20gZ29pbmcgdG8g
Y3VzdG9taXplIHRoZSBmYWNlIHBsYXRlLiAgVGhpcyBsZWFkcyBtZSBpbnRvDQo+PiB0aGUgbmV4
dCBxdWVzdGlvbi4NCj4+DQo+Pg0KPj4NCj4+IDIpICAgICAgVmFuJ3Mgc2F5cyB0aGUgZnVlbCBj
YXBhY2l0eSBvZiB0aGUgUlYtMTAgaXMgNjAgZ2FsbG9ucw0KPj4gMzAvMzAuIElzIHRoaXMgdGhl
IHVzYWJsZSBmdWVsIG9yIHRoZSB0b3RhbCBjYXBhY2l0eT8NCj4+DQo+PiBhLiAgICAgICBJJ2Qg
bGlrZSB0byBwbGFjYXJkIHVzYWJsZSBmdWVsIG9uIHRoZSBzZWxlY3Rvci4NCj4+DQo+Pg0KPj4N
Cj4+DQo+Pg0KPj4gVGhhbmtzLA0KPj4NCj4+IFBoaWwNCj4+DQo+Pg0KPj4NCj4+DQo+Pg0KPj4g
Kg0KPj4NCj4+DQo+PiAqDQo+DQo+DQo+DQo+DQo+DQo+DQo+DQo+DQo+PHNwOyAgICAgICAgIC0g
VGhlIFJWMTAtTGlzdCBFbWFpbCBGdHJvbmljcy5jb20vTmF2aWdhdG9yP1JWMTAtTGlzdCIgdGFy
Z2V0PV9ibGFuayByZWw9bm9mb2xsb3c+aHR0cDovL3d3dy50OyBfbmJzcDsgICAgICAgICAgICAg
ICAgICAgICAgICAmOi8vd3d3Lm1hdHJvbmljcy5jb20vY29udHJpYnV0aW9uIiB0YXJnZXQ9X2Js
YW5rIHJlbD1ub2ZvbGxvdz5odHRwOi8vd3c9PT09PT09PT09PT09PT09PT09PT09PQ0KDQoNCg0K
wqbCt+KAun7igLDDrcKyLMOeZyjigJPFoMOTTTTDk0fDmnHDvMKiw6rDonrCucOew4HDii7CrifC
qzheRV10ListZsKi4oCdWivCunTCscOrYXjDhsKtwq7igLDDonLDgsOiwrLDkV5qw5vCq3rDg1rC
vijCtsWgw63CocK6w6jDgsOHwrbCpmp84oC5xaDDi27CtiliwrYnwqzCssOnIWrDgsOiwrLDlSfD
vSvigLrCscOKw6LCpsOYwqjFkytywq95J8Whwq3DiEPCoyDDpcKhwqd7IMKs77+9wq7Fkix4KFrC
tFANCg0KDQpfLT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PQ0KXy09ICAgICAgICAgIC0gVGhlIFJWMTAtTGlzdCBFbWFpbCBGb3J1bSAt
DQpfLT0gVXNlIHRoZSBNYXRyb25pY3MgTGlzdCBGZWF0dXJlcyBOYXZpZ2F0b3IgdG8gYnJvd3Nl
DQpfLT0gdGhlIG1hbnkgTGlzdCB1dGlsaXRpZXMgc3VjaCBhcyBMaXN0IFVuL1N1YnNjcmlwdGlv
biwNCl8tPSBBcmNoaXZlIFNlYXJjaCAmIERvd25sb2FkLCA3LURheSBCcm93c2UsIENoYXQsIEZB
USwNCl8tPSBQaG90b3NoYXJlLCBhbmQgbXVjaCBtdWNoIG1vcmU6DQpfLT0NCl8tPSAgIC0tPiBo
dHRwOi8vd3d3Lm1hdHJvbmljcy5jb20vTmF2aWdhdG9yP1JWMTAtTGlzdA0KXy09DQpfLT09PT09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PQ0K
Xy09ICAgICAgICAgICAgICAgLSBNQVRST05JQ1MgV0VCIEZPUlVNUyAtDQpfLT0gU2FtZSBncmVh
dCBjb250ZW50IGFsc28gYXZhaWxhYmxlIHZpYSB0aGUgV2ViIEZvcnVtcyENCl8tPQ0KXy09ICAg
LS0+IGh0dHA6Ly9mb3J1bXMubWF0cm9uaWNzLmNvbQ0KXy09DQpfLT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PQ0KXy09ICAgICAgICAg
ICAgIC0gTGlzdCBDb250cmlidXRpb24gV2ViIFNpdGUgLQ0KXy09ICBUaGFuayB5b3UgZm9yIHlv
dXIgZ2VuZXJvdXMgc3VwcG9ydCENCl8tPSAgICAgICAgICAgICAgICAgICAgICAgICAgICAgIC1N
YXR0IERyYWxsZSwgTGlzdCBBZG1pbi4NCl8tPSAgIC0tPiBodHRwOi8vd3d3Lm1hdHJvbmljcy5j
b20vY29udHJpYnV0aW9uDQpfLT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PT09PT09PT09PQ0KDQogCQkgCSAgIAkJICANCl9fX19fX19fX19fX19fX19f
X19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fDQpIb3RtYWls
OiBQb3dlcmZ1bCBGcmVlIGVtYWlsIHdpdGggc2VjdXJpdHkgYnkgTWljcm9zb2Z0Lg0KaHR0cDov
L2Nsay5hdGRtdC5jb20vR0JML2dvLzE5NjM5MDcxMC9kaXJlY3QvMDEv
Message 34
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | RE: Fuel Related Items |
VGhhbmtzIEJpbGzigKYuDQoNCiANCg0KVGhhdCBtYWtlcyBsaWZlIHNpbXBsZXIuICANCg0KIA0K
DQpJ4oCZbGwganVzdCBvcmRlciB0aGUgRlMyMHg3VCBmcm9tIFZhbnMgYW5kIHRha2UgeW91IHVw
IG9uIHlvdXIgb2ZmZXIgZm9yIHRoZSBleHRlbnNpb24uICAgSeKAmW0gZ3Vlc3NpbmcgeW91IGNh
biByZXRybyBmaXQgdGhlIHN0YW5kYXJkIHZhbHZl4oCmLg0KDQogDQoNCkkgc2hvdWxkIGJlIHRo
ZXJlIGZvciB0aGUgbWVldGluZyBvbiB0aGUgMTB0aC4gIElmIG5vdCwgSeKAmWxsIHJ1biBieSBh
bmQgbWVldCB5b3UgdGhlIG5leHQgdGltZSB5b3XigJlyZSBhdCB0aGUgZmllbGQuDQoNCiANCg0K
VGhhbmtzIGFnYWluIQ0KDQpQaGlsICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAg
ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAg
ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAg
ICAgICAgICAgICAgICAgDQoNCiANCg0KIA0KDQogDQoNCiANCg0KIA0KDQpGcm9tOiBCaWxsIEdp
cHNvbiBbbWFpbHRvOmdpcHNvd2hAaG90bWFpbC5jb21dIA0KU2VudDogTW9uZGF5LCBNYXJjaCAy
OSwgMjAxMCA4OjA5IFBNDQpUbzogcnYxMC1saXN0QG1hdHJvbmljcy5jb20NClN1YmplY3Q6IFJF
OiBSVjEwLUxpc3Q6IFJFOiBGdWVsIFJlbGF0ZWQgSXRlbXMNCg0KIA0KDQpQaGlsLCBJIG9yZGVy
ZWQgYW4gZXh0ZW5zaW9uIHdpdGggbXkgQW5kYWlyIGFuZCB3b3VuZCB1cCBub3QgdXNpbmcgaXQu
ICBOZXh0IHRpbWUgeW91IGFyZSBpbiB0aGUgYXJlYSwgbGV0IG1lIGtub3cgYW5kIEknbGwgcmV0
cmlldmUgaXQgZm9yIHlvdS4gIENhbid0IHJlbWVtYmVyIGlmIGl0cyBhIDEyIiBvciA4IiBvciA2
IiBleHRlbnNpb24uDQogDQpCaWxsIEdpcHNvbg0KMjgxLTgxNC02MDA2DQogDQoNCl9fX19fX19f
X19fX19fX19fX19fX19fX19fX19fX19fDQoNCkRhdGU6IE1vbiwgMjkgTWFyIDIwMTAgMTQ6MjM6
NDMgLTA3MDANCkZyb206IGJ1aWxkaW5nX3BhcnRuZXJAeWFob28uY29tDQpTdWJqZWN0OiBSZTog
UlYxMC1MaXN0OiBSRTogRnVlbCBSZWxhdGVkIEl0ZW1zDQpUbzogcnYxMC1saXN0QG1hdHJvbmlj
cy5jb20NCg0KUGhpbCwgbXkgdW5kZXJzdGFuZGluZyBpcyB0aGF0IGlmIHlvdSB3YW50IGFuIGV4
dGVudGlvbiwgeW91IE1VU1Qgb3JkZXIgaXQgV0lUSCBpdCEgIEFTSyBNRSBob3cgSSBrbm93ISAg
ICBCdXQsIGluIGhpbmRzaWdodCwgeW91IGtub3cgaG93IG1pbmUgY2FtZSBvdXQuLi4uIHNvIEkg
d2FzIGdsYWQgSSBkaWRuJ3Qga25vdy4uLi4gdGhlIHJlc3VsdCB3YXMgbXVjaCBiZXR0ZXIgdGhh
biBpdCBvdGhlcndpc2Ugd291bGQgaGF2ZSBiZWVuLg0KDQpEb24NCg0KLS0tIE9uIE1vbiwgMy8y
OS8xMCwgUGVycnksIFBoaWwgPFBoaWwuUGVycnlAbmV0YXBwLmNvbT4gd3JvdGU6DQoNCgkNCglG
cm9tOiBQZXJyeSwgUGhpbCA8UGhpbC5QZXJyeUBuZXRhcHAuY29tPg0KCVN1YmplY3Q6IFJlOiBS
VjEwLUxpc3Q6IFJFOiBGdWVsIFJlbGF0ZWQgSXRlbXMNCglUbzogcnYxMC1saXN0QG1hdHJvbmlj
cy5jb20NCglEYXRlOiBNb25kYXksIE1hcmNoIDI5LCAyMDEwLCAxOjM1IFBNDQoNCglZZWFoIHRo
YXQgdGhvdWdodCBjcm9zc2VkIG15IG1pbmQgYSBmZXcgbWludXRlcyBhZ28gdG9vLiAgUGx1cyBh
IGNvdXBsZSBvZiBvdGhlcnMuDQoJDQoJMSkgSXQncyBqdXN0IGFub3RoZXIgcGxhY2UgdG8gbGVh
ay4gQW5kIGlmIGl0IGxlYWtzLCBpdHMgbm90IGVhc2lseSByZXBhaXJhYmxlLiAgIEEgc3RhbmRh
cmQgQU4gdGhyZWFkZWQgZml0dGluZyBpcyBlYXN5IHRvIHJlcGxhY2UuDQoJDQoJMikgSSB0aGlu
ayB0aGUgYmFuam9zIChwb2ludGVkIHN0cmFpZ2h0IGRvd24pIG1pZ2h0IGludGVyZmVyZSB3aXRo
IHRoZSBzY2F0IHR1YmluZyBhbmQgb3RoZXIgaXRlbXMgcnVubmluZyBkb3duIHRoZSB0dW5uZWwu
IFRoZSA0NSBkZWdyZWUgZml0dGluZ3MgaGVscCBnZXQgdGhlIGZ1ZWwgbGluZXMgdG8gdGhlIHNp
ZGVzIG9mIHRoZSB0dW5uZWwgYW5kIG5vdCBpbiB0aGUgbWlkZGxlLg0KCQ0KCUkgc2VlIHdoZXJl
IFZhbnMgaGFzIGFuIEFuZGFpciB2YWx2ZSB3aXRoIDQ1IGRlZ3JlZSBmaXR0aW5ncyBvbiBpdC4g
VGhhdCdzIG5vdCBvbmUgYXZhaWxhYmxlIGZyb20gQW5kYWlyJ3Mgc2l0ZSwgYnV0IHNvdW5kcyBs
aWtlIHRoZSBwZXJmZWN0IG9uZSBmb3IgdGhlIC0xMC4NCgkNCglOb3cgSSBqdXN0IG5lZWQgdG8g
ZmluZCBhIHNvdXJjZSBmb3IgdGhlIGV4dGVuc2lvbi4gICBJJ2QgbGlrZSB0byBoYXZlIG9uZSBp
biBteSBpbnZlbnRvcnkganVzdCBpbiBjYXNlIEkgbmVlZCBpdCB3aXRoIGZpdHRpbmcuDQoJDQoJ
UGhpbA0KCQ0KCS0tLS0tIE9yaWdpbmFsIE1lc3NhZ2UgLS0tLS0NCglGcm9tOiBUaW0gT2xzb24g
PFRpbUBteXJ2MTAuY29tPg0KCVRvOiBydjEwLWxpc3RAbWF0cm9uaWNzLmNvbSA8cnYxMC1saXN0
QG1hdHJvbmljcy5jb20+DQoJU2VudDogTW9uIE1hciAyOSAxMjozMDo1NSAyMDEwDQoJU3ViamVj
dDogUmU6IFJWMTAtTGlzdDogUkU6IEZ1ZWwgUmVsYXRlZCBJdGVtcw0KCQ0KCS0tPiBSVjEwLUxp
c3QgbWVzc2FnZSBwb3N0ZWQgYnk6IFRpbSBPbHNvbiA8VGltQG15cnYxMC5jb20+DQoJDQoJSSBk
aWRuJ3QgbWVhbiBiYW5qbyB3aXRoIHRob3NlIHRob3VnaC4uLi5JIG1lYW50IGEgbm9ybWFsDQoJ
QU4gZml0dGluZyB3aXRoIGEgc2NyZXctdG9nZXRoZXIgZmxhbmdlIHRvIHRoZSB2YWx2ZS4NCglJ
IHRoaW5rIHRoZSBCYW5qb3Mgd291bGQgYmUgdGhlIGVhc3kgb25lcyB0byBpbnN0YWxsDQoJaW4g
c29tZSByZXNwZWN0cywgYnV0IEkgd2FzIHRvbyB3b3JyaWVkIGFib3V0IGZsb3cgY2FwYWJpbGl0
aWVzLg0KCUknbSBub3Qga25vd2xlZGdlYWJsZSBpbiBiYW5qbyBmaXR0aW5nIGZsb3cgcmF0ZXMs
IHNvIEkgdHJpZWQNCgl0byBtYWtlIHN1cmUgdGhhdCBhbGwgZnVlbCBmaXR0aW5ncyB3ZXJlIGFz
IGZyZWUgZmxvd2luZw0KCWFzIHBvc3NpYmxlLCBhdm9pZGluZyBhcyBtYW55IDkwJ3MgYXMgSSBj
b3VsZC4gICBJbiB0aGUNCgllbmQsIEkgaGF2ZSBsb3RzIG9mIDQ1J3MgYnV0IG9ubHkgYSBjb3Vw
bGUgOTAncy4NCglCdXQsIGZvciBub25lIG9mIHRoZW0gZG8gSSBrbm93IHdoYXQgdGhlIGFjdHVh
bCBmbG93DQoJcmVzdHJpY3Rpb24gd291bGQgcmVhbGx5IGJlLi4uLml0J3MgYWxsIGp1c3QgaW4g
Y29uY2VwdC4NCgkNCglUaW0gT2xzb24gLSBSVi0xMCBOMTA0Q0QNCglkbyBub3QgYXJjaGl2ZQ0K
CQ0KCQ0KCVBlcnJ5LCBQaGlsIHdyb3RlOg0KCT4gLS0+IFJWMTAtTGlzdCBtZXNzYWdlIHBvc3Rl
ZCBieTogIlBlcnJ5LCBQaGlsIg0KCT4gPFBoaWwuUGVycnlAbmV0YXBwLmNvbT4NCgk+DQoJPiBZ
ZWFoIEkgZGlkbid0IHRoaW5rIG9mIHVzaW5nIHRoZWlyIEJhbmpvIGNvbm5lY3RvcnMsIGJ1dCB0
aGF0J3MgYQ0KCT4gZ29vZCBpZGVhLg0KCT4NCgk+IFRoaXMgd291bGQgbGV0IG1lIGVsaW1pbmF0
ZSB0aGUgNDUgZGVncmVlIGVsYm93cyBvbiB0aGUgTCZSIGxpbmVzIGFuZA0KCT4gZ28gZGlyZWN0
bHkgdG8gYSBNYWxlIEFONiBmaXR0aW5nIGluc3RlYWQuICBHb29kIGlkZWEuDQoJPg0KCT4gQWxz
byBuaWNlIHRoYXQgaXQncyBhZGp1c3RhYmxlLg0KCT4NCgk+DQoJPiBJJ2xsIGtlZXAgdGhlIGZl
bWFsZSBjb25uZWN0b3Igb24gdGhlIGJvdHRvbSBmb3IgdGhlIGZ1ZWwgZ29pbmcNCgk+IGZvcndh
cmQgYW5kIHRoZSByZXR1cm4gZnJvbSB0aGUgYm9vc3QgcHVtcC4NCgk+DQoJPiBQaGlsDQoJPg0K
CT4NCgk+DQoJPg0KCT4NCgk+DQoJPg0KCT4NCgk+IC0tLS0tT3JpZ2luYWwgTWVzc2FnZS0tLS0t
IEZyb206IFRpbSBPbHNvbiBbbWFpbHRvOlRpbUBteXJ2MTAuY29tXQ0KCT4gU2VudDogTW9uZGF5
LCBNYXJjaCAyOSwgMjAxMCAxMTo1OSBBTSBUbzogcnYxMC1saXN0QG1hdHJvbmljcy5jb20NCgk+
IFN1YmplY3Q6IFJlOiBSVjEwLUxpc3Q6IFJFOiBGdWVsIFJlbGF0ZWQgSXRlbXMNCgk+DQoJPiAt
LT4gUlYxMC1MaXN0IG1lc3NhZ2UgcG9zdGVkIGJ5OiBUaW0gT2xzb24gPFRpbUBteXJ2MTAuY29t
Pg0KCT4NCgk+IFRoZSBSVi0xMCB3aWxsIGhvbGQgYWJvdXQgNjEgZ2FsbG9ucyB0b3RhbCBJIHRo
aW5rIGlmIHlvdSByZWFsbHkNCgk+IHN0dWZmIGl0IGluIHRvIHRoZSBicmltLCBidXQgY2FsbCBp
dCA2MCBhcyBhZHZlcnRpc2VkLg0KCT4NCgk+IFdoZW4gaXQgY29tZXMgdG8gdXNlYWJsZSBmdWVs
LCBhbG1vc3QgQUxMIGZ1ZWwgaXMgdXNlYWJsZS4gSSd2ZSBmbG93bg0KCT4gZWFjaCB0YW5rIHVu
dGlsIGRyeSAob24gc2VwYXJhdGUgdGVzdCBmbGlnaHRzIGRvbmUgZGlyZWN0bHkgb3ZlciB0aGUN
Cgk+IGFpcnBvcnQpLCBhbmQgYm90aCB0YW5rcyB3aGVuIEkgc3VtcGVkIHRoZW0gYWZ0ZXIgaXQg
d2FzIG91dCBvZiBmdWVsLA0KCT4gaGFkIG9ubHkgYWJvdXQgMSBjdXAgb3Igc28gdGhhdCB3b3Vs
ZCBjb21lIG91dC4gIENlcnRhaW5seSBmYXIgbGVzcw0KCT4gdGhhbiBhIHF1YXJ0LiAgU28gY29u
c2lkZXIgdGhhdCBpZiB5b3UgZmlsbCBpdCBwcmV0dHkgZnVsbCwgeW91J3JlDQoJPiBsb29raW5n
IGF0IDYwIGdhbGxvbnMgd2l0aCA2MCB1c2VhYmxlLCBpZiB5b3UgZG9uJ3QgY291bnQgdGhlIGV4
dHJhDQoJPiAuNSBnYWxsb25zIHRoYXQgeW91IGNhbiBzcXVlZXplIGludG8gdGhlIHRhbmsuDQoJ
Pg0KCT4gQXMgZm9yIHRoZSB1bml2ZXJzYWwgam9pbnRzLCBpdCBkZXBlbmRzIG9uIHlvdXIgc2V0
dXAuIE1pbmUgaXNuJ3QNCgk+IHBlcmZlY3RseSBzdHJhaWdodCwgYW5kIGl0IHN0aWxsIHdvcmtz
IG9rIHdpdGggYSBzbGlnaHQgYW5nbGUgYmV0d2Vlbg0KCT4gdGhlIHZhbHZlIGFuZCBoYW5kbGUu
IElmIHlvdSBtb3VudCB0aGUgdmFsdmUgc28gaXQncyBsZXZlbCB0byB0aGUNCgk+IHR1bm5lbCBj
b3ZlciBhbmQgZGlyZWN0bHkgYmVsb3cgdGhlIGhvbGUsIHlvdSB3b24ndCBuZWVkIGEgdW5pdmVy
c2FsLg0KCT4gVGhlcmUgaXMgYSBsaXR0bGUgc2xvcCB0byBpdCBmb3IgZm9yZ2l2ZW5lc3MuDQoJ
Pg0KCT4gSWYgeW91IG9yZGVyIGEgMTIiIGV4dGVuc2lvbiwgeW91IHdpbGwgbGlrZWx5IHVzZSBh
Ym91dCBoYWxmIG9mIGl0Lg0KCT4gSSBjYW4ndCByZW1lbWJlciBpZiBJIGhhZCBsZXNzIHRoYW4g
NiIgbGVmdCwgb3IgbW9yZSB0aGFuIDYiIGxlZnQuDQoJPiBCdXQsIEknZCBvcmRlciAxMiIgZWl0
aGVyIHdheS4gIFRoYXQgd2F5IGlmIHlvdSBtZXNzIHVwIHRoZSBjdXQsIHlvdQ0KCT4gbWF5IGVu
ZCB1cCB3aXRoIHNvbWUgZXhjZXNzIHRvIHBsYXkgd2l0aC4gT3JkZXJpbmcgdGhlIGV4dGVuc2lv
bnMgaXMNCgk+IGVub3VnaCBvZiBhIHBhaW4gY29taW5nIGZyb20gdGhlIFUuSy4gdGhhdCBpdCBw
YXlzIHRvIHdhc3RlIGEgY291cGxlDQoJPiBidWNrcy4NCgk+DQoJPiBUaGUgZml0dGluZyBjaG9p
Y2UgaXMgYWxsIHVwIHRvIHlvdSBiYXNlZCBvbiB3aGF0IHlvdSBwbGFuIHRvIGRvIHdpdGgNCgk+
IHlvdXIgbGluZXMgYW5kIHRoZSBzdHlsZSBvZiB0aGUgdmFsdmUgdGhhdCB5b3UgZ2V0LiAgWW91
J2xsIG1vc3QNCgk+IGxpa2VseSB3YW50IGRvd253YXJkIHR1cm5pbmcgQU4gZml0dGluZ3MsIHdo
aWNoIHlvdSBjYW4gYWxzbyBkbyB3aXRoDQoJPiB0aGUgMS80IiBmZW1hbGUgTlBULCBieSB1c2lu
ZyBhbiBBTjgyMi02RC4gVGhhdCdzIHdoYXQgSSBkaWQuICBUdXJuZWQNCgk+IG91dCBnb29kIGJl
Y2F1c2UgSSBqdXN0IHJlcGxhY2VkIG9uZSBvZiB0aGUgZml0dGluZ3MgdG8gbWFrZSBzdXJlIEkN
Cgk+IGhhZCBhIGdvb2Qgb25lIG9uIHRoZXJlLiAgQnV0LCBvbiB0aGUgb3RoZXIgaGFuZCwgaXQg
Y2FuIHNvbWV0aW1lcyBiZQ0KCT4gaGFyZCB0byBnZXQgYW4gTlBUIGZpdHRpbmcgYWxpZ25lZCB3
aGVyZSB5b3Ugd2FudCBpdCB3aXRob3V0IGl0IGJlaW5nDQoJPiB0b28gdGlnaHQgb3IgdG9vIGxv
b3NlLi4uLnNvIHlvdSBtYXkgY29uc2lkZXIgb3JkZXJpbmcgdGhlaXINCgk+IGRvd250dXJuZWQg
QU4gZml0dGluZ3MuICBJZiBpdCB3ZXJlIE1FIGJ1eWluZyBpdCwgSSBndWVzcyBJJ2QgYnV5IGl0
DQoJPiB3aXRoIHRoZSBBTiB0eXBlIGJ1aWx0LWluIGZpdHRpbmdzLCBidXQgSSdkIHNwbHVyZ2Ug
YW5kIGJ1eSBhIHNwYXJlLg0KCT4gSSBhYnNvbHV0ZWx5IGhhdGUgYmVpbmcgZ3JvdW5kZWQgZm9y
IHN0dXBpZCB0aGluZ3MgbGlrZSB0aGF0LCBhbmQNCgk+IHNpbmNlIEFuZGFpciBpcyB5b3VyIHNv
bGUtc291cmNlIGZvciB0aGUgYnVpbHQtaW4gZml0dGluZ3MsIEknZA0KCT4gZGVmaW5pdGVseSBv
cmRlciBhIHNwYXJlIGlmIHlvdSBnbyB0aGF0IHJvdXRlLg0KCT4NCgk+IFRpbSBPbHNvbiAtIFJW
LTEwIE4xMDRDRA0KCT4NCgk+DQoJPg0KCT4gUGVycnksIFBoaWwgd3JvdGU6DQoJPj4gSSBhbHNv
IHNlZSBhIDNecmQgcXVlc3Rpb24gbm93Li4uLi4uLg0KCT4+DQoJPj4NCgk+Pg0KCT4+IEkgdGhv
dWdodCB0aGUgZXh0ZW5zaW9uIHdvdWxkIGJlIGEgcHJldHR5IHNpbXBsZSBjaG9pY2UgYmV0d2Vl
biA2Ig0KCT4+IG9yIDEyIiwgYnV0IEkgd2FzIHdyb25nLg0KCT4+DQoJPj4NCgk+Pg0KCT4+IElz
IHRoZXJlIGFueSBuZWVkIGZvciBVbml2ZXJzYWwgSm9pbnRzIGF0IHRoZSBWYWx2ZSBvciBIYW5k
bGU/DQoJPj4NCgk+PiBJIGRvdWJ0IGl0LiAgSXQgc2hvdWxkIGJlIGEgc3RyYWlnaHQgc2hvdCB1
cCB0aHJvdWdoIHRoZSB0dW5uZWwNCgk+PiBjb3Zlci4NCgk+Pg0KCT4+DQoJPj4NCgk+PiBGaW5h
bGx5IGhlcmUgaXMgYSBjaGVja2JveCBmb3IgYSAiQ291cGxlciBKb2ludCIsIGJ1dCB0aGVyZSBp
cyBubw0KCT4+IGRlc2NyaXB0aW9uIG9mIHdoYXQgaXQgaXMuLi4NCgk+Pg0KCT4+IEFueSBpZGVh
cz8NCgk+Pg0KCT4+DQoJPj4NCgk+PiBQaGlsDQoJPj4NCgk+Pg0KCT4+DQoJPj4gKkZyb206KiBQ
ZXJyeSwgUGhpbCAqU2VudDoqIE1vbmRheSwgTWFyY2ggMjksIDIwMTAgOTo1NSBBTSAqVG86Kg0K
CT4+IHJ2MTAtbGlzdEBtYXRyb25pY3MuY29tICpTdWJqZWN0OiogRnVlbCBSZWxhdGVkIEl0ZW1z
DQoJPj4NCgk+Pg0KCT4+DQoJPj4gSSd2ZSBwdXQgaXQgb2ZmIGFzIGxvbmcgYXMgSSBjYW4uICBO
b3cgSSdtIGdldHRpbmcgcmVhZHkgdG8gd3JpdGUNCgk+PiB0aGUgY2hlY2sgZm9yIHRoZSBBbmRh
aXIgRnVlbCBWYWx2ZS4NCgk+Pg0KCT4+DQoJPj4NCgk+PiBPcmRlcmluZyBmcm9tIHRoZSBBbmRh
aXIgc2l0ZSwgeW91IGNhbiBjdXN0b21pemUgdGhlIHZhbHZlIHdpdGggdGhlDQoJPj4gIGFwcHJv
cHJpYXRlIGZpdHRpbmdzLiAgV2hpY2ggbGVhZHMgbWUgdG8gdGhlIGZpcnN0IHF1ZXN0aW9uLg0K
CT4+DQoJPj4NCgk+Pg0KCT4+IDEpICAgICAgQXJlIG1vc3QgcGVvcGxlIHVzaW5nIHRoZSDDgsK8
IiBOUFQgKEZFTUFMRSkgZml0dGluZ3Mgb24gYWxsIDMNCgk+PiAgY29ubmVjdGlvbnMgb2YgdGhl
IEZTMjB4Nz8NCgk+Pg0KCT4+IGEuICAgICAgIFRoaXMgY3JlYXRlcyBhIHBhcnQgbnVtYmVyIG9m
IEZTMjBmN0YuDQoJPj4NCgk+Pg0KCT4+DQoJPj4gRmluYWxseSBJJ20gZ29pbmcgdG8gY3VzdG9t
aXplIHRoZSBmYWNlIHBsYXRlLiAgVGhpcyBsZWFkcyBtZSBpbnRvDQoJPj4gdGhlIG5leHQgcXVl
c3Rpb24uDQoJPj4NCgk+Pg0KCT4+DQoJPj4gMikgICAgICBWYW4ncyBzYXlzIHRoZSBmdWVsIGNh
cGFjaXR5IG9mIHRoZSBSVi0xMCBpcyA2MCBnYWxsb25zDQoJPj4gMzAvMzAuIElzIHRoaXMgdGhl
IHVzYWJsZSBmdWVsIG9yIHRoZSB0b3RhbCBjYXBhY2l0eT8NCgk+Pg0KCT4+IGEuICAgICAgIEkn
ZCBsaWtlIHRvIHBsYWNhcmQgdXNhYmxlIGZ1ZWwgb24gdGhlIHNlbGVjdG9yLg0KCT4+DQoJPj4N
Cgk+Pg0KCT4+DQoJPj4NCgk+PiBUaGFua3MsDQoJPj4NCgk+PiBQaGlsDQoJPj4NCgk+Pg0KCT4+
DQoJPj4NCgk+Pg0KCT4+ICoNCgk+Pg0KCT4+DQoJPj4gKg0KCT4NCgk+DQoJPg0KCT4NCgk+DQoJ
Pg0KCT4NCgk+DQoJPjxzcDsgICAgICAgICAtIFRoZSBSVjEwLUxpc3QgRW1haWwgRnRyb25pY3Mu
Y29tL05hdmlnYXRvcj9SVjEwLUxpc3QiIHRhcmdldD1fYmxhbmsgcmVsPW5vZm9sbG93Pmh0dHA6
Ly93d3cudDsgX25ic3A7ICAgICAgICAgICAgICAgICAgICAgICAgJjovL3d3dy5tYXRyb25pY3Mu
Y29tL2NvbnRyaWJ1dGlvbiIgdGFyZ2V0PV9ibGFuayByZWw9bm9mb2xsb3c+aHR0cDovL3d3PT09
PT09PT09PT09PT09PT09PT09PT0NCgkNCgkNCgkNCgkNCgk8aHR0cDovL2ZvcnVtcy5tYXRyb25p
Y3MuY29tLz4gDQoNCgnCpsK34oC6fuKAsMOtwrIsw55nKOKAk8Wgw5NNNMOTR8OaccO8wqLDqsOi
esK5w57DgcOKLsKuJ8KrOF5FXXQuKy1mwqLigJ1aK8K6dMKxw6theMOGwq3CruKAsMOicsOCw6LC
ssORXmrDm8KresODWsK+KMK2xaDDrcKhwrrDqMOCw4fCtsKmanzigLnFoMOLbsK2KWLCtifCrMKy
w6chasOCw6LCssOVJ8O9K+KAusKxw4rDosKmw5jCqMWTK3LCr3knxaHCrcOIQ8KjIMOlwqHCp3sg
wqzvv73CrsWSLHgoWsK0UCA8aHR0cDovL2ZvcnVtcy5tYXRyb25pY3MuY29tLz4gDQoNCiANCg0K
IA0KDQogDQogDQpfLT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PT09PQ0KXy09ICAgICAgICAgIC0gVGhlIFJWMTAtTGlzdCBFbWFpbCBGb3J1
bSAtDQpfLT0gVXNlIHRoZSBNYXRyb25pY3MgTGlzdCBGZWF0dXJlcyBOYXZpZ2F0b3IgdG8gYnJv
d3NlDQpfLT0gdGhlIG1hbnkgTGlzdCB1dGlsaXRpZXMgc3VjaCBhcyBMaXN0IFVuL1N1YnNjcmlw
dGlvbiwNCl8tPSBBcmNoaXZlIFNlYXJjaCAmIERvd25sb2FkLCA3LURheSBCcm93c2UsIENoYXQs
IEZBUSwNCl8tPSBQaG90b3NoYXJlLCBhbmQgbXVjaCBtdWNoIG1vcmU6DQpfLT0NCl8tPSAgIC0t
PiBodHRwOi8vd3d3Lm1hdHJvbmljcy5jb20vTmF2aWdhdG9yP1JWMTAtTGlzdA0KXy09DQpfLT09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PQ0KXy09ICAgICAgICAgICAgICAgLSBNQVRST05JQ1MgV0VCIEZPUlVNUyAtDQpfLT0gU2FtZSBn
cmVhdCBjb250ZW50IGFsc28gYXZhaWxhYmxlIHZpYSB0aGUgV2ViIEZvcnVtcyENCl8tPQ0KXy09
ICAgLS0+IGh0dHA6Ly9mb3J1bXMubWF0cm9uaWNzLmNvbSA8aHR0cDovL2ZvcnVtcy5tYXRyb25p
Y3MuY29tLz4gDQpfLT0NCl8tPT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
PT09PT09PT09PT09PT09PT09PT09DQpfLT0gICAgICAgICAgICAgLSBMaXN0IENvbnRyaWJ1dGlv
biBXZWIgU2l0ZSAtDQpfLT0gIFRoYW5rIHlvdSBmb3IgeW91ciBnZW5lcm91cyBzdXBwb3J0IQ0K
Xy09ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgLU1hdHQgRHJhbGxlLCBMaXN0IEFkbWlu
Lg0KXy09ICAgLS0+IGh0dHA6Ly93d3cubWF0cm9uaWNzLmNvbS9jb250cmlidXRpb24NCl8tPT09
PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09PT09
DQogDQoNCiANCg0KX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX18NCg0KSG90bWFpbDog
UG93ZXJmdWwgRnJlZSBlbWFpbCB3aXRoIHNlY3VyaXR5IGJ5IE1pY3Jvc29mdC4gR2V0IGl0IG5v
dy4gPGh0dHA6Ly9jbGsuYXRkbXQuY29tL0dCTC9nby8xOTYzOTA3MTAvZGlyZWN0LzAxLz4gDQoN
Cn4sIA0KX19fX19fX19fX19fX19fX19fX19fX19fX19fX19fX18NCg0KZydre3cvDQoNCg=
Message 35
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Johnson Creek, Idaho |
Here is the lodge you were talking about. My wife and I rode our mountain bikes
to it. It is around 5-8 miles up-creek from Johnson's Creek.
You could easily borrow the courtesy van from Johnson Creek to go up and visit
them, I'm sure they will come pick up at Johnson's Creek.
This is the plane that flys into Johnson Creek to drop off the guests. (see attached)
http://www.wapitimeadowranch.com/index.htm
Scott Schmidt
scottmschmidt@yahoo.com
________________________________
From: Albert Gardner <ibspud@roadrunner.com>
Sent: Mon, March 29, 2010 6:14:31 PM
Subject: RE: RV10-List: Johnson Creek, Idaho
I'm planning on Johnson Creek this summer but Grandma, Mom, and the baby don't
want to camp. Grandpa, Dad, and the kids are looking forward to a few nights in
the tent. I have heard that there is a lodge there or at least near there so
that both groups can be happy. Is that the case? If so, has anyone stayed at
the lodge?
Albert Gardner
N991RV
Yuma, AZ
Message 36
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Johnson Creek, Idaho |
Albert, if you are on a budget, the General Store in Yellow Pine has rooms for
rent.
http://www.ruralnetwork.net/~yptimes/page5.html
http://www.harmonicacontest.com/
--------
Andy Turner
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292324#292324
Message 37
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Gear intersection fairing - bonding lower fairing to wheel |
pant
Bill,
I bonded the intersection fairings. I'll try to send some pictures
tomorrow, but Lew's pictures tell the whole story. What wasn't intuitive,
at least not to me, is that the split line of the intersection fairing has
to be forward of the wheel pant split line so the front half of the wheel
pant can full forward off the gear leg fairing. Once you start working with
it you'll see the problem.
I couldn't tell from Geoff's pictures if he did that too or if he has
another solution. Either way, very nice.
Dave Saylor
AirCrafters LLC
140 Aviation Way
Watsonville, CA 95076
831-722-9141 Shop
831-750-0284 Cell
On Mon, Mar 29, 2010 at 2:29 PM, Bill Mauledriver Watson <
MauleDriver@nc.rr.com> wrote:
> MauleDriver@nc.rr.com>
>
> I seem to recall that a few people have bonded the lower intersection
> fairing to the wheel pant but can't remember who. If you've done it and
> have some pics, please share or point me to them.
>
> It's starting to make some sense to me right now.
>
> Thanks
> Bill "pants on the ground" Watson
>
>
Message 38
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Gear intersection fairing - bonding lower fairing to wheel |
p
Bill,
My version of wheel pants.
Jim Berry
40482
N15JB
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=292330#292330
Attachments:
http://forums.matronics.com//files/p1010093_816.jpg
http://forums.matronics.com//files/p1010088_201.jpg
http://forums.matronics.com//files/p1010087_213.jpg
http://forums.matronics.com//files/p1010086_140.jpg
http://forums.matronics.com//files/p1010085_176.jpg
http://forums.matronics.com//files/p1010083_186.jpg
http://forums.matronics.com//files/p1010082_134.jpg
Message 39
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Gear intersection fairing - bonding lower fairing to wheel |
pant
Hey Bill,
Here are a couple more of the pants in the painting process. They turned
out pretty good. Another thought: since this adaptation incorporates the
alignment of the strut pants, be diligent with getting all that lined up
before glassing. Once it is done ... it's done! Again, if you've tackled
the plexi and windshield fairing -- you can do this, just take your time.
It is tedious now, but saves much later.
Why don't you consider driving the Maule down to Greenville (SC) to check us
out soon? First flight should be any day now if the weather will cooperate!
Later, - Lew
do not archive
----- Original Message -----
From: "Bill Mauledriver Watson" <MauleDriver@nc.rr.com>
Sent: Monday, March 29, 2010 5:29 PM
Subject: RV10-List: Gear intersection fairing - bonding lower fairing to
wheel pant
> <MauleDriver@nc.rr.com>
>
> I seem to recall that a few people have bonded the lower intersection
> fairing to the wheel pant but can't remember who. If you've done it and
> have some pics, please share or point me to them.
>
> It's starting to make some sense to me right now.
>
> Thanks
> Bill "pants on the ground" Watson
>
>
>
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
