Today's Message Index:
----------------------
1. 04:45 AM - Re: 912 water pump nipples (Zed Smith)
2. 05:19 AM - Re: SORT OF AIRCRAFT RELATED (Larry Portouw)
3. 05:55 AM - Re: Re: SORT OF AIRCRAFT RELATED (Steve Hulland)
4. 07:12 AM - Re: Water pump housing Rotax 912S with new "Ring Mount" for CH701 (Mike Fothergill)
5. 07:30 AM - Re: Build both wings at once? (CH701) (4rcsimmons@comcast.net (Rich Simmons))
6. 07:47 AM - 601XL Fuselage Build Question (DaveG601XL)
7. 08:02 AM - Re: Bend Radii (Wade Jones)
8. 08:15 AM - Re: 601XL Fuselage Build Question (Paul Mulwitz)
9. 08:31 AM - Re: 601XL Fuselage Build Question (Gig Giacona)
10. 08:34 AM - Re: Build both wings at once? (CH701) (Gig Giacona)
11. 08:42 AM - Re: 601XL Fuselage Build Question (Jaybannist@cs.com)
12. 08:52 AM - Re: 601XL Fuselage Build Question ()
13. 09:02 AM - Re: CH 701 part 7H2-6 (ricklach)
14. 09:52 AM - Re: Water pump housing Rotax 912S with new "Ring Mount" for CH70 (phd1993)
15. 11:12 AM - Re: 601XL Fuselage Build Question (Craig Payne)
16. 11:35 AM - Glider Towing with 601XL (Martin Pohl)
17. 11:40 AM - 701 wing spar caps (Ryan Vechinski)
18. 11:58 AM - Re: 601XL Fuselage Build Question (Edward Moody II)
19. 12:25 PM - Re: 601XL Fuselage Build Question (DaveG601XL)
20. 12:44 PM - Re: SORT OF AIRCRAFT RELATED ()
21. 01:14 PM - Re: xxx 701 wing spar caps (John Bolding)
22. 01:50 PM - xl for sale-lower price (Jack Russell)
23. 02:06 PM - Re: Re: SORT OF AIRCRAFT RELATED (JOHN STARN)
24. 03:18 PM - Re: sequence of kits (Bill Naumuk)
25. 06:34 PM - New Favorite Tool (Ron Lendon)
26. 06:34 PM - what to do with my pitot (Skip Perry)
27. 07:12 PM - Re: what to do with my pitot (Paul Mulwitz)
28. 08:02 PM - Re: New Favorite Tool (LHusky@aol.com)
29. 09:16 PM - Re: what to do with my pitot (Ron Lendon)
30. 09:19 PM - 801 Wing Chord (Dave Ruddiman)
Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 912 water pump nipples |
The "industrial strength" heat gun (resembles a hair dryer) may provide enough
heat to do the job.
Possibly you can beg, borrow, steal an infrared temperature sensor (Sears, etc)
to check progress.
It has been eight or nine years since I re-positioned one, but I did use the heat
gun and just don't recall that it was a big deal.
Bear in mind that when originally installed the Loctite was liquid and the big
guy on the wrench was doing the "mechanical" tightening......you'll be working
against that AND the Loctite; therefore the need for heat to defeat the glue.
Regards,
Zed/701/R912/90+%/do not archive
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: SORT OF AIRCRAFT RELATED |
Steve,
Closest Airport is Libby Army Airfield. It's joint use with the City of Sierra
Vista. Three runways, longest is 12,001 feet (capable of taking the space shuttle).
Don't let the restricted airspace dissuade you-- listen to ATIS. R doesn't
exist when the tower is closed. If open, call approach well out and they
will clear you in. Best way is to come down Hwy 90 from the Benson area. There
is a cutout in the airspace up to 7000' that you will see on the chart. Key
reporting point is the "North-Y" shown on the chart north of the airfield. From
you location, you could come east via Sonoita and under the R shelf (below
7000', only the closest in segment touches the ground). You probably can't come
direct because the western end of the airspace is where the Army does UAV training.
If no UAVs are up, approach will clear you direct, just gotta ask. The
circular restricted area SE of Sierra Vista is an aerostat. Big cable underneath
it to the ground and it is always active.
Please come on down. I'll send a phone number off-list. I'd love to see your
project. We've got a good EAA Chapter here.
Larry
Do not archive
[quote="marinegunner(at)gmail.com"]Larry,
Have to fly the 600 down your way after it is flying and the fly off is complete
- later this spring. What airport is closest to your new house?
--
Semper Fi,
Steven R. Hulland
CH 600 Taildragger
Amado, AZ
> [b]
--------
Larry Portouw
601XL Kit (H. Stab)
PA-22 N8141C
Fort Huachuca, AZ
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85151#85151
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: SORT OF AIRCRAFT RELATED |
Larry,
Thanks for the info. Tells me kinda where your house is. Have flown into
Libby before - many years ago. Also Herford, Narco, Chocise, Douglas (both).
The update on Libby's airspace is a big help. Fought wildland fires all over
that area too!
Will post to net next time I plan on flying that way in the 600. Once it is
flying.
--
Semper Fi,
Steven R. Hulland
CH 600 Taildragger
Amado, AZ
This and all other incoming/outgoing email, attachments and replies scanned
prior to opening/sending and uses an external firewall to help insure virus
free email and attachments.
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Water pump housing Rotax 912S with new "Ring Mount" |
for CH701
Hi;
I have rotated these nipples on the 912S by heating them with a heat
gun. Use a wooden dowel fitted to the inside of the nipple to get some
leverage to rotate them. It is not a difficult task.
Have fun.
Mike
UHS Spinners
Ch-601HDS 1000+hours
Harrison-Hutcheson wrote:
> Need feedback and help on a slight problem. Recently picked-up from
> Zenith factory the newly released FWF package and a Rotax 912S. When
> following the instructions on mounting the new Ring Mount to the 912S I
> determined the water pump housing hose nipples for the left side of the
> engine (from the back) are positioned such that: 1) the mount cannot be
> reinstalled due to one of the hose nipples hitting one of the structural
> ring mount brackets, and 2) the other left side hose nipple does not
> provide for adequate clearance/routing of the connecting hose.
>
> The Heavy Maint manual indicates these hose nipples are held in place
> with Loctite 648 and the part needs to be heated to 180F in order to
> remove the hose nipples. I am at a loss on the best way to complete
> this task. Do I take a small butane torch and heat the area directly
> around the hose nipple? Do I place the water pump housing in the oven
> and heat to the desired temp? Do I take the housing and put it in
> boiling water?
>
> My fear about the torch is somehow warping the housing by the uneven
> heating.
>
> Anyone have a suggestion, or have they faced a similar problem? Will
> also send a request to Zenith Tech Support to see what they suggest.
>
> Thanks in advance,
>
> Sam Hutcheson
> CH701 from kit
> Final Assembly in progress
>
> DO NOT ARCHIVE
>
>
>
>
>
>
> ------------------------------------------------------------------------
>
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Build both wings at once? (CH701) |
Ron,
myself, I built LH first since it is the most complicated with lights etc..
I did modify all L/H and R/H ribs as required while building the LH wing. Form
this, when you get to the opposing side the time difference on what you spend
on the second wing is measurably different to your favor.
Good Luck
Tail done
Wings 99%
Fuselade ordered! Feb 06 shipping date!
Don not archive
--
Thanks,
Rich Simmons
<html><body>
<DIV>Ron,</DIV>
<DIV> </DIV>
<DIV>myself, I built LH first since it is the most complicated with lights etc..</DIV>
<DIV> </DIV>
<DIV>I did modify all L/H and R/H ribs as required while building the LH wing.
Form this, when you get to the opposing side the time difference on what you spend
on the second wing is measurably different to your favor.</DIV>
<DIV> </DIV>
<DIV>Good Luck</DIV>
<DIV>Tail done</DIV>
<DIV>Wings 99%</DIV>
<DIV>Fuselade ordered! Feb 06 shipping date!</DIV>
<DIV> </DIV>
<DIV>Don not archive</DIV>
<DIV> </DIV>
<DIV> </DIV>
<DIV class=signature id=signature>--<BR>Thanks, <BR>Rich Simmons</DIV>
<pre><b><font size=2 color="#000000" face="courier new,courier">
</b></font></pre></body></html>
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | 601XL Fuselage Build Question |
I have a 601XL Fuselage kit coming my way at the end of the month and I am researching
the archives for all hints, tips and tricks I can find. One item I have
seen briefly mentioned, but not in a lot of detail, was the suggestion of adding
another access panel in the rear area of the fuselage. Does anybody have
a description or picture of what you did that worked out well for you?
Thanks,
Dave Gallagher
601XL, wings and tail completed
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85179#85179
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
Thanks Larry ,Bill, Paul (and all others) who responded to my bend radii
post . Wade
Do not archive
----- Original Message -----
From: "LarryMcFarland" <larry@macsmachine.com>
Sent: Monday, January 01, 2007 4:43 PM
Subject: Re: Zenith-List: Bend Radii
>
>
> Wade,
> If your bend falls within the AC range and the piece you've bent is not a
> working control link, you should be fine. If it's a critical part
> where radius affects function you should best speak with Nick at ZAC .
>
> Larry McFarland - 601HDS at www.macsmachine.com
> do not archive
>
> Wade Jones wrote:
>> Hello Group ,and a Happy New Year .I have been very careful to maintain
>> the .125 bend radius required by Zenith .The AC.43.13 call for a 90o bend
>> radius of 1/2t-1 1/2t for .032 6061-T6 .This could be as small as .016
>> to .047 .In the chance that the Zenith required .125 radius was violated
>> and the AC specs. were maintained would there be any problems .I realize
>> this is a question for ZAC ,however I thought maybe I could get some feed
>> back from the group . Thanks Wade
>> *=====================================
>>
>> *
>
>
>
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 601XL Fuselage Build Question |
Hi Dave,
The current kit includes a large door in the fuselage bottom. I went
ahead and built mine according to the plans without adding anything
in that area.
I am currently working on the center console between the seats and
wonder how I will access the cable terminations contained there. I
am also trying to figure out how to give good access to the rear of
the instrument panel. Many builders have taken different actions in
both of those areas, and the plans still don't include any features
for access to these areas after the plane is built.
Good luck,
Paul
XL fuselage
do not archive
At 07:47 AM 1/3/2007, you wrote:
>
>I have a 601XL Fuselage kit coming my way at the end of the month
>and I am researching the archives for all hints, tips and tricks I
>can find. One item I have seen briefly mentioned, but not in a lot
>of detail, was the suggestion of adding another access panel in the
>rear area of the fuselage. Does anybody have a description or
>picture of what you did that worked out well for you?
>
>Thanks,
>
>Dave Gallagher
>601XL, wings and tail completed
>
---------------------------------------------
Paul Mulwitz
32013 NE Dial Road
Camas, WA 98607
---------------------------------------------
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 601XL Fuselage Build Question |
As Paul mentioned the new kit has a large rear access door on the bottom. I got
the kit from Zenith and added it and it has made things a lot easier during the
build.
I made one change to the design and the change. I did away with the hinge. There
is really no reason for it and it just gets in the way when you are going to
use it. For photos go look in the fuselage section of my website.
--------
W.R. "Gig" Giacona
601XL Under Construction
See my progress at www.peoamerica.net/N601WR
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85190#85190
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Build both wings at once? (CH701) |
That's funny. I did it the other way around for exactly the same reason.
DO NOT ARCHIVE
4rcsimmons(at)comcast.net wrote:
> Ron,
>
> myself, I built LH first since it is the most complicated with lights etc..
>
>
--------
W.R. "Gig" Giacona
601XL Under Construction
See my progress at www.peoamerica.net/N601WR
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85191#85191
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 601XL Fuselage Build Question |
Dave, I also have a drawing of the forward top skin access panel if you want it.
Jay in Dallas
Do not archive
Paul Mulwitz <p.mulwitz@worldnet.att.net> wrote:
>
>Hi Dave,
>
>The current kit includes a large door in the fuselage bottom. I went
>ahead and built mine according to the plans without adding anything
>in that area.
>
>I am currently working on the center console between the seats and
>wonder how I will access the cable terminations contained there. I
>am also trying to figure out how to give good access to the rear of
>the instrument panel. Many builders have taken different actions in
>both of those areas, and the plans still don't include any features
>for access to these areas after the plane is built.
>
>Good luck,
>
>Paul
>XL fuselage
>do not archive
>
>
>At 07:47 AM 1/3/2007, you wrote:
>>
>>I have a 601XL Fuselage kit coming my way at the end of the month
>>and I am researching the archives for all hints, tips and tricks I
>>can find. One item I have seen briefly mentioned, but not in a lot
>>of detail, was the suggestion of adding another access panel in the
>>rear area of the fuselage. Does anybody have a description or
>>picture of what you did that worked out well for you?
>>
>>Thanks,
>>
>>Dave Gallagher
>>601XL, wings and tail completed
>>
>
>---------------------------------------------
>Paul Mulwitz
>32013 NE Dial Road
>Camas, WA 98607
>---------------------------------------------
>
>
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 601XL Fuselage Build Question |
The pro side of the rear panel idea is that you can easily use platenuts and screws
to make a slick opening in one or the other side skin back there and gain
wonderful access to the lower elevator horn area. The down side is that's a bad
place to add weight.... very far from the CG. Bottom line is that Chris Heintz
didn''t feel it was needed so it is an elective thing. If you are adding something
elective to the plane, throw it up in the air...... if it comes back
down it's probably too heavy.
Ed Moody II
Rayne.LA
601XL/Jabiru/flap motor
---- DaveG601XL <david.m.gallagher@ge.com> wrote:
> I have a 601XL Fuselage kit coming my way at the end of the month and I am researching
the archives for all hints, tips and tricks I can find. One item I
have seen briefly mentioned, but not in a lot of detail, was the suggestion of
adding another access panel in the rear area of the fuselage.
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CH 701 part 7H2-6 |
Hi JG,

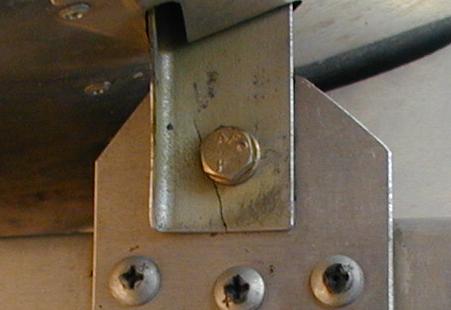

Here is a photo of right forward mount. They were very visable. So checking for
cracks is now a part of every pre-flight.
Rick
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85198#85198
Attachments:
http://forums.matronics.com//files/cracked_rt_stab_mt_130.jpg
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Water pump housing Rotax 912S with new "Ring Mount" for |
CH70
Trick with hairdryer worked great - made slight corrections to hose nipple angles
and everything fit OK. Tight fit on hoses, but workable.
Much thanks,
Sam H.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85209#85209
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | 601XL Fuselage Build Question |
One reason for the hatch in the back is that planes with heavier engines put
the battery back there.
-- Craig
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Glider Towing with 601XL |
Hi folks
Does anybody know of an XL that has a glider towing winch installed? Are there
any plans for this installation? And how about stress/load analysis data?
There are quite some LSA planes here in Europe that are used for glider towing
(e.g. Remos), but I am not sure about the Zodiac XL.
Cheers from Switzerland
Martin
--------
Martin Pohl
Zodiac XL QBK
8645 Jona, Switzerland
www.pohltec.ch/ZodiacXL
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85225#85225
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | 701 wing spar caps |
Ok, I'm going to start building my wing spars. As most 701 builders know, the
cap angles (7V2-2 & 3) are a non-standard thickness, special made for Zenith (from
what I've heard). I have heard other people using 3/4 x 3/4 x 1/8" angle
for the caps, instead of the .093" thick, which is what I want to do. I will
be asking Zenith approval for this, but I was trying to figure out the new solid
rivet length. Using 1.5 times the rivet diameter as the length protruding
before riveting, I came up with 6.144 sixteenths of an inch for a rivet length.
(AN-470-5-6.144) Does this mean I use AN-470-5-7, or is it close enough to
stay with the AN-470-5-6? What have others done?
Ryan
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 601XL Fuselage Build Question |
That makes sense. Since I'm using the Jabiru which is fairly light, my
mission is to keep the weight minimal and keep what I absolutely need as
close to the cg as possible.
Ed
Do Not Archive
----- Original Message -----
From: Craig Payne
To: zenith-list@matronics.com
Sent: Wednesday, January 03, 2007 1:11 PM
Subject: RE: Zenith-List: 601XL Fuselage Build Question
<craig@craigandjean.com>
One reason for the hatch in the back is that planes with heavier
engines put
the battery back there.
-- Craig
--
1/3/2007 1:34 PM
Message 19
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 601XL Fuselage Build Question |
Ok, I think I have my plan based on all of your great input. Due to the lower
access door it looks like getting in the aft part of the fuselage is easier now
than it was earlier on in the design.
Thanks a lot!
--------
David Gallagher
601 XL, tail and wings completed
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85235#85235
Message 20
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: SORT OF AIRCRAFT RELATED |
=0AAfter reading some of the resumes of people who actually know wh
at all those funny looking tools are for, I hesitate to even open my m
outh any more. (He who knows not, and knows not that he..............)
I'm retired Air Force, having spent most of my career as an OSI agen
t, and finished up as Chief of Intelligence in a SAC missile Wing. Did
a bunch of industrial engineering, security management, industrial sa
fety, and finally hung it up at 64, wherupon I got my not-very-great A
merican novel ("THOU SHALT KILL") published, and haven't done an hones
t day's work since. Unless you count playing with 601XL parts. But I
did spend almost 25 years' worth of weekends and odd days playing Gras
shopper to an A&P-AI, who tried to teach me a little something about a
ircraft mechanicking. Having fought the FAA through several special is
suances, I decided to sell the Skyhawk and go the LSA route. When I gr
ow up I want to be a 601XL pilot, if I live long enough to finish it.
=0A=0APaul Rodriguez=0A601XL/Corvair=0ALike the Flying Dut
chman, doomed to forever work on the canopy=0ADO NOT ARCHIVE
Message 21
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 701 wing spar caps |
If you look back in the archives this has been covered several times,
Zenith approves (or at least Chris did to me in a letter) the use of
3/4"x3/4"x1/8" extrusion 6061-T6 in place of the .093. The weight
penalty if you use the 1/8" throughout the airplane is about 4# if
memory serves. I asked if any strength was gained in the wings and he
said no. Use whatever rivets give you the proper finished shop head,
not trying to be cute, sometimes things don't work EXACTLY for some like
they do for others so it's best to do a couple samples with what looks
close and adjust depending on the results. Have fun, John
----- Original Message -----
From: Ryan Vechinski
To: zenith-list@matronics.com
Sent: Wednesday, January 03, 2007 1:40 PM
Subject: xxx Zenith-List: 701 wing spar caps
<brothapig@hotmail.com>
Ok, I'm going to start building my wing spars. As most 701 builders
know, the cap angles (7V2-2 & 3) are a non-standard thickness, special
made for Zenith (from what I've heard). I have heard other people using
3/4 x 3/4 x 1/8" angle for the caps, instead of the .093" thick, which
is what I want to do. I will be asking Zenith approval for this, but I
was trying to figure out the new solid rivet length. Using 1.5 times
the rivet diameter as the length protruding before riveting, I came up
with 6.144 sixteenths of an inch for a rivet length. (AN-470-5-6.144)
Does this mean I use AN-470-5-7, or is it close enough to stay with the
AN-470-5-6? What have others done?
Ryan
Message 22
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | xl for sale-lower price |
Anyone interested in a completed XL . Check out Barnstormers.com and do a search
for zodiac. We just lowered our price to $49995. Got to sell it now. Thanks
jack in los ososo ca
Message 23
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: SORT OF AIRCRAFT RELATED |
Ex-Det. Sgt Fontana PD, plumbing , heating A/C contractor, BA in
Criminal Justice, CalState San Bernardino, Calif. Teaching credential
Chapman University, teacher-coach K-12th grades. ex-CAF Col.( got to
work on Corsair, TBM, AT-6, PT-19 etc) EAA Tech. Counselor, Young Eagles
Coord. Chapter #768. Built & fly HRII N561FS with partner.
Driving 7th Corvette (first one '57 3speed in 1963), current '92 Red LT1
coupe 6 speed. 19 years as "Voice of the Raven's" (Bloomington Christian
High School) until cancer took voicebox. Great friends & family. KABONG
Do Not Archive
----- Original Message -----
From: paulrod36@msn.com
To: zenith-list
Sent: Wednesday, January 03, 2007 12:42 PM
Subject: Zenith-List: Re: SORT OF AIRCRAFT RELATED
Message 24
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: sequence of kits |
If you're looking for a sequence that will give you the most hands-on
skill in the shortest time, start with the stab.
Bill Naumuk
HDS Fuselage
Townville, Pa
Message 25
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | New Favorite Tool |
You know how you get attached to things, tools especially. Well this came to me
over the holidays and I must say it has made everything come together easier,
just like it's name.
I keep it near the work area and use it all the time. I boosts the ego and calms
the nerves also.
See picture:
do not archive
--------
Ron Lendon, Clinton Township, MI
Corvair Zodiac XL, ScrapBuilder ;-)
http://www.mykitlog.com/rlendon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85297#85297
Attachments:
http://forums.matronics.com//files/upper_rear_wing_skin_016_168.jpg
Message 26
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | what to do with my pitot |
I am building a 601XL from a quick build kit and will be nearing the point
where I have to make some pitot decisions. I plan to put in the Dynon D-100
and their website shows an optional pitot that gives angle of attack. My
question is if I am building VFR do should I do it?
I would welcome any comments from those of you who have actually used this
set-up. From the looks of things the AOA pitot uses an angle of attack tube
and a pitot tube but no static tube so I suppose I would have to make my own
static port. The pitot that comes with the kit already has this but will not
work with the AOA. Any real experienced answers would be greatly
appreciated.
Skip Perry
601XL (quick-build with all the first run faults:-))
Fort Myers, Florida
DO NOT ARCHIVE
Message 27
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: what to do with my pitot |
Hi Skip,
I feel your pain.
The AOA has nothing to do with IFR flight. It is used to tell you
how close to a stall your plane is. The notion (I haven't tried it
yet, but I have been lectured continuously for a year or two by
several of my local chapter members) you use the AOA to adjust your
approach speed to allow minimum landing distance without getting too
slow so you stall and crash. It automatically adjusts to different
aircraft loads and weather conditions so you can fly close to the
edge and get maximum results. It also can be used for minimum speed
takeoff and climb.
I think you can purchase the probe from Dynon for installation before
you are ready to buy the big expensive electronic box for your
instrument panel. This is probably a good idea since they will
probably improve the box in the time between your pitot installation
and your first flight. It is best to put off the purchase of any
electronic stuff until you really need it.
I can't give any great advice on the static port question. It is
somewhat a black art to determine how to position one or two of these
things to give you unbiased airspeed and rate of climb
readings. Surely you don't need to do it the way the kit is arranged
to get good results.
Good luck,
Paul
XL fuselage
At 06:33 PM 1/3/2007, you wrote:
>I am building a 601XL from a quick build kit and will be nearing the
>point where I have to make some pitot decisions. I plan to put in
>the Dynon D-100 and their website shows an optional pitot that gives
>angle of attack. My question is if I am building VFR do should I do it?
>
>I would welcome any comments from those of you who have actually
>used this set-up. From the looks of things the AOA pitot uses an
>angle of attack tube and a pitot tube but no static tube so I
>suppose I would have to make my own static port. The pitot that
>comes with the kit already has this but will not work with the AOA.
>Any real experienced answers would be greatly appreciated.
>
>Skip Perry
>
>601XL (quick-build with all the first run faultsJ)
>
>Fort Myers, Florida
Message 28
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: New Favorite Tool |
WOW, I could use one of those right now! As a matter of fact, I could use
about 10 of them positioned strategically around my fuselage. That would make
me feel better.
Larry Husky
601 XL / Fuselage
Do Not Archive
Message 29
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: what to do with my pitot |
Skip,
I was going to begin fabricating one last night but have the same problem you have.
I will be following Pauls suggestion and getting the Pitot / AOA from Dynon.
--------
Ron Lendon, Clinton Township, MI
Corvair Zodiac XL, ScrapBuilder ;-)
http://www.mykitlog.com/rlendon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=85328#85328
Message 30
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
To all you 801 builders I have a question. ZAC lists the wing chord
measurement as 5'3". I don't have my slats or flaps installed. It looks
like it is about 48" or so without them. Do any of you know the actual
measurement with everything put together?
Thanks,
Dave in Salem
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
