Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|

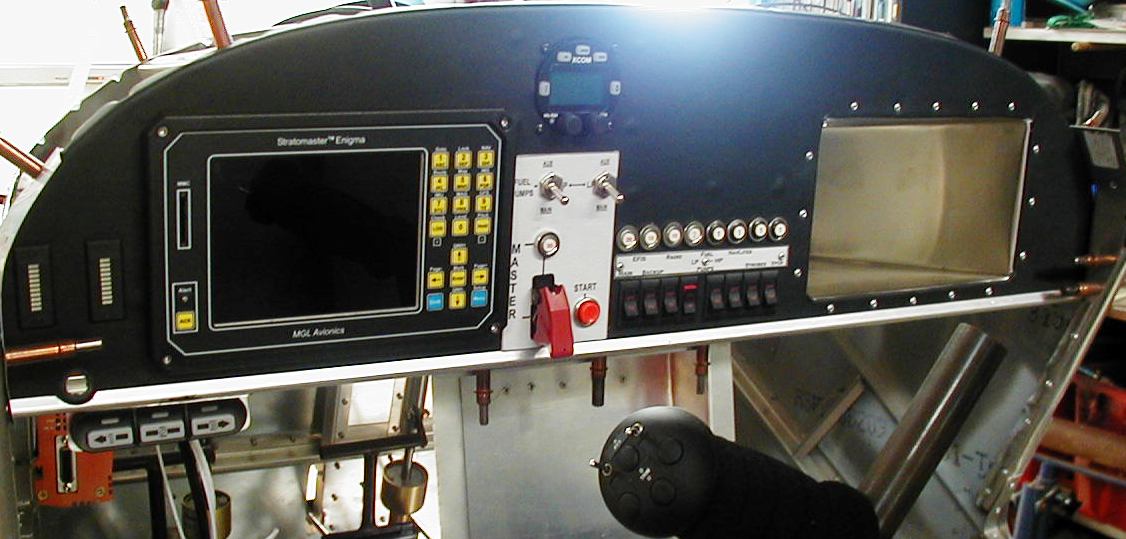

As previously Posted

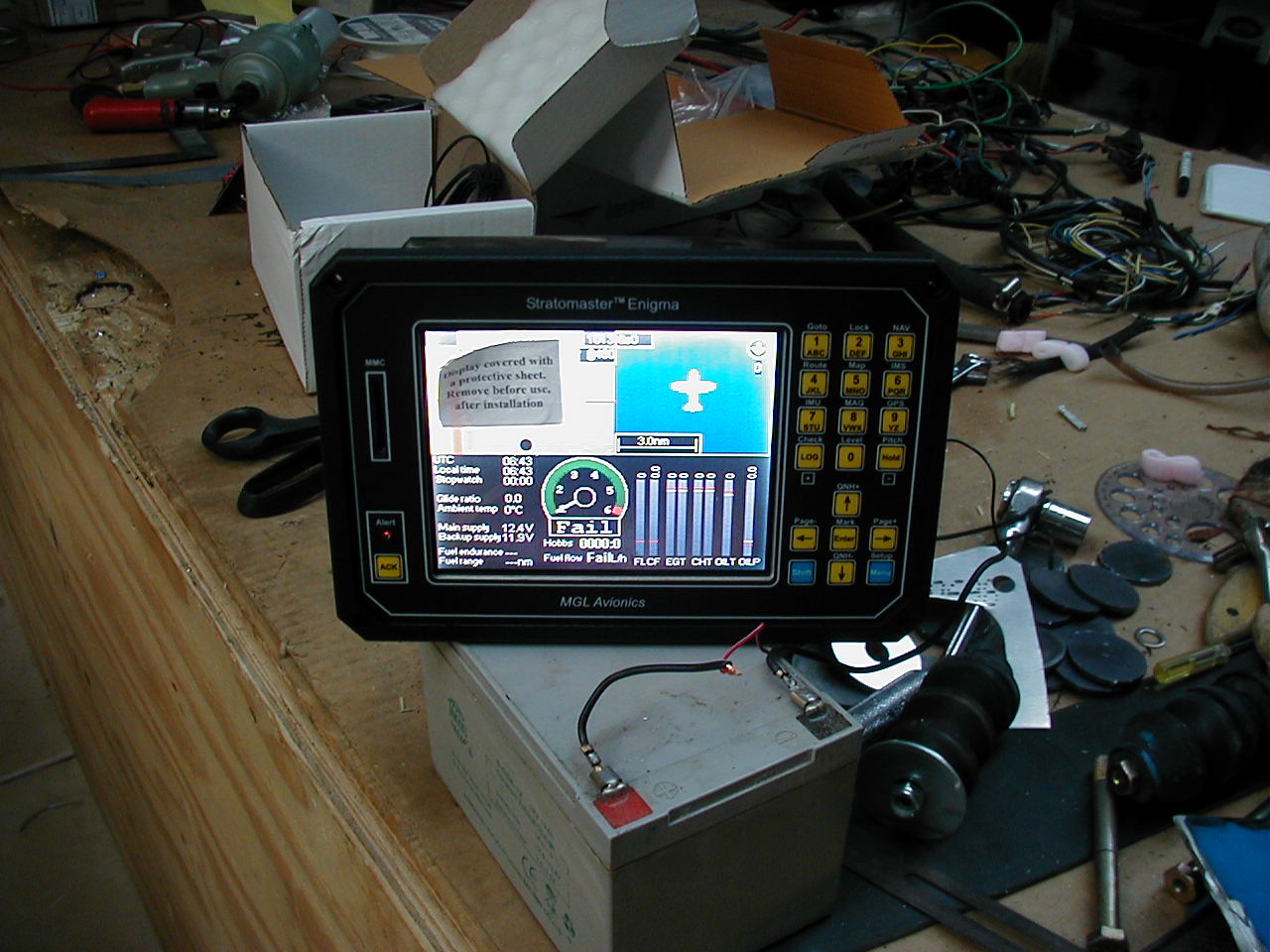

Enigma EFIS/EIS/GPS tec.
XCom Radio/Intercom
Electric Flaps/Trim
Room for Xponder and MGL Flight II if required
Do Not Archive
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=110735#110735
Attachments:
http://forums.matronics.com//files/p3290005_138.jpg
http://forums.matronics.com//files/701panel1_148.jpg
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
I'm not flying yet, so I can't speak from experience!
I have installed the Dynon D100 EFIS and D120 EMS. The EFIS has a battery
backup, so if it all goes dark, I should have at least the flight
instruments.
I ave also a magnetic compass and ASI and Altimeter (both 2.25", so don't
take up much space).
Here in the UK we are limited to daytime/VFR anyway, so I always have the
option of looking outside to make sure I'm the right way up and above
ground.
Dave Johnson
601XL Jab.3300
do not archive
----- Original Message -----
From: "hansriet" <hansinla@mac.com>
Sent: Thursday, May 03, 2007 10:12 PM
Subject: Zenith-List: EFIS
>
> Is there anybody who is going to install or who installed already an EFIS
> (like the Dynon) without an analogue backup of primairy flight
> instruments?
>
> I see the advantage (financially as well as for panel real estate) of
> having an EFIS that's all in one and that includes an HSI. But if you have
> to install analogue instruments as well that kind of defeats the purpose,
> doesn't it?
>
> I would like to hear your thoughts on this.
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
My plane will fly in a year not yet determined. I'm planning to equip it for
night VFR and OTT. My current plan is to use a Dynon D100 as the primary
instrument, backed up by a lift reserve indicator, electric T&B, and GPS. My
thought is that if looking outside isn't enough in the circumstances, I
would maintain safe airspeed using the LRI, altitude using GPS, and wings
level from the T&B. It would be high stress flying!
Dino Bortolin
On 5/3/07, hansriet <hansinla@mac.com> wrote:
>
>
> Is there anybody who is going to install or who installed already an EFIS
> (like the Dynon) without an analogue backup of primairy flight instruments?
>
> <...>
>
> Hans van Riet
>
>
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
I fly a 601XL with a Dynon D-180 on the left side of the panel and a Garmin
396 in the middle. I love everything about the setup (well, except the
price of the backup battery for the Dynon).
My mistake was in not putting a D-10A or some other form of attitude
indicator on the co-pilot's side. Motivated by a sad case of the "cheaps" I
assumed that the screen on the D-180 on the left would be big enough to
allow a pilot on the right side to use it. *Wrongo*. My pilot friends in
the right seat need something to look at. Sporty's backup AI would be an
option and it would give the "backup". But, for the difference in price
between the Sporty's AI and a separate D-10A the D-10A provides a much more
usuable picture with more information and independent backup that gives what
one person on this thread called "dispatch capability." (Assuming, I guess,
a separate pitot).
So, don't make my mistake. Put two screens in if you will ever have a pilot
in the right seat.
--
Frank Derfler
See my views and reviews at www.derfler.biz
See my information for pilots at www.flyinflorida.com
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
I have a Dynon D-100 and D-120. I also have installed a TruTrak Autopilot
that has a horizon and DG, this along with a small altimeter and ASI give m
a good backup. In addition the GPS can be of help. Is this overkill?
Probably. My main backup is this thing called a compass and a map.
Chuck Wacker
N601CW, quick build
>From: "Dave Johnson" <david_a_g_johnson@btinternet.com>
>To: <zenith-list@matronics.com>
>Subject: Re: Zenith-List: EFIS
>Date: Fri, 4 May 2007 10:25:30 +0100
>
><david_a_g_johnson@btinternet.com>
>
>I'm not flying yet, so I can't speak from experience!
>
>I have installed the Dynon D100 EFIS and D120 EMS. The EFIS has a battery
>backup, so if it all goes dark, I should have at least the flight
>instruments.
>
>I ave also a magnetic compass and ASI and Altimeter (both 2.25", so don't
>take up much space).
>
>Here in the UK we are limited to daytime/VFR anyway, so I always have the
>option of looking outside to make sure I'm the right way up and above
>ground.
>
>Dave Johnson
>
>601XL Jab.3300
>do not archive
>
>----- Original Message ----- From: "hansriet" <hansinla@mac.com>
>To: <zenith-list@matronics.com>
>Sent: Thursday, May 03, 2007 10:12 PM
>Subject: Zenith-List: EFIS
>
>
>>
>>Is there anybody who is going to install or who installed already an EFIS
>>(like the Dynon) without an analogue backup of primairy flight
>>instruments?
>>
>>I see the advantage (financially as well as for panel real estate) of
>>having an EFIS that's all in one and that includes an HSI. But if you have
>>to install analogue instruments as well that kind of defeats the purpose,
>>doesn't it?
>>
>>I would like to hear your thoughts on this.
>
>
_________________________________________________________________
Exercise your brain! Try Flexicon.
http://games.msn.com/en/flexicon/default.htm?icid=flexicon_hmemailtaglineapril07
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: hole flanging |
Hello Jerry,
I used used artificial deck wood flange press blocks made
on my drill press and with the support of a press like
Dave's based on an $9 car jack the results look really
good. After a lot of preparation making the three different
sizes and the press flanging a hole now really goes
quickly
Maarten Versteeg
601XL, scratch building wings
> Time: 04:42:37 PM PST US
> From: Jerry Hey <jerryhey@earthlink.net>
> Subject: Zenith-List: hole flanging
>
>
> Does the 2 roller hole flanger sold by ACS work well? Or what is
> the best way to flange lightening holes? Thanks, Jerry
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re:hole flanging |
Beats me. I bought one and I hate it. I obviously have no idea how the damned thing
is supposed to be used.
Dred
---- MaxNr@aol.com wrote:
> I saw a hole flanger on the US Industrial Tool Co. print ad in Trade A Plane.
> It looked like a metal arm with two rollers. How in the world do you use it?
> Do not archive
>
> Bob Dingley
> Pace,FL 601XL/LYC
>
>
> **************************************
> See what's free at
> http://www.aol.com.
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re:hole flanging |
I used home made flanging dies for the holes, but I did use the "hole
flanger" mentioned below for some other stuff....seemed to work much better
with plenty of oil or WD40 on the part.
Gary Boothe
Cool, CA
601 HDSTD, WW Conversion 90% done,
Tail done, wings done, working on c-section
-----Original Message-----
From: owner-zenith-list-server@matronics.com
[mailto:owner-zenith-list-server@matronics.com] On Behalf Of
dredmoody@cox.net
Sent: Friday, May 04, 2007 7:12 AM
Subject: Re: Zenith-List: Re:hole flanging
Beats me. I bought one and I hate it. I obviously have no idea how the
damned thing is supposed to be used.
Dred
---- MaxNr@aol.com wrote:
> I saw a hole flanger on the US Industrial Tool Co. print ad in Trade A
Plane.
> It looked like a metal arm with two rollers. How in the world do you use
it?
> Do not archive
>
> Bob Dingley
> Pace,FL 601XL/LYC
>
>
> **************************************
> See what's free at
> http://www.aol.com.
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Purchase of experimental plane. |
This weeks EAA Hotline email had this. You do have to be an EAA member to get to
the link posted.
Q & A:
Question of the Week
Do you have a "release of liability" form for when you sell a homebuilt aircraft?
Answer:
Great timing! We have just posted a "hold harmless agreement" for you to use for
that very purpose. You must have it reviewed by an attorney before using it.
You can find the release on the EAA members only website.
--------
W.R. "Gig" Giacona
601XL Under Construction
See my progress at www.peoamerica.net/N601WR
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=110802#110802
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Electrical question |
I think I already know that the answer to the following question is "NO" but there
are many of you guys out there who know more about electronics than me so
here goes.
I need to install an SPDT switch to select my right or left aux fuel pumps. The
EXP BUS power panel will provide the "on / off" switching for whichever pump
is selected by the SPDT switch. The problem is this...... the best area for the
switch would be centered directly above the fuel selector valve and in that
location, I have only 1/2" between the back of the panel and one of the fuel line
elbows on the valve. All of the 12VDC rated switches that I have found are
too bulky to fit in that restricted space. I have found several SPDT switches
rated for as much as 10 amps at 120VAC which would fit there easily but I remember
being told long ago that they will heat up too much if I use them for a
12VDC circuit.
Can an AC rated switch be used in this application? Bear in mind that we are talking
about boost pumps which are used for short periods of time and draw maybe
2 amps at 12VDC for a minute or two.
Okay all you electronics whizzes out there..... save a harmless lovable dentist
from himself.
Thanks,
Dred
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Electrical question |
Any switch with an AC rating will have a DC rating - it is just a matter of
finding it. The reason a switch is rated lower for DC than AC AT THE SAME
VOLTAGE is because of the electrical arc formed when the switch is opened.
This is when a lot of the wear occurs. But in an AC circuit the voltage
drops to 0 as the voltage alternates (the "A" in AC) every 1/120 (60 Hz) or
1/100 (50 Hz) of a second. This extinguishes the arc. But you are switching
one tenth of 120 VAC so the arc is reduced.
Take a look at this article from Bob Nuckolls of AeroElectric fame (esp. the
chart at the top of page 2):
www.aeroelectric.com/articles/swtchrat.pdf
Here is the key quote:
"In a nutshell, 125 VAC ratings equate favorably and conservatively to 14
VDC ratings - as long as the switch has a healthy "snap" action . . . all
toggle switches and most rocker switches do. Just because the numbers
stamped on the side of the switch don't mention a DC capability doesn't mean
that the switch doesn't have one. Manufacturers are unable to put ALL of the
information from the chart onto the side of every product, the lettering
would be too small to read!"
-- Craig
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Electrical question |
It's not the steady current flow that causes problems when using AC
rated switches for DC circuits. It's the actual switching process.
Interrupting a DC current is harder on a switch contact than
interrupting AC current. That's why a switch with a 10A AC rating
usually has a much lower DC rating. Those 10A AC switches may work
for a 2A DC circuit but it would be nice if you can find out the DC
rating of those switches.
On May 4, 2007, at 12:00 PM, <dredmoody@cox.net> <dredmoody@cox.net>
wrote:
>
> I think I already know that the answer to the following question is
> "NO" but there are many of you guys out there who know more about
> electronics than me so here goes.
>
> I need to install an SPDT switch to select my right or left aux
> fuel pumps. The EXP BUS power panel will provide the "on / off"
> switching for whichever pump is selected by the SPDT switch. The
> problem is this...... the best area for the switch would be
> centered directly above the fuel selector valve and in that
> location, I have only 1/2" between the back of the panel and one of
> the fuel line elbows on the valve. All of the 12VDC rated switches
> that I have found are too bulky to fit in that restricted space. I
> have found several SPDT switches rated for as much as 10 amps at
> 120VAC which would fit there easily but I remember being told long
> ago that they will heat up too much if I use them for a 12VDC circuit.
>
> Can an AC rated switch be used in this application? Bear in mind
> that we are talking about boost pumps which are used for short
> periods of time and draw maybe 2 amps at 12VDC for a minute or two.
>
> Okay all you electronics whizzes out there..... save a harmless
> lovable dentist from himself.
>
--
Bryan Martin
N61BM, CH 601 XL,
RAM Subaru, Stratus redrive.
do not archive.
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Not Zenith but aviation related |
Hey Paul,
Thanks for the cool link.
do not archive
Dave Clay
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=110827#110827
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 801 Spinners |
Have a look at www.cumminsspinners.com .
----- Original Message -----
From: squiggles
To: zenith-list@matronics.com
Sent: Friday, May 04, 2007 11:00 AM
Subject: Zenith-List: 801 Spinners
Hello All...
I am finally reaching the point of needing to purchase a spinner for
my 801 in preparation of making the cowl this summer. I tried
contacting UHS Spinners, but have been unable to get them to reply to my
queries.
For a 3 blade IVO magnum on an SAE 1 hub, what are the possible
options for purchase? Ideally, I'd like to purchase one which is
already cut out...
Any recommendations?
Thx...
-Scott
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=110698#110698
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Electrical question |
Thanks for the responses regarding the DC rating of an AC rated switch.
Both relpies indicate that the problem point is the arcing that will
happen when the switch is opened or closed. That solved my dilemma. In
my proposed application the AC rated switch is a SPDT switch which will
be used to direct the 12VDC power to either the right or the left boost
pump (I have one facet pump mounted in each wing root next to the tank).
This "fuel pump selector switch" is fed by the fuel pump switch on the
panel, which in my case it is part of the EXP BUS 2V Tray system. So in
this application, the selector switch is activated before the "fuel pump
switch" on the panel is switched on. Therefore there should be no
opening or closing arc at the selector switch. That should make it safe
to use a 125VAC 10 amp switch as the selector switch without burning it
out or welding it closed at a ripe young age.
Thanks again,
Dred
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Purchase of experimental plane. |
Thanks Gig.
Dave Austin 601HDS - 912, Spitfire Mk VIII
Do not archive
----- Original Message -----
From: "Gig Giacona" <wr.giacona@suddenlink.net>
Sent: Friday, May 04, 2007 11:54 AM
Subject: Zenith-List: Re: Purchase of experimental plane.
> <wr.giacona@suddenlink.net>
>
> This weeks EAA Hotline email had this. You do have to be an EAA member to
> get to the link posted.
>
>
> Q & A:
> Question of the Week
> Do you have a "release of liability" form for when you sell a homebuilt
> aircraft?
>
> Answer:
> Great timing! We have just posted a "hold harmless agreement" for you to
> use for that very purpose. You must have it reviewed by an attorney before
> using it. You can find the release on the EAA members only website.
>
> --------
> W.R. "Gig" Giacona
> 601XL Under Construction
> See my progress at www.peoamerica.net/N601WR
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=110802#110802
>
>
>
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Locating engine mount holes |
All-
I know that this question was posted only a couple of weeks ago, but
everything but the answer wound up in the archives.
I just fabricated a firewall from scratch. What's the easiest and
most accurate way of locating the engine mount holes?
Let's make sure the answer gets in the archives this time!
Bill Naumuk
HDS Fuse/Corvair
Townville, Pa
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Locating engine mount holes |
Hi Bill,
I am looking at the same dilemma myself and have decided to just wait until my
engine mount attach
fittings are bolted on and then mark and drill the firewall. That way a couple
of mm one way or the other won't hurt. Good luck.
Terry Turnquist
601XL-Plans
St. Peters, MO
Bill Naumuk <naumuk@alltel.net> wrote:
All-
I know that this question was posted only a couple of weeks ago, but everything
but the answer wound up in the archives.
I just fabricated a firewall from scratch. What's the easiest and most accurate
way of locating the engine mount holes?
Let's make sure the answer gets in the archives this time!
Bill Naumuk
HDS Fuse/Corvair
Townville, Pa
---------------------------------
Ahhh...imagining that irresistible "new car" smell?
Check outnew cars at Yahoo! Autos.
Message 19
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Locating engine mount holes |
Perhaps I am getting this wrong, but I think the notion of where to
put the engine mount on the firewall has nothing to do with the
engine. After all, I am just a kit builder and put the holes for the
engine mount on the firewall according to the plans.
It seems to me the location of the firewall mounting bolts is
dictated by the longerons attached to the fittings on the other side
of the firewall from the engine. It is the longerons that dictate
the location of these holes.
Once the mounting position of the engine mount is fixed by the
fuselage design, it is the problem of the engine mount designer to
build a mount that fits these bolts to the engine itself.
Just my ideas on this subject . . . .
Paul
XL fuselage
At 08:20 PM 5/4/2007, you wrote:
>Hi Bill,
>
>I am looking at the same dilemma myself and have decided to just
>wait until my engine mount attach
>fittings are bolted on and then mark and drill the firewall. That
>way a couple of mm one way or the other won't hurt. Good luck.
>
>Terry Turnquist
>601XL-Plans
>St. Peters, MO
>
>Bill Naumuk <naumuk@alltel.net> wrote:
>All-
> I know that this question was posted only a couple of weeks
> ago, but everything but the answer wound up in the archives.
> I just fabricated a firewall from scratch.
>
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
