Jorge...
I finally reached the point where I have the engine mounted in my Zenith
CH-801. The Instrument Panel with Engine instrumentation is connected. For
the last three weeks I have attempted to start the engine. It was apparent
the injectors and the plugs were not firing. I was assured by your Sales
Manager the engine had been run before it left your factory.
In frustration, we finally removed the ECU to examine it. By this time we
had done a complete continuity check on all of the circuits checking for
good connections and no shorts or grounds. I was confident all of the
connections were good and this proved to be the case. We checked all of the
voltages and they were acceptable. Finally we opened the ECU to look for
any evidence of damage. We found none, but we did discover the manufacturer
of the ECU to be DTA and the model was the PR8 w/Ver 3.0 of the software.
We accessed their site and downloaded their software and manual. I have
been saying we and the we is myself and my son Michael. He is well versed
in software as am I. We have worked with Leading Edge ECUs and
Electromotive TEK II. My son scanned the forum and found a person in Norway
who had had similar troubles as we did with an engine. DTA pointed out that
if there is not a clear Crank Position signal, the ECU will not fire the
injectors or the plugs.
We were suspicious. Now the Crank signal is a magnetic reluctance pick up
as you well know. This is a high impedance, low voltage signal and in such
cases it is prudent to use shielded twisted pair with a drain. You had.
Now one other thing that is sound engineering (I am an Electrical Engineer
by trade) is that you don't ground by ends of the drain. This causes
circulating currents and will induce no end of noise. I found you had
grounded both ends of the shield on the crank sensor signal line. We
clipped the drain at the sensor end and lo and behold the engine started.
DTA also states that one should not put the coils in parallel for wasted
spark applications as this can blow out the coil drivers. Their
installation instructions are to put the two coils in series.
To conclude, I am significantly disappointed and upset at your design and
manufacturing of this engine. You obviously don't understand the proper
design for signal lines and don't seem to follow the instructions from the
DTA ECU designers. It would severely disastrous for a coil driver to blow
at 12000 feet!. It is also apparent the engine had not been run prior to
shipment because you wouldn't have been able to start the engine any more
than I could.
I think you need to notify all of your customers of these issues and
immediately issue corrective instructions.
Jay Caldwell
Caldwell Systems Engineering (CSE), LLC
San Diego, CA 92122
caldwell@mswin.net
Voice 858-453-4594
Facsimile 858-452-1560
Mobile 858-336-0394
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Dynon Remote compass install |

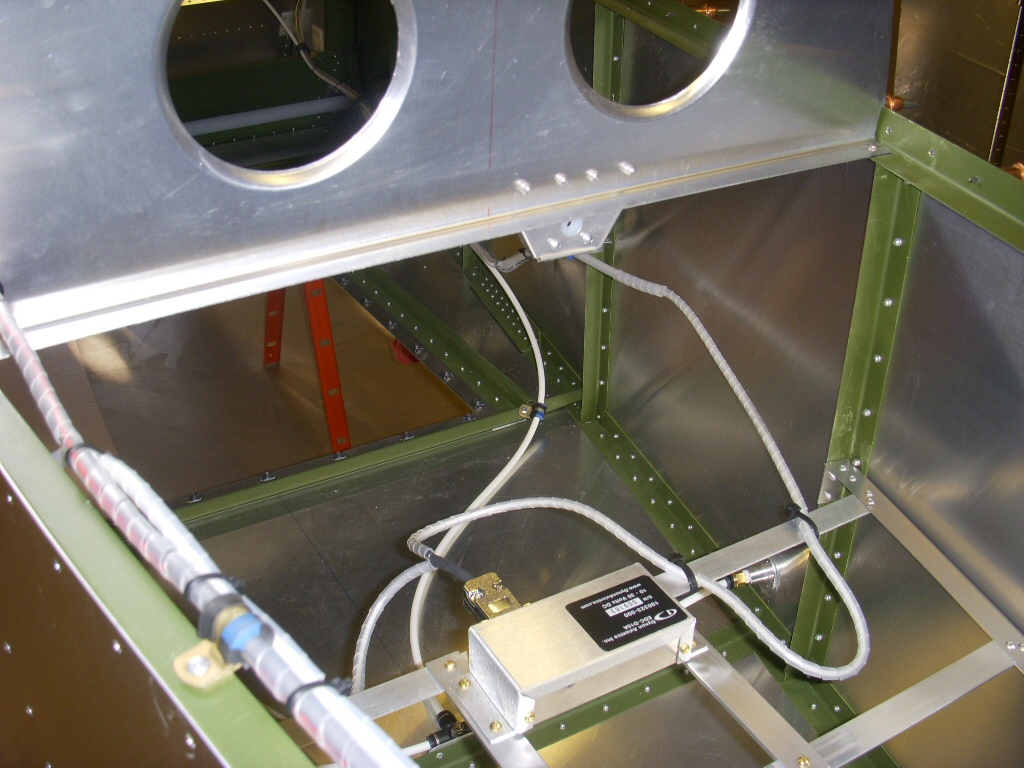

I installed my remote compass in the rear of fuselage...aft of the access panel.
This was after several telcons with tech at Dynon regarding OAT and interference
from other electrical ( ie., Antennas, motors, strobes, etc.). I elected
to plug OAT into remote compass, to save more wiring going forward.
The install was done before closing the rear fus skins, so it was much easier,
but you could work through the access panel if elected.
Leveling was done to the longerons and across so that D100, when installed could
be done to longerons and panel; however, the install of remote compass with
brass screws was made to be slightly adjustable if necessary, with washers. A
digital level works great for this operation.
Will see if I can attach some pics to this note for clarification.
Mike
--------
Mike Miller @ millrml@aol.com
601 XL, 3300, Dynon
Remember, "the second mouse gets the cheese"!
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=212088#212088
Attachments:
http://forums.matronics.com//files/kodak_camera_stuff_72_753.jpg
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Paint after Polishing |
Hi!
A couple years down the road, when my plane is done, I plan to polish it, possibly
with the Nuvite stuff. I figure although it may take more time, it will be
lighter and cheaper than painting. I do plan on having painted highlights, though.
I also think that if for some reason I decide to paint all of the aluminum, I could
do this after the polish job. But recently, I had been told that some folks
have had problems doing just this. Something about not having the paint adhere
will around the rivets, where residual polishing material hadn't come off.
There may have been a bleeding effect, I'm not sure.
Anybody have any experience or suggestion about this?
Cheers!
--------
Dan
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=212102#212102
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Paint after Polishing |
A couple years down the road, when my plane is done, I plan to polish
it, possibly with the Nuvite stuff. I figure although it may take more
time, it will be lighter and cheaper than painting. I do plan on having
painted highlights, though.
I also think that if for some reason I decide to paint all of the
aluminum, I could do this after the polish job. But recently, I had been
told that some folks have had problems doing just this. Something about
not having the paint adhere will around the rivets, where residual
polishing material hadn't come off. There may have been a bleeding
effect, I'm not sure.
Anybody have any experience or suggestion about this?
Hi, Dan et al,
I am in the midst of painting The Bird as we type. I
found a small round gizmo that chucks up in a drill that will "score"
around the rivet heads about the same as Scotch Brite does on the flat
stuff. I got it at O'Reilly's, about twenty five bucks. I later found
that one could get a brass wire spinner at the local weld shop for about
six bucks. It would do the same job.
I had to eliminate some orange peel by lightly polishing and I
washed the parts with Dawn dish soap prior to painting. It seemed to
remove any and all the residue polish. Time will tell if I got it all,
but it seems good now.
Here's some free advice (as most is). Anytime you are "scuffing"
the existing paint, or the aluminum, prior to painting, ALWAYS use a new
piece of Scotch Brite pad. I made the mistake of using a used piece on
white paint (small areas) and some of the imbedded aluminum from
previous scuffing became imbedded in the white paint. It made the areas
look dirty. To re-do these areas would take weeks to re-do and about
another $300 in paint to correct and then there would be absolutely on
guarantee of a good paint job, so I chose to live with the dirty look as
a reminder to NOT SKIMP! Other than that, the paint job is very
satisfactory for this rookie in a small workshop.
Enjoy!! Hope this helps.
Rick
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Paint after Polishing |
If I could turn back the clock, I would polish.
Paint just adds weight and If you wanting to be in the sport pilot arena its
just your loss in usefull load....
SW
----- Original Message -----
From: "messydeer" <messydeer@yahoo.com>
Sent: Monday, November 03, 2008 10:48 AM
Subject: Zenith-List: Paint after Polishing
>
> Hi!
>
> A couple years down the road, when my plane is done, I plan to polish it,
> possibly with the Nuvite stuff. I figure although it may take more time,
> it will be lighter and cheaper than painting. I do plan on having painted
> highlights, though.
>
> I also think that if for some reason I decide to paint all of the
> aluminum, I could do this after the polish job. But recently, I had been
> told that some folks have had problems doing just this. Something about
> not having the paint adhere will around the rivets, where residual
> polishing material hadn't come off. There may have been a bleeding effect,
> I'm not sure.
>
> Anybody have any experience or suggestion about this?
>
> Cheers!
>
> --------
> Dan
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=212102#212102
>
>
>
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Paint after Polishing |
Thanks for the quick replies, guys :-)
If all goes well, I do plan on polishing. My question is about problems associated
with painting after polishing. For example, I may want to paint it a year
or so after the original polish job. I have heard some people have had problems
with the polish effecting the paint.
Take care,
Dan
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=212159#212159
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Chat Room Reminder |
Please join us for our Monday evening chat room starting around 8:00 PM
Eastern Time.
<blocked::blocked::blocked::blocked::blocked::blocked::http://www.mykitairpl
ane.com/chat/> http://www.mykitairplane.com/chat/
George
Do Not Archive
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Paint after Polishing |
Dan-
It takes forever to get a shine in T6, but from what I hear once you get
it in, maintenance is minimal.
Boring, boring, boring. You can't even get your kids to do it!
Bill
----- Original Message -----
From: "steve" <notsew_evets@frontiernet.net>
Sent: Monday, November 03, 2008 3:23 PM
Subject: Re: Zenith-List: Paint after Polishing
>
> If I could turn back the clock, I would polish.
>
> Paint just adds weight and If you wanting to be in the sport pilot arena
> its just your loss in usefull load....
>
> SW
> ----- Original Message -----
> From: "messydeer" <messydeer@yahoo.com>
> To: <zenith-list@matronics.com>
> Sent: Monday, November 03, 2008 10:48 AM
> Subject: Zenith-List: Paint after Polishing
>
>
>>
>> Hi!
>>
>> A couple years down the road, when my plane is done, I plan to polish it,
>> possibly with the Nuvite stuff. I figure although it may take more time,
>> it will be lighter and cheaper than painting. I do plan on having painted
>> highlights, though.
>>
>> I also think that if for some reason I decide to paint all of the
>> aluminum, I could do this after the polish job. But recently, I had been
>> told that some folks have had problems doing just this. Something about
>> not having the paint adhere will around the rivets, where residual
>> polishing material hadn't come off. There may have been a bleeding
>> effect, I'm not sure.
>>
>> Anybody have any experience or suggestion about this?
>>
>> Cheers!
>>
>> --------
>> Dan
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=212102#212102
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>
>
>
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Paint after Polishing |
I also am wondering about this. I plan on polishing most or the skin and painting
highlights. And I will be doing the painting. So after the polish how do you
get the paint to stick? I assume you polish everything, but as little as possible
on the part your going to paint...but what about the line es between and
the parts you didn't mean to polish? Or like stated painting after polish?
Thanks
Kevin
--------
Mark Twain: Twenty years from now you will be more disappointed by the things that
you didn't do than by the ones you did do. So throw off the bowlines. Sail
away from the safe harbor. Catch the trade winds in your sails. Explore. Dream.
Discover.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=212171#212171
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Paint after Polishing |
Is there any benefit to polishing vs. leaving the factory finish besides the
looks? I'm just lazy and easily bored.
Raymond Julian
Kettle River, MN
"Hope for the best,
but prepare for the worst."
do not archive
----- Original Message -----
From: "Bill Naumuk" <naumuk@alltel.net>
Sent: Monday, November 03, 2008 5:55 PM
Subject: Re: Zenith-List: Paint after Polishing
>
> Dan-
> It takes forever to get a shine in T6, but from what I hear once you
> get
> it in, maintenance is minimal.
> Boring, boring, boring. You can't even get your kids to do it!
> Bill
> ----- Original Message -----
> From: "steve" <notsew_evets@frontiernet.net>
> To: <zenith-list@matronics.com>
> Sent: Monday, November 03, 2008 3:23 PM
> Subject: Re: Zenith-List: Paint after Polishing
>
>
>>
>> If I could turn back the clock, I would polish.
>>
>> Paint just adds weight and If you wanting to be in the sport pilot arena
>> its just your loss in usefull load....
>>
>> SW
>> ----- Original Message -----
>> From: "messydeer" <messydeer@yahoo.com>
>> To: <zenith-list@matronics.com>
>> Sent: Monday, November 03, 2008 10:48 AM
>> Subject: Zenith-List: Paint after Polishing
>>
>>
>>>
>>> Hi!
>>>
>>> A couple years down the road, when my plane is done, I plan to polish
>>> it,
>>> possibly with the Nuvite stuff. I figure although it may take more time,
>>> it will be lighter and cheaper than painting. I do plan on having
>>> painted
>>> highlights, though.
>>>
>>> I also think that if for some reason I decide to paint all of the
>>> aluminum, I could do this after the polish job. But recently, I had been
>>> told that some folks have had problems doing just this. Something about
>>> not having the paint adhere will around the rivets, where residual
>>> polishing material hadn't come off. There may have been a bleeding
>>> effect, I'm not sure.
>>>
>>> Anybody have any experience or suggestion about this?
>>>
>>> Cheers!
>>>
>>> --------
>>> Dan
>>>
>>>
>>>
>>>
>>> Read this topic online here:
>>>
>>> http://forums.matronics.com/viewtopic.php?p=212102#212102
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>
>>
>>
>>
>>
>>
>
>
--------------------------------------------------------------------------------
Checked by AVG - http://www.avg.com
7:56 PM
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Paint after Polishing |
I'd reccomend waxing it to cut down on corosion and reduce drag a bit but
the rest is just cosmetic.
Dirk
> Is there any benefit to polishing vs. leaving the factory finish besides
> the looks? I'm just lazy and easily bored.
>
> Raymond Julian
> Kettle River, MN
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
