Today's Message Index:
----------------------

     1. 04:08 AM - Re: Aileron bell crank upgrade (DaveG601XL)
     2. 05:57 AM - Re: Re: Aileron bell crank upgrade (Russell Johnson)




Message 1


					INDEX
 Back to Main INDEX
					NEXT
 Skip to NEXT Message
	LIST
 Reply to LIST Regarding this Message
		SENDER
 Reply to SENDER Regarding this Message



Time:
04:08:29 AM PST US
Subject:
Re: Aileron bell crank upgrade
From:
"DaveG601XL" <david.m.gallagher@ge.com>


      Chris,

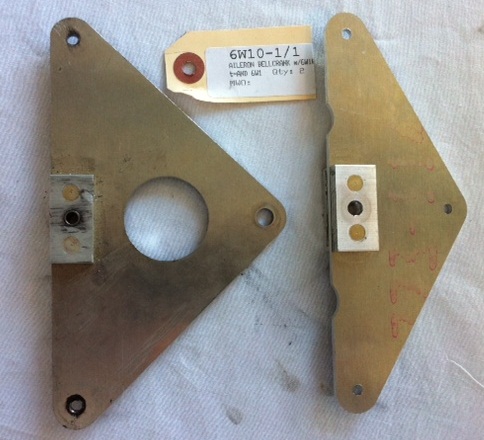

      The only part information I can tell you is from my actual hardware.  the new 6W101/1
      bellcrank as compared to the original 6W10-1 moved the distance from pivot
      hole to the aileron rod end hole from 85 to 48mm.  There is no lightening
      hole and they scalloped the edge of the bellcrank where it comes close to the
      rib for extra clearance.  I do not have, nor have seen any actual drawings. See
      attached picture for a part comparison.

      Hope this helps,

      --------
      David Gallagher
      Zodiac 601 XL-B: flying, 200+ hours now
      Next project under construction: Aircamper


      Read this topic online here:

      http://forums.matronics.com/viewtopic.php?p=370353#370353


      Attachments:

      http://forums.matronics.com//files/aileron_bellcrank_01_275.jpg



Message 2


					INDEX
 Back to Main INDEX
				PREVIOUS
 Skip to PREVIOUS Message
					NEXT
 Skip to NEXT Message
	LIST
 Reply to LIST Regarding this Message
		SENDER
 Reply to SENDER Regarding this Message



Time:
05:57:26 AM PST US
From:
Russell Johnson <entecrj@sbcglobal.net>
Subject:
Re: Aileron bell crank upgrade

      =0A=0A=0A=0A=0A________________________________=0AFrom: DaveG601XL <david.m
      .gallagher@ge.com>=0ATo: zenith-list@matronics.com=0ASent: Mon, April 9, 20
      12 6:07:39 AM=0ASubject: Zenith-List: Re: Aileron bell crank upgrade=0A=0A-
      =0A=0AChris,=0A=0AThe only part information I can tell you is from my actua
      l hardware.=C2- the new =0A6W10=901/1 bellcrank as compared to the
      original 6W10-1 moved the distance from =0Apivot hole to the aileron rod en
      d hole from 85 to 48mm.=C2- There is no lightening =0Ahole and they scall
      oped the edge of the bellcrank where it comes close to the =0Arib for extra
       clearance.=C2- I do not have, nor have seen any actual drawings. See =0A
      attached picture for a part comparison.=0A=0AHope this helps,=0A=0A--------
      =0ADavid Gallagher=0AZodiac 601 XL-B: flying, 200+ hours now=0ANext project
       under construction: Aircamper=0A=0A=0A=0A=0ARead this topic online here:
      =0A=0Ahttp://forums.matronics.com/viewtopic.php?p=370353#370353=0A=0A=0A
      =0A=0AAttachments: =0A=0Ahttp://forums.matronics.com//files/aileron_bellcra
      =C2- =C2- =C2- =C2- =C2- =C2- =C2- =C2- =C2- -Matt Dralle
      =========
