Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Elevator Trim tab motor |

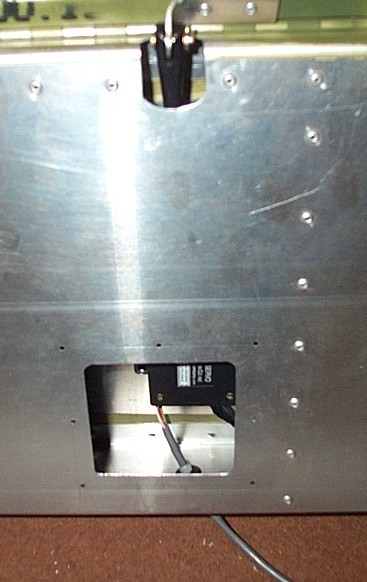

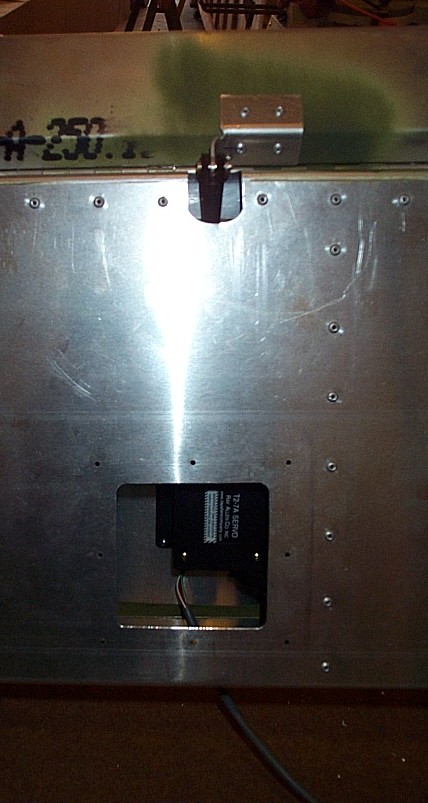

I just installed mine and it was offset also but you can still get at it if
you had to. The motor is about 30mm from the rib and the rivets are about 20mm
from the rib.
Jeff
**************Vote for your city's best dining and nightlife. City's Best
2008. (http://citysbest.aol.com?ncid=aolacg00050000000102)
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: My Corvair Engine Mounted |
Even after the LOTS & Lots are done, there are MORE LOTS & LOTS!!!
Jay in Dallas (Nearly finished, but still doing LOTS & LOTS)
Do not archive
"Gig Giacona" <wrgiacona@gmail.com> wrote:
>
>That light blue is just poorly white balanced iPhone camera.
>
>Second question, LOTS & LOTS
>
>
>jmaynard wrote:
>>
>> Oo, pretty.
>>
>> Is that light blue the aircraft's overall color, or just making the engine
>> compartment look nice?
>>
>> What's left after that?
>>
>
>
>--------
>W.R. "Gig" Giacona
>601XL Under Construction
>See my progress at www.peoamerica.net/N601WR
>
>
>Read this topic online here:
>
>http://forums.matronics.com/viewtopic.php?p=187071#187071
>
>
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Elevator Trim tab motor |
Cheers,

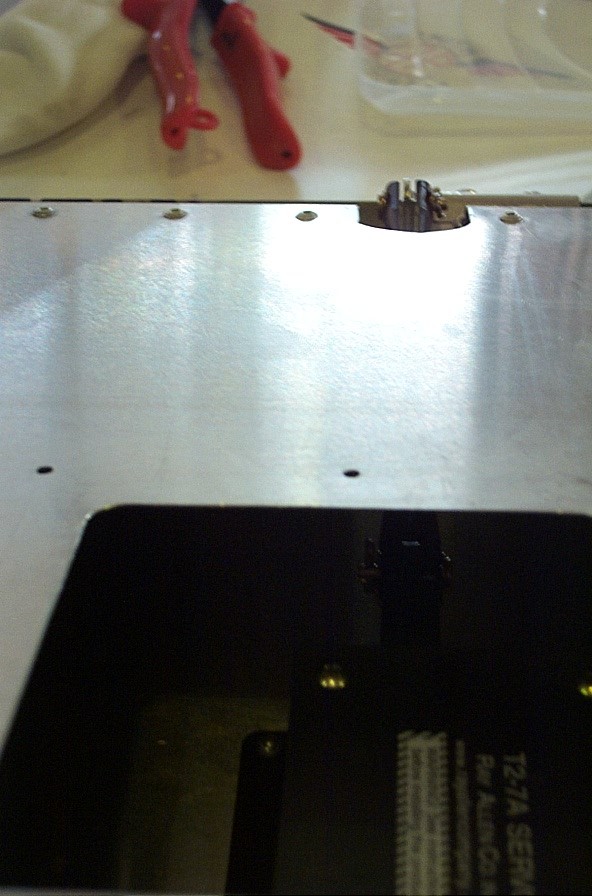

Yes, there are left and right hand trim servos. I had the same problem as you are
describing. After discussing it with ZAC, I cut a larger access hole and made
a larger cover.
Jay in Dallas
"Thruster87" <alania@optusnet.com.au> wrote:
>
>The trim tab motor does not line up with the access hole [factory cutout] once
the rod is approximately in the center of the cutout [20 -25mm out towards the
i/b side].If one was to mount the motor onto the bottom skin instead then it
does line up, because of the offset on the trim motor actuator.My question ?
is there a r/h and a l/h version of the trim motor. Cheers
>
>
>Read this topic online here:
>
>http://forums.matronics.com/viewtopic.php?p=187089#187089
>
>
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Elevator Trim tab motor |
My pre-cut Elevator access hole was offset from the servo body and lined up with
the rod instead.
I found that the Aileron access hole lined-up with the servo body after I made
the cutout as per the drawing dimensions but then it was slightly harder to access
the clevis to install the pin, clip and washers.
Rob
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=187115#187115
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: My Corvair Engine Mounted |
Nice looking engine.
--------
Mark Twain: Twenty years from now you will be more disappointed by the things that
you didn't do than by the ones you did do. So throw off the bowlines. Sail
away from the safe harbor. Catch the trade winds in your sails. Explore. Dream.
Discover.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=187116#187116
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Elevator Trim tab motor |
Did mine exactly like Jeff's. the pictures in the manual show it offset
from the access panel in a few of the pics.
On Tue, Jun 10, 2008 at 6:43 AM, <Afterfxllc@aol.com> wrote:
> I just installed mine and it was offset also but you can still get at it
> if you had to. The motor is about 30mm from the rib and the rivets are about
> 20mm from the rib.
>
> Jeff
>
>
> ------------------------------
> Vote for your city's best dining and nightlife. City's Best 2008<http://citysbest.aol.com?ncid=aolacg00050000000102>
> .
>
> *
>
> *
>
>
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Zenith601-List Digest: 8 Msgs - 06/09/08 |
Actually, it appears that the right hand side may need stiffeners. The trim
tab should not have any movement (or very little), but if you try to move
the tab up and down you will note that the motor will move the skin up and
down. A stiffener here would stop that motion since any motion of trim tabs
and/or flaps (while not being moved by the motor) is a bad thing. Check
with Sebastion or Caleb however for an OK before stiffening any surface.
Scott Thatcher, Palm Beach Gardens, FL

601XL with Corvair, Registered as E-LSA
N601EL, http://placestofly.com, EAA203
----- Original Message -----
From: "Zenith601-List Digest Server" <zenith601-list@matronics.com>
Sent: Tuesday, June 10, 2008 2:58 AM
Subject: Zenith601-List Digest: 8 Msgs - 06/09/08
> *
>
> =================================================
> Online Versions of Today's List Digest Archive
> =================================================
>
> Today's complete Zenith601-List Digest can also be found in either of the
> two Web Links listed below. The .html file includes the Digest formatted
> in HTML for viewing with a web browser and features Hyperlinked Indexes
> and Message Navigation. The .txt file includes the plain ASCII version
> of the Zenith601-List Digest and can be viewed with a generic text editor
> such as Notepad or with a web browser.
>
> HTML Version:
>
>
> http://www.matronics.com/digest/digestview.php?Style=82701&View=html&Chapter 08-06-09&Archive=Zenith601
>
> Text Version:
>
>
> http://www.matronics.com/digest/digestview.php?Style=82701&View=txt&Chapter 08-06-09&Archive=Zenith601
>
>
> ===============================================
> EMail Version of Today's List Digest Archive
> ===============================================
>
>
> ----------------------------------------------------------
> Zenith601-List Digest Archive
> ---
> Total Messages Posted Mon 06/09/08: 8
> ----------------------------------------------------------
>
>
> Today's Message Index:
> ----------------------
>
> 1. 12:23 AM - Elevator Stiffeners (Thruster87)
> 2. 01:21 AM - Fractured Ring Gears (Aerolitellc@aol.com)
> 3. 05:03 AM - For Sale (Walter Carey)
> 4. 05:55 AM - Re: Fractured Ring Gears (David Downey)
> 5. 06:39 AM - Re: Elevator Stiffeners (Carlos Sa)
> 6. 06:03 PM - Re: Elevator Stiffeners (Ron Lendon)
> 7. 08:12 PM - Re: My Corvair Engine Mounted (Gig Giacona)
> 8. 11:53 PM - Elevator Trim tab motor (Thruster87)
>
>
> ________________________________ Message 1
> _____________________________________
>
>
> Time: 12:23:31 AM PST US
> Subject: Zenith601-List: Elevator Stiffeners
> From: "Thruster87" <alania@optusnet.com.au>
>
>
> Just about to rivet the skins on the elevators [601XL] and the left hand
> half seems
> it could use stiffeners top and bottom to stop drumming [trim tab channel
> on the other side stiffens the r/h side].Anyone done a similar mod? Cheers
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=186927#186927
>
>
> ________________________________ Message 2
> _____________________________________
>
>
> Time: 01:21:06 AM PST US
> From: Aerolitellc@aol.com
> Subject: Zenith601-List: Fractured Ring Gears
>
>
> I have just received my first batch of ring gears. I know some have cracks
> in theirs and were waiting.
>
> On the web site
>
> _http://www.aeroliteproducts.com/RingGear.html_
> (http://www.aeroliteproducts.com/RingGear.html)
>
>
> Jeff
>
>
> **************Get trade secrets for amazing burgers. Watch "Cooking with
> Tyler Florence" on AOL Food.
> (http://food.aol.com/tyler-florence?video=4?&NCID=aolfod00030000000002)
>
> ________________________________ Message 3
> _____________________________________
>
>
> Time: 05:03:49 AM PST US
> From: Walter Carey <careywf@sbcglobal.net>
> Subject: Zenith601-List: For Sale
>
> If you know of anyone that might be interested in a 601XL project (entire
> kit),
> Jabiru 3300A engine & FWF kit (in crate), kit options and all tools/bench
> needed
> to build, have them contact me for detailed list (including price paid)
> and
> price being asked. Construction to date rated "excellect" by EAA Tech
> Advisor
> on both visits. To be advertised in Trade-A-Plane during Oshkosh.
>
> ________________________________ Message 4
> _____________________________________
>
>
> Time: 05:55:54 AM PST US
> From: David Downey <planecrazydld@yahoo.com>
> Subject: Re: Zenith601-List: Fractured Ring Gears
>
> Is the cantilevered end of the starter supported or is all that weight
> loading
> the machined bracket in bending?
>
> David L. Downey Harleysville (SE) PA, USA
>
>
> --- On Mon, 6/9/08, Aerolitellc@aol.com <Aerolitellc@aol.com> wrote:
> From: Aerolitellc@aol.com <Aerolitellc@aol.com>
> Subject: Zenith601-List: Fractured Ring Gears
>
>
>
> I have just received my first batch of ring gears. I know some have cracks
> in theirs and were waiting.
>
> On the web site
>
> http://www.aeroliteproducts.com/RingGear.html
>
>
> Jeff
>
>
> Get trade secrets for amazing burgers. Watch "Cooking with Tyler Florence"
> on AOL
> Food.
>
>
> ________________________________ Message 5
> _____________________________________
>
>
> Time: 06:39:38 AM PST US
> From: "Carlos Sa" <carlossa52@gmail.com>
> Subject: Re: Zenith601-List: Elevator Stiffeners
>
> I suspect there would be little/no drumming on the tail feathers.
> I haven't used any stiffeners in that area.
>
> Cheers
>
>
> Carlos
> CH601-HD, plans
> tail feathers and right wing done, assembling left wing.
>
> 2008/6/9 Thruster87 <alania@optusnet.com.au>:
>
>> >
>>
>> Just about to rivet the skins on the elevators [601XL] and the left hand
>> half seems it could use stiffeners top and bottom to stop drumming [trim
>> tab
>> channel on the other side stiffens the r/h side].Anyone done a similar
>> mod?
>> Cheers
>>
>>
>
> ________________________________ Message 6
> _____________________________________
>
>
> Time: 06:03:15 PM PST US
> Subject: Zenith601-List: Re: Elevator Stiffeners
> From: "Ron Lendon" <rlendon@comcast.net>
>
>
> Only advice I have is to make the material as warm as you can while
> riveting.
> When it shrinks as it cools it all tightens up.
>
> --------
> Ron Lendon, Clinton Township, MI
> Corvair Zodiac XL, ScrapBuilder ;-)
> http://www.mykitlog.com/rlendon
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=187049#187049
>
>
> ________________________________ Message 7
> _____________________________________
>
>
> Time: 08:12:53 PM PST US
> Subject: Zenith601-List: Re: My Corvair Engine Mounted
> From: "Gig Giacona" <wrgiacona@gmail.com>
>
>
> That light blue is just poorly white balanced iPhone camera.
>
> Second question, LOTS & LOTS
>
>
> jmaynard wrote:
>>
>> Oo, pretty.
>>
>> Is that light blue the aircraft's overall color, or just making the
>> engine
>> compartment look nice?
>>
>> What's left after that?
>>
>
>
> --------
> W.R. "Gig" Giacona
> 601XL Under Construction
> See my progress at www.peoamerica.net/N601WR
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=187071#187071
>
>
> ________________________________ Message 8
> _____________________________________
>
>
> Time: 11:53:39 PM PST US
> Subject: Zenith601-List: Elevator Trim tab motor
> From: "Thruster87" <alania@optusnet.com.au>
>
>
> The trim tab motor does not line up with the access hole [factory cutout]
> once
> the rod is approximately in the center of the cutout [20 -25mm out towards
> the
> i/b side].If one was to mount the motor onto the bottom skin instead then
> it
> does line up, because of the offset on the trim motor actuator.My
> question ?
> is there a r/h and a l/h version of the trim motor. Cheers
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=187089#187089
>
>
>
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Zenith601-List Digest: 8 Msgs - 06/09/08 |
Sorry for sending entire list! I usually make replies from the list and
always have to remember to delete the list first then snip the portion I
want to respond to.
My humble apologies!
Scott Thatcher, Palm Beach Gardens, FL
601XL with Corvair, Registered as E-LSA
N601EL, http://placestofly.com, EAA203
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Ring gear fracture pics |
I have added some pics on my web site of a ring gear that has fractured. I
also had one fracture a year ago in the same place. The link to the pics is
_http://aeroliteproducts.com/Technical_News.php_
(http://aeroliteproducts.com/Technical_News.php)
Jeff
_www.aeroliteproducts.com_ (http://www.aeroliteproducts.com)
502-644-8123
**************Vote for your city's best dining and nightlife. City's Best
2008. (http://citysbest.aol.com?ncid=aolacg00050000000102)
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | New canopy pictures |
As it turns out, my Zodiac is one of the last two AMDs that was built with
the old-style canopy. (Well, version 2, really; has the new canopy latch.)
AMD got two airframe kits in today with the new canopy. You can see pictures
at http://www.conmicro.com/ch601xlv3 .
There are also some pictures of my airplane with the cowling and panel
covers off at http://www.conmicro.com/N55ZC . That will eventually be the
page for my airplane, all the way through, but the pictures are there now
(just no fancy thumbnails or index pages).
--
Jay Maynard, K5ZC http://www.conmicro.com
http://jmaynard.livejournal.com http://www.tronguy.net
Fairmont, MN (FRM) (Yes, that's me!)
AMD Zodiac CH601XLi N55ZC (ordered 17 March, delivery 10 June)
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Fractured starter ring gear |
The installation instructions received with the Ultra Low profile front
starter kit does not contain the type of ring gear or starter. The entir
e unit was mounted as per instructions, including the rear starter brack
et.
I am also having problem with the JD Regulator. I've been through three
Reg and feel that the #5 wire to the battery using a circuit breaker is
the problem. I'm get good readings on the volt and amp meters when Alt i
s switched on, but alt doesn't connect when running alt without battery.
Any help would be appreciated.
GPJ
My email address is gpjann1@netzero.com
____________________________________________________________
Fabulous Spa Getaway!
Enter for your chance to WIN great beauty prizes everyday!
http://thirdpartyoffers.netzero.net/TGL2241/fc/JKFkuJkEQF9b9HsuHTjz8t8Ar
DzpWbVGTwA8s7l2VKrEe9sjEFEw2J/
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Stab Top AFT rivet line (elevator hinge and outboard of |
that
Hey List!
The instructions, and drawings call for an A4 Pitch 40 rivet line on the elevator
hinge and the rest of the top aft spar...this all works well inside the outboard
ribs (line up), but outboard of the outboard ribs, the pitch of the rivet,line
on the front spar is something less than 40....am I supposed to match that,
or just not meet up with the outer tip rib rivet line? Your help is appreciated...take
your time...its 108 today, and even with the swamp cooler, it's
not pleasant in the garage ;)
Peter
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=187297#187297
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Stab Top AFT rivet line (elevator hinge and outboard |
of that
The ribs are the bible. Locate and drill them to the dimensions on the print.
The outboard rib rivet line is in 8mm then the next inboard rib rivet line is
490mm, the next ribs are dimensioned 162mm from the centerline.
The 40mm spacing is approximate and can be done with a rivet fan. Some of my rivet
40mm spacing is actually 37mm. Line up the hinge and mark in 8 or 10mm in
from the ends and start your hinge rivet spacing from there back to the next
inboard rib.
Hope that helps,
--------
Ron Lendon, Clinton Township, MI
Corvair Zodiac XL, ScrapBuilder ;-)
http://www.mykitlog.com/rlendon
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=187312#187312
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Elevator Trim tab motor |
Here are some pictures of my QBK servo installation. I had no problem with getting
the servo lined up.
--------
do not archive
Regards,
Bob Tezyk
N78QT - 601XL QB/ Jab3300
Working on elevator
http://neo.datamatrix.com/eaglesnestestates/index.php?option=com_rsgallery2&Itemid=32&catid=23
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=187313#187313
Attachments:
http://forums.matronics.com//files/dcp_1495_376.jpg
http://forums.matronics.com//files/dcp_1494_945.jpg
http://forums.matronics.com//files/dcp_1493_191.jpg
