Subject:   Installation of auto-pilots in Zenith 601XLs
Description:

A number of questions have been asked on this list about installing auto-pilots in XLs, especially their servos. These images of auto-pilots come from three builders: Jeff Small's Navaid [zodiacjeff@msn.com], Tony Graziano's Treo [tonyplane@bellsouth.net] and Pat Stafford's Treo [pstafford@attglobal.net]. All show course-following auto-pilots with aileron servos. Only Pat's show an altitude-hold AP with elevator servo. Although they may not show the servos for your specific make and model, the installation is similar for all. Any errors in this posting are entirely my fault: Craig Payne [craig@craigandjean.com].

Below are links to various auto-pilot manufactures' web sites:

http://navaid-devices.com/
http://www.trutrakflightsystems.com
http://www.trioavionics.com/

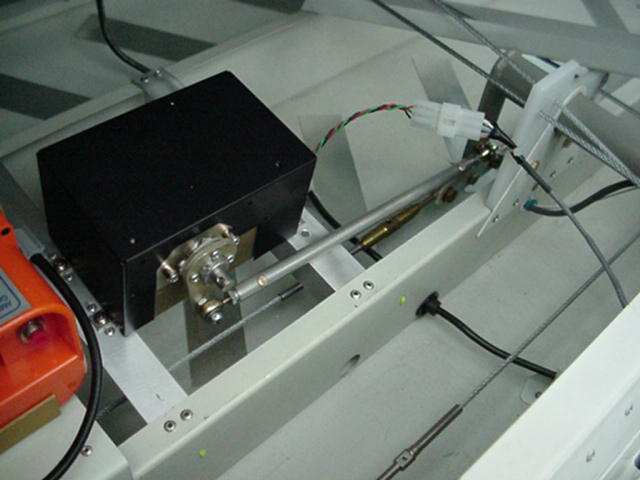

    autopilot_servo_2.jpg right-front view of servo (Jeff).

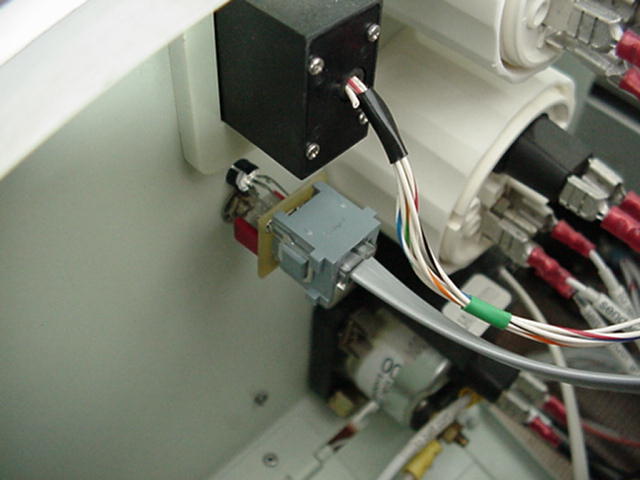

    back_of_Smart_Coupler_switch.jpg switch for Navaid coupler to hand-held GPS (Jeff).

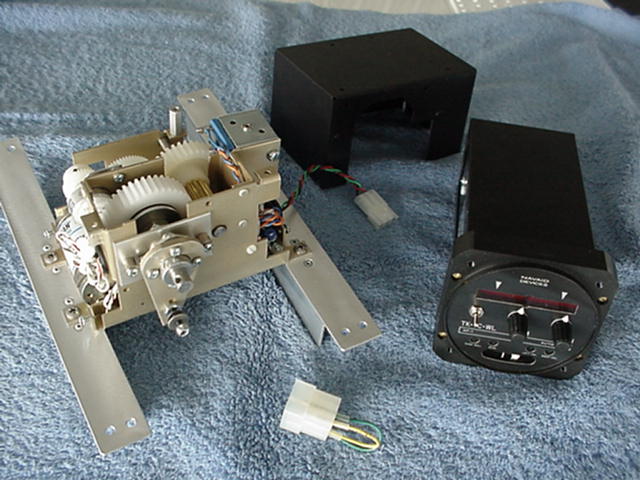

    bits_'n_pieces.jpg components of the Navaid system (Jeff).

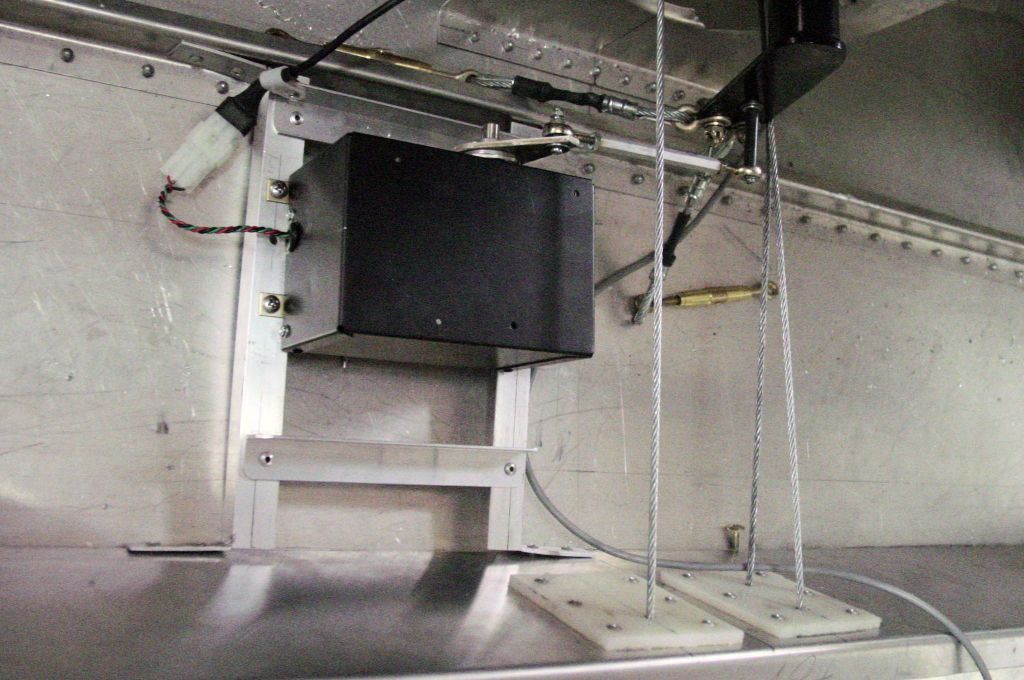

    Dsc00068.jpg aileron servo, top view (Pat).

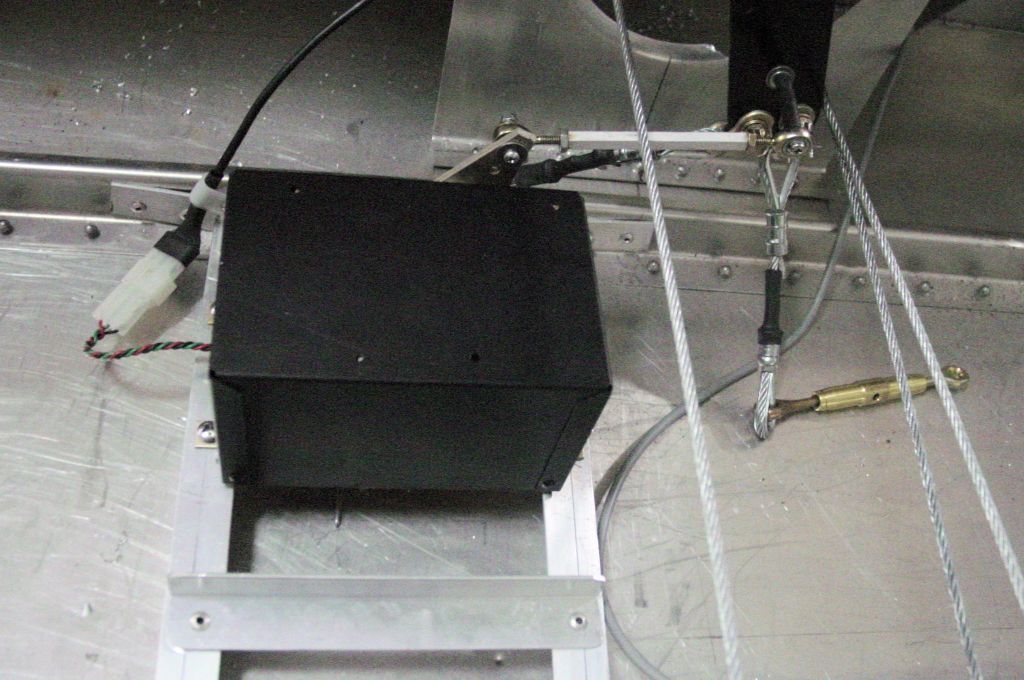

    Dsc00069.jpg aileron servo, rear-top view (Pat).

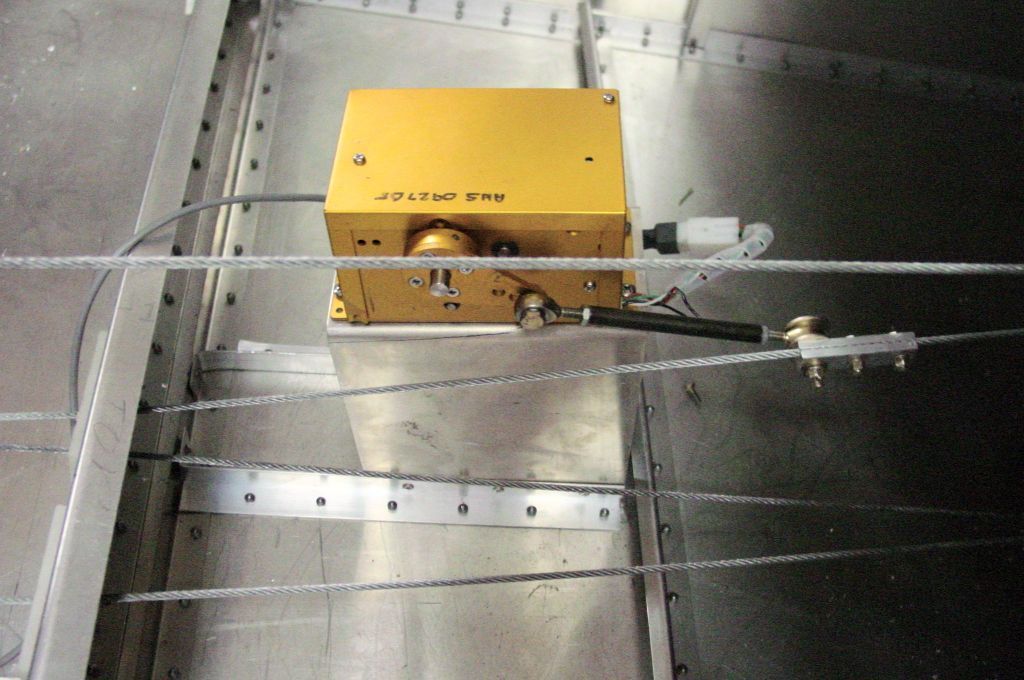

    Dsc00070.jpg elevator servo, view from left side (Pat).
    Dsc00071.jpg elevator servo, top view (Pat).

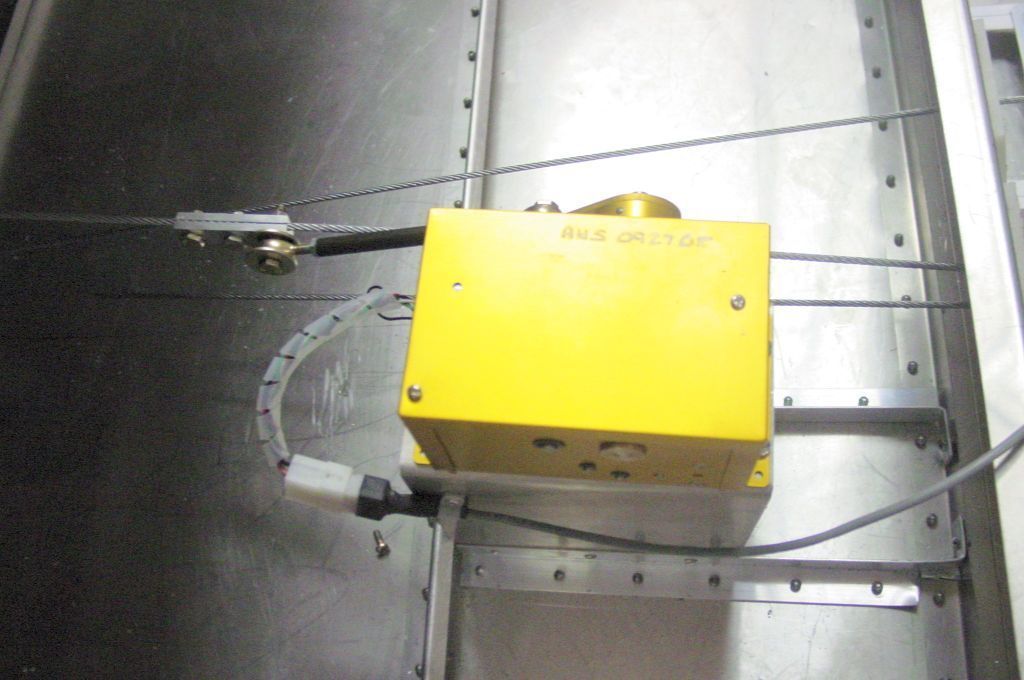

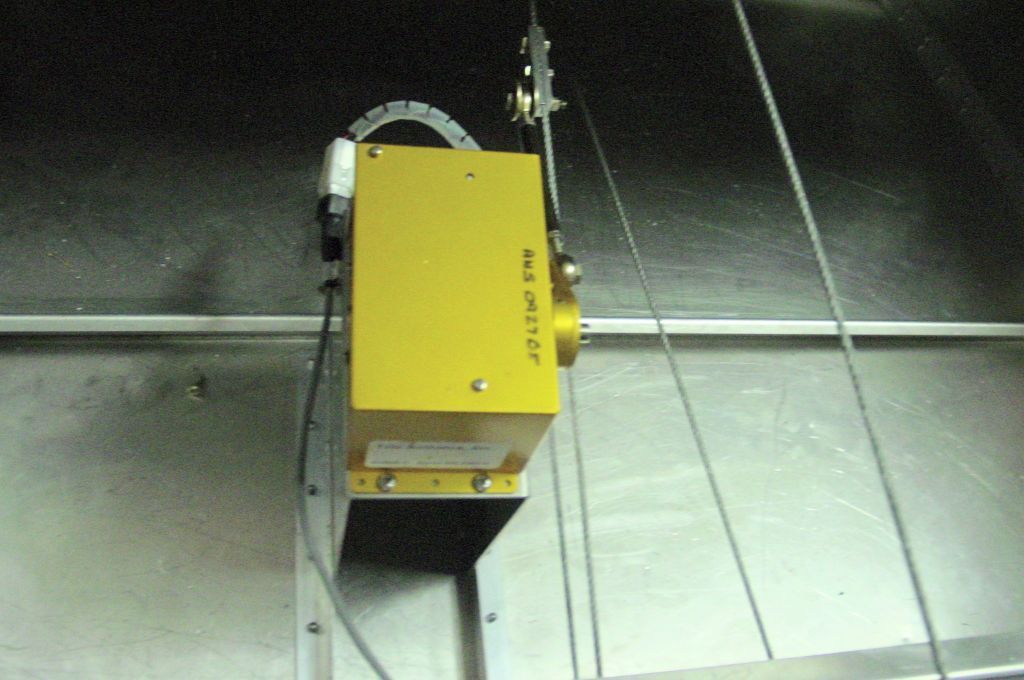

    Dsc00072.jpg elevator servo, top view (Pat).

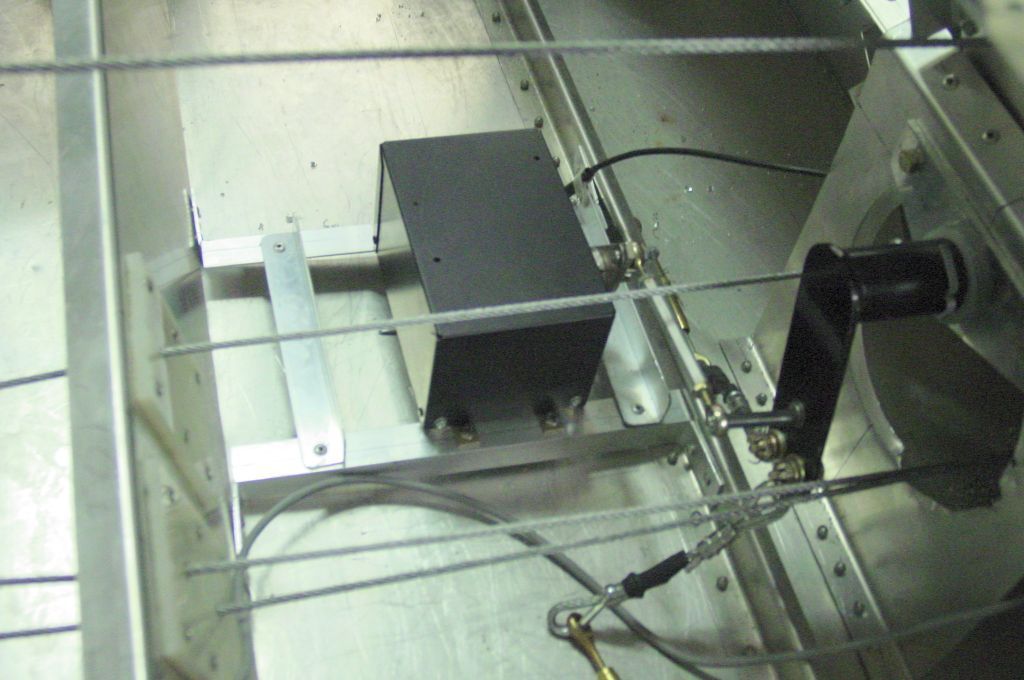

    Dsc00073.jpg aileron servo, view from right side (Pat).

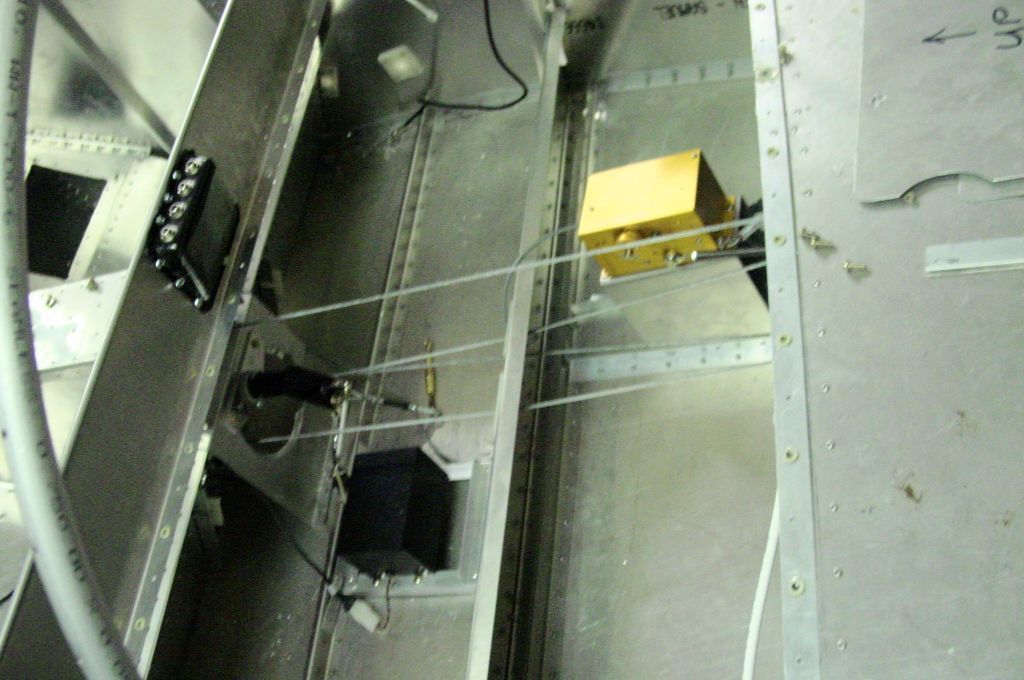

    Dsc00074.jpg overview of both servos from top left (Pat).

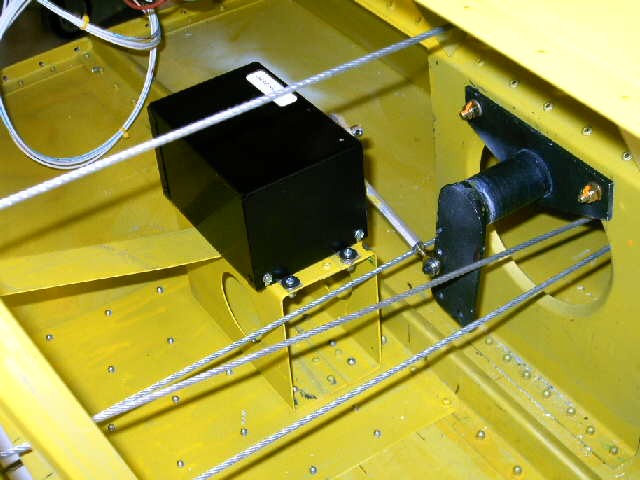

    IMAG0281.jpg rear-right view of servo (Tony).

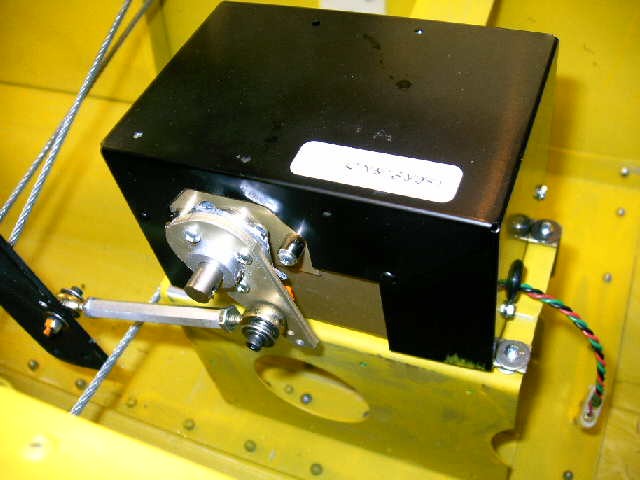

    IMAG0288.jpg front-left view of servo (Tony).

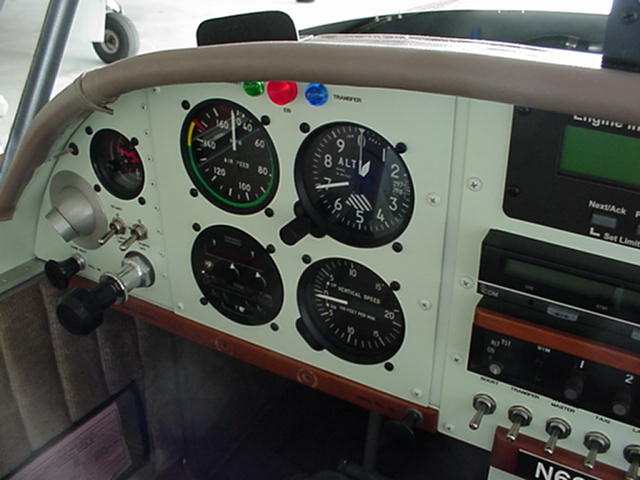

    new_Navaid_in_panel.jpg head unit installed in panel (Jeff).
