Subject:   John Dilatush Piet
Description:

These are shots of a plane almost finished by John Dilatush in Salida Co.

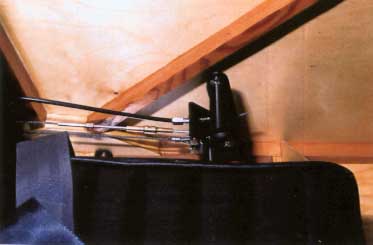

    Picture10.jpg Cable operated toe brakes on rudder bar under front seat.

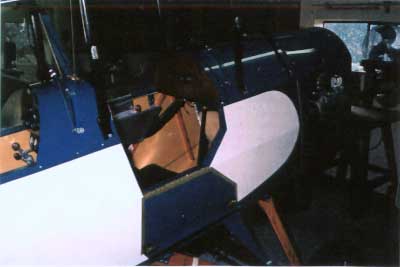

    Picture11.jpg Sheet metal door attached with piano hinge for front cockpit. Used slide bolts into top longeron to retain in place.

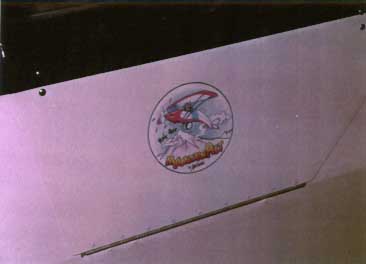

    Picture12.jpg Decal for plane made by buddy.

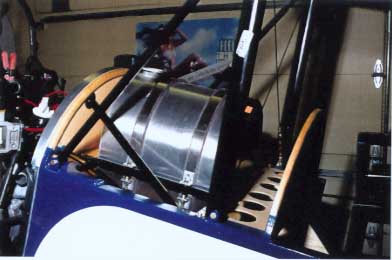

    Picture13.jpg Cowl fuel tank. Holds 10 gallons and is refueled by another 10 gallon tank in wing center section.

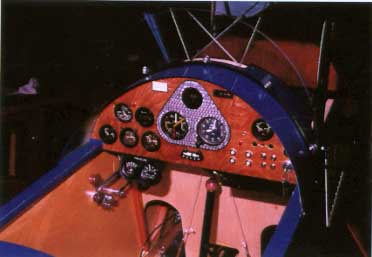

    Picture14.jpg Instrument panel in rear cockpit. Circuit breakers for alternator, fuel pump, and radio.

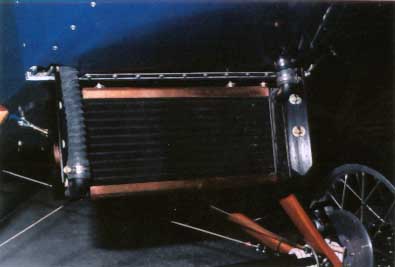

    Picture15.jpg Underslung raidator. Used in many OX 5 engines in the 30's.

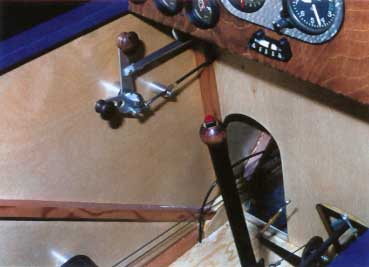

    Picture16.jpg Left side of of rear cockpit showing throttle and waste gate control for the turbo charger. Also have manifold pressure gauge on panel. Notice the push to talk button on top of the of the stick.

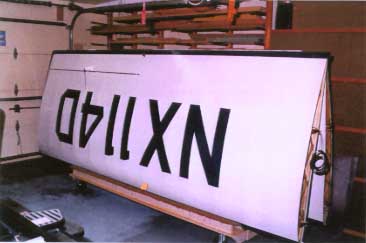

    Picture1.jpg Completed wings on dolly for ease of movement. Made per plans with Douglas fir spars, Engleman Spruce ribs, and Mahogany ply gussets.

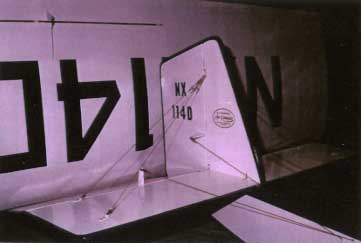

    Picture2.jpg Tail assembly, same as above with DF spars, and Engleman Spruce ribs.

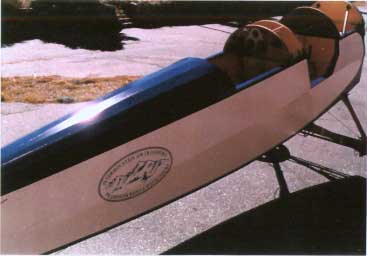

    Picture3.jpg Fuse outside, note passenger door. John rerouted the landing loads to allow the top cut in the top Longeron.

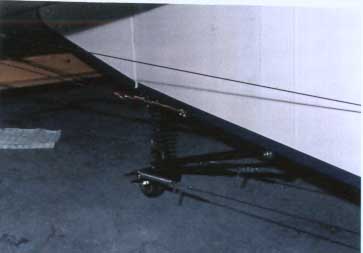

    Picture4.jpg Tail Wheel per plans, steering cable routed, attached to rudder bar to take load off of rudder.

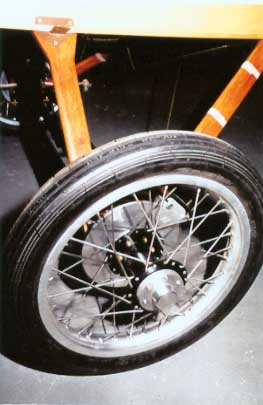

    Picture5.jpg Landing gear as seen in 1932 "Airplane and Glider " manual. 18" rims shown.

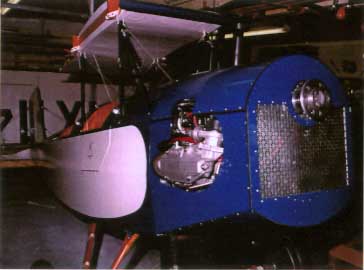

    Picture6.jpg Right side of coweld engine. Engine comes from 1985-1987 Suburaru model EA82.

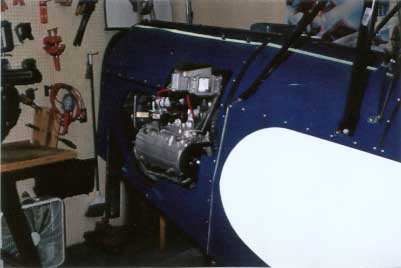

    Picture7.jpg Left side of engine. Still working on an "attractive" way to show air filter.

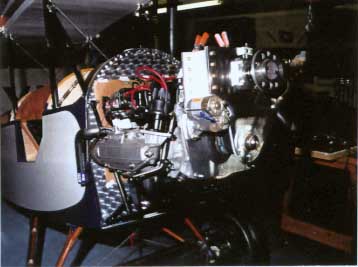

    Picture8.jpg Engine during mounting process. Home-made gor belt prop reduction unit. Shaft is machined 1979 1/2 Ford P.U. axle. Engine still developes 100 HP with WOT at 3600 rpm.

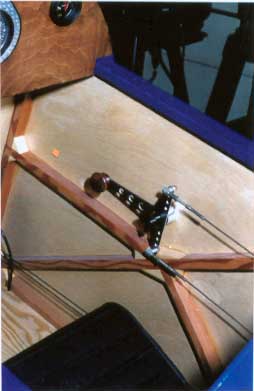

    Picture9.jpg Elevator trimlever in rear cockpit.
