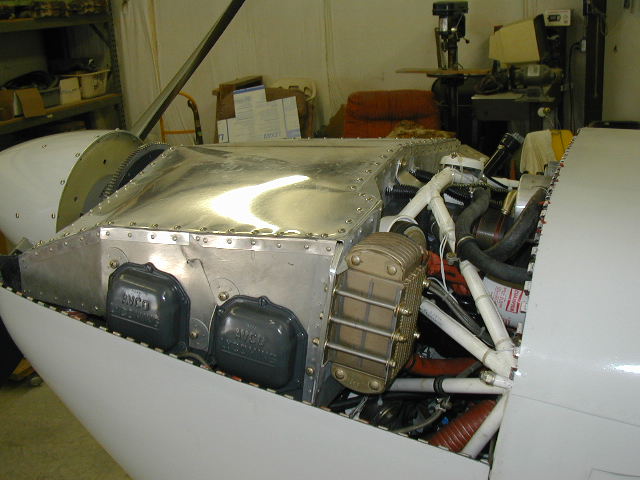

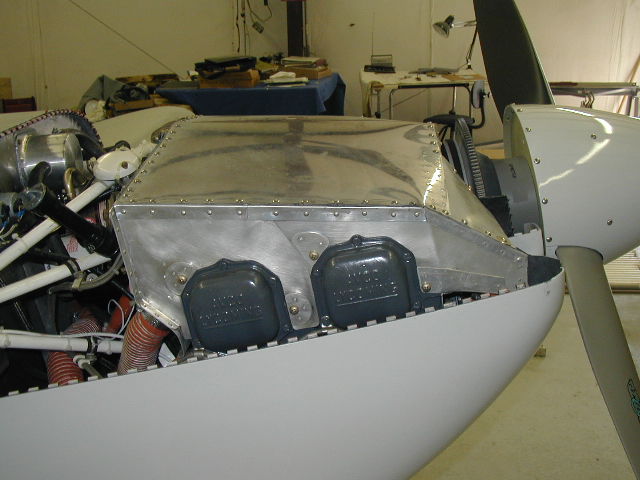

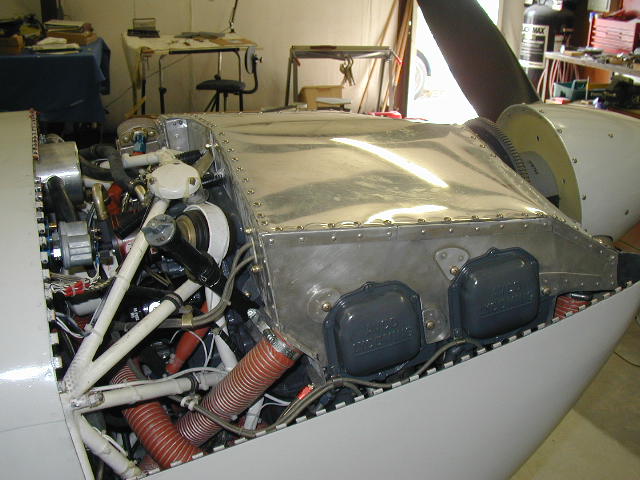

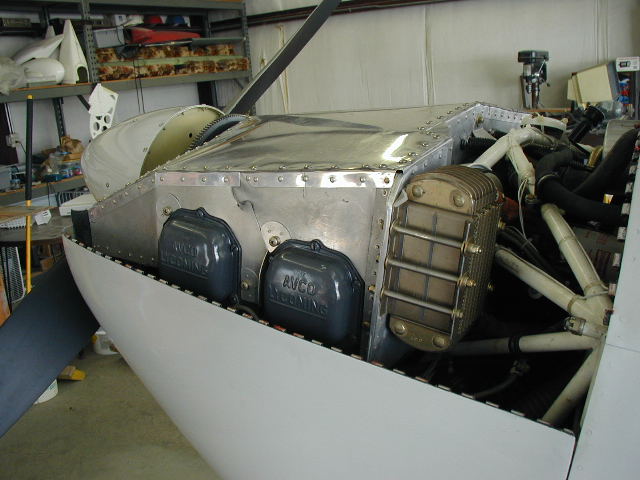

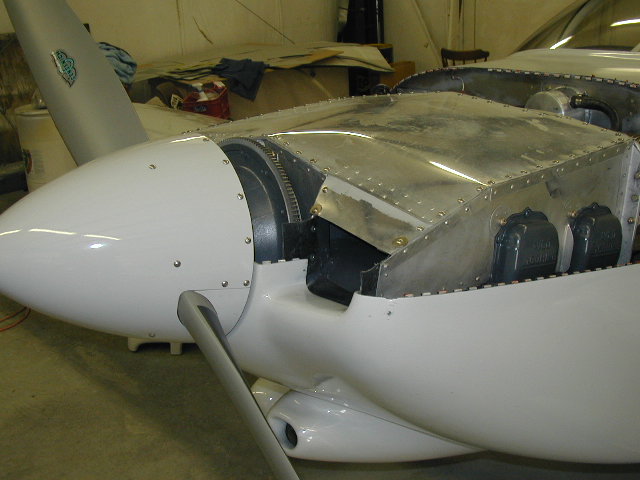

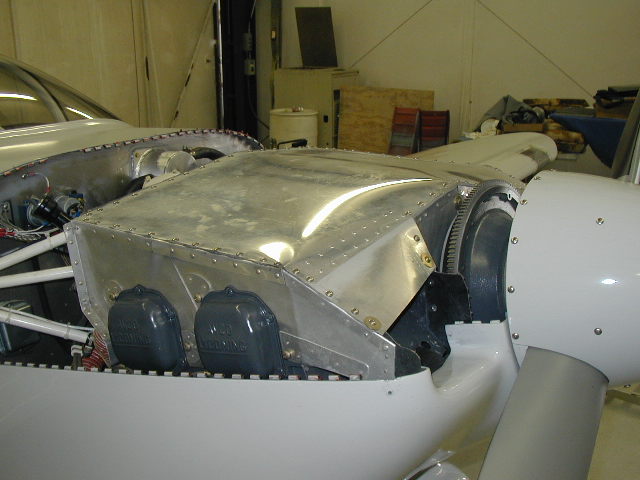

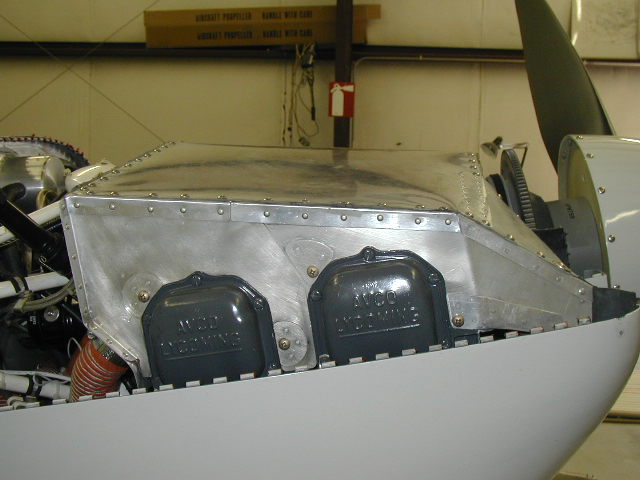

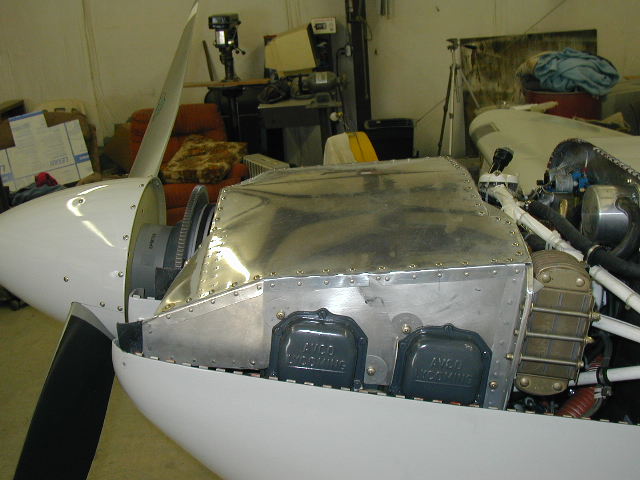

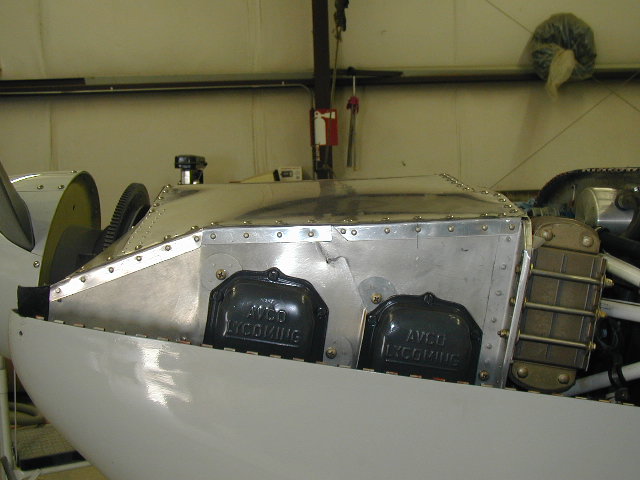

Subject: Metal Engine Plenum Baffle Description: Vans Baffle Kit / Modified to Mount a Top to make it into a plenum. .025 - 2024 T3 Used for Top. .032 for 5/8 Angle to mount Seal and Nut Plates. When I have time I will modify the top to use hinge stock to mount the top to the 5/8 Angle. The top is all one piece. Use a large sheet and start at the back center drilling about 3-4 holes. Cleco as you go then drill up the front center over the fly wheel. Push down on the sides and keep the bumps out as you drill the remainder of the holes. Flying for 80+ hours Temps are great and would do it again. Contact me if you have questions. -Don Eaves

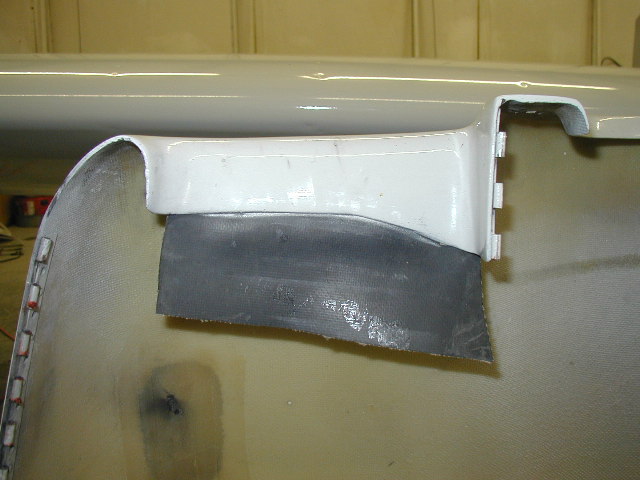

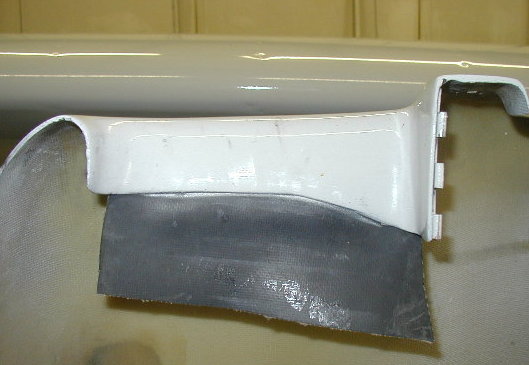

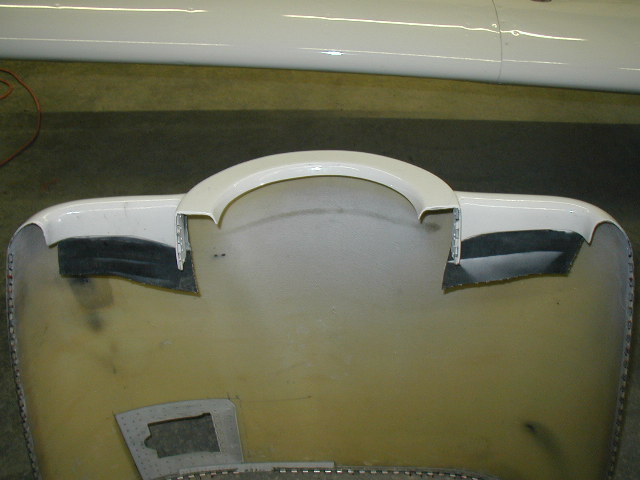

Left_Side_Inlet_Metal_Plenum_010.jpg Left Side Inlet Metal Plenum Left_Side_Metal_Plenum_007.jpg Left Side Metal Plenum Left_Side_Metal_Plenum_008.jpg Left Side Metal_Plenum Left_Side_Metal_Plenum_009.jpg Left Side Metal Plenum Left_Side_Metal_Plenum_015.jpg Left Side Metal Plenum Metal_Plenum_Cowl_Seal_Upper1.jpg Metal Plenum Cowl Seal Upper Metal_Plenum_Cowl_Seal_Upper2.jpg Metal Plenum Cowl Seal Upper Metal_Plenum_Cowl_Seal_Upper3.jpg Metal Plenum Cowl Seal Upper Right_Side_Inlet_Metal_Plenum_013.jpg Right Side Inlet Metal Plenum Right_Side_Metal_Plenum_011.jpg Right Side Metal Plenum Right_Side_Metal_Plenum_012.jpg Right Side Metal Plenum Right_Side_Metal_Plenum_014.jpg Right Side Metal Plenum
|
