Submitted By: nhulin@hotmail.com Email List: Zenith-List Name: Neil Hulin
Date: Apr 2 2003
Subject: Flange Finder Tool Description: This simple tool can be used to locate the edge of a flange that is hidden under a skin while assembling a structure. By drilling a pilot hole in the tool at the correct edge distance, the tool can be directly used to drill skins and flanges without needing to measure or mark out the rivet line. It is based on the rivet hole duplicator on page 53 of "The Sportplane Builder" by Tony Bingelis.
To use the tool, slip the bent side under the skin and hook the edge of the flange. The end of the exposed side will be the location of the edge of the spar flange and the pilot hole will be the correct edge distance for the rivet line.

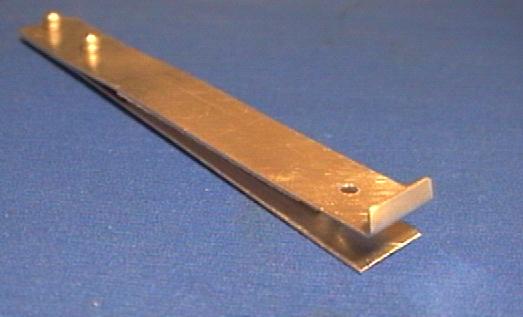

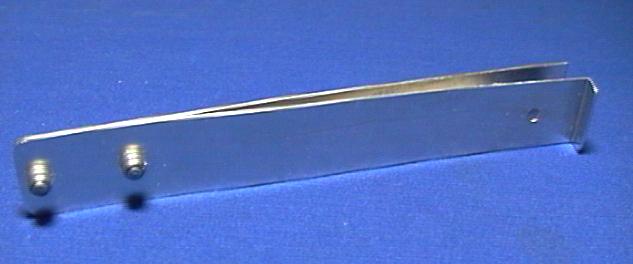

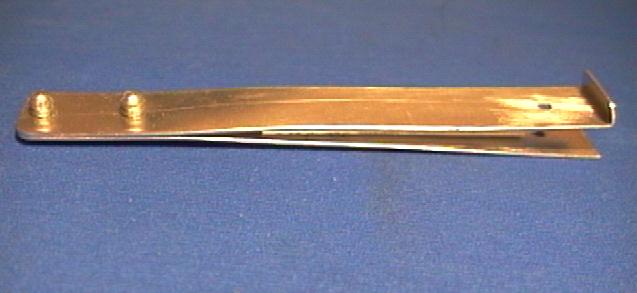

FlangeTool-100.jpg View of tool FlangeTool-101.jpg View of tool FlangeTool-102.jpg View of tool
File: FlangeTool.pdf FlangeTool.pdf Drawing of tool with example of use.
|
