Submitted By:   ptag.dev@ukonline.co.uk
Email List:   Europa-List
Name:

Bob Harrison

Date:

Mar 8 2003

Subject:   G-PTAG Wing Dolly/Jabiru 3300 Oil Cooler
Description:

There has been a number of discussions concerning single person wing rigging/de-rigging of Europa's and stowage of the wings in covered trailers. This is my solution and it works well except the pivot could do to be another 4" towards the trailing edge.

G-PTAG survived an oil cooler fracture ( probably due to the mounting on the cowl) which showed that oil could escape without the pilot knowing. The oil cooler mounting has been reworked onto the engine with a more dedicated air duct and warm air collector manifold and since oil cooling is only needed after periods of full power the cooler circuit can be turned off for cruise. Reducing the cooler time in circuit and thereby reducing the chance of oil starvation due to oil loss. This is currently subject of PFA modification process. This method was chosen in preference to thermostat control since 5% of oil would always need to be flowing round the oil cooler circuit.

Bob Harrison G-PTAG


    Oil_Cooler_Hot_Air_Collector_Manifold.jpg Europa/Jabiru 3300 Oil Cooling warm air collector manifold for cabin heat.Prior to fitment.

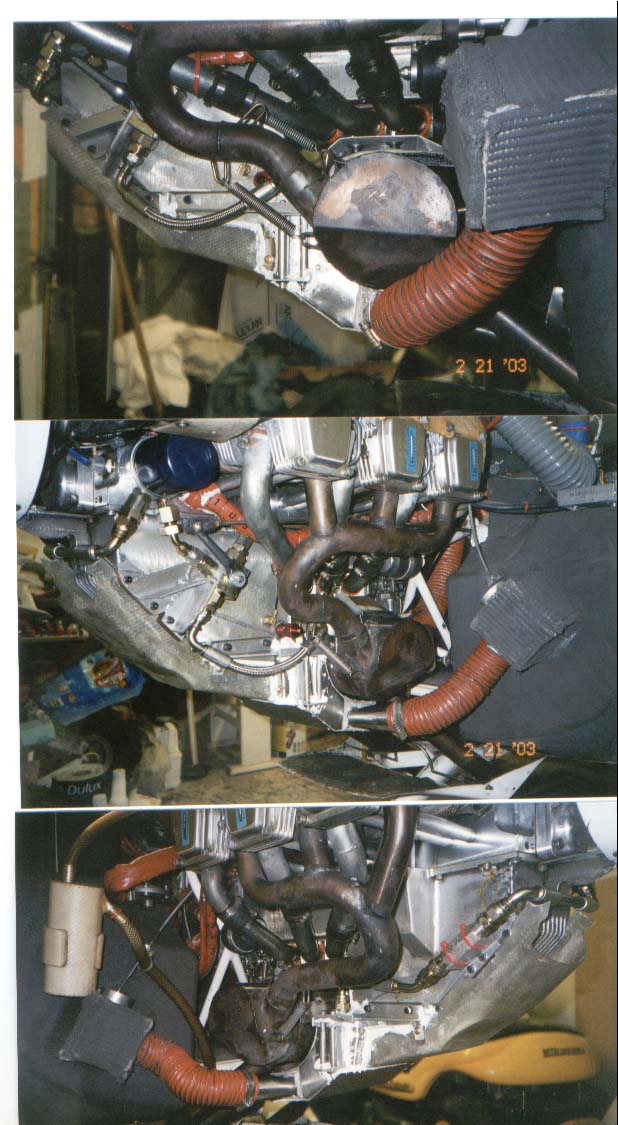

    Oil_Cooling_Manifold_Switch_Check_Valve.jpg Europa/Jabiru 3300 Oil Cooler mounted with Sump Cooling Air Duct and Collector Manifold in place.

Europa /Jabiru 3300 Oil Cooler hand selection valve viewed from port engine side.

Europa/Jabiru 3300 Oil Cooler circuit starboard engine side with anti oil reverse flow check valve.

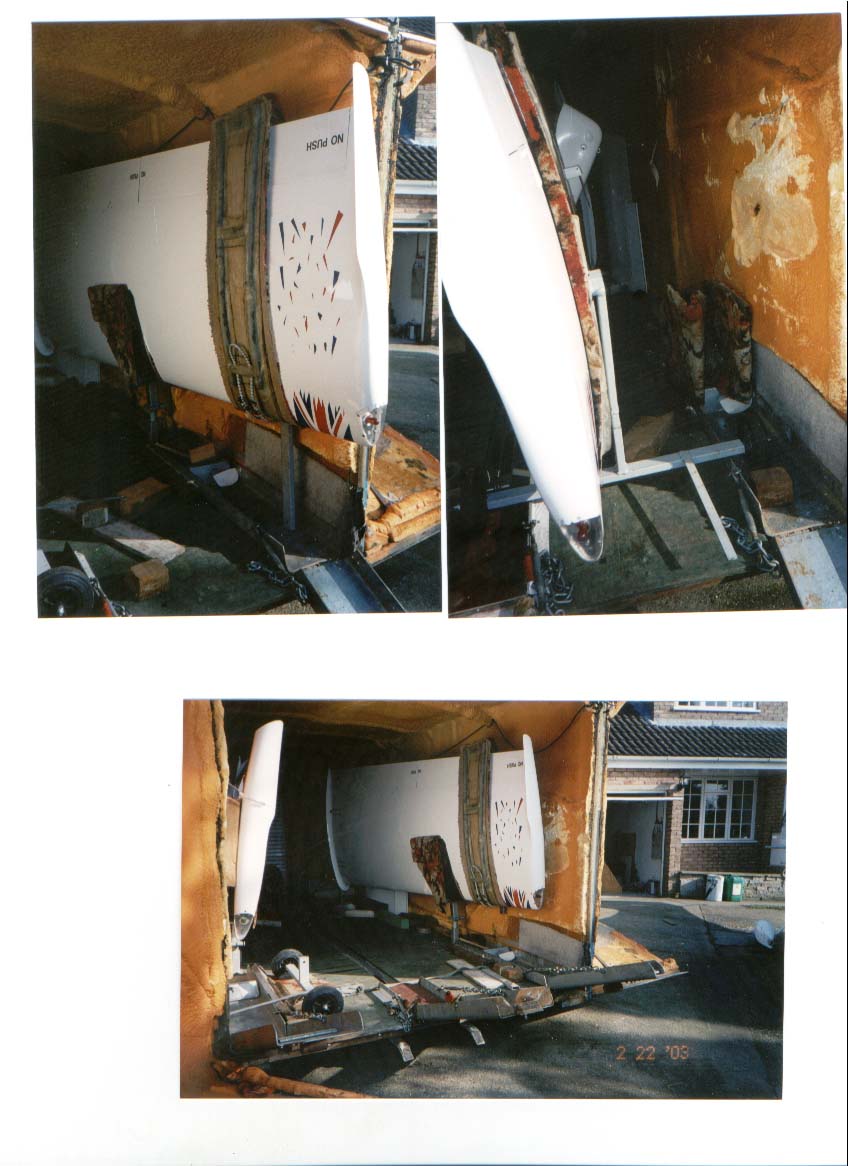

    Wing_Dolly_2.jpg Wing Dolly showing wing on temporary stand to pivot stow cushion into place

Wing Dolly showing wing stowed and dolly remaining for transportation.

Wing dolly showing wing on wheels having been pulled up ramps prior to placing temporary stand.

    Wing_Dolly_3_Forward_Spar_Stow.jpg Wing Dolly on temporary stand for supporting wing to pivot stow cushion into place before then removal of stand.

Wing Stowed Forward spar support.

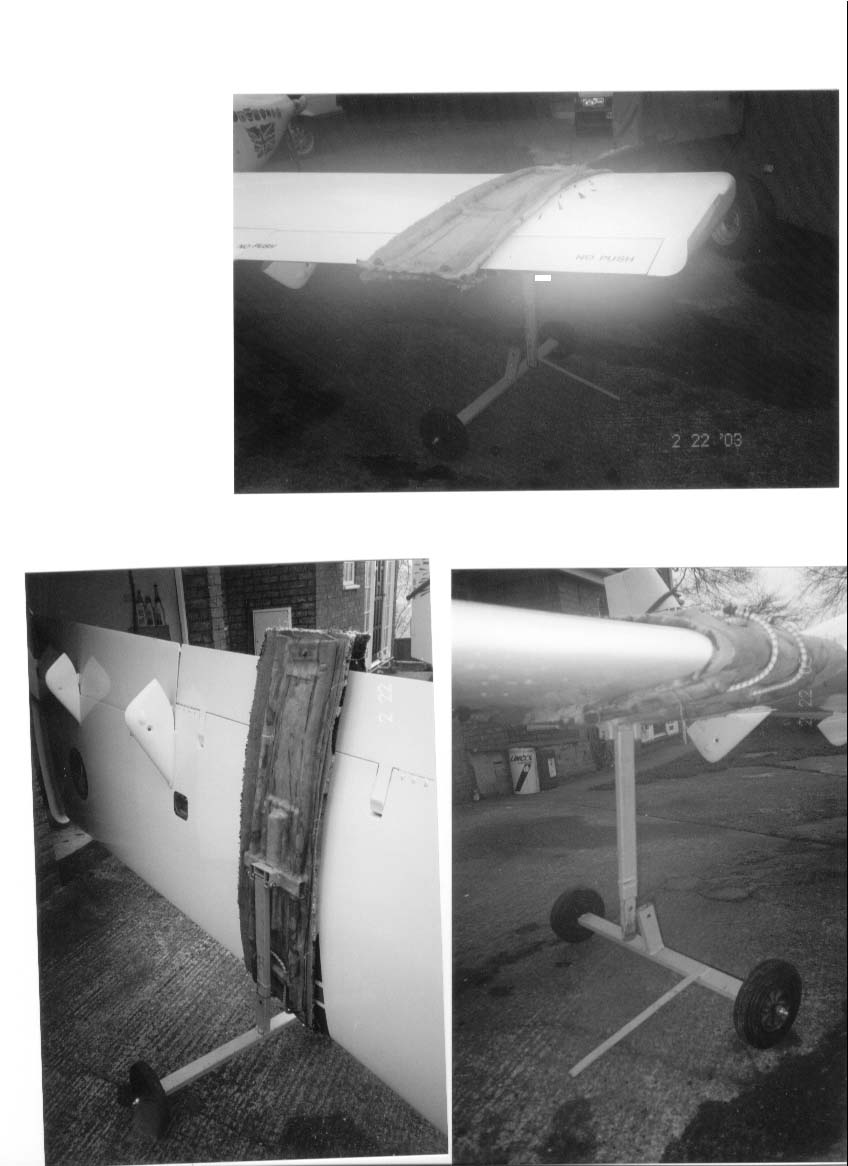

    Wing_Dolly.jpg Wing Dolly attached to Wing on Aircraft.

Wing in Vertical Position removed from Aircraft

Wing Dolly from leading edge with wing attached to Aircraft.
