Submitted By: steve.magdic(at)1psg.com Email List: Kitfox-List Name: Steven M. Magdic
Date: Nov 11 2006

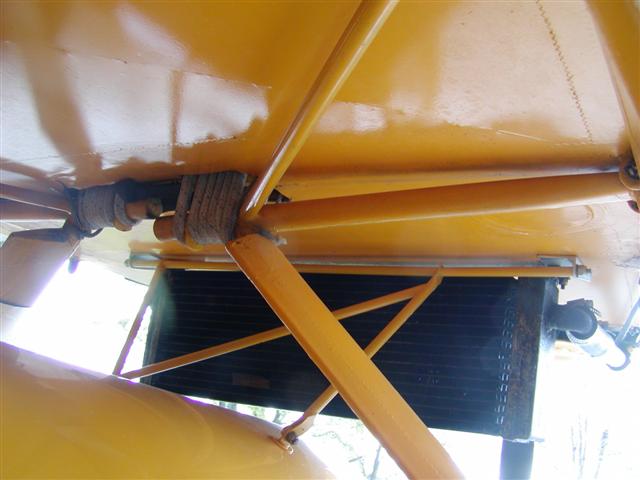

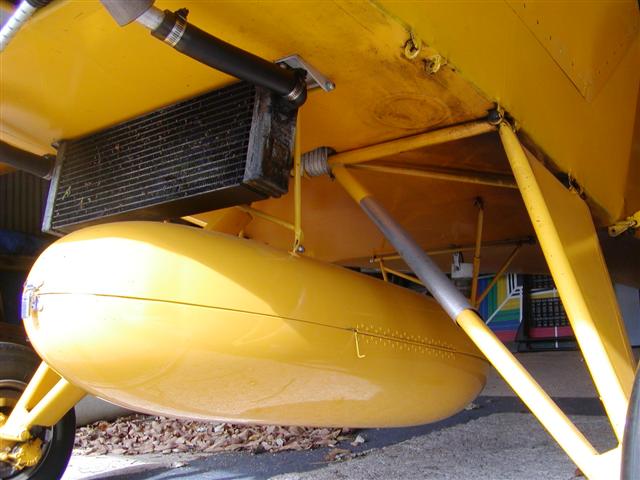

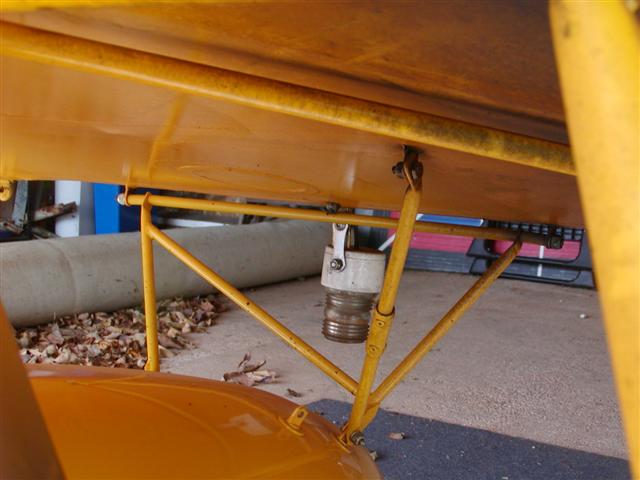

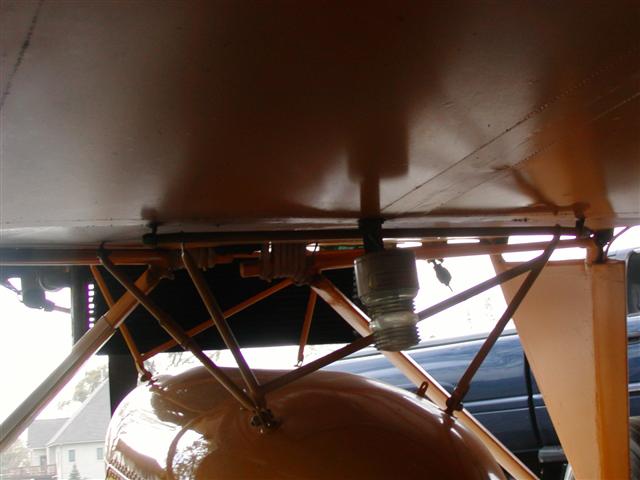

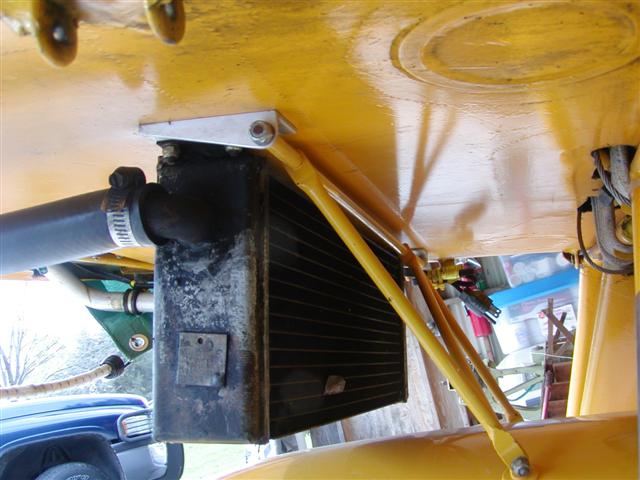

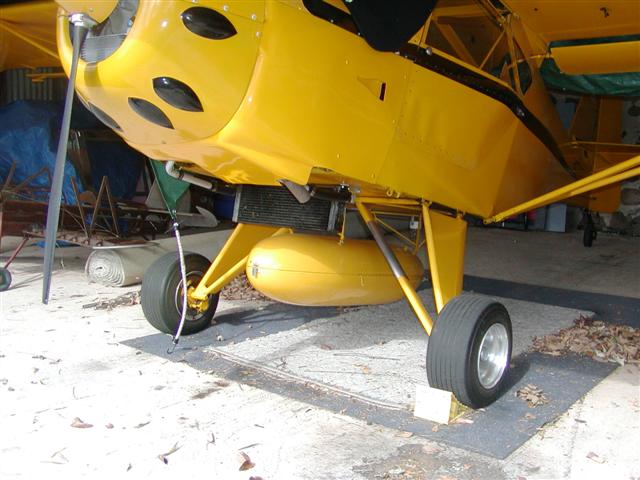

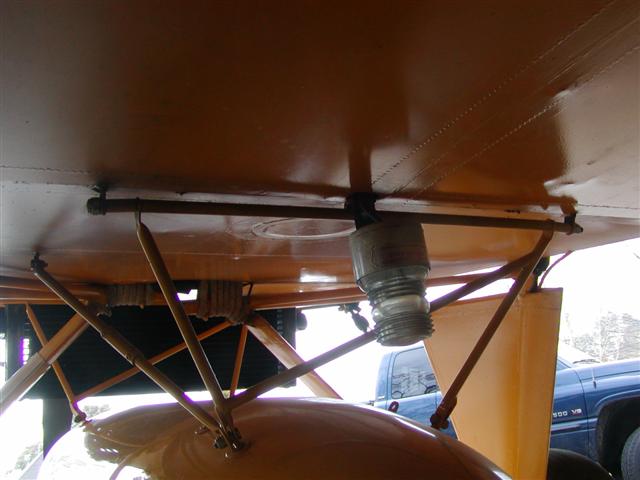

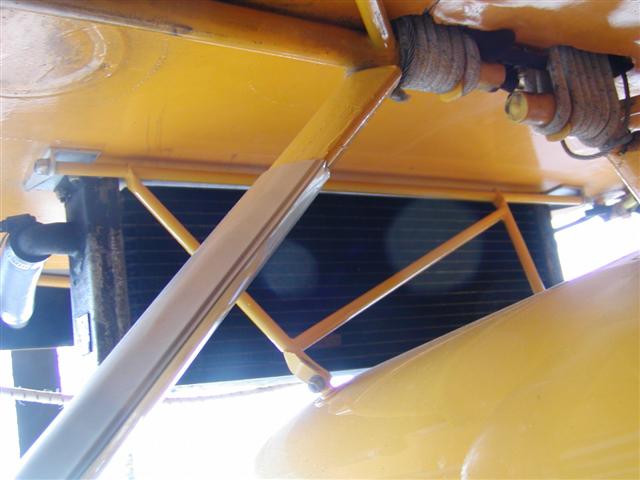

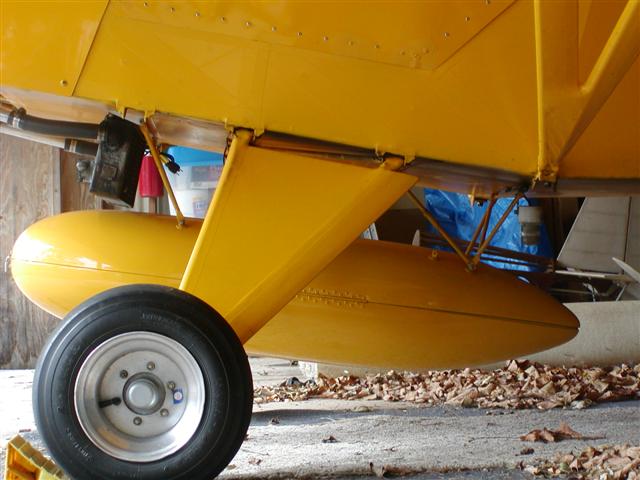

Subject: Cargo Pod Mounting Description: Pictures show a custom mounting of a Model 5 cargo pod on a Model 3 airframe. I used the 3 leg bracket on the rear and the two leg bracket on the front. The 3 leg bracket needed to me modified slightly to align the forward facing leg with the 3rd mounting tab. I utilized the existing radiator mount for the front bracket. I just fabricated some aluminum angle brackets with an offset hole for the threaded rod and appropriate spacers needed to span the distance and pick up the original mounting bracket tabs. Pod doesn't wiggle a bit and is directly on CG.
Please feel free to drop me a line with any questions.
Steve Magdic
