Submitted By: webmaster@upac.ca Email List: Zenith-List Name: Trevor Page
Date: Aug 14 2004
Subject: Simple cockpit heat box Description: I built this simple cockpit heat box for my 601HD. After looking around on the net for plans and not finding any (state secret? :) I decided to design my own. I'm very happy with the results. The inlet is 2" and the hole in the firewall is only 2" as well. Arm is actuated via a push-pull cable purchased at a local automative store (Canadian Tire). Box is made with .025" T6 sheet taken from trimming scraps and a simple hinge purchased at the same store. 1/16" cork is used as the gasket material. The overall size is 4.25" long for the box with a 1/2" tabs on either end for mounting and the width is 3". One of the triangles is a bit longer to accommodate the flapper movement (longer one is the top with the inlet flange).

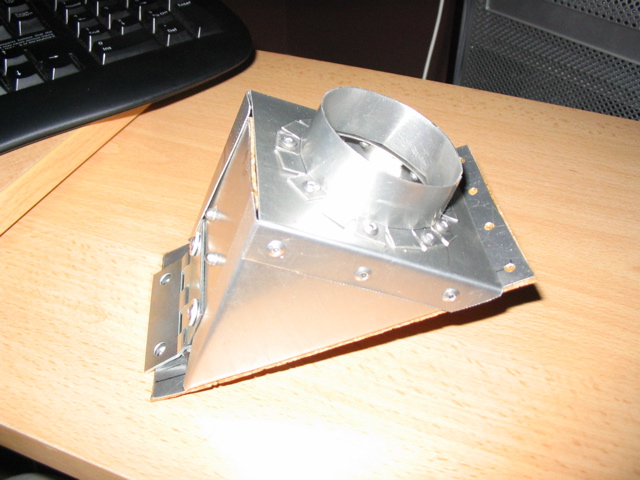

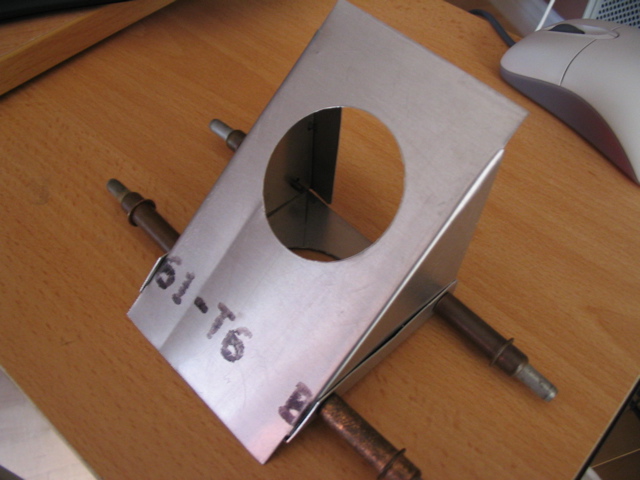

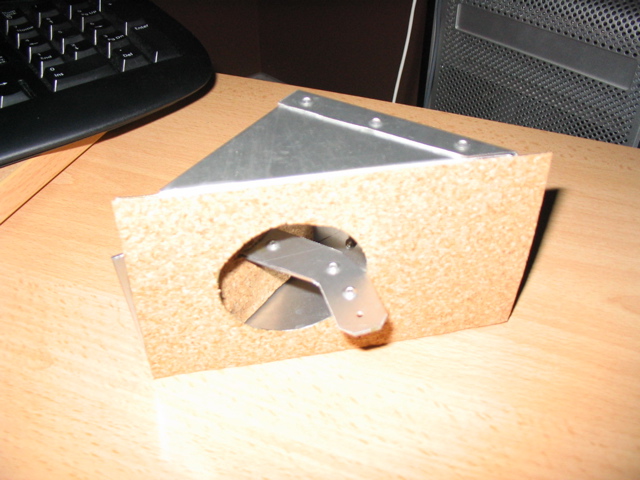

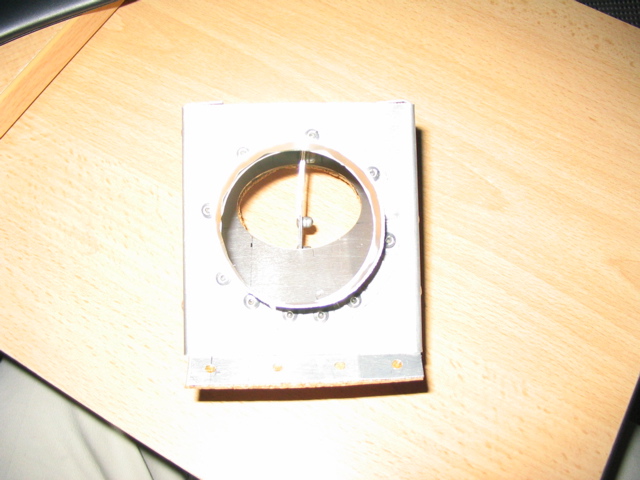

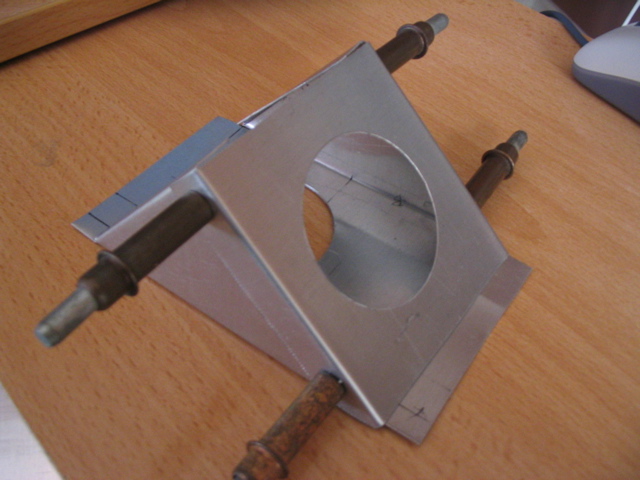

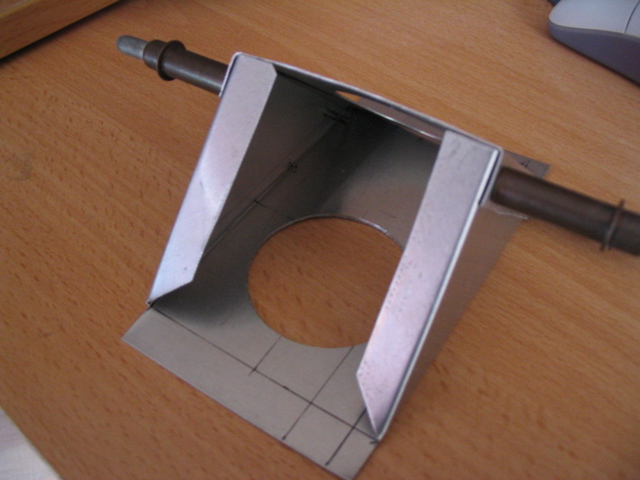

IMG_0743.jpg Detail of the Top IMG_0744.jpg Body under construction before the flapper is installed. IMG_0745.jpg 2" Firewall Hole IMG_0746.jpg Side View IMG_0747.jpg Actuator Arm Detail IMG_0748.jpg Finished box showing the flange.
|
