fasilpereira
Joined: 17 Jul 2011
Posts: 86
Location: Brazil
|
 Posted: Fri Jan 03, 2014 9:35 am Post subject: KIS TR-4 Door Window replacement procedure |
 |
|
My Kis Cruiser TR-4 pax door window was damaged during removal of the kit from the container. See http://forums.matronics.com/viewtopic.php?t=98933 for details.
I've received my new door window from Aircraft Windshield Company. Great price, great product, great people!
Now I need to learn how to replace the cracked window....
Fabricio
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
_________________
Fabricio Pereira
Engineer / Pilot |
|
| Back to top |
|
 |
Robert Reed
Joined: 22 Oct 2009
Posts: 331
Location: Dallas/Ft.Worth
|
| Posted: Fri Jan 03, 2014 10:30 am Post subject: KIS TR-4 Door Window replacement procedure |
|
|
Fabricio
I don't have any personal experience in pulling a door apart for repairs but Glen Westphal had to do something similar with his plane after a door came open in flight. He might be able to help with first hand experience.
http://www.kisbuild.onfinal18.com/GlenCruiserDoorDamage.html
Otherwise, I would try to delaminate the upper part of the door and the window from the inner and outter skins. I had to do a similar operation on one of my flaps to add a 1/4 inch extension and once you can get a thin blade between the skins the process is fairly easy. There is very little peel strength to most laminates and they are easily separated. Just look for a space where the current bond leaves just enough opening to get a thin blade part way in. Use a little force to push it through then move back and forth to expand the space. Do not get in a hurry and don't try to wedge something in and push it open too quickly. The idea is to peel the bond without breaking or distorting anything.
Take the old window out, cut the new one to same size, roughen the bonding areas on the plexiglass, clean off the old bonding epoxy from the door skins. Position the window and trial fit. Use clecos to position into place then bond in place. Don't be afraid to use plenty of clecos since they are your primary bonding clamps, the holes are easily filled. Then clean and rebond the edges of the door. You may be able to get by with only opening the top 2/3's of the door but position some clecos around the outter door before you open it up since you will need them to keep everything aligned as you put it back together.
The window install steps can be seen on my website: http://www.kisbuild.onfinal18.com/ look under my progress, scroll down to the doors and windows area for the links.
If you don't want to delaminate the door you could also cut the inside skin at the edge of the current window. Delaminate the window from the outside skin, trim and position the new window against the outside and bond in place. Then just relaminate the inside skin with new glass strips joining the window to the inner skin. Use a fillet around the edge of the plexiglass to tie the new glass into the inner skin, sand and it should look as good as new.
I hope this helps. I am sure a couple of others will chime in with additional thoughts.
GOOD LUCK!!
Bob Reed
From: fasilpereira <fasilpereira(at)hotmail.com>
To: kis-list(at)matronics.com
Sent: Friday, January 3, 2014 11:35 AM
Subject: KIS TR-4 Door Window replacement procedure
--> KIS-List message posted by: "fasilpereira" <fasilpereira(at)hotmail.com (fasilpereira(at)hotmail.com)>
My Kis Cruiser TR-4 pax door window was damaged during removal of the kit from the container. See http://forums.matronics.com/viewtopic.php?t=98933 for details.
I've received my new door window from Aircraft Windshield Company. Great price, great product, great people!
Now I need to learn how to replace the cracked window...
Fabricio
--------
Fabricio Pereira
Engineer / Pilot
Read this topic online here:
http://forums.matronp; * The Builder's Bookstore http://w"http://www.mypilotstore.com/" target=_blank>http://www.mypilotstore.com/t Contribution Web -= &
[quote][b]
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
fredorosa(at)gmail.com
Guest
|
| Posted: Fri Jan 03, 2014 12:36 pm Post subject: KIS TR-4 Door Window replacement procedure |
|
|
Fabricio,
I had to replace the door window also. I removed the cracked one the way Bob described . Cutting the skin on the inside and around the window. then prying it loose.

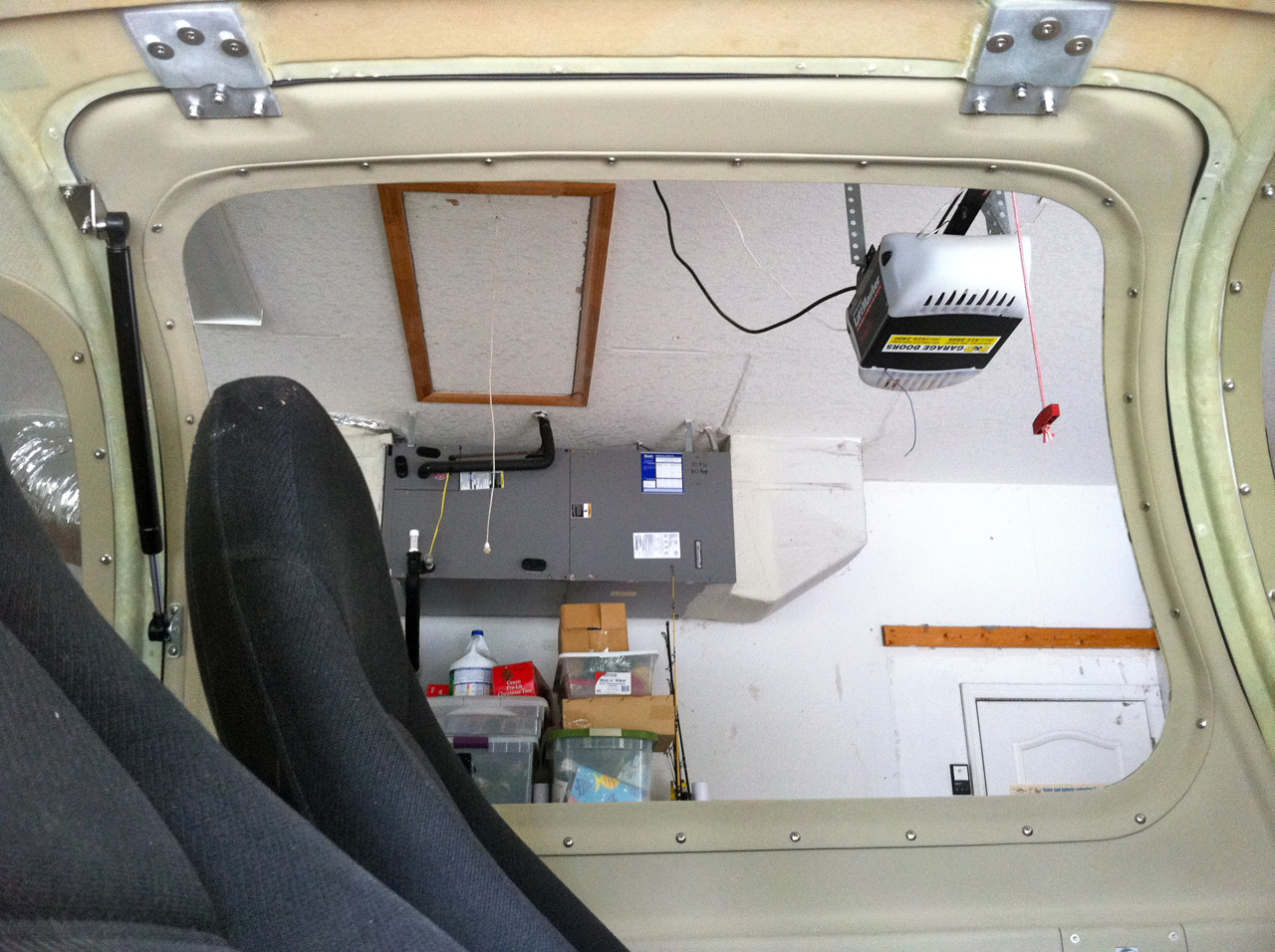

Before doing anything, I made layups for a retaining bracket that is removable for easy window renewal in the future. See picture worth a thousand words.
Incidentally, If you know someone who wants an almost finished Cruiser (without engine or instruments), I am ready to sell my project for $25,000. (firm).
Good luck,
Al Rosa
On Fri, Jan 3, 2014 at 12:35 PM, fasilpereira <fasilpereira(at)hotmail.com (fasilpereira(at)hotmail.com)> wrote:
| Quote: | --> KIS-List message posted by: "fasilpereira" <fasilpereira(at)hotmail.com (fasilpereira(at)hotmail.com)>
My Kis Cruiser TR-4 pax door window was damaged during removal of the kit from the container. See http://forums.matronics.com/viewtopic.php?t=98933 for details.
I've received my new door window from Aircraft Windshield Company. Great price, great product, great people!
Now I need to learn how to replace the cracked window....
Fabricio
--------
Fabricio Pereira
Engineer / Pilot
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=416503#416503
===========
="_blank">www.aeroelectric.com
ooks.com" target="_blank">www.buildersbooks.com
et="_blank">www.homebuilthelp.com
et="_blank">www.mypilotstore.com
"_blank">www.mrrace.com
="_blank">http://www.matronics.com/contribution
le, List Admin.
===========
rget="_blank">http://www.matronics.com/Navigator?KIS-List
===========
http://forums.matronics.com
===========
|
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |
|
| Filesize: |
1.16 MB |
| Viewed: |
4095 Time(s) |
|
|
|
| Back to top |
|
|
fasilpereira
Joined: 17 Jul 2011
Posts: 86
Location: Brazil
|
| Posted: Mon Jan 20, 2014 2:11 pm Post subject: Re: KIS TR-4 Door Window replacement procedure |
|
|
Hi Bob,
I was able to delaminate the window from the door as you suggested. Thank you!
Fabricio
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
_________________
Fabricio Pereira
Engineer / Pilot |
|
| Back to top |
|
|
Robert Reed
Joined: 22 Oct 2009
Posts: 331
Location: Dallas/Ft.Worth
|
| Posted: Mon Jan 20, 2014 5:59 pm Post subject: KIS TR-4 Door Window replacement procedure |
|
|
Fabricio
Glad to hear that, how about some photos? I am sure it would be good info for other builders/flyers.
Bob
From: fasilpereira <fasilpereira(at)hotmail.com>
To: kis-list(at)matronics.com
Sent: Monday, January 20, 2014 4:11 PM
Subject: Re: KIS TR-4 Door Window replacement procedure
--> KIS-List message posted by: "fasilpereira" <fasilpereira(at)hotmail.com (fasilpereira(at)hotmail.com)>
Hi Bob,
I was able to delaminate the window from the door as you suggested. Thank you!
Fabricio
--------
Fabricio Pereira
Engineer / Pilot
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=417312#417312
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
fasilpereira
Joined: 17 Jul 2011
Posts: 86
Location: Brazil
|
| Posted: Wed Feb 12, 2014 4:44 am Post subject: Re: KIS TR-4 Door Window replacement procedure |
|
|
Bob,
I don't have pictures of the delamination process. We used a screwdiver with care.
After delamination, the original window was cut and broken in several parts to remove it from the frame. The initial idea was to install the new window without cutting the frame.
Later we discovered that this is not possible....
Pictures bellow.
Fabricio
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |

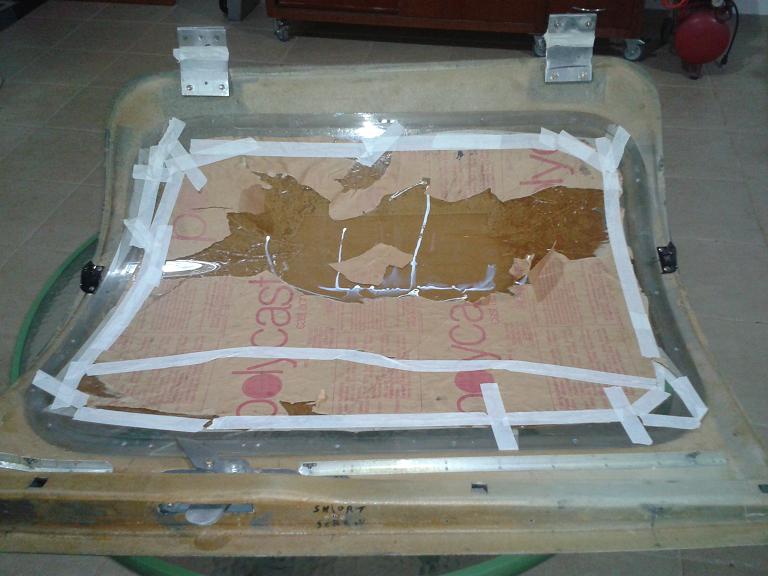

| cracked window after removal. |
|
| Filesize: |
76.35 KB |
| Viewed: |
3963 Time(s) |
|
| Description: |

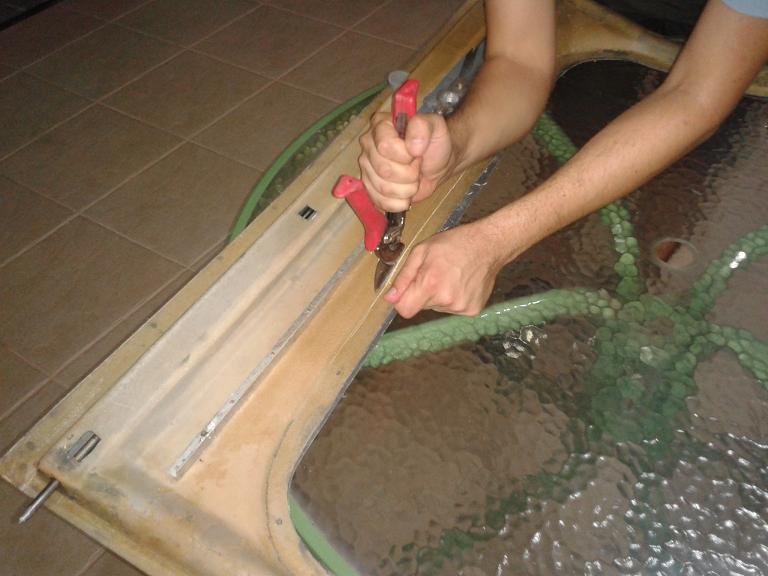

| cutting door frame with snips. |
|
| Filesize: |
71.63 KB |
| Viewed: |
3963 Time(s) |
|
| Description: |

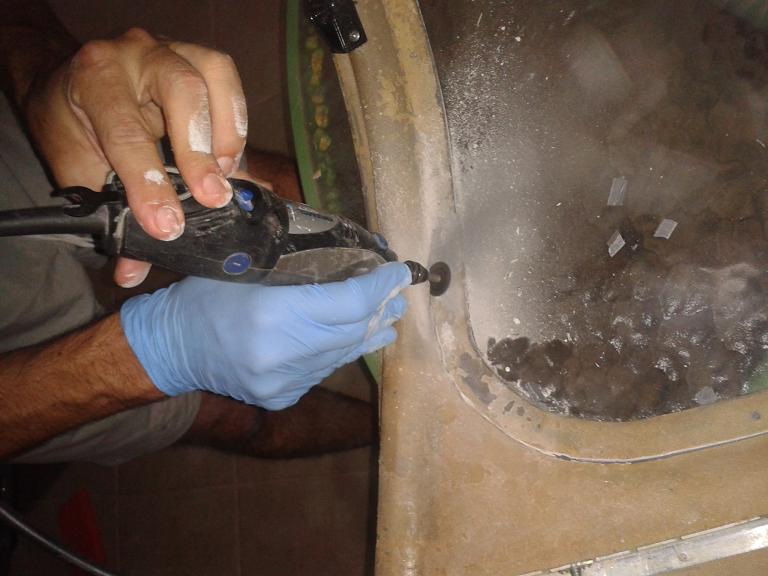

| cutting door frame with dremel |
|
