ACS Door Locks

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

civengpe

Joined: 14 Feb 2011
Posts: 105

Posted: Thu Apr 09, 2015 4:51 am Post subject: ACS Door Locks

I tried to install my new, custom ordered door lock yesterday in the baggage door and found that the included cam was too short.  When I attempted to use the one I had, I realized that these door locks are "clocked" 45 degrees off of what they would need to be for the cam to be level in the closed position.



The included cam has an 8 point mounting hole that allows it to be clocked to the desired position, but the one I have is square.  I called the manufacturer and they do not make a longer cam.  Does anyone have a source for longer cams that have an 8 point mounting hole?  If not, what has everyone else been doing?

Thanks,

Shannon



  [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

rvdave

Joined: 24 Jan 2009
Posts: 191

Posted: Thu Apr 09, 2015 5:08 am Post subject: Re: ACS Door Locks

I took the square holed cam, cut and welded it to the octagonal cam and bent it to make it work.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Dave Ford
Cadillac, MI

wgreenley

Joined: 09 Jan 2010
Posts: 100
Location: Dowagiac, MI

Posted: Thu Apr 09, 2015 5:08 am Post subject: ACS Door Locks

I believe my kit from Vans came with a long cam for this purpose.



On Thu, Apr 9, 2015 at 8:48 AM, Shannon Hicks <civeng123(at)gmail.com (civeng123(at)gmail.com)> wrote:

[quote]I tried to install my new, custom ordered door lock yesterday in the baggage door and found that the included cam was too short.  When I attempted to use the one I had, I realized that these door locks are "clocked" 45 degrees off of what they would need to be for the cam to be level in the closed position.



The included cam has an 8 point mounting hole that allows it to be clocked to the desired position, but the one I have is square.  I called the manufacturer and they do not make a longer cam.  Does anyone have a source for longer cams that have an 8 point mounting hole?  If not, what has everyone else been doing?

Thanks,

Shannon



   	  Quote:




get="_blank">http://www.matronics.com/Navigator?RV10-List

tp://forums.matronics.com

_blank">http://www.matronics.com/contribution




[b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

bruce.hoppe(at)yahoo.com
Guest

Posted: Thu Apr 09, 2015 6:17 am Post subject: ACS Door Locks

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

civengpe

Joined: 14 Feb 2011
Posts: 105

Posted: Thu Apr 09, 2015 7:25 am Post subject: ACS Door Locks

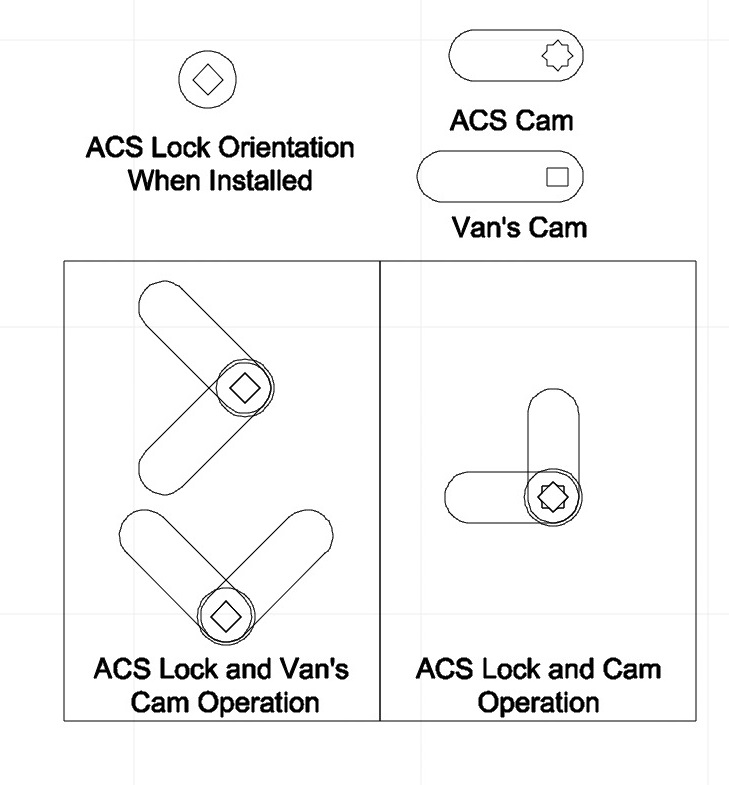

Because the cutout is square in the Vans supplied cam, It will not rotate properly.  When the lock is installed in the door, it is off by 45 degrees.  The only way I can see making it work is to modify the square opening to an 8 point opening.  Attached is a crude drawing of what is happening.



Shannon

On Thu, Apr 9, 2015 at 8:08 AM, rvdave <rv610dave(at)gmail.com (rv610dave(at)gmail.com)> wrote:

 	  Quote:
		  --> RV10-List message posted by: "rvdave" <rv610dave(at)gmail.com (rv610dave(at)gmail.com)>



 I took the square holed cam, cut and welded it to the octagonal cam and bent it to make it work.



 --------

 Dave Ford

 RV6 for sale

 RV10 building

 Cadillac, MI









 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=440489#440489















 ===========

 -List" target="_blank">http://www.matronics.com/Navigator?RV10-List

 ===========

  FORUMS -

 _blank">http://forums.matronics.com

 ===========

 b Site -

           -Matt Dralle, List Admin.

 target="_blank">http://www.matronics.com/contribution

 ===========

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

79.76 KB

Viewed:

6205 Time(s)

Jim Berry

Joined: 10 Jan 2006
Posts: 237
Location: Denver

Posted: Thu Apr 09, 2015 9:13 am Post subject: Re: ACS Door Locks

A locksmith or HD can fix you up with the correct latch.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

bhoppe2

Joined: 09 Apr 2015
Posts: 15
Location: Nolensville, TN

Posted: Thu Apr 09, 2015 4:41 pm Post subject: Re: ACS Door Locks

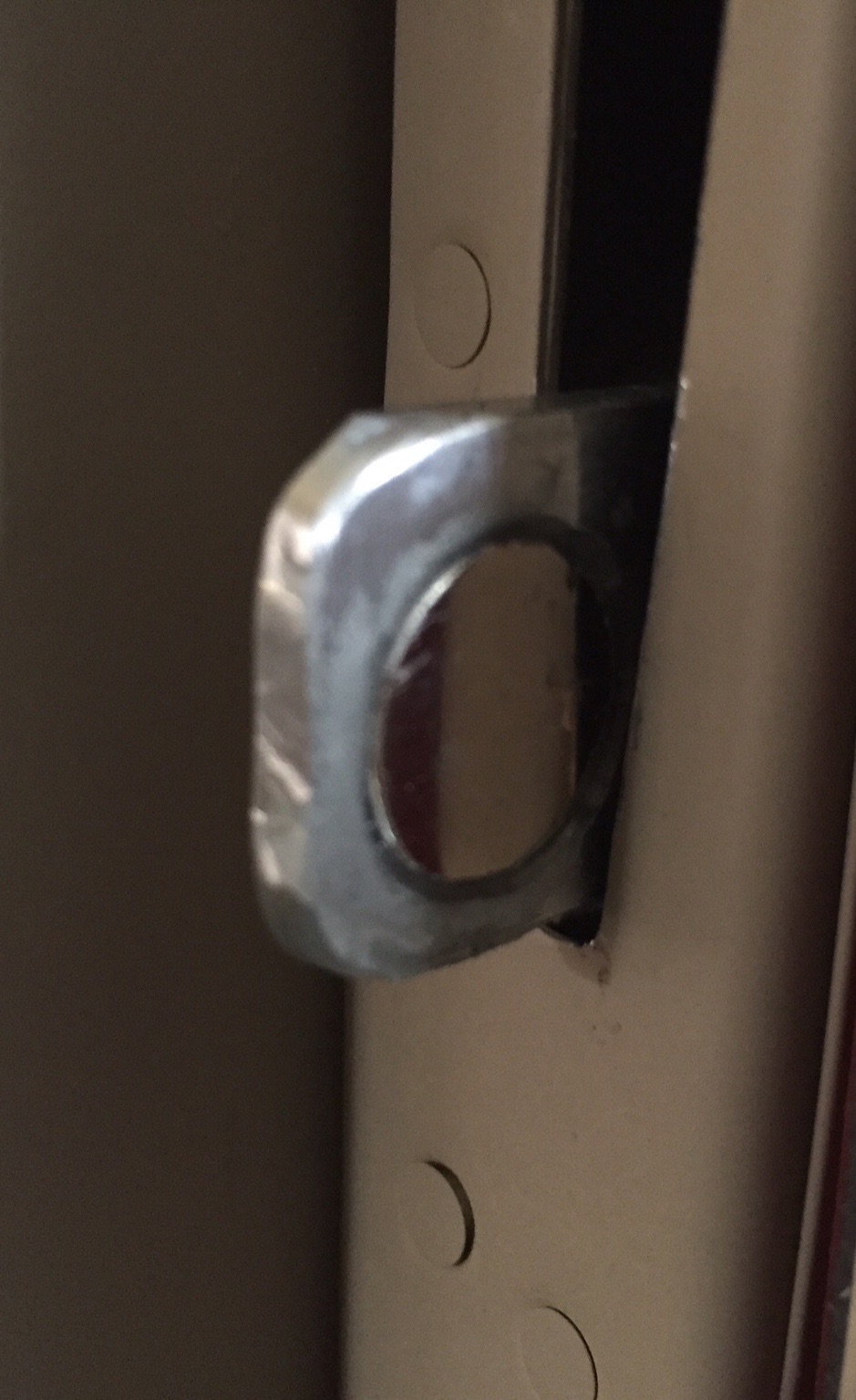

I agree with William. Vans included a longer cam that replaces the one that comes with the lock.  I ended up making one so that I could embed a disk magnet in it and then installed a reed switch in the door jamb. That switch is hooked in series with the passenger door switches.  All 5 switches are hooked in series, 2 per passenger and one on the luggage door.  Therefore, if any door is not latched, I get an indicator on my panel telling me, just not which one.  i bought both the magnet and switch from Amazon.



Bruce Hoppe



Sent from my iPad

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

266.81 KB

Viewed:

6165 Time(s)

_________________
Bruce Hoppe
