PostPosted: Tue Jul 05, 2011 9:48 am    Post subject: Jaguar baffles Reply with quote
I took a bunch of pics yesterday. After taking the pics I realized it would have been better to have the left inner baffle in place. Oh, well. It's close.

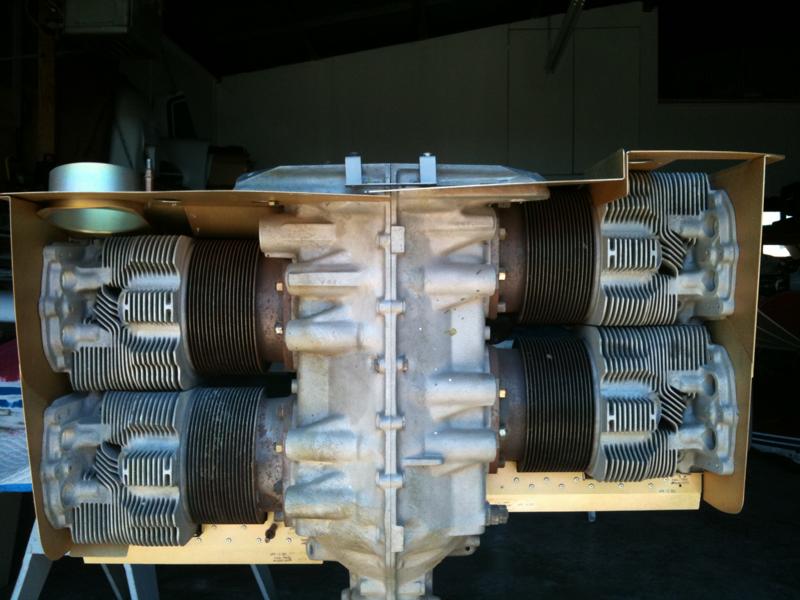

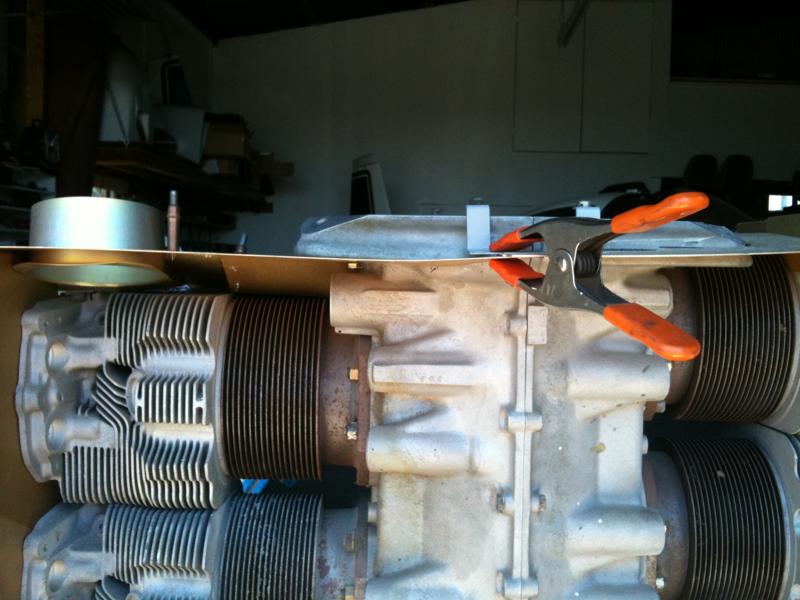

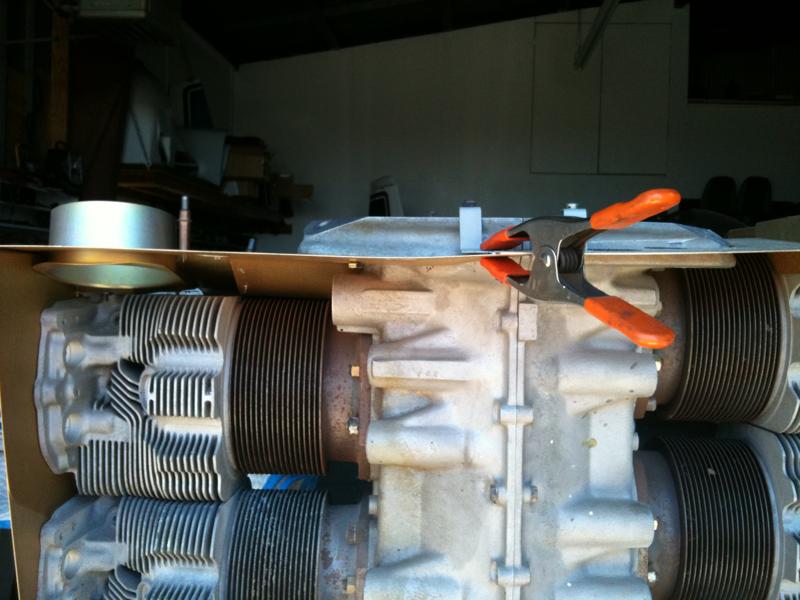

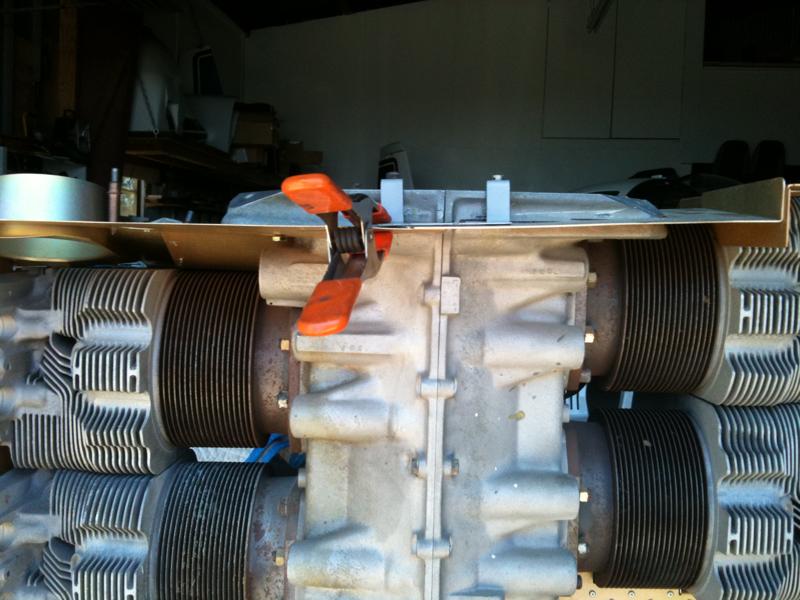

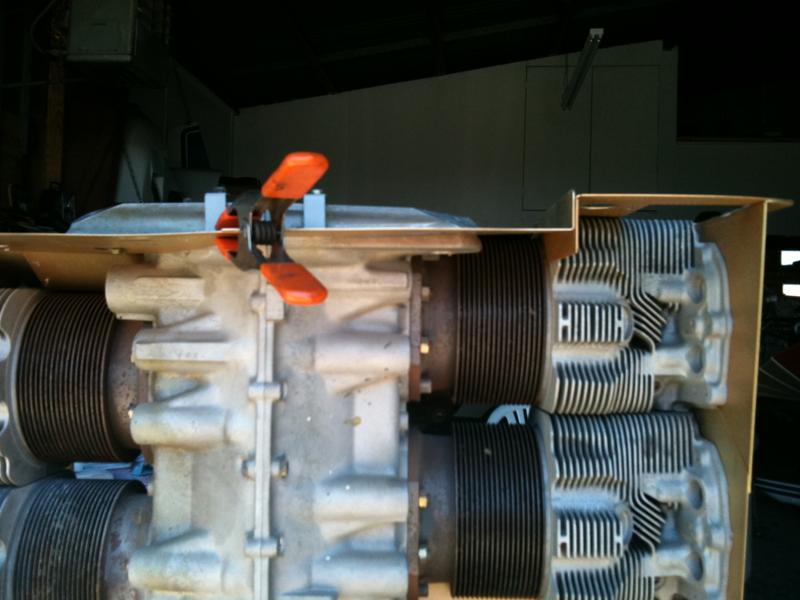

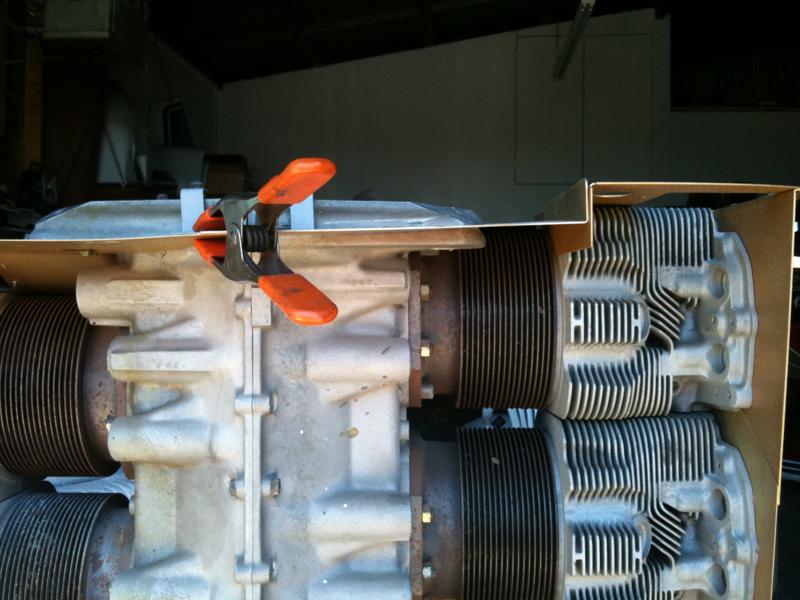

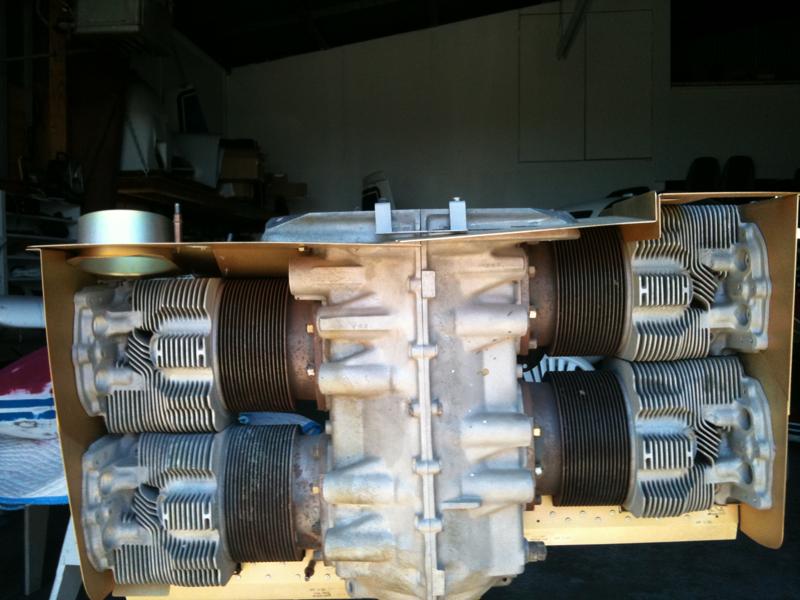

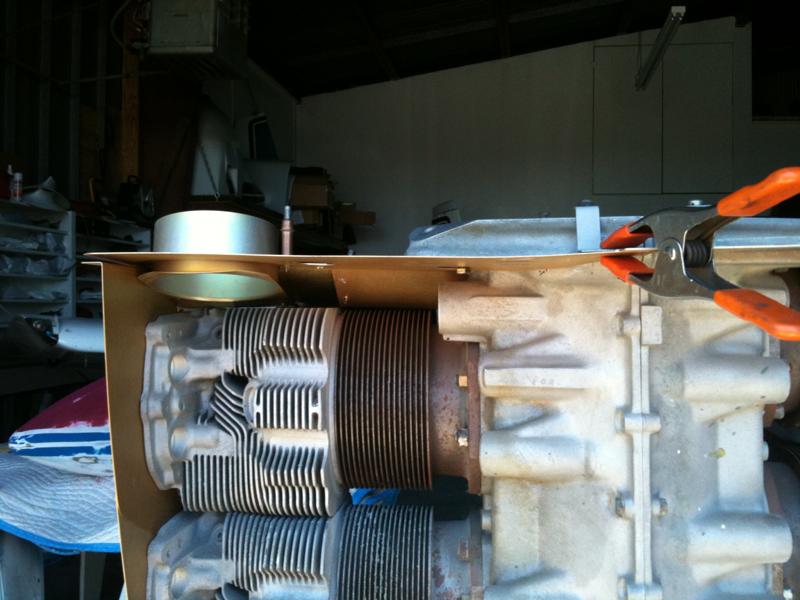

As you can see, from a bird's eye view, the baffles line up pretty well. The left inner (on the right side of the pics adjacent to the engine) fits more parallel to the engine. There is no hardware holding any of this in place.
Boris, I appreciate, more than you know, your questions and attention to detail.
Gary
