 Posted: Fri Jul 29, 2011 10:23 am Post subject: Baffles and such |
 |
|

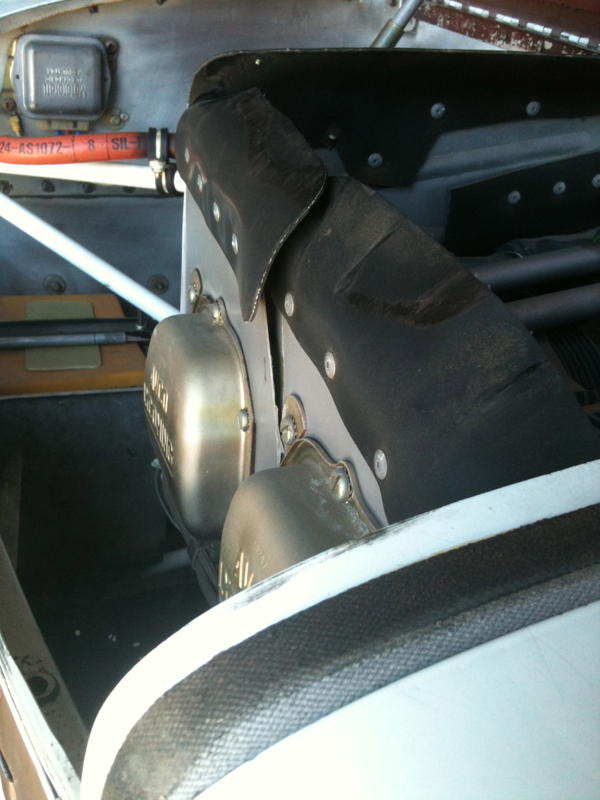

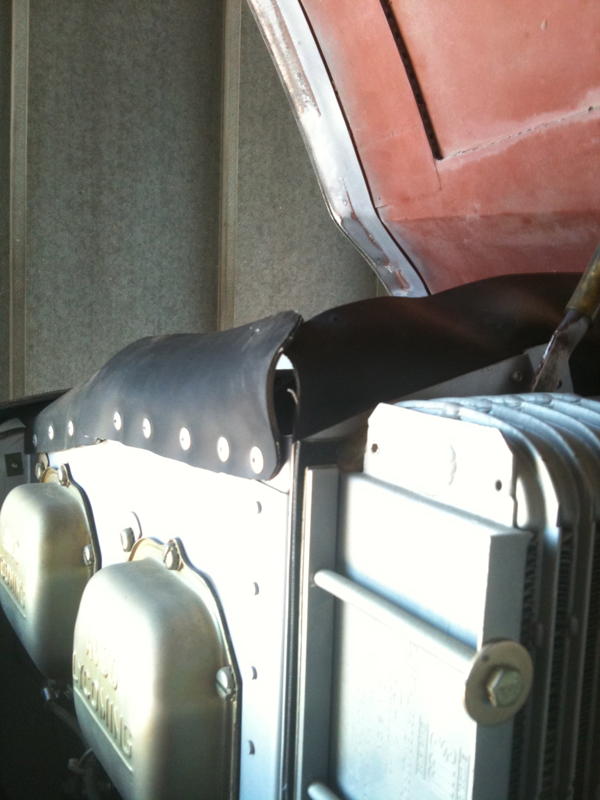

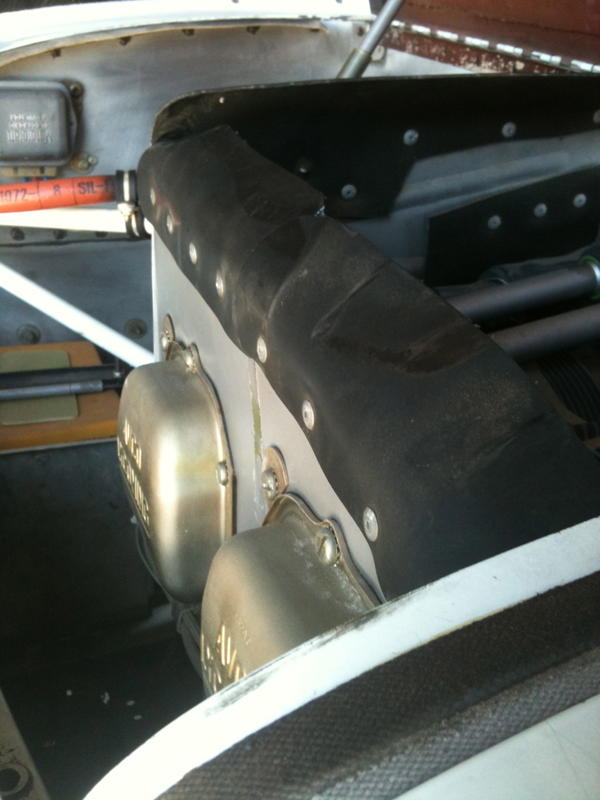

I don't know why it is that everyone (almost everyone) who installs baffles puts the #3 baffle on top of the #1 baffle. The short one holds the long one down.
It's too late to fix the left rear corner on this one without new baffles. It will always bleed air here.

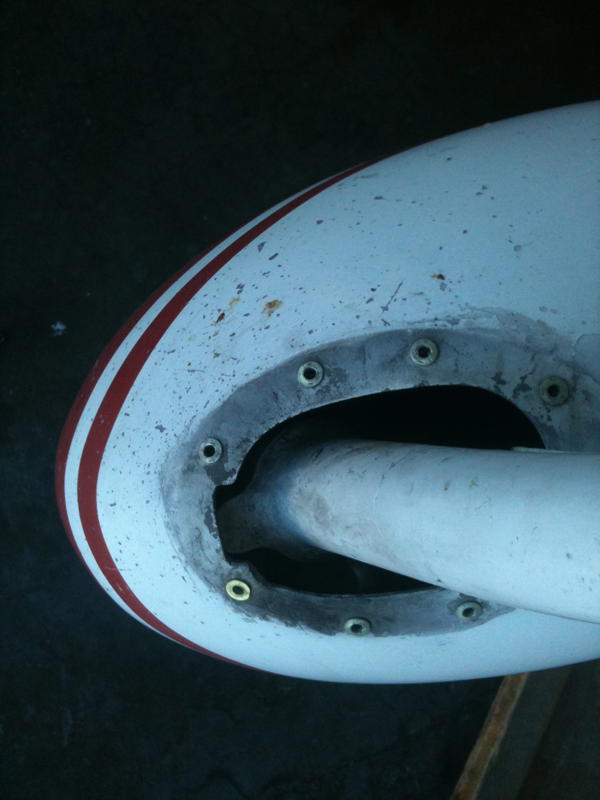

Nose gear: so, the guy removing it says, "I know why it's so hard to remove, they forgot to cut it out to clear the thingy on the strut. There. Problem solved."
