 Posted: Sat Sep 14, 2013 7:41 pm Post subject: Trial Fit of 4 into 1 Exhaust |
 |
|

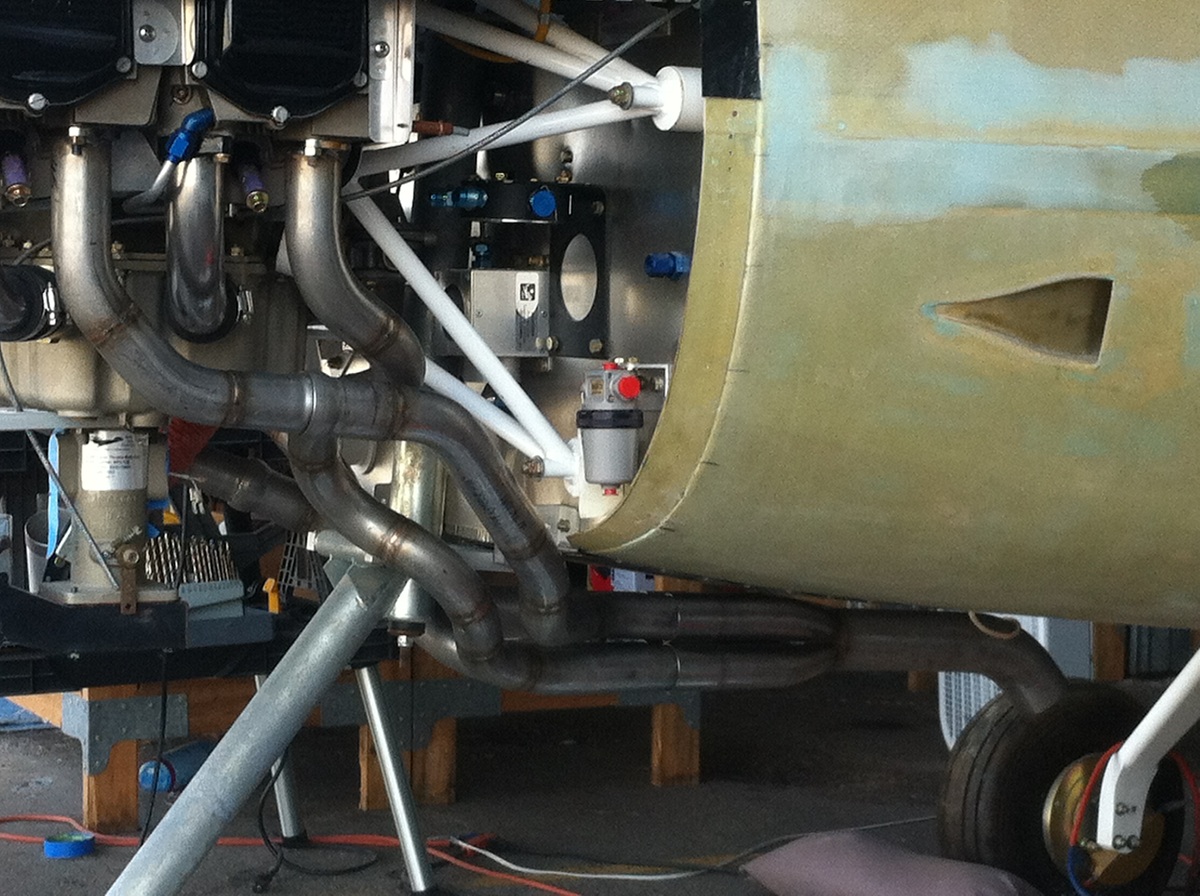

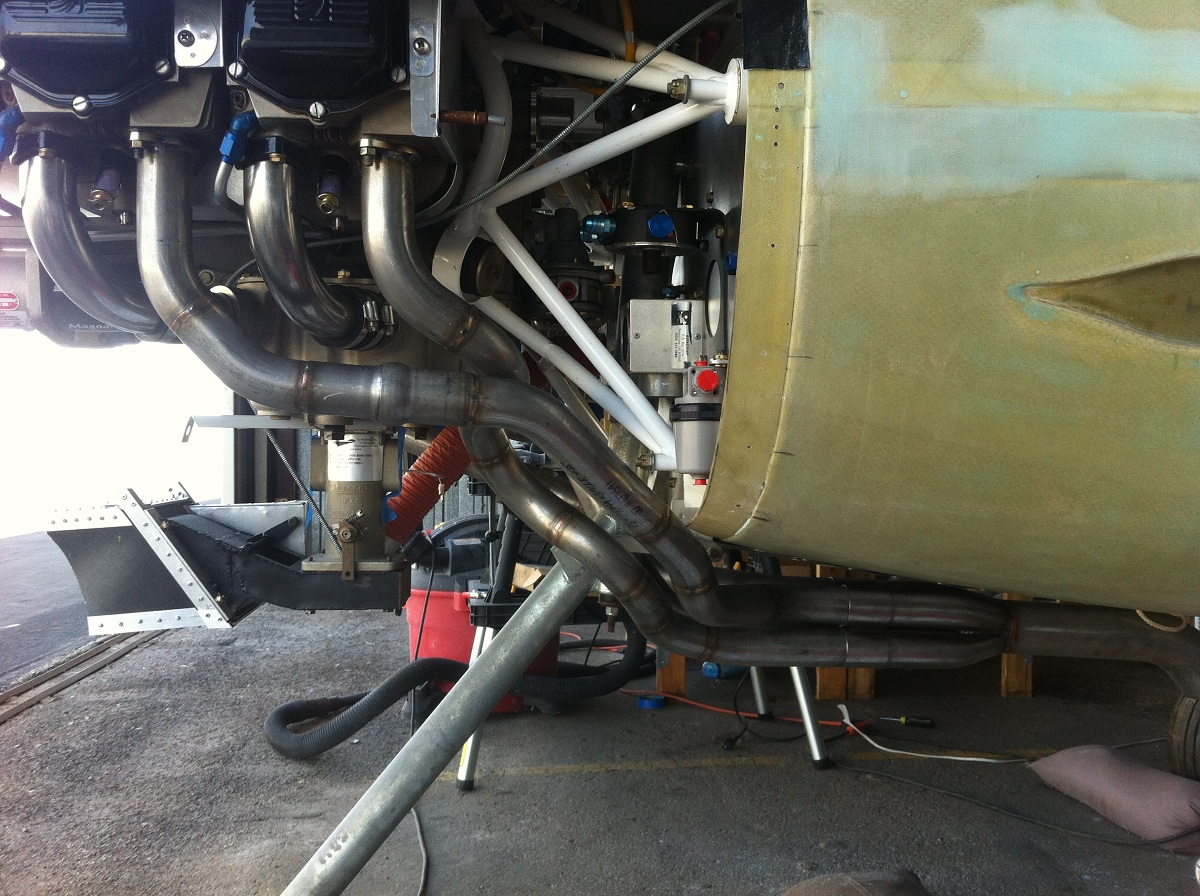

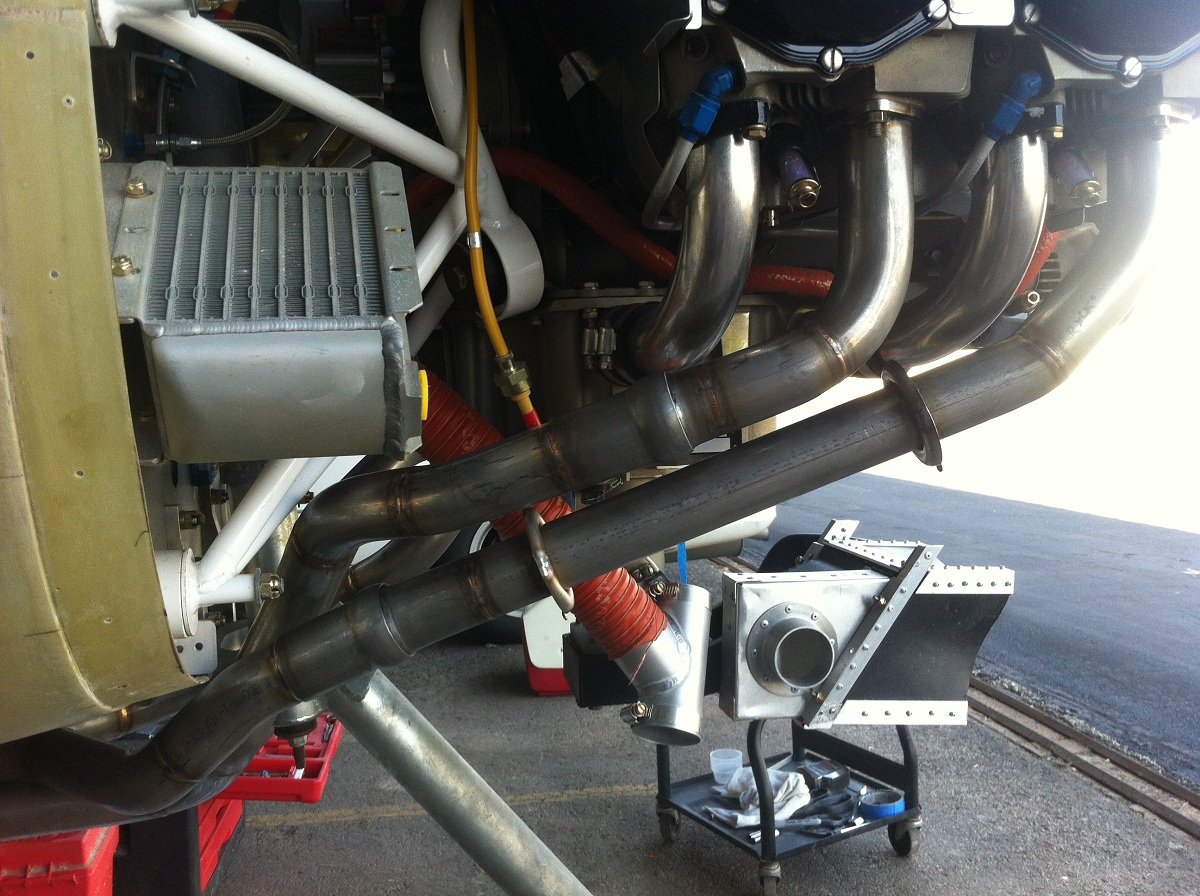

Three and 1 / 2 years after I did the initial mockup for the 4 into 1 exhaust system I finally received it this week and did the trial fit today. The workmanship and the fit were excellent and it has good clearance everywhere. That PVC mockup process really works great.
I am working on the final glass work on the cowling now and this will help determine any clearance issues with the bottom of the cowling. I have decided against the extended fairing from the lower cowling under the fuselage. I may add it later after the plane is flying if I find that cooling is not an issue.
With any luck I will finish the last of the fiberglass work on the cowling and the windscreen by the end of September or first of October. Trying to complete glass before cool weather. It's been a long and very hot summer working on the plane but progress is being made although far to slowly. Who knows, another 15 years and I might just finish this thing.
Bob Reed
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |
|
| Filesize: |
421.15 KB |
| Viewed: |
3293 Time(s) |
|
| Description: |
|
| Filesize: |
400.49 KB |
| Viewed: |
3293 Time(s) |
|
| Description: |
|
| Filesize: |
343.27 KB |
| Viewed: |
3293 Time(s) |
|
|
|
| Back to top |
|
 |
mark_trickel
Joined: 13 Dec 2011
Posts: 101
Location: Philadelphia, PA, USA
|
| Posted: Tue Sep 17, 2013 5:27 am Post subject: Re: Trial Fit of 4 into 1 Exhaust |
|
|
Wow, that sure does look pretty. One more step to completion checked off the list. Here’s a little inspiration I found last week:
http://eaa104.org/documents/NL0913.pdf
Check page 6 of this chapter newsletter. I had this one as flying but it is not. Apparently in the eyes of some States if it is registered at the FAA it is flyable, and they are entitled to sales tax, and yearly registration fees (unlike the project car I have). In the paper work for my airplane is a stack of yearly Minnesota registration receipts. In 18 years the thing never left the hanger. Looks like Ed Hanson will be flying by years end.
Mark T.
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
Robert Reed
Joined: 22 Oct 2009
Posts: 331
Location: Dallas/Ft.Worth
|
| Posted: Tue Sep 17, 2013 7:09 am Post subject: Trial Fit of 4 into 1 Exhaust |
|
|
Mark,
A very nice looking Cruiser and it looks like I won't be the next one flying after all.
Oh well, progress is progress and I am inching along.
Bob Reed
From: mark_trickel <marktrickel(at)gmail.com>
To: kis-list(at)matronics.com
Sent: Tuesday, September 17, 2013 8:27 AM
Subject: Re: Trial Fit of 4 into 1 Exhaust
--> KIS-List message posted by: "mark_trickel" <marktrickel(at)gmail.com (marktrickel(at)gmail.com)>
Wow, that sure does look pretty. One more step to completion checked off the list. Here’s a little inspiration I found last week:
http://eaa104.org/documents/NL0913.pdf
Check page 6 of this chapter newsletter. I had this one as flying but it is not. Apparently in the eyes of some States if it is registered at the FAA it is flyable, and they are entitled to sales tax, and yearly registration fees (unlike the project car I have). In the paper work for my airplane is a stack of yearly Minnesota registration receipts. In 18 years the thing never left the hanger. Looks like Ed Hanson will be flying by years end.
Mark T.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=408727#408727
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
jerzy_krasinski(at)sbcglo
Guest
|
| Posted: Wed Sep 18, 2013 6:55 pm Post subject: Trial Fit of 4 into 1 Exhaust |
|
|
Did you run the engine with it?
Will it survivwe the vibrations?
Jerzy
From: Robert Reed <robertr237(at)att.net>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Saturday, September 14, 2013 10:40 PM
Subject: Trial Fit of 4 into 1 Exhaust
Three and 1 / 2 years after I did the initial mockup for the 4 into 1 exhaust system I finally received it this week and did the trial fit today. The workmanship and the fit were excellent and it has good clearance everywhere. That PVC mockup process really works great.
I am working on the final glass work on the cowling now and this will help determine any clearance issues with the bottom of the cowling. I have decided against the extended fairing from the lower cowling under the fuselage. I may add it later after the plane is flying if I find that cooling is not an issue.
With any luck I will finish the last of the fiberglass work on the cowling and the windscreen by the end of September or first of October. Trying to complete glass before cool weather. It's been a long and very hot summer working on the plane but progress is being made although far to slowly. Who knows, another 15 years and I might just finish this thing.
Bob Reed
[quote][b]
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
Robert Reed
Joined: 22 Oct 2009
Posts: 331
Location: Dallas/Ft.Worth
|
| Posted: Wed Sep 18, 2013 8:01 pm Post subject: Trial Fit of 4 into 1 Exhaust |
|
|
Jerzy,
No, I haven't done the first engine start yet and it will probably be after the first of the year before I do. My single objective right now is to finish ALL glasswork before the temperature starts falling and then do the prime and painting during the winter cool weather.
Each of the exhaust tubes have a ball joint in the system to allow some flexability. I have a hangar point behind the collector and two on the firewall. Will be using flexable hanger straps with stainless clamps. Vibration should not be a problem but I have learned there are no guarantees.
Bob
From: jerzy krasinski <jerzy_krasinski(at)sbcglobal.net>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Wednesday, September 18, 2013 9:55 PM
Subject: Re: Trial Fit of 4 into 1 Exhaust
Did you run the engine with it?
Will it survivwe the vibrations?
Jerzy
From: Robert Reed <robertr237(at)att.net>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Saturday, September 14, 2013 10:40 PM
Subject: Trial Fit of 4 into 1 Exhaust
Three and 1 / 2 years after I did the initial mockup for the 4 into 1 exhaust system I finally received it this week and did the trial fit today. The workmanship and the fit were excellent and it has good clearance everywhere. That PVC mockup process really works great.
I am working on the final glass work on the cowling now and this will help determine any clearance issues with the bottom of the cowling. I have decided against the extended fairing from the lower cowling under the fuselage. I may add it later after the plane is flying if I find that cooling is not an issue.
With any luck I will finish the last of the fiberglass work on the cowling and the windscreen by the end of September or first of October. Trying to complete glass before cool weather. It's been a long and very hot summer working on the plane but progress is being made although far to slowly. Who knows, another 15 years and I might just finish this thing.
Bob Reed
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
sstearns2(at)yahoo.com
Guest
|
| Posted: Thu Sep 19, 2013 9:46 am Post subject: Trial Fit of 4 into 1 Exhaust |
|
|
I have a similar exhaust on my 360, except it is not quite as long out the back of the cowl. I only have one hangar just aft of the firewall and no ball joints. The only problem I have had is I used a 3/4"x0.015 inch strip of stainless steel to hang the exhaust. It cracked after 125 hours or so. I just have two strips of the same dimensions now.
Scott
From: Robert Reed <robertr237(at)att.net>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Wednesday, September 18, 2013 9:01 PM
Subject: Re: Trial Fit of 4 into 1 Exhaust
Jerzy,
No, I haven't done the first engine start yet and it will probably be after the first of the year before I do. My single objective right now is to finish ALL glasswork before the temperature starts falling and then do the prime and painting during the winter cool weather.
Each of the exhaust tubes have a ball joint in the system to allow some flexability. I have a hangar point behind the collector and two on the firewall. Will be using flexable hanger straps with stainless clamps. Vibration should not be a problem but I have learned there are no guarantees.
Bob
From: jerzy krasinski <jerzy_krasinski(at)sbcglobal.net>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Wednesday, September 18, 2013 9:55 PM
Subject: Re: Trial Fit of 4 into 1 Exhaust
Did you run the engine with it?
Will it survivwe the vibrations?
Jerzy
From: Robert Reed <robertr237(at)att.net>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Saturday, September 14, 2013 10:40 PM
Subject: Trial Fit of 4 into 1 Exhaust
Three and 1 / 2 years after I did the initial mockup for the 4 into 1 exhaust system I finally received it this week and did the trial fit today. The workmanship and the fit were excellent and it has good clearance everywhere. That PVC mockup process really works great.
I am working on the final glass work on the cowling now and this will help determine any clearance issues with the bottom of the cowling. I have decided against the extended fairing from the lower cowling under the fuselage. I may add it later after the plane is flying if I find that cooling is not an issue.
With any luck I will finish the last of the fiberglass work on the cowling and the windscreen by the end of September or first of October. Trying to complete glass before cool weather. It's been a long and very hot summer working on the plane but progress is being made although far to slowly. Who knows, another 15 years and I might just finish this thing.
Bob Reed
| Quote: | [b]http://www.matron://forums.matronics.com/" rel="nofollow" target="_blank">http://forums.==========
|
[/b]
[quote][b]
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
Robert Reed
Joined: 22 Oct 2009
Posts: 331
Location: Dallas/Ft.Worth
|
| Posted: Thu Sep 19, 2013 12:59 pm Post subject: Trial Fit of 4 into 1 Exhaust |
|
|
I have two mounting points on either side of the tailpipe following the 4-1 collector. My initial thought was to put a clamp over that position and use a flexible hangar on both sides. This would give some movement to the system and dampen any vibration. Not sure though if that will be enough support for the entire system. The mechanic that I am working with is coming out this weekend to help me locate and drill for the exhaust temp probes so I will discuss the options with him. I was going to try and drill them myself but he convinced me that it would be much easier to use his jig and drill it rather than to destroy some of my bits trying to penetrate that stainless steel.
Bob
