For those following this thread, an update: Several emails have been exchanged

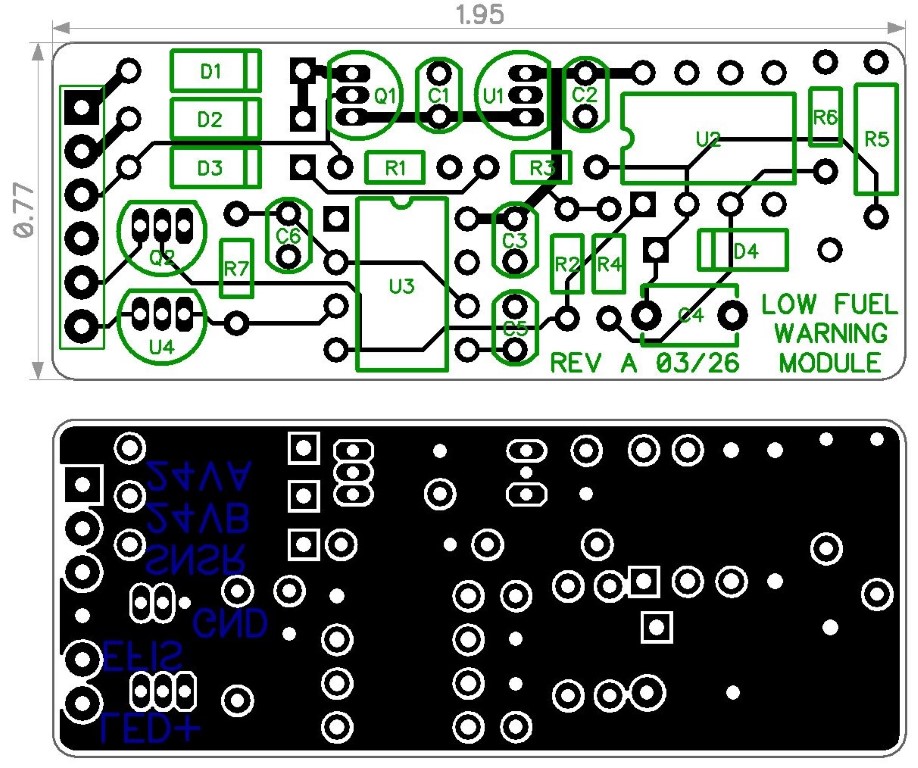

between Pete, Joe and myself. I've finished a circuit board layout (see attached
image; dimensions in inches), which I'm going to build up and test before
offering to Pete. Assuming it works, I'll post an update here when that's done,
with design files and links for anyone who might need this in the future.
