Message 1
| INDEX | Back to Main INDEX |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 8 inch wheels |
Thanks Jose,
I found some 800 x 6 from Carlise. I'll try those. I haven't been able to find
anything larger. The big boys - Super Cub guys consider 26" small and shoot
for 31 or 35". Imagine the weight not to mention the cost on those!
larry
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150550#150550
Message 2
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
Hello Larry,
There is no requirement for a 406 Mhz ELT found anywhere in the FARs. The regulation
regarding ELTs is 91.207, and it has not changed in any way since the introduction
of the 406 Mhz ELTs or the announcement that the Search and Rescue
(SAR) satellites will discontinue receiving 121.5 in the year 2009. Your existing
121.5 Mhz ELT will continue to meet the requirements of the regulations
after 2009, but will no longer be as effective since the SAR satellites will no
longer receive the signal.
Joe Norris
EAA Aviation Services
EAA Aviation Center, Oshkosh, WI
888-322-4636, extension 6806
jnorris@eaa.org
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150552#150552
Message 3
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
I don't know if it was myth or magic, but as I recall, someone once told me
that all airliners were required to monitor 121.5. My question is, is this
a true fact and if it is, are they still doing it? Also, do ATC facilities
still monitor 121.5/243.0?
Deke
S5, NE Michigan
>
> Darin sez:
>
>>I recently attended a seminar by the owner of preparedpilot.com on
>>surviving a night (or nights) in the backcountry and the way he approaches
>>that question is that he adds "PLB Activation" to his mental emergency
>>procedure. In other words, if you have an emergency and know you are
>>going down, you will most likely have that second or two to activate your
>>PLB, so add that to your emergency procedure and hit the button before you
>>crash.
>
> Apparently he wasn't in my Kitfox with me when I crashed into the side of
> a mountain. His assumption is unrealistic--there was no time to activate
> anything.
>
> Anyone concerned about the possibility of an emergency landing should
> spend a few extra dollars and replace their 121 MHz ELT with a 406 MHz
> model to go along with their personal beacon. That's what I plan to do.
>
> Mike G.
> N728KF
> Phoenix, AZ
>
>
>
Message 4
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
Michel, nothing personal, but due to where you live you're under a whole different
set of rules. For the US owners and pilots, here's a summary from multiple
sources, such as AOPA and EAA answers online, plus the FAA:
http://www.faa.gov/airports_airtraffic/air_traffic/publications/ATpubs/AIM/Chap6/aim0602.html
1. First generation 1973 TSO-C91 ELTs activate less than 25% of when supposed to,
are still legal to keep in use, but not to install.
2. Second-generation 1980s TSO-C91A ELTs (note addition of the "A") activate in
73 percent of accidents and cost about $200. As with the C91 models, the centers
will wait for a second confirmation pass (about an hour and a half), searchers
have to get organized and launched, and then fly a time-consuming pattern
to find these. Meanwhile, you've got blunt-force trauma and maybe are bleeding.
3. New-generation TSO-C126 ELTs transmit the owner's ID on 406 mhz, making the
search area 1/10th of that for a 121.5 mhz unit. A quick phone call by search
and rescue authorities to the emergency contact numbers on file can verify whether
the signal is valid and set the rescue operation in motion much more quickly.
Chief Aircraft sells an Artex ME-406 ELT that puts out a signal on both 121.5
and 406.028 MHz and costs $894.50. Most 406-based ELTs will take a GPS input,
telling searchers right where you are, but this adds a price that depends
on the unit. ELTs have a battery and most can be taken out of the mount to
be carried from the airplane, negating the need for a personal beacon.
All bets are off if any ELT antenna is smothered, the ELT &/or antenna are insecurely
mounted, or a discount antenna cable rips out.
Non-aviation personal locator beacons (PLBs) are also 406 mhz-based and cost typically
$400-$600, but I've seen cheapos (not sure that I personally would trust
a cheap PLB) approach $300.
As of February 1, 2009, the 121.5-MHz ELTs will cease being monitored by the international
search and rescue satellite system known as COSPAS-SARSAT. After that
date the signals will be detected only by ground-based receivers such as those
operated by local airports and air traffic control, and if you're lucky,
by overflying aircraft. If you go down in a remote area your chances of being
found will be greatly diminished.
Largely in deference to AOPA, an ELT upgrade will not be mandated in the US at
this time. The NTSB has recommended mandating it in the US and so far the FAA
has the beaurocratic inertia of not agreeing, as it did in allowing people to
keep the original C91 units. The 406 ELT already has been mandated in many countries,
with others following suit. What will happen in future politics is anybody's
guess and pointless to debate.
So pay your money and make your idividual choice. You can buy a C91A (or keep
what you have), use a C91 or C91A plus a separate personal locator (remember to
register it), or buy a 406-based ELT. That's why you're called the "owner."
Bob
--------
Remember that internet advice may only be worth what you pay.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150558#150558
Message 5
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Aerothane vs. Ranthane? |
As emotionally attached builders and owners, we seem to regularly get into these
chocolate/vanilla/strawberry ice-cream debates.
I'd strongly recommend that you call some of the commercial users. The real expertise
is with the aerial applicators (crop dusters), back-country operators,
and pipeline patrol guys.
Bob
--------
Remember that internet advice may only be worth what you pay.
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150560#150560
Message 6
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |

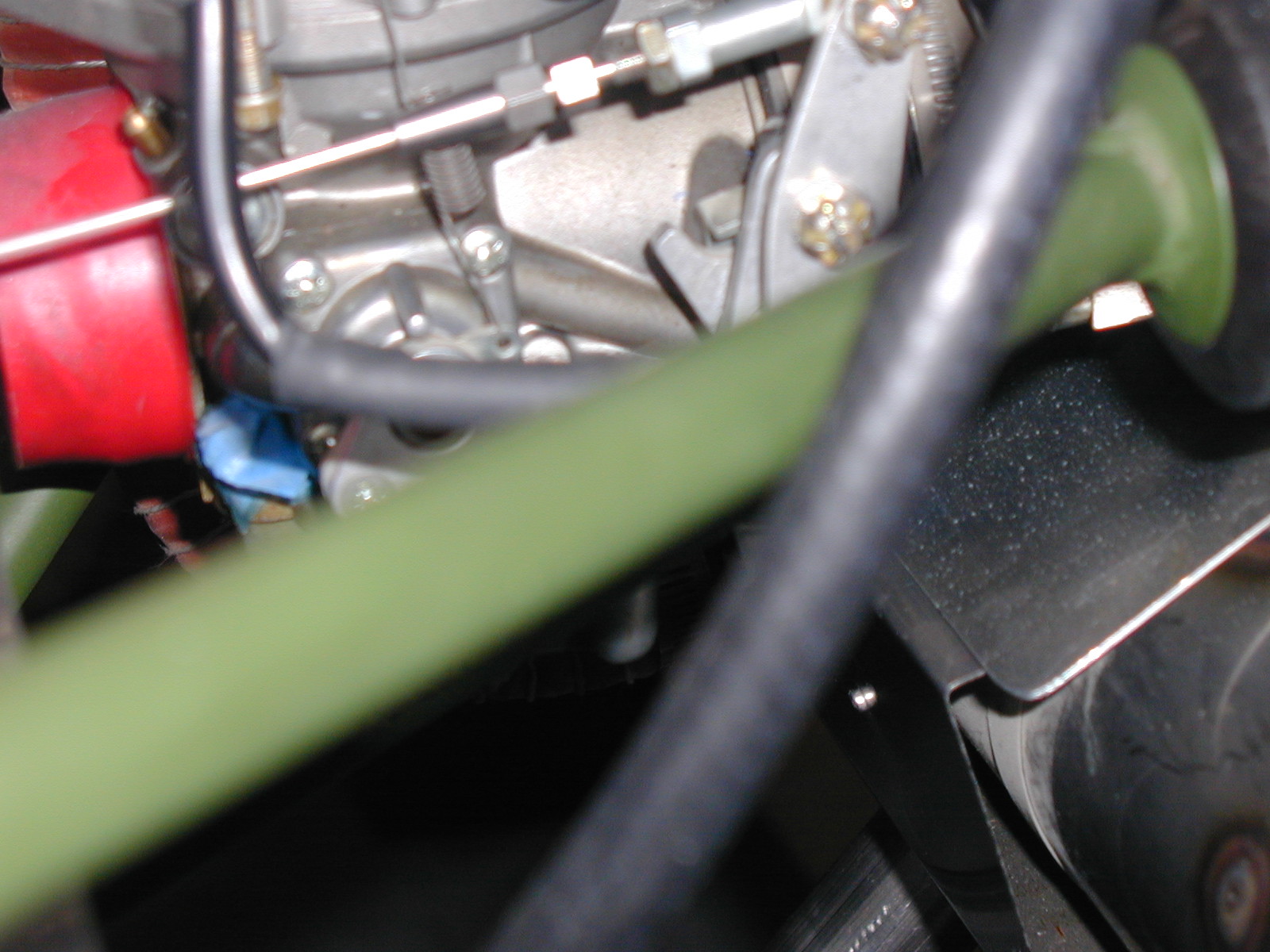

Thanks for the information guys. Since Jay has been successful with the wire grip,
I may not change mine. Lynn, how is the internally threaded rod attached
to the carb lever. I can't picture it from your comments. More on my set up, I
have a ACS vernier throttle which is connected to ACS wire grip in question,
the wire grip is then connected to a rod end which is connected to the carb lever.
I might add, the carb lever is special design and built by Dave Jalanti.
His design add more throw to carb lever which gives more travel to the vernier
throttle thus finer adjustments. Heres some photos of my set up.
--------
Dan Mc Intyre
Kitfox Model IV, Jab 2200
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150562#150562
Attachments:
http://forums.matronics.com//files/p1010004_182.jpg
http://forums.matronics.com//files/p1010005_846.jpg
Message 7
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Quarter scale Kitfox model |
Thanks for the info.
I plan to make one of those models for a paint scheme test bed. I can't believe
how many Kitfox's have dreadful paint jobs. The design has some awkward lines
that should be avoided when laying out stripes and graphics. With a big wooden
mock up and a couple of yards of peel and stick sign vinyl, you can get
it right the first time.
--------
Gary Del Bel Belluz
Toronto, IV / 912UL
Just getting started
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150563#150563
Message 8
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
> From: fox5flyer [fox5flyer@idealwifi.net]
> I don't know if it was myth or magic, but as I recall, someone once told me
> that all airliners were required to monitor 121.5. My question is, is this
> a true fact and if it is, are they still doing it?
When I was sailing long distances, I was also concerned by that because my maritime
EPIRB, at the time, didn't had the possibility to send a distress signal
everywhere. You see, the first version of the COSPAS-SARSAT was only directly
relaying directly to a land station. If you were out of range, it couldn't be
used. Remember that those satellites are in a polar orbit, relatively low. Today,
the distress signal is stored in the satellite and relayed to the ground when
within reach of a station.
Anyway, I was wondering if aircraft would then catch my signals on 121.50. I was
told that yes, most airliners do listen to that frequency and they are especially
asked to do so when flying over the oceans.
Incidentally, the code that was programmed (my maritime callsign) on that frequency
was done using morse signals. While I am a ham and read morse at a rate of
80 characters per minute, I often wondered how many pilot would be able to decode
that. But I guess they have cockpit voice recorders or other means of storing
radio messages.
Cheers,
Michel Verheughe
Norway
Kitfox 3 - Jabiru 2200
<pre><b><font size=2 color="#000000" face="courier new,courier">
</b></font></pre></body></html>
Message 9
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
> From: Bob [dswaim1119@comcast.net]
> Michel, nothing personal, but due to where you live you're under a whole different
> set of rules. For the US owners and pilots, here's a summary from multiple sources,
> such as AOPA and EAA answers online, plus the FAA:
Er ... hum, yes Bob but ... did I write anything that contradicts that? I am not
sure what you are telling me. Of course, it would be nice to have a ELT in my
Kitfox. Actually I had one but didn't keep it. You see my Kitfox was built under
the international Experimental class and, as such, the ELT was compulsory,
just like the international PPL license was compulsory. But it was later registered
as a Norwegian ultralight aircraft. Nothing to do with the US ultralight
definition. In Europe, Ultralight differs from country to country but are more
or less the same within a few national rules. We need a license and we need
certification. But it is not under our national aviation authorities but rather
our national air sport federations.
I have a Norwegian ultralight license and certification for my Kitfox. Maybe it
is closer to your new Sport Pilot license. ELT is not compulsory and extremely
few of us have it. The reason being that over here, you need to pay a yearly
license for radio, transponder and ELT if you have one.
But we are also limited, compared with the Experimental boys. We can't fly IFR,
at night, no aerobatics, no on-top clouds, no over sea longer than 10 km from
the coast, and we need to wear a helmet. We also have to go to bed before the
'boys' because our 'night' is not the aviation night of six degrees under the
horizon but the actual local sunset.
The previous owner of my Kitfox, while flying it as an ultralight kept the ELT
because he was flying mostly from his hometown, on the west coast, where there
is e.g. no cell phone range over the mountains. But I fly on the east coast,
near Oslo, which is much flatter and has a all-around coverage of cell phone.
Yes, I know, it doesn't help if you are unconscious in your wrecked plane.
Incidentally, the maritime counterpart, the EPIRB, working on the same system,
is part of what is called the GMDSS system, which is a combination of different
communication systems. Today, there are no more radio officers on board vessels
but an officer with a GMDSS license. When introduced, 90% of maritime distress
signals were coming from people sending it unvoluntary. You can only do that
on a GMDSS console by pressing two different buttons for a few seconds. Still,
people were so 'trigger-happy' that they pressed it, often resulting in an
overloading of the coast guard services.
Cheers,
Michel Verheughe
Norway
Kitfox 3 - Jabiru 2200
<pre><b><font size=2 color="#000000" face="courier new,courier">
</b></font></pre></body></html>
Message 10
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
Interesting
The subject of personal locator devices is now in great expansion. A
typical gadget is the one at
<http://www.adventuretrak.com>adventuretrak.com
This thing, for a fee, can tell someone with a PC where you are and
it can call emergency responders when you tell it to.
Expect significant price reductions in the future when the public
discovers them. All are gps based. There are good reports from the
"Spot" device where a guy had his motorcycle stolen and they were
able to locate it. Good thing the guy stashed it where the bad guy
did not find it.
There are many of these devices out there and when the bad guys steal
a vehicle they hide it in a public place and watch to see if the
authorities find it before dealing doing anything the vehicle. These
devices work world wide via satellite and GPS.
Regards, Paul
==================
At 05:26 AM 12/5/2007, you wrote:
>
>Hello Larry,
>
>There is no requirement for a 406 Mhz ELT found anywhere in the
>FARs. The regulation regarding ELTs is 91.207, and it has not
>changed in any way since the introduction of the 406 Mhz ELTs or the
>announcement that the Search and Rescue (SAR) satellites will
>discontinue receiving 121.5 in the year 2009. Your existing 121.5
>Mhz ELT will continue to meet the requirements of the regulations
>after 2009, but will no longer be as effective since the SAR
>satellites will no longer receive the signal.
>
>Joe Norris
>EAA Aviation Services
>EAA Aviation Center, Oshkosh, WI
>888-322-4636, extension 6806
>jnorris@eaa.org
>
>
>Read this topic online here:
>
>http://forums.matronics.com/viewtopic.php?p=150552#150552
>
>
Message 11
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
One the reasons for not using the carb heat from the Skystar kit was
the use of scat for air flow. The guys using the kit were down on
performance compared to using the K&N air cleaners.
I was at Osh one year and discussed this issue with one of the racer
guy crew chief and he pulled the cowl and showed me ho to make ducts
without using scat. What they did was make custom fiberglass ducts
with rubber boots where movement was encountered. Not a complex on
his engine since it only had one EFI intake compared to the Rotax
which has to be split to get to the two carbs.
His process was to use 4" diameter swimming pool snakes then he fed
soft copper tubing thru the center hole and then bent to fit. Then he
used fiberglass to cover it. After cure he just pulled out the copper
& removed the foam. The result, he said, was a super smooth inside
surface with little pressure drop.
The intake still had the carb heat box but when open to the ram air
he said the performance went up. An interesting fix.
Now days for the M7 which uses the air intake designed for The 912
engine there is only one intake duct from the carb heat box to the
engine intake which slightly simplifies the fix.
Regards, Paul
Message 12
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Kinda like flying a Sopwith Camel, eh Lynn?
do not archive
Lynn Matteson <lynnmatt@jps.net> wrote:
I think I'd rather have the throttle go to WOT and control the plane
by using the mag switch, than to have to try to find a landing spot
with no power. What about an over-water broken throttle control?
Lynn Matteson
Grass Lake, Michigan
Kitfox IV Speedster w/Jabiru 2200
flying w/440+ hrs
On Dec 4, 2007, at 6:05 PM, Jay & Beverly wrote:
>
>
> Dan,
> I have the wire grip on my Lycoming powered Kitfox. Seventy
> hours so
> far and no signs of it letting go. I am going to use the same
> system on my
> Jab 3300 engine project. To me, the spring that pulls the throttle
> to full
> open is a hazard and will be removed. With no spring pulling there
> will be
> little force applied to the grip/wire junction.
>
> Jay C.
> ----- Original Message -----
> From: "DanM"
> To:
> Sent: Tuesday, December 04, 2007 1:55 PM
> Subject: Kitfox-List: Throttle to carb connection
>
>
>>
>> I'm concerned that the method I use to secure the throttle cable
>> to the
> carburetor on my Jab 2200 is not sufficient or safe. Need some
> opinions
> before I redesign the connection. The throttle cable is connected
> to an ACS
> wire grip, PN 05-16000 which is then connected to the carburetor
> lever. The
> systems worked well but I'm concerned the wire grip may let loose
> at bad
> time. Any advice will be appreciated
>>
>> --------
>> Dan Mc Intyre
>> Kitfox Model IV, Jab 2200
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=150411#150411
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>
>
Marco Menezes
Model 2 582 N99KX
---------------------------------
Never miss a thing. Make Yahoo your homepage.
Message 13
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: 8 inch wheels |
Larry:
That alternative is cheaper than changing wheels, and provides additional cushion.
Keep the list informed of the results!
Best Regards!
Jos
----- Original Message ----
From: LarryM <CrownLJ@verizon.net>
Sent: Wednesday, December 5, 2007 9:23:39 AM
Subject: Kitfox-List: Re: 8 inch wheels
Thanks Jose,
I found some 800 x 6 from Carlise. I'll try those. I haven't been able to find
anything larger. The big boys - Super Cub guys consider 26" small and shoot
for 31 or 35". Imagine the weight not to mention the cost on those!
larry
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150550#150550
Be a better friend, newshound, and
know-it-all with Yahoo! Mobile. Try it now. http://mobile.yahoo.com/;_ylt=Ahu06i62sR8HDtDypao8Wcj9tAcJ
Message 14
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Dan-
I also have the Dave Jalanti-designed lever/arm. I'm going to the
hangar in about an hour and I'll shoot some pictures of mine...I
already have the cowl off. As I recall building it, the internally-
threaded rod has a head (forgot to mention that last night) and it
slides through the Jalanti arm, with the throttle wire going through
the cross hole securing the rod from going back through the arm. Then
the set screws secure the wire to the rod.
I'll get some pics.
Lynn
On Dec 5, 2007, at 9:38 AM, DanM wrote:
>
> Thanks for the information guys. Since Jay has been successful
> with the wire grip, I may not change mine. Lynn, how is the
> internally threaded rod attached to the carb lever. I can't picture
> it from your comments. More on my set up, I have a ACS vernier
> throttle which is connected to ACS wire grip in question, the wire
> grip is then connected to a rod end which is connected to the carb
> lever. I might add, the carb lever is special design and built by
> Dave Jalanti. His design add more throw to carb lever which gives
> more travel to the vernier throttle thus finer adjustments. Heres
> some photos of my set up.
>
> --------
> Dan Mc Intyre
> Kitfox Model IV, Jab 2200
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=150562#150562
>
>
> Attachments:
>
> http://forums.matronics.com//files/p1010004_182.jpg
> http://forums.matronics.com//files/p1010005_846.jpg
>
>
Message 15
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Hey Marco, I'm not THAT old! : )
Lynn
do not archive
On Dec 5, 2007, at 10:48 AM, Marco Menezes wrote:
> Kinda like flying a Sopwith Camel, eh Lynn?
>
> do not archive
>
> Lynn Matteson <lynnmatt@jps.net> wrote:
>
> I think I'd rather have the throttle go to WOT and control the plane
> by using the mag switch, than to have to try to find a landing spot
> with no power. What about an over-water broken throttle control?
>
> Lynn Matteson
> Grass Lake, Michigan
> Kitfox IV Speedster w/Jabiru 2200
> flying w/440+ hrs
>
>
> On Dec 4, 2007, at 6:05 PM, Jay & Beverly wrote:
>
> >
> >
> > Dan,
> > I have the wire grip on my Lycoming powered Kitfox. Seventy
> > hours so
> > far and no signs of it letting go. I am going to use the same
> > system on my
> > Jab 3300 engine project. To me, the spring that pulls the throttle
> > to full
> > open is a hazard and will be removed. With no spring pulling there
> > will be
> > little force applied to the grip/wire junction.
> >
> > Jay C.
> > ----- Original Message -----
> > From: "DanM"
> > To:
> > Sent: Tuesday, December 04, 2007 1:55 PM
> > Subject: Kitfox-List: Throttle to carb connection
> >
> >
> >>
> >> I'm concerned that the method I use to secure the throttle cable
> >> to the
> > carburetor on my Jab 2200 is not sufficient or safe. Need some
> > opinions
> > before I redesign the connection. The throttle cable is connected
> > to an ACS
> > wire grip, PN 05-16000 which is then connected _-
> www.matronics.com/Navigator?Kitfox-List _-
> ===========================================================
Message 16
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
>I don't know if it was myth or magic, but as I recall, someone once
>told me that all airliners were required to monitor 121.5. My
>question is, is this a true fact and if it is, are they still doing
>it? Also, do ATC facilities still monitor 121.5/243.0?
The first communication I attempted after we hit the ground was on
121.5 MHz. I decided that trying the Payson airport unicom frequency
might get us help more quickly, so I tuned to that frequency before I
got any response. I was told later that an American Airlines crew
had, in fact, heard my mayday call but I left the frequency before
they could respond.
I had to turn off the ELT when I tried to talk on 121.5 MHz because
it did activate on impact. When I switched to the Payson frequency I
turned the ELT back on.
That said, I don't know if airlines crews are "required" to guard
121.5 MHz. I don't think 121.5 is going away, it's just that SARSAT
is not going to monitor it any more.
Mike G.
N728KF
Phoenix, AZ
Message 17
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: kitfox heater |
Hey Dave will you post up a few pics of the heat muff? I am getting ready to make
one for my avid and dont feel the need to re-invent the wheel if you have
come up with something that works well.
Thanks
--------
DO NOT ARCHIVE
Leonard Perry
Soldotna AK
Avid "C" / Mk IV
582 IVO IFA
Full Lotus 1260
95% complete
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150587#150587
Message 18
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | CD player, whats cheap but works good? |
I'm not quite ready for the install but I have found some avionics on my wish list
tough to get.
On one item, there is a wait list through March of 2008. So I have become proactive
to purchase before the need arises.
Message 19
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Veitical Card Compass?? |
I have been looking for a Falcon Vertical Card Compass. This is on back order from
every company I talk to. I would at least like to have a template of the mounting
bracket supplied with the compass so I can set up an overhead mounting
before the windshield install.
George
Message 20
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
I'd look for a cheap MP3 player rather than a CD player. MP3 players
hold a lot more music, don't involve a collection of loose discs all
over the cabin, are smaller, lighter, not very expensive any more,
and the solid-state ones will stand up to vibration a lot better than
any optical drive. I'm putting an iPod Nano in my new 'fox.
Mike G.
N728KF
Phoenix, AZ
Message 21
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Dan & Lynn,
Not for sure but Lynn's description sounds a lot like the old VW throttle and heater
cable connections.
Do Not Archive.
--------
Keith C.
kitfox wannabe
C-150
Rancho Cordova CA
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150598#150598
Message 22
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
Good idea! Guess I need to come out of the Neanderthal age
I'd look for a cheap MP3 player rather than a CD player. MP3 players
hold a lot more music, don't involve a collection of loose discs all
over the cabin, are smaller, lighter, not very expensive any more,
and the solid-state ones will stand up to vibration a lot better than
any optical drive. I'm putting an iPod Nano in my new 'fox.
Mike G.
N728KF
Phoenix, AZ
Message 23
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | -ASCII?Q?RE:_Kitfox-List:_CD_player=2C_what's_cheap_but_works_good=3F? |
What's cheap and works good can be two different things.
Today you can probably pick up a disc player pretty cheap but they take up a
fair amount of panel space and are prone to skipping. The disks also have
to be carefully handled. An IPod or one of its clones has no moving parts
is much smaller can go with you from the car to the plane to the boat and
still be used in the home or patio.
There are a number of headsets available today that have the receptacle for
the IPod built in so there could be no wiring in the plane. I think that's
what I would look at first.
Noel
From: owner-kitfox-list-server@matronics.com
[mailto:owner-kitfox-list-server@matronics.com] On Behalf Of SUE MICHAELS
Sent: Wednesday, December 05, 2007 1:43 PM
Subject: Kitfox-List: CD player, whats cheap but works good?
I'm not quite ready for the install but I have found some avionics on my
wish list tough to get.
On one item, there is a wait list through March of 2008. So I have become
proactive to purchase before the need arises.
Message 24
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
On the coldest frostiest days you will never get carb ice. It's just too
dry. Of course Ethanol puts a new wheel on the cart when it comes to carb
ice. With that cursed stuff all bets are off.
On warmer days when the temperature is around the freezing mark (32F) and
the relative humidity is in the 90 %s. With the humidity that high you are
a good candidate for carb ice.
Noel
From: owner-kitfox-list-server@matronics.com
[mailto:owner-kitfox-list-server@matronics.com] On Behalf Of
Sbennett3@aol.com
Sent: Monday, December 03, 2007 11:17 PM
Subject: Re: Kitfox-List: Re: Carb Heat
In a message dated 12/3/2007 9:41:12 PM Eastern Standard Time,
dave@cfisher.com writes:
Any carbeurated engine can get carb ice or carb icing
True, but we dont all fly in Canada.
If you have Carb heat then you have one less thing to worry about not
having If you need it .
If you have carb heat, you better be prepared to use it cause you are always
intaking colder air. Here we go again re hashing this... If I lived where I
grew up near Chicago, i'd have it. Down where I live now... A different
story. Steve Bennett NC
hottest products and top
<http://money.aol.com/top5/general/ways-you-are-wasting-money?NCID=aoltop000
30000000002> money wasters of 2007.
Message 25
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
A little warning on MP3 Players. I bought an IPOD to record sound for my
videos and found that hard drive based players won't work above 10,000 ft.
The solid state models are fine. It seems that the rotating disc creates a
layer of moving air that keeps the read/write arm from touching the disc.
Above a certain altitude there isn't enough air and disc crashes are common.
Mountaineers have had the same problem and there is lots of talk about it on
the web. The same is true for laptops with hard drives.
Lowell
----- Original Message -----
From: "Michael Gibbs" <MichaelGibbs@cox.net>
Sent: Wednesday, December 05, 2007 9:26 AM
Subject: Re: Kitfox-List: CD player, whats cheap but works good?
>
> I'd look for a cheap MP3 player rather than a CD player. MP3 players hold
> a lot more music, don't involve a collection of loose discs all over the
> cabin, are smaller, lighter, not very expensive any more, and the
> solid-state ones will stand up to vibration a lot better than any optical
> drive. I'm putting an iPod Nano in my new 'fox.
>
> Mike G.
> N728KF
> Phoenix, AZ
>
>
>
Message 26
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
I second what Mike has posted. If you install a panel mount CD player,
eventually it'll either break or go obsolete, and you'll be left with a
non-standard hole in your panel. Additionally, they're heavy. Don't ask me
how I know all this.
Keep it simple.
Deke
S5, NE Michigan
Subject: Re: Kitfox-List: CD player, whats cheap but works good?
>
> I'd look for a cheap MP3 player rather than a CD player. MP3 players hold
> a lot more music, don't involve a collection of loose discs all over the
> cabin, are smaller, lighter, not very expensive any more, and the
> solid-state ones will stand up to vibration a lot better than any optical
> drive. I'm putting an iPod Nano in my new 'fox.
>
> Mike G.
> N728KF
> Phoenix, AZ
Message 27
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Your installation looks very good, Dan. It sure looks more rugged
than mine. However, I've got over 400 hours on mine and it hasn't
given up yet. I tried to find that "grip" device in the Spruce
catalog, but no such luck.
Lynn Matteson
Grass Lake, Michigan
Kitfox IV Speedster w/Jabiru 2200
flying w/440+ hrs
On Dec 5, 2007, at 9:38 AM, DanM wrote:
>
> Thanks for the information guys. Since Jay has been successful
> with the wire grip, I may not change mine. Lynn, how is the
> internally threaded rod attached to the carb lever. I can't picture
> it from your comments. More on my set up, I have a ACS vernier
> throttle which is connected to ACS wire grip in question, the wire
> grip is then connected to a rod end which is connected to the carb
> lever. I might add, the carb lever is special design and built by
> Dave Jalanti. His design add more throw to carb lever which gives
> more travel to the vernier throttle thus finer adjustments. Heres
> some photos of my set up.
>
> --------
> Dan Mc Intyre
> Kitfox Model IV, Jab 2200
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=150562#150562
>
>
> Attachments:
>
> http://forums.matronics.com//files/p1010004_182.jpg
> http://forums.matronics.com//files/p1010005_846.jpg
>
>
Message 28
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | throttle to carb connection |
Here's an attempt at posting pictures of my throttle to carb connection. I
had forgotten just exactly how I did the final design until I looked at it
again. Now I seem to remember tht there was a part in the "lawn mower throt
tle" bin at my local hardware store. It is no more than a short bolt, unthr
eaded, with a hole going through it lengthwise, threaded to 8-32 as I recal
l, with a hole drilled crossways to allow the control wire to go through. A
set screw from both ends of the "bolt" holds the control wire in place. I
had tried several methods for the "bolt" so I couldn't recall which I ended
up using.
The contraption behind the Jalanti throttle arm is a hollow adjustable-leng
th device that I use as a secondary idle stop. The Bing idle stop is made o
f soft metal, maybe aluminum, and deflects easily if the throttle is jammed
too hard to achieve idle speed.
Lynn
R0lGODlhlgAiAPcAAIB/g4uKjpaVmKCfoqJqqqmpq7GGt7KytLu7vcTDxcWoyszMzdTT1djF29vb
3OPj4+TX5urq6+0bLe49R+9VXO/o8PBobvHx8vJ5fvOIjPSWmfWjpvavsfe6vPjFx/j4+PnQ0fr3
+vva2/zk5P3t7v729v/jrf/rxP/uz//y2f/14//47f/89v///wAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACwAAAAAlgAiAAAI/wBbCBxI
sKDBgwgTKlzIsKHDhxAjSpxIsaLFixgzJqzwkGPDCx4vaDQIQiRBBCBGOqwwwcIEjygwULBAIWVE
EBIkTLCZcEJOngYhAAgwtKjJkQiKBggg8gKAoyoV4vwp0EJOCRYm4vQJ1CBLnRwSLgigYAEICCAW
eNSYFOUFEAJSVgDQNerBrRJS4rWAQqvPnQsnCK470AEAuwUBIEAIwAFiqVdB4JWwViAHEGERXk6r
c8LAtBzMfv7Lk+NaEHQfCwSw4G5q1Xd15nWpU8NAFBp8ytbAE/dVwaRbYNCdE3AL4DZbtrQpFOrA
CwsQCECwWCCKBQIKaGjdYgH3wq0VM/9+Kx3lZ+kCNBwVHb319enVIRfXnXWg1au/7eP/LaGvhv05
QfDVBGERx9NYlQ1EAAAaIKABgwIRhYACAhzWQoVQiZeUAAnOpUEADS6Y0lgEOEiUSQ0uAIAArQVA
wAIKuLgQXn95NtB/PllgAo4SYNDCXhrwCJhkfYFgVUvHCVYBbRKYQJBTFQqwFEJjoeDUQSgE8N1Y
zA0lQIYBEMTaQekJtCF3CIRpXQDxxSZbcALRd2Nxx+VUXwv/6XSjBhhoQFtWf9E2gW0EodagAg4i
5NRbrxVEgAADCQDpcx+K92OjFZRZ0AWSCvShTU59h6eaCNEom48toADnj8UZWdtoOqH/AIJg/E1A
QZJv3jmQUAphJ2UAKS0lgGMEqTjQmAVdN+aiBE1HaYUBTCrdQGNNN50GUsonAQdHSmCbqlx91tms
4Q6EnG4T9HkfoLLZmSCXB8WoWFpPCTQWABAKVAGw3VlIJgEgNdoCiD9GucAF2HpKqooONowoZD79
+BdldSJZ1V8oHHlnbjqZkONAFegEqGDdolpYvQWhFh8I/BL04HedFjDpQWn2hbJAzlZIkAGEpvlZ
AH09NFVeeOZ3X7ogcIyVcMVZkLScV/FGrgQEVOyqT6KiVhcCVT93c6Qzq3jBiwlxzShQZZJ9owEK
ey0qQ3glFyiuE0ccZ92yVfXmmykh/1excS00Z1DNAnEKLHTNtimpAEHj+aSlX+dMaAtpSksq5Tdz
qq1NQy9NXHHfXUDrb999/uqAYc16FXcqLjjUgq0RAKIAJT7VOs8yEqQAAAqATFS0RE06l6gE747t
o52OWlCUlbZ5EG+T/wi9TUFWf9CO1qdc/WU3Jv1Z0pIV7h0C3kVnEnWsC5TWdG+vBhUKEKAPFQJQ
HWyvg60hHnj7EKToHGwAHMmHAkjAAgIQOi0zoAIXiJGhRI+BEIygQ/6HEAQQyyBfkqAGJbiAErHI
INiqAMIouMESImY7CTGAewxAGII0zoUmjKFDzDYQrgFLRXSBFtkSBZcLDaUs8HKgDI2HqBChLAYC
k2Ic+VK1GM1JCgXU+RHOBtiCen2QiFjcFLYehqcFoHCEmdqXejLoRfT0jmXHc14Ws8ia6pBviVDs
C/uiAynNXchZVUzVGvcIozJmKi22ueIHjTW8FuwLBFzTVHouUJY9YpGO1UEkGYPmAEhB0Uw1JJ93
jlKeFzryk6AMpShHScpSmlKDAQEAOw=
/9j/4AAQSkZJRgABAgAAZABkAAD/7AARRHVja3kAAQAEAAAAPAAA/+4ADkFkb2JlAGTAAAAAAf/b
AIQABgQEBAUEBgUFBgkGBQYJCwgGBggLDAoKCwoKDBAMDAwMDAwQDA4PEA8ODBMTFBQTExwbGxsc
Hx8fHx8fHx8fHwEHBwcNDA0YEBAYGhURFRofHx8fHx8fHx8fHx8fHx8fHx8fHx8fHx8fHx8fHx8f
Hx8fHx8fHx8fHx8fHx8fHx8f/8AAEQgAbwB4AwERAAIRAQMRAf/EAJoAAAEFAQEBAAAAAAAAAAAA
AAADBAUGBwgCAQEBAAIDAQAAAAAAAAAAAAAAAAIEAQMFBhAAAgEDAwIEBAUCBAcAAAAAAQIDABEE
EgUGITFBIhMHUWFxFIGRobEyUpJCM1MWwdFigqKyFREAAgIBAwEHAQgBBQAAAAAAAAECAxEhMQQS
QVFhcSITBTLwgZGx0UJSFKHB4SMVBv/aAAwDAQACEQMRAD8A6poAoAoAoAoAoAoAJA7m1AMc7fNq
wVLZOSkdvAkX/KspNkJ2Rju8FY3H3P2qIlMONsh+wb+K/mev6VsVLKVnyNa21IGf3A5HPJqgtFGv
mKomo6R1NywNbFVFFWXNtk/SsF9h5Rsr4EGY2UoimUEP1Iva5vYeFV8HXjNNZJLGyIMmCPIgcSQy
qGjcdiD2NYTJilAFAA7CgCgCgGuZueFhqGyJQmplRQT3eRgiKPmzMAKjKWE33GUssbT72I1cJAzy
qt0jLBdR+F+tc+XyUYvDTLD4zxkgW9wrNoOAYpLHySyaTcdxbTVKXzmHhwx9/wDsc2V7i8NEfu/u
RlYWMJ3iijD9IkDFnc26BR0rZT8pOzSMVnzJVznY8RRnPKPdLmsaEyRJFG4JVCZB0+BMbIf1rr13
plyzhPGrZE8D90Nm3DdjtfJMCCLNyW04WcDKYmc/xjk9SRypPgb2qdk7cZi1grQ4VDymvX4l+fkm
JgeoJWwNvMRtplWFWNulhrF68+/keU21rleBUhHpeMf4FoeYR5u5NtBzYU3ExhhiIYw7IwvcKoFx
aoS5vJUep5x5G19Q5+0bGEYx0GhB5QD2JFj0qs+fbL9zNeWOePbtnx7th4bTSLjlgiw6m02va1r9
qscS+x2RTk2s95Oux5waPXpS2FAA7CgCgI7d9+wdrhaXIboovpHUn6CspZIzkopt9hiXMvcKfM5N
tkWNEyYxzMctrPfTMrDoPmKzbU1F+RUq5sZySS0ybGkbJqaZ1bV2RVso+pPU15/OPraf3aHecs6I
hd82bZsqM7hkxPPkwrpgSNtJPjY271okq2nn6iEuJG6SjLTxKb/tbHfd03DJYt6SBcbEv5Ix4sR8
WNQr9CR2IceuL9KSPHJuMYuXiv6w6gEqPh0qzG1p5JSrU0c38kw1x8+WFBcKxBYdB0PcGu7x7OqJ
53lVdMsDdGy98xGTNyPU3GFyqTytdnj8NRPe1JT6HoYhW5oi8iXcdozYszHyHjz8BkOPIXbSoBuL
X6hfkOlJdNkdtzXODj6WdV8b59jbvxfZNxukcOfEUDWu/wByvSQXHgT1F68/z+IqoR6VpkjybK4x
ikiz7Mwlz8Z2AZonW0nx6+FUOPP/AJY9mpUTzJM0SvYlwKAB2FAFAZ37rYc7YYnjJAXqbURiSysG
I8gl9PJwssG2mSOQH5hgatWaxOBQuizHczo/PyAkEgbugv8AhXjORPRo9rTDMkVzJzIs7cTsxa2N
CqSzsDboCGUah2uap8efVLpe0Tqwqddfu/ueUiv7zj8ji5fFm7UDl7XkI33cTWsrL2KN4KfEVbtl
jLS/RoxVHRdTx+Yw5XyHFx8XW03pkDzRsbsB+HhVOu7qehdjDC1MJ5hvG25UzTwEXBsB8W/6a9Hx
JOK1OF8glN6EpwXE2lsUQ5+hMmYki41Gx7X+lQt5HVJm2mhQglux3zf21aPGxdzimGTjzyLFJEos
2k9rmlXJaTRG3iqbTFfZzl+x8TzN64xy5hj4kjrPDLKpZIpR0UXHmW6sPCulx5QurxL6ZHB+S40o
TaXYbpsRx8iSDLhzlyIS4EDxkGNkBuNLLXm7qlC5R/i9yvBxfmanXqC0FAA7CgCgITl23rmbRMhF
yFNqA5o5ZAyYksJ6NC5t8h3FWK3mJx+XDptz3nQG9P6u0DJRwrtCDb+oOtyP+NeL5i0Z7PgS9aT2
Mp4dvGfvGTvePkyrEsciSLIti7hPJpN73QhR2+NUuNXHKTe+56jnVqKg4rwJblfNYoMWXZdri05s
62hEXQqpFrMv+Fj1rozzHKaxDvORGl5TesjIeRcbyYdySHa5XkcpbMAdnAJ/xn4P8etvlSu+CXqw
u4zPiznL0Z8e7zMw3OHdf9ySbXkY/wBvlYxJjW2pzfqG/pt411oyh7fXnMWcqddnvOvGJI1rivD9
u3LjGDuu4sVyEkC5MCjVdUfo+hTqHzNU1Z0JuOpclT1tKRpPNkxBxrE2vjfpzbhI8SbdADpQyagS
WI7AKDetEL62/A2OuxJ95VN09ht4n23H3qSaDcuaDLfI3J8kn7DJhlNvRZLXGhfKpro8flxWiWIn
Iu4cpNtyy2Otl4nufA+drt+FlOeJ7jAMnAidzIcSYMPUxyT8Ceh8RWPkVCcVKO+TicmuUHiWkvzO
m421Rq3xAP5iuoti0eqyAHYUAEgUA2y2V4HS1wRagKDl8G4rkzySZe3meR+rCZ5AP7UKCsqTRrnV
GeMrYndMZhSH0ozEgCohUEAAWt1v4VXfGre8UWI2yjs8DLH2DYcZzJjbVhwOb3aLHiQm/fqFrH9S
r+EfwRtfNuaw5y/FjaXhvE55Xmk2jG9WX/MlRPTc/wDcmk1l8atrDisBcy3+TPMPAOJR3+1wjilu
pMDt+zlxVO34iieuGn5/qXa/m+RFYymvL9MHNnvHwHcNs94tvY5vqYu5xCTEmiXTJEsflZZF7Gx8
fGjpjx6HHdGv+67eQpyfSW3iHGs/j75+fl4zT4FgVZnKxL0vIXVdTKR/SRXLlcotaZPRVwi01J4k
X7iW17ckT8meIJGI2+xjI0rHHa7OFP8AEt+1V6lluXYa+TJ6Q/E++1m5cl5NxzN31t0jyNsGTPBi
YQjUaYYzdWZx1LC/T5V0J8eUEsPs1ONVzIzsaa/doxTmSfdYWPnRiMZULAxyWPqBWsSi/C56G9Yn
Y/ba8UU/nKGqs9zNd21zJt2LIe7wxsfxUGu9D6UUo7IcVIkA7UAzyJ2Z9CmwH8jQDD7qSRnjUsIr
HS1/EeNYBVuUcq3jY0jeLAO5RuwVwl0Kg+NwHX9Kh7iTw9Cvbc4dmSrY3vttcir620Sq5LAqkkTA
BTYklgnjW3DNX91dzJOD3d2bIQtjbRn5BU2KxQq36gkVL22ZXMT2jI+N7n5MkkkeFxfcJniXXIHC
xALa97sDejrJq+T2iyKT3Y3ncc9MXbcXDhgdlX1ZpXZ+pAZQhCDUpPape01uI3uT0Kz7tyrNy3j+
ZllhiyQ5EBzEUlo/N0UAeLX8tcT5ZNxwvwNtkZJKaWiYcT2TK3XJLGeVNqdF1RFiBMsZ0q0v9THT
e/jXA6ZN9OfM9zxuTX7XWll/6lo57uKQ8dbZMFwmZuK/Z4aqfMC4sSPotzVyqSW20Sq4OTee0zT2
nyuRcWy9z4ZnTBMN5lyoio0rIQNB0/kNQrPyPK64Jx0T3NXxnxrqtmpa4Xpf27S5crTPx9p9EZDG
CJ1eKMWvYtfSWtci5rbx03S13FX/ANDl0trTvN245I0mwba7CzHGiuPnoFd+l5gvI4Ff0oka2Ezy
5tHf5UBEyObSHx61gCcwWHED9rWuflesswyBztxnT/Ig9QE2u3RVuL+a/W3hcdqpWdWdO01Ob2SI
afYuO5WWu4ZO3wSZukqX0gixHVSOx/GrcF0o2KiOctajr74JaKNAijwXoLfQVLqN6gPcLOZlaO/n
AuhbtesMNFF5fi7PmQTbrj4y4274jkOyCzepGQSr6bahbqDU67HsYu463F9247uu8bTt32+O+QRA
2sgXOpmv+dc3nVylNYWTofHW1quSm1qRfBOIe5m2y5Wzy7ZLHtp6YmXK0emNB4AF9Rb8K5vI4Nuc
wW+5SXKspk4w9UM/ZHqb2i9xJubY++NpfHw4zHBHLLFpvJ0ZwFNwQPiKz/RudXT04b8UWKfk7PeU
pr0rsLHuftBuW6mKWdIYMmNCROkhDCUfxYWBpH4216PB1/8AuYJ6ZwLZntXyjctphxc3KxBMI9E7
K8hBI7EHQKu08GcItZRzfkubC+tximmzRuN7ZPtWw4G3TyiabEhWJ5VvZiotcXroVRcYpPsORXHp
ikSVbCYnL/lH6UBDyHqy/G4/OsA+bm6rtbueoVQSPxrJhmcSb/LkSrGHDQyX9MdipRrMp+l6rvR5
IcNtzafcQOZ7ibPt+LtmOJXlzs97ooUlfM5U3bt0PSp9Ta03R0HFdWuzJ0rnvMkqqBqU+Q/HwrHT
LOSfVFLBV33L3Ai5SMLFSCLa5LNNkzC5APcKAw6/hW2McLV6mJ4bWF6RDdsrNwt73SF7zLnDHnjA
7XFoXHX5WpWvUauTPFbwbLwk32bDN7+U/vUnuVIbFvHasEgoAoAoAoAoD44upFAQuXGQxt3rAEM4
q2BIjDppJtWTDMN3Oabb90RvSlRWZBGrAhQGB1kWve5t9PGoyg2n3FOqTjdFrv8AzJDi+HjT7Lhp
Pji8UnqY7uvfUSWZb3t5r1oy0/M69NnUm+7P5lpyN623EcLNPHG3wZgCB8xVyMG9kam13iUubj5S
fcYciOP6r6lI7+FQkmtDZDbwKbzdHiytvyAt48kyKHvYEKFuAP1qUEU+VN5S7DYOBtq2PBaxF0PQ
9+9YZmOxch2rBIKAKAKAKAKAKAZZkBPnUXNARebMgx5LqAyqT+QoGYlkZPJdy5Pk4W1SM0SOJZVk
YCJUYWJbUD08NIFTSWNSqpWZWGXaUTrhxHJZHylQCV410oW8bDwFa5JF+vPac985xeS4fJMqOJpp
oJ3MkLRgt5D2uQT2rerpJaPQh7WXtqWjYt+n2fiuPtzK0m67nIYoVPSxlOlmci3ZaxY86liFbitV
hF35nNCux7THIgOjIaMN4DVHc/tWK8FHlp6PxNL4GQdkwrCw0n96g9yUNi5DtWCQUAUAUAUAUAUA
EA96Ah9/hVcCd1HXQ1/pagMc2LLMbbvIsYEnqxwI3i3Qnqfq1TSeCFEEm2TuZOBAy3uygVrkWomd
7zjY8m7rkqbOkbxv8WDWP6FahHfB0OH9f3DFdux59x2zIJsmE5kZ9VrDpYW8bsK37ZNvMWYrzJXn
u+4v/wAjBiVlOrK1KT46FP8AzotjiX9hsHtpMs3HMF17aT+9QIovY7UMhQBQBQBQBQBQBQCGXF6k
ZHe47d6ApWTwvZUkmaLFbGaaRZZDAx0ll6X0NcDt4VlSaC0IfduGvkxskG4PAW6kvCX/APUrWGzY
plel9sc50cNuyMxHlc40lx/5VhLBvp5PRJPAhj+1M6alfd3Ia1wmKw7fNmtU5SybeRzvciklgdH2
U2DNyMabcDl5xxr+nFLKIYSWPUlYgG8PjTqeMHPlq8mqcd2aLbsWPHhjWKGIBY4kGlVUeAFRBPUA
UAUAUAUAUAUAUAG3jQCUiQH+RUfUigG7wYR7un5igEzj4H+pH/cKA+jHwP8AUj/uFALxxYg7Mp/E
UAuoQDy2/CgPVAFAFAFAFAFAf//Z
Message 29
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
I have a few items i would like to get rid of and have no idea of their va
lue on the market=2E I have a set of tube landing gear with the bungees an
d a set of the 8 inches aluminium wheels with ATV tires mounted on for a C
-4=2E Anyone can tell me how much these items worth=3F
Jack
Message 30
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Lynn:
I just did the search. It is called wire grip and is located in page 149 of the
ACS catalog.
Jos
----- Original Message ----
From: Lynn Matteson <lynnmatt@jps.net>
Sent: Wednesday, December 5, 2007 4:15:03 PM
Subject: Re: Kitfox-List: Re: Throttle to carb connection
Your installation looks very good, Dan. It sure looks more rugged
than mine. However, I've got over 400 hours on mine and it hasn't
given up yet. I tried to find that "grip" device in the Spruce
catalog, but no such luck.
Lynn Matteson
Grass Lake, Michigan
Kitfox IV Speedster w/Jabiru 2200
flying w/440+ hrs
On Dec 5, 2007, at 9:38 AM, DanM wrote:
>
> Thanks for the information guys. Since Jay has been successful
> with the wire grip, I may not change mine. Lynn, how is the
> internally threaded rod attached to the carb lever. I can't picture
> it from your comments. More on my set up, I have a ACS vernier
> throttle which is connected to ACS wire grip in question, the wire
> grip is then connected to a rod end which is connected to the carb
> lever. I might add, the carb lever is special design and built by
> Dave Jalanti. His design add more throw to carb lever which gives
> more travel to the vernier throttle thus finer adjustments. Heres
> some photos of my set up.
>
> --------
> Dan Mc Intyre
> Kitfox Model IV, Jab 2200
>
>
> Read this topic online here:
>
> http://forums.matronics.com/viewtopic.php?p=150562#150562
>
>
> Attachments:
>
> http://forums.matronics.com//files/p1010004_182.jpg
> http://forums.matronics.com//files/p1010005_846.jpg
>
>
Be a better friend, newshound, and
know-it-all with Yahoo! Mobile. Try it now. http://mobile.yahoo.com/;_ylt=Ahu06i62sR8HDtDypao8Wcj9tAcJ
Message 31
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Questions about ELTs?? |
Welllllll, who knows what lurks in the minds of the FA&A???? But one thing
I would guess at is that right now, you can do the VHF beacon for while, but
as happened way back when with transponders, and 90 and 360 channel radios,
they will allow a period (maybe even a few years) to continue use of the
current equipment, then there will be established a date on which they will
mandate all the VHF beacons be replaced with the new UHF beacons. Seems
like it happens that way with all the newer electronic stuff. Back when
LORAN was a popular alternative to VOR navigation, the consensus among many
pilots was that there would be a time when LORAN would replace the VOR.
Well, along came GPS, and now the conjecture seems to be that GPS will
replace the VOR. There is already some indication that GPS will eventually
replace ground-based navigation equipment. An example is the large number of
the old Non-Directional Beacons used for airway navigation, fixes and
approaches have already been decommissioned, and they now use GPS distances
to establish fixes on quite a few terminal instrument approach procedures.
You no longer are required to have an ADF installed to execute many of the
approaches because you can get the same fix info from an instrument approved
GPS, and the fix is indicated on the chart as a distance rather than an
intersecting bearing from a NDB. In Alaska, they began using an enhanced
GPS system for navigation and approaches a few years ago in the more remote
areas.
John Hart
-----Original Message----- From: owner-kitfox-list-server@matronics.com
[mailto:owner-kitfox-list-server@matronics.com] On Behalf Of darinh
Sent: Tuesday, December 04, 2007 10:27 PM
Subject: Kitfox-List: Questions about ELTs??
What is the deal with ELT monitoring? I know that come January 2009, the
121.5 frequency will not be monitored by sarsat (I think that is who
monitors it now). So everyone is talking about the 406 Mhz ELT and after
doing a bit or reading, it sounds like this is the way to go.
Does anyone know if the FAA will require that everyone install a 406 ELT or
can we still meet the requirement (after January 2009) with an old 121.5
ELT? I am all for safety but I would actually prefer to install a 121.5 ELT
and then carry my MicroFix 406 PLB on my person. If for some crazy reason I
have to ditch or my plane burns up after a crash and I manage to get out, it
would be nice to have the PLB on me not in my burning or sinking plane. I
don't mind spending the money on the unit but I think my option described
above is better for me.
So back to the question...is this going to b mandatory that we change to the
406 ELT or will a 121.5 ELT work?
--------
Darin Hawkes
Series 7 (under Construction)
914 Turbo
Ogden, Utah
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150522#150522
Message 32
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
There has been a number of pilots in the Alaska back country who have had
their bacon saved by airliners and military aircraft monitoring 121.5 MHZ
over the years. The military (at least when I was flying in it 25 years
ago) usually monitored both 121.5 MHZ and 243.0 MHZ on all flights unless
mission requirements prevented it.
John Hart
-----Original Message-----
From: owner-kitfox-list-server@matronics.com
[mailto:owner-kitfox-list-server@matronics.com] On Behalf Of Michael Gibbs
Sent: Wednesday, December 05, 2007 10:41 AM
Subject: Re: Kitfox-List: Re: Questions about ELTs??
>I don't know if it was myth or magic, but as I recall, someone once
>told me that all airliners were required to monitor 121.5. My
>question is, is this a true fact and if it is, are they still doing
>it? Also, do ATC facilities still monitor 121.5/243.0?
The first communication I attempted after we hit the ground was on
121.5 MHz. I decided that trying the Payson airport unicom frequency
might get us help more quickly, so I tuned to that frequency before I
got any response. I was told later that an American Airlines crew
had, in fact, heard my mayday call but I left the frequency before
they could respond.
I had to turn off the ELT when I tried to talk on 121.5 MHz because
it did activate on impact. When I switched to the Payson frequency I
turned the ELT back on.
That said, I don't know if airlines crews are "required" to guard
121.5 MHz. I don't think 121.5 is going away, it's just that SARSAT
is not going to monitor it any more.
Mike G.
N728KF
Phoenix, AZ
Message 33
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Veitical Card Compass?? |
George,
You must be referring to the non-tso'd unit. 3yrs. ago I tried to order one
from A.C. Spruce, it was on b.o. then. I checked the order for weeks and
then months. It never has come into stock.I don't know what the deal is. I guess
if we want a vert. card, it'll have to be the more expensive(of course) PAI.
If you do happen to find the falcon, please let me know.
Greg G.
Macedon, N.Y.
23NK
n375KL
Mod 2
582
do not archive
**************************************Check out AOL's list of 2007's hottest
products.
(http://money.aol.com/special/hot-products-2007?NCID=aoltop00030000000001)
Message 34
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
John,
I think you are correct. The FAA may allow the use of the 121.5 ELTs for a while
but I would bet they will eventually require that everyone change to a new
system. It looks like the new system will be 406 ELTs but the question is for
how long. I will just go with the 406 and call it good.
Do Not Archive
--------
Darin Hawkes
Series 7 (under Construction)
914 Turbo
Ogden, Utah
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150658#150658
Message 35
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
At 09:13 AM 12/5/2007, you wrote:
>I'm not quite ready for the install but I have found some avionics
>on my wish list tough to get.
I use an Ipod Nano connected to my intercom via a standard three pole
mini-plug on the center console. Next to the mini-plug I have a 12V
DC coax jack for power, since the Ipod will only run about 8-10 hours
on one charge. The Nano contains about 3.6 days of music. (That's 86
hours.) Running it through the SPA-400 intercom gives me all the
options: both, none, passenger only, pilot only. (The passenger can
listen to music only while the pilot listens to ATC only, too.) Any
solid state MP3 should work just as well.
Guy Buchanan
San Diego, CA
K-IV 1200 / 582-C / Warp / 100% done, thanks mostly to Bob Ducar.
Message 36
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
This is my take. If you put in a mp3 player by itself, the volume will be too
low. So, I installed a car stereo with input capability. I didn't put it into
the panel, instead I put it in the ceiling, on the right side, what is also
great ,I put my magnetic Gps entenna on top of the radio, stuck it right to it.
The mp3 player, not a cheapy and works real nice, I got a sansa, so far I have
170 songs on it. I'm very happy with what I have. Oh, one more thing, I
put my transponder on the left side above my head.
--------
kitfoxmike
model IV, 1200
speedster
912ul
building
RV7a
slowbuild wings, fuse, finish kit
"if you're not getting razzed from pilots or the FAA then you're not flying
enough"
Do not archive
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150670#150670
Message 37
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Thanks, Jose...I went there and nothing, but wandering a little
further I found it on page 159 of both of my Spruce (ACS?) catalogs...
2006-2007 and 2007-2008. Do you have an older catalog, or is ACS not
Aircraft Spruce? I'm not being picky, but I've never been able to
equate ACS with Aircraft Spruce and Specialty Co....the letters just
don't seem to come out right.
That item seems like a nice way to terminate a control wire.
Lynn
On Dec 5, 2007, at 4:10 PM, Jose M. Toro wrote:
> <jose_m_toro@yahoo.com>
>
> Lynn:
>
> I just did the search. It is called wire grip and is located in
> page 149 of the ACS catalog.
>
> Jos
>
> ----- Original Message ----
> From: Lynn Matteson <lynnmatt@jps.net>
> To: kitfox-list@matronics.com
> Sent: Wednesday, December 5, 2007 4:15:03 PM
> Subject: Re: Kitfox-List: Re: Throttle to carb connection
>
>
> Your installation looks very good, Dan. It sure looks more rugged
> than mine. However, I've got over 400 hours on mine and it hasn't
> given up yet. I tried to find that "grip" device in the Spruce
> catalog, but no such luck.
>
> Lynn Matteson
> Grass Lake, Michigan
> Kitfox IV Speedster w/Jabiru 2200
> flying w/440+ hrs
>
>
> On Dec 5, 2007, at 9:38 AM, DanM wrote:
>
>>
>> Thanks for the information guys. Since Jay has been successful
>> with the wire grip, I may not change mine. Lynn, how is the
>> internally threaded rod attached to the carb lever. I can't picture
>> it from your comments. More on my set up, I have a ACS vernier
>> throttle which is connected to ACS wire grip in question, the wire
>> grip is then connected to a rod end which is connected to the carb
>> lever. I might add, the carb lever is special design and built by
>> Dave Jalanti. His design add more throw to carb lever which gives
>> more travel to the vernier throttle thus finer adjustments. Heres
>> some photos of my set up.
>>
>> --------
>> Dan Mc Intyre
>> Kitfox Model IV, Jab 2200
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=150562#150562
>>
>>
>>
>>
>> Attachments:
>>
>> http://forums.matronics.com//files/p1010004_182.jpg
>> http://forums.matronics.com//files/p1010005_846.jpg
>>
>>
>>
>>
>>
>>
>>
>
>
> Be a better friend, newshound, and
> know-it-all with Yahoo! Mobile. Try it now. http://
> mobile.yahoo.com/;_ylt=Ahu06i62sR8HDtDypao8Wcj9tAcJ
>
>
Message 38
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
>
> Here's an attempt at posting pictures of my throttle to carb
> connection. I had forgotten just exactly how I did the final design
> until I looked at it again. Now I seem to remember tht there was a
> part in the "lawn mower throttle" bin at my local hardware store.
> It is no more than a short bolt, unthreaded, with a hole going
> through it lengthwise, threaded to 8-32 as I recall, with a hole
> drilled crossways to allow the control wire to go through. A set
> screw from both ends of the "bolt" holds the control wire in place.
> I had tried several methods for the "bolt" so I couldn't recall
> which I ended up using.
>
> The contraption behind the Jalanti throttle arm is a hollow
> adjustable-length device that I use as a secondary idle stop. The
> Bing idle stop is made of soft metal, maybe aluminum, and deflects
> easily if the throttle is jammed too hard to achieve idle speed.
>
Lynn Matteson
Grass Lake, Michigan
Kitfox IV Speedster w/Jabiru 2200
flying w/440+ hrs
>
>
>>
>> Dan & Lynn,
>> Not for sure but Lynn's description sounds a lot like the old VW
>> throttle and heater cable connections.
>>
>> Do Not Archive.--------
>> Keith C.
>> kitfox wannabe
>> C-150
>> Rancho Cordova CA
>>
Message 39
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | throttle to carb connection |
Here's my 3rd and last attempt at posting pictures of my throttle to
carb connection...the first two were rejected as being too large.
I've cropped to this size...hope it works.
I had forgotten just exactly how I did the final design until I
looked at it again. Now I seem to remember tht there was a part in
the "lawn mower throttle" bin at my local hardware store. It is no
more than a short bolt, unthreaded externally, with a hole going
through it lengthwise, threaded to 8-32 as I recall, with a hole
drilled crossways to allow the control wire to go through. A set
screw from both ends of the "bolt" holds the control wire in place. I
had tried several methods for the "bolt" so I couldn't recall which I
ended up using.
The contraption behind the Jalanti throttle arm is a hollow
adjustable-length device that I use as a secondary idle stop. The
Bing idle stop is made of soft metal, maybe aluminum, and deflects
easily if the throttle is jammed too hard to achieve idle speed. Such
a device has been recommended by at least one of the Jabiru dealers
as necessary to avoid bending the Bing idle stop bracket.
Lynn Matteson
Grass Lake, Michigan
Kitfox IV Speedster w/Jabiru 2200
flying w/440+ hrs
Message 40
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Throttle to carb connection |
Lynn:
AirCraft Spruce. They sell many parts with the ACS brand. Two of those are the
ignition switch and the gascolator.
I found the wire grip searching on their website. The pdf I got shows page 149.
I also have the adapter from Dave Jalanti, and have been thinking about doing exactly
what you did. However, the wire grip looks elegant...
Jose
----- Original Message ----
From: Lynn Matteson <lynnmatt@jps.net>
Sent: Wednesday, December 5, 2007 9:50:41 PM
Subject: Re: Kitfox-List: Re: Throttle to carb connection
Thanks, Jose...I went there and nothing, but wandering a little
further I found it on page 159 of both of my Spruce (ACS?) catalogs...
2006-2007 and 2007-2008. Do you have an older catalog, or is ACS not
Aircraft Spruce? I'm not being picky, but I've never been able to
equate ACS with Aircraft Spruce and Specialty Co....the letters just
don't seem to come out right.
That item seems like a nice way to terminate a control wire.
Lynn
On Dec 5, 2007, at 4:10 PM, Jose M. Toro wrote:
> <jose_m_toro@yahoo.com>
>
> Lynn:
>
> I just did the search. It is called wire grip and is located in
> page 149 of the ACS catalog.
>
> Jos
>
> ----- Original Message ----
> From: Lynn Matteson <lynnmatt@jps.net>
> To: kitfox-list@matronics.com
> Sent: Wednesday, December 5, 2007 4:15:03 PM
> Subject: Re: Kitfox-List: Re: Throttle to carb connection
>
>
> Your installation looks very good, Dan. It sure looks more rugged
> than mine. However, I've got over 400 hours on mine and it hasn't
> given up yet. I tried to find that "grip" device in the Spruce
> catalog, but no such luck.
>
> Lynn Matteson
> Grass Lake, Michigan
> Kitfox IV Speedster w/Jabiru 2200
> flying w/440+ hrs
>
>
> On Dec 5, 2007, at 9:38 AM, DanM wrote:
>
>>
>> Thanks for the information guys. Since Jay has been successful
>> with the wire grip, I may not change mine. Lynn, how is the
>> internally threaded rod attached to the carb lever. I can't picture
>> it from your comments. More on my set up, I have a ACS vernier
>> throttle which is connected to ACS wire grip in question, the wire
>> grip is then connected to a rod end which is connected to the carb
>> lever. I might add, the carb lever is special design and built by
>> Dave Jalanti. His design add more throw to carb lever which gives
>> more travel to the vernier throttle thus finer adjustments. Heres
>> some photos of my set up.
>>
>> --------
>> Dan Mc Intyre
>> Kitfox Model IV, Jab 2200
>>
>>
>>
>>
>> Read this topic online here:
>>
>> http://forums.matronics.com/viewtopic.php?p=150562#150562
>>
>>
>>
>>
>> Attachments:
>>
>> http://forums.matronics.com//files/p1010004_182.jpg
>> http://forums.matronics.com//files/p1010005_846.jpg
>>
>>
>>
>>
>>
>>
>>
>
>
> Be a better friend, newshound, and
> know-it-all with Yahoo! Mobile. Try it now. http://
> mobile.yahoo.com/;_ylt=Ahu06i62sR8HDtDypao8Wcj9tAcJ
>
>
Be a better friend, newshound, and
know-it-all with Yahoo! Mobile. Try it now. http://mobile.yahoo.com/;_ylt=Ahu06i62sR8HDtDypao8Wcj9tAcJ
Message 41
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
Lowell sez:
>A little warning on MP3 Players. I bought an IPOD to record sound
>for my videos and found that hard drive based players won't work
>above 10,000 ft.
I can confirm this as well. I brought my 3rd generation iPod with me
on an IFR flight from Phoenix to Denver in the Turbo Arrow. At FL190
it powered up but the hard drive did not function at all. As soon as
it was below about 12,000 feet it was fine again.
That's why I got a Nano for the Kitfox, it's solid-state.
Mike G.
N728KF
Phoenix, AZ
Message 42
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: CD player, whats cheap but works good? |
kitfoxmike sez:
>If you put in a mp3 player by itself, the volume will be too low.
>So, I installed a car stereo with input capability.
You need to make sure you are using a line-level output from the MP3
player, not the headphone jack. If your MP3 player doesn't have a
line-level jack, places like Radio Shack sell small adapters that can
fix the problem for a lot less weight, size and cost.
Mike G.
N728KF
Phoenix, AZ
Message 43
| INDEX | Back to Main INDEX |
| PREVIOUS | Skip to PREVIOUS Message |
| NEXT | Skip to NEXT Message |
| LIST | Reply to LIST Regarding this Message |
| SENDER | Reply to SENDER Regarding this Message |
|
| Subject: | Re: Questions about ELTs?? |
Darin,
The best price I found recently was through Pacific-Coast Avionics. You need
to call and tell them you want a good price. The Artex 406Mhz also transmits on
121.5. Artex is located at the same airport as pacific-Coast
darinh <gerns25@netscape.net> wrote:
John,
I think you are correct. The FAA may allow the use of the 121.5 ELTs for a while
but I would bet they will eventually require that everyone change to a new system.
It looks like the new system will be 406 ELTs but the question is for how
long. I will just go with the 406 and call it good.
Do Not Archive
--------
Darin Hawkes
Series 7 (under Construction)
914 Turbo
Ogden, Utah
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=150658#150658
Other Matronics Email List Services
These Email List Services are sponsored solely by Matronics and through the generous Contributions of its members.
-- Please support this service by making your Contribution today! --
|
