RV10-List Digest Archive

Mon 06/08/09


Total Messages Posted: 15



Today's Message Index:
----------------------

     1. 01:01 AM - Trimming the EGT / CHT sensor cables for AF3500 (Michael Wellenzohn)
     2. 04:23 AM - Re: Trimming the EGT / CHT sensor cables for AF3500 (Bob-tcw)
     3. 04:53 AM - Re: Computer fan under glare shield (jim@CombsFive.Com)
     4. 05:09 AM - Re: Re: Rudder/aileron Gust Lock (Jesse Saint)
     5. 09:05 AM - Re: Trimming the EGT / CHT sensor cables for AF3500 (Jim Berry)
     6. 12:41 PM - Re: Henderson Airport (Roger Standley)
     7. 02:56 PM - Re: Door glass/windows (Don McDonald)
     8. 03:11 PM - Re: Door glass/windows (Geoff Combs)
     9. 03:14 PM - Re: seat belt counter sink? (Eric_Kallio)
    10. 04:36 PM - Re: Henderson Airport (Rene Felker)
    11. 05:12 PM - Re: seat belt counter sink? (Ron B.)
    12. 06:09 PM - External Power Receptacle in a 10 (johngoodman)
    13. 06:46 PM - Re: External Power Receptacle in a 10 (Chuck Weyant)
    14. 07:08 PM - Re: stec 55x auto pilot (Chris and Susie)
    15. 08:03 PM - Re: Henderson Airport (swrpilot@bellsouth.net)





Message 1


  • INDEX
  • Back to Main INDEX
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 01:01:00 AM PST US
    Subject: Trimming the EGT / CHT sensor cables for AF3500
    From: "Michael Wellenzohn" <rv-10@wellenzohn.net>
    I can't find the thread that dealt with this topic. Is it ok to trim the CHT /EGT cables that connect to the Thermocouple-sensors? Thanks Mike -------- RV-10 builder (avionics, wiring) #511 Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247261#247261


    Message 2


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 04:23:32 AM PST US
    From: "Bob-tcw" <rnewman@tcwtech.com>
    Subject: Re: Trimming the EGT / CHT sensor cables for AF3500
    I don't know about any previous thread, but, I've been working with thermocouples in the lab for almost 25 yrs now and we routinely make up our own cables to any length necessary. The signals are dc and effectively zero current so cable length has no effect on accuracy. The one thing that does effect accuracy is the material used in any connector utilized in the path. Each of the conductors in the cable is a different type of metal, the ideal connection (in terms of accuracy) would be the same type of metal as the conductor. However, your are not going to find standard connectors made from iron or constantan, so we try to minimize the number of connections to the absolute minimum. If want to learn more about thermocouples and the connectors that are available. www.omega.com Bob Newman 40176 www.tcwtech.com ----- Original Message ----- From: "Michael Wellenzohn" <rv-10@wellenzohn.net> Sent: Monday, June 08, 2009 3:59 AM Subject: RV10-List: Trimming the EGT / CHT sensor cables for AF3500 > <rv-10@wellenzohn.net> > > I can't find the thread that dealt with this topic. Is it ok to trim the > CHT /EGT cables that connect to the Thermocouple-sensors? > > Thanks > Mike > > -------- > RV-10 builder (avionics, wiring) > #511 > > > Read this topic online here: > > http://forums.matronics.com/viewtopic.php?p=247261#247261 > > >


    Message 3


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 04:53:59 AM PST US
    Subject: Re: Computer fan under glare shield
    From: jim@CombsFive.Com
    The yellow wire is a speed sensor from the fan. Computer system can detect if it is turning or not. You don't need it for your application. Black - Ground, Red - +12V Jim C N312F - AFS EFIS and AFS Autopilot - Sweet! Do Not Archive -------------------- After the AZ sun heats up my glare shield, my Dynon EFIS sometimes indicates it's overheated. I bought a thin computer fan to install figuring it would be both a defrost fan as well as remove heat from under the shield. It's 12 V and has 3 wires attached: red, black, and yellow. Are any of you computer knowledgeable enough to tell me which wire does what. I want to hook it up to an on-off switch to 12 V. Albert Gardner N991RV Yuma, AZ


    Message 4


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 05:09:30 AM PST US
    From: Jesse Saint <jesse@saintaviation.com>
    Subject: Re: Rudder/aileron Gust Lock
    Of course not, but it would be too bad to have the plane rolling down the hill while you get out to put the chock under it, or while you are fueling your plane on a non-level ramp. do not archive Jesse Saint Saint Aviation, Inc. jesse@saintaviation.com Cell: 352-427-0285 Fax: 815-377-3694 On Jun 7, 2009, at 9:51 PM, David McNeill wrote: > > I doubt seriously that one should use this as a substitute for > chocks or a > real parking brake in the aircraft. Leaving a $100k + aircraft on an > incline > with a tow bar pushed against the toe brakes seems a little chancy > to me. > > -----Original Message----- > From: owner-rv10-list-server@matronics.com > [mailto:owner-rv10-list-server@matronics.com] On Behalf Of David Maib > Sent: Sunday, June 07, 2009 6:39 PM > To: rv10-list@matronics.com > Subject: Re: RV10-List: Re: Rudder/aileron Gust Lock > > > Any photo's? > > David Maib > 40559 > > > On Jun 7, 2009, at 7:36 PM, Jesse Saint wrote: > > > One of the best solutions I have seen so far, IMHO, is a welded tube > on the > front of each side of the Bogi Bar that will slide into a hole on > each of > the pedals. With the arm extended and up against the back of the > seat, the > seat belt can be used to hold it in place. Then you can use the other > seatbelt to hold the stick back (with the first stick inside the > middle > triangle of the towbar) which will lock the elevator and ailerons. > The > towbar is good to have with you when traveling anyway, so the added > weight > is very small. If on a little bit of a slope, it can push against > the top > of the pedals as a parking break. If wind is expected, it can be on > the > bottom of the pedals as a more secure gust lock. > > do not archive > > Jesse Saint > Saint Aviation, Inc. > jesse@saintaviation.com > Cell: 352-427-0285 > Fax: 815-377-3694 > > On Jun 7, 2009, at 11:56 AM, Tim Olson wrote: > >> >> That one is spring loaded as well. With a solid lock I think >> it would work ok. >> >> Tim Olson - RV-10 N104CD >> do not archive >> >> >> Jesse Saint wrote: >>> No offense meant to whoever makes that lock, but attached is a >>> picture of a -10 that had one of those locks on and had a visit from >>> some fairly strong wind. >>> do not archive. >>> Jesse Saint >>> Saint Aviation, Inc. >>> jesse@saintaviation.com <mailto:jesse@saintaviation.com> >>> Cell: 352-427-0285 >>> Fax: 815-377-3694 >>> On Jun 6, 2009, at 10:18 AM, Rene Felker wrote: >>>> Here is the gust lock I am using. Seems to work great. Light and >>>> small. >>>> http://www.aviationtechproducts.com/html/products_pics.html >>>> One or two items down the page. It is getting a workout here in >>>> Reno as I write this. >>>> Rene' Felker >>>> RV-10 N423CF Flying >>>> 801-721-6080 >>>> *From:* owner-rv10-list-server@matronics.com <mailto:owner-rv10- >>>> list-server@matronics.com> [mailto:owner-rv10-list- >>>> server@matronics.com] *On Behalf Of *Don McDonald >>>> *Sent:* Saturday, June 06, 2009 12:00 AM >>>> *To:* rv10-list@matronics.com <mailto:rv10-list@matronics.com> >>>> *Subject:* Re: RV10-List: Re: Rudder/aileron Gust Lock It's made of >>>> aluminum tubing.... the feet are dipped in a plastic bath.... and >>>> to >>>> use it as an aileron lock all you need is a short piece (6") of >>>> velcro.... wrap it around the gust lock and the stick. The spring >>>> loaded pin is there just so it can be stored as a shorter unit. >>>> You >>>> can put as many holes as you'd like, or just one that compresses >>>> the >>>> spring all the way. Because I needed one quickly, I also made a pvc >>>> unit. It worked well, but was heavy, bulky, and uglier than sh%&. >>>> I installed it today and then went to the back of the plane and >>>> shook the heck out of the rudder just to see if I could shake it >>>> loose.... no problem, it hung right in there. >>>> The other advantage is that you will NEVER be able to take off and >>>> forget to remove it..... no matter how oblivious you may be. >>>> Don >>>> >>>> >>>> --- On *Fri, 6/5/09, lbgjb10 /<lbgjb@gnt.net >>>> <mailto:lbgjb@gnt.net>>/* wrote: >>>> >>>> >>>> From: lbgjb10 <lbgjb@gnt.net <mailto:lbgjb@gnt.net>> >>>> Subject: RV10-List: Re: Rudder/aileron Gust Lock >>>> To: rv10-list@matronics.com <mailto:rv10-list@matronics.com> >>>> Date: Friday, June 5, 2009, 6:22 PM >>>> >>>> <http://us.mc05g.mail.yahoo.com/mc/compose?to=lbgjb@gnt.net>> >>>> >>>> also, what's it made of?? >>>> >>>> -------- >>>> Larry and Gayle N104LG >>>> >>>> >>>> >>>> >>>> Read this topic online here: >>>> >>>> http://forums.matronics.com/vie="http://www.matronics.com/ >>>> Navigator?RV10-List" >>>> sp;--> <http://forums.matronics.com/viewtopic.php? >>>> p=247030#247030>http://f= - List >>>> Contributionsp; &bsp;--> <http:// >>>> forums.matronics.com/> >>>> >>>> >>>> >>>> >>>> <http://www.matronics.com/contribution> >>>> >>>> >>>> * * >>>> * * >>>> ** >>>> ** >>>> ** >>>> ** >>>> ** >>>> ** >>>> *http://www.matronics.com/Navigator?RV10-List* >>>> ** >>>> ** >>>> ** >>>> *http://forums.matronics.com* >>>> ** >>>> ** >>>> ** >>>> ** >>>> *http://www.matronics.com/contribution* >>>> ** >>>> * * >>>> * >>>> >>>> style="color: blue; text-decoration: underline; ">http:// >>>> www.matronics.com/Navigator?RV10-List >>>> blue; text-decoration: underline; ">http://forums.matronics.com >>>> style="color: blue; text-decoration: underline; ">http:// >>>> www.matronics.com/contribution >>>> >>>> * >>>> >> >> >> >> > >


    Message 5


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 09:05:24 AM PST US
    Subject: Re: Trimming the EGT / CHT sensor cables for AF3500
    From: "Jim Berry" <jimberry@qwest.net>
    Michael, There is a thread about this on the Advanced Flight site. It is OK to trim the leads from the AF3500 to the thermocouples, but do not trim the leads that are a part of the thermocouple itself. Jim Berry 40482 Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247308#247308


    Message 6


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 12:41:31 PM PST US
    From: "Roger Standley" <taildragon@msn.com>
    Subject: Re: Henderson Airport
    You have a question about Henderson Airport? ----- Original Message ----- From: swrpilot@bellsouth.net<mailto:swrpilot@bellsouth.net> To: rv10-list@matronics.com<mailto:rv10-list@matronics.com> Sent: Sunday, June 07, 2009 4:37 PM Subject: RV10-List: Henderson Airport


    Message 7


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 02:56:56 PM PST US
    From: Don McDonald <building_partner@yahoo.com>
    Subject: Re: Door glass/windows
    I had one window that had the dimensions that you are talking about.... I s ent it back to Van's and got a replacement.- Next window, no problem. Don McDonald --- On Sat, 6/6/09, aerosport1 <g.combs@aerosportmodeling.com> wrote: From: aerosport1 <g.combs@aerosportmodeling.com> Subject: RV10-List: Door glass/windows m> I am in the process of installing my windows in the doors and the windows a re- .165 to .1875 thick and do not fit the window channel. They are almos t .04 to .060 to thick. It seems that these should be the same thickness as the rear windows which were .120 to .140. Has anyone else had this issue? If I try to sand down the shelf the window sits on I will sand almost or wi ll go through the external door skin. At this thickness there would be no good way to blend these into the outer door skins. Geoff -------- Geoff Combs RV-10 QB N829GW Finishing Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247108#247108 le, List Admin. =0A=0A=0A


    Message 8


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 03:11:45 PM PST US
    From: "Geoff Combs" <g.combs@aerosportmodeling.com>
    Subject: Door glass/windows
    Thanks for everyone's input. FYI I did talk to Scott today at Van's and he gave me the specs for the door windows and mine are way to big. They are sending me some new ones out tomorrow. Scott said they should be .120 to .150. That was there specifications. The .150 was on the very high side and could be to thick depending on the door frame. Geoff Geoff Combs President Aerosport Modeling & Design 8090 Howe Industrial Parkway Canal Winchester, Ohio 43110 614-834-5227p 614-834-5230f www.aerosportmodeling.com -----Original Message----- From: owner-rv10-list-server@matronics.com [mailto:owner-rv10-list-server@matronics.com] On Behalf Of Don McDonald Sent: Monday, June 08, 2009 5:56 PM Subject: Re: RV10-List: Door glass/windows I had one window that had the dimensions that you are talking about.... I sent it back to Van's and got a replacement. Next window, no problem. Don McDonald --- On Sat, 6/6/09, aerosport1 <g.combs@aerosportmodeling.com> wrote: From: aerosport1 <g.combs@aerosportmodeling.com> Subject: RV10-List: Door glass/windows <g.combs@aerosportmodeling.com <http://us.mc05g.mail.yahoo.com/mc/compose?to=g.combs@aerosportmodeling .com> > I am in the process of installing my windows in the doors and the windows are .165 to .1875 thick and do not fit the window channel. They are almost .04 to .060 to thick. It seems that these should be the same thickness as the rear windows which were .120 to .140. Has anyone else had this issue? If I try to sand down the shelf the window sits on I will sand almost or will go through the external door skin. At this thickness there would be no good way to blend these into the outer door skins. Geoff -------- Geoff Combs RV-10 QB N829GW Finishing Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247108#24710om/Navigator?RV 10-Li st" <http://forums.matronics.com/viewtopic.php?p=247108#247108> target=_blank>http://www.matronics.com/Navigator? - MATRONICS WEB FORUM; -Matt Dralle, List Admin=========


    Message 9


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 03:14:26 PM PST US
    Subject: Re: seat belt counter sink?
    From: "Eric_Kallio" <scout019@msn.com>
    Lew, put me on the list. Sent you a PM. Eric Kallio Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247359#247359


    Message 10


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 04:36:16 PM PST US
    From: "Rene Felker" <rene@felker.com>
    Subject: Henderson Airport
    What do you want to know? I use it when I go to Vegas. I have been to North LV and McCarran and find HND to be the easiest. Rene' Felker RV-10 N423CF Flying 801-721-6080 From: owner-rv10-list-server@matronics.com [mailto:owner-rv10-list-server@matronics.com] On Behalf Of Roger Standley Sent: Monday, June 08, 2009 1:41 PM Subject: Re: RV10-List: Henderson Airport You have a question about Henderson Airport? ----- Original Message ----- From: swrpilot@bellsouth.net Sent: Sunday, June 07, 2009 4:37 PM Subject: RV10-List: Henderson Airport


    Message 11


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 05:12:30 PM PST US
    Subject: Re: seat belt counter sink?
    From: "Ron B." <cfxoa@klis.com>
    We purchased our own countersink and are now finished with it. I'm proposing doing with it in Canada as what you folks are doing here. Not that customs using the postal service is such a big deal but it's more costly ant time consuming. Anyone needing a countersink in Canada, let me know, and like the folks here only ask for it when your ready for it. This way it will be available for more people. Ron Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247370#247370


    Message 12


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 06:09:03 PM PST US
    Subject: External Power Receptacle in a 10
    From: "johngoodman" <johngoodman@earthlink.net>

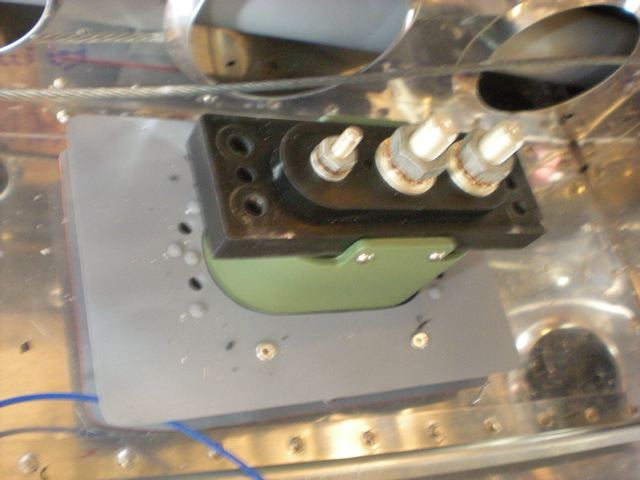

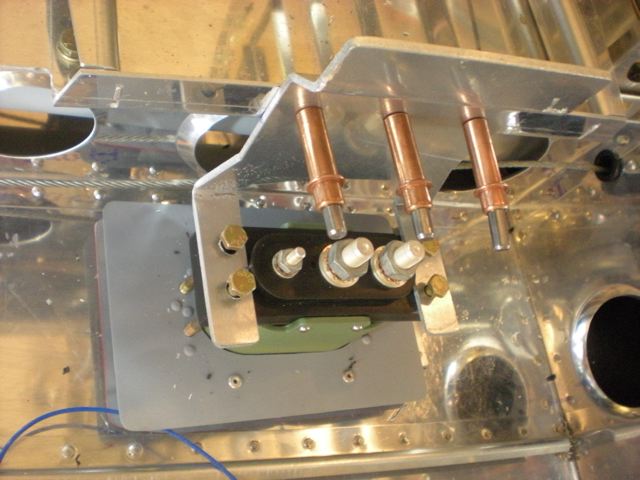

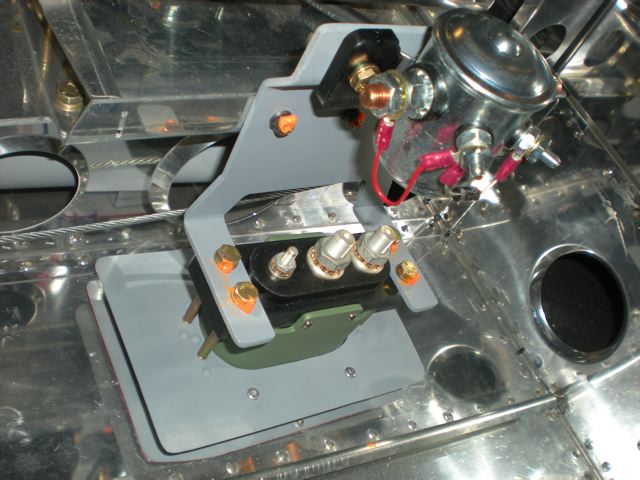

    Well, it took a loooonnngg time, but I finally designed, built, and installed an External Power Receptacle in my RV-10 project. I'm sure somebody will see flaws in it, but it doesn't budge a hair! Basically, it's on the belly with a flap door. Piano hinge at the leading edge and a Camloc at the closing end. A doubler attached to the skin with a hole "just smaller" than the opening in the receptacle. 3/4" square tube is used as spacers for another sheet of metal identical to the first, except the hole is cut so the receptacle can pass through. The AN3-21A bolts basically hold it down hard on the skin and prevent side motion. The 1/8" 3003 bracket I had made by a local metal shop - $45. It is bent "just right" to match the angle of the bolt holes (7 - the floor and the battery box aren't parallel). It's purpose is to lock it in, and tie it to the battery box so it can't be pushed up (or down). The bump out is for the B&C contactor. The wiring will be according to The Aeroelectric Connection, with a few minor mods suggested by the folks at Vertical Power. The VP200 can sense it powered. The bottom door hinge is a little tricky, trying to keep it hidden, but it can be done. Caution, no more than 5 links - the pin will not clear the J-channel for removal otherwise. I'm only posting this because I searched high and low for hints and found them few and far between. Hopefully, more suggestions will be added. Photos attached. John -------- #40572 QB Fuselage, wings finished. Finish Kit started. N711JG reserved Read this topic online here: http://forums.matronics.com/viewtopic.php?p=247378#247378 Attachments: http://forums.matronics.com//files/dscn1475_191.jpg http://forums.matronics.com//files/dscn1473_977.jpg http://forums.matronics.com//files/dscn1469_463.jpg http://forums.matronics.com//files/dscn1468_585.jpg http://forums.matronics.com//files/dscn1470_188.jpg


    Message 13


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 06:46:47 PM PST US
    From: "Chuck Weyant" <chuck@chuckdirect.com>
    Subject: Re: External Power Receptacle in a 10
    Put mine in the lower left corner of the aft bulkhead just inside the baggage door. Easy and out of the way. No doors, no weather/seal problems, no sweat installation, no bending over to plug in. Chuck RV10 in the paint shop RV9A 360 hours of pure joy -------------------------------------------------- From: "johngoodman" <johngoodman@earthlink.net> Sent: Monday, June 08, 2009 6:08 PM Subject: RV10-List: External Power Receptacle in a 10 > > Well, it took a loooonnngg time, but I finally designed, built, and > installed an External Power Receptacle in my RV-10 project. I'm sure > somebody will see flaws in it, but it doesn't budge a hair! > Basically, it's on the belly with a flap door. Piano hinge at the leading > edge and a Camloc at the closing end. A doubler attached to the skin with > a hole "just smaller" than the opening in the receptacle. 3/4" square tube > is used as spacers for another sheet of metal identical to the first, > except the hole is cut so the receptacle can pass through. The AN3-21A > bolts basically hold it down hard on the skin and prevent side motion. The > 1/8" 3003 bracket I had made by a local metal shop - $45. It is bent "just > right" to match the angle of the bolt holes (7 - the floor and the > battery box aren't parallel). It's purpose is to lock it in, and tie it to > the battery box so it can't be pushed up (or down). The bump out is for > the B&C contactor. > The wiring will be according to The Aeroelectric Connection, with a few > minor mods suggested by the folks at Vertical Power. The VP200 can sense > it powered. The bottom door hinge is a little tricky, trying to keep it > hidden, but it can be done. Caution, no more than 5 links - the pin will > not clear the J-channel for removal otherwise. > I'm only posting this because I searched high and low for hints and found > them few and far between. Hopefully, more suggestions will be added. > Photos attached. > John > > -------- > #40572 QB Fuselage, wings finished. Finish Kit started. > N711JG reserved > > > Read this topic online here: > > http://forums.matronics.com/viewtopic.php?p=247378#247378 > > > Attachments: > > http://forums.matronics.com//files/dscn1475_191.jpg > http://forums.matronics.com//files/dscn1473_977.jpg > http://forums.matronics.com//files/dscn1469_463.jpg > http://forums.matronics.com//files/dscn1468_585.jpg > http://forums.matronics.com//files/dscn1470_188.jpg > > >


    Message 14


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 07:08:49 PM PST US
    From: "Chris and Susie" <vhicy@bigpond.com>
    Subject: Re: stec 55x auto pilot
    Thanks Kelly decided not to go ahead. We are coming to the states in November so will pick something up then and save freight. chris do not archive ----- Original Message ----- From: Kelly McMullen To: rv10-list@matronics.com Sent: Friday, June 05, 2009 3:19 PM Subject: Re: RV10-List: stec 55x auto pilot IMHO, STEC made a very good product, but the company and customer service have gone down the tubes. They absolutely refuse to allow transfer of their STC between certified planes, for any amount of money. Apparently the management changed when Cobham came in, and it isn't a good picture. Given that even if the autopilot were given to you, you would have to fab all the interconnects, and any repair or parts would cost you certified prices, why bother, compared to Trutrack, Dynon and others available in the OBAM experimental market. On Thu, Jun 4, 2009 at 9:46 PM, Chris and Susie <vhicy@bigpond.com> wrote: Hi guys I have the chance to get one of these auto pilots very cheap however I cant get on to Stec (they do not answer there phone ) to see if they will work on a RV10. I have some numbers and was wondering if somone on the list new anything about these auto pilots. There is a picture at the bottom of the numbers. regards chris VH-ICY Computer/Radio 01192-0-53T 0628-10200 01192-0-53T 0703-10976 Roll Servos 0106-7-R2 0731-23347 0106-7-R2 0733-23401 Pitch Servos 0108-10-P2 0529-14952 0108-9-P2 0611-15789 Turn Coordinator 1394T100-14RB K06-10652 1394T100-14RB


    Message 15


  • INDEX
  • Back to Main INDEX
  • PREVIOUS
  • Skip to PREVIOUS Message
  • NEXT
  • Skip to NEXT Message
  • LIST
  • Reply to LIST Regarding this Message
  • SENDER
  • Reply to SENDER Regarding this Message
    Time: 08:03:17 PM PST US
    From: swrpilot@bellsouth.net
    Subject: Henderson Airport
