PostPosted: Fri May 11, 2012 5:47 pm    Post subject: Inexpensive recognition lights for the airplane Reply with quote
By adding a Bussman 244 heavy duty flasher, a little re-wiring of my airplanes landing/taxi light circuit gave me a good recognition light system for the airplane. Now depending on which switch I throw, all 4 of my landing/taxi lights either flash or light up. With all 4 lights blinking, the airplane's visibility is greatly increased during the day. All I had to buy was the 25A fuse and the Bussmann 244 flasher which ran just under $15.00 for the whole setup.

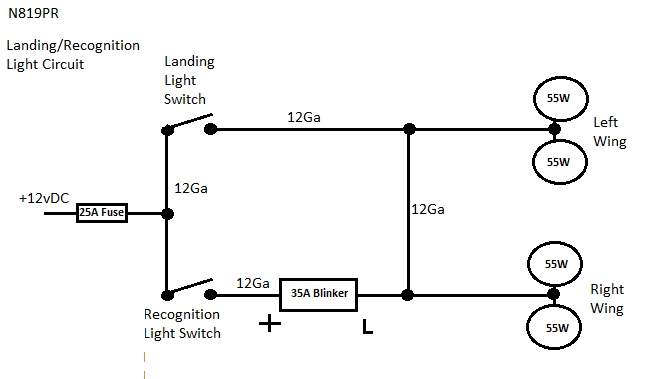

Here is a picture of the circuit and how I did the wiring.

 [img]cid:ii_1373eb304536cc03[/img]

I also posted a video of the lights as the work at: http://youtu.be/ICYVd_uVQV0

Galin
N819PR
