 Posted: Tue Jul 10, 2012 9:56 am Post subject: Roll pin |
 |
|
Yes, I put a borescope up the nose leg and verified there are no threads there. The pin used only holds the bolt from falling out the bottom. The nose gear does not have a "radius stop" pin in the front. It doesn't even have the bolt pin sticking out the front. As soon as I sheared the pin, the bolt fell right out.
Galin
On Tuesday, July 10, 2012, ALFRED ROSA wrote:
| Quote: | Galin,

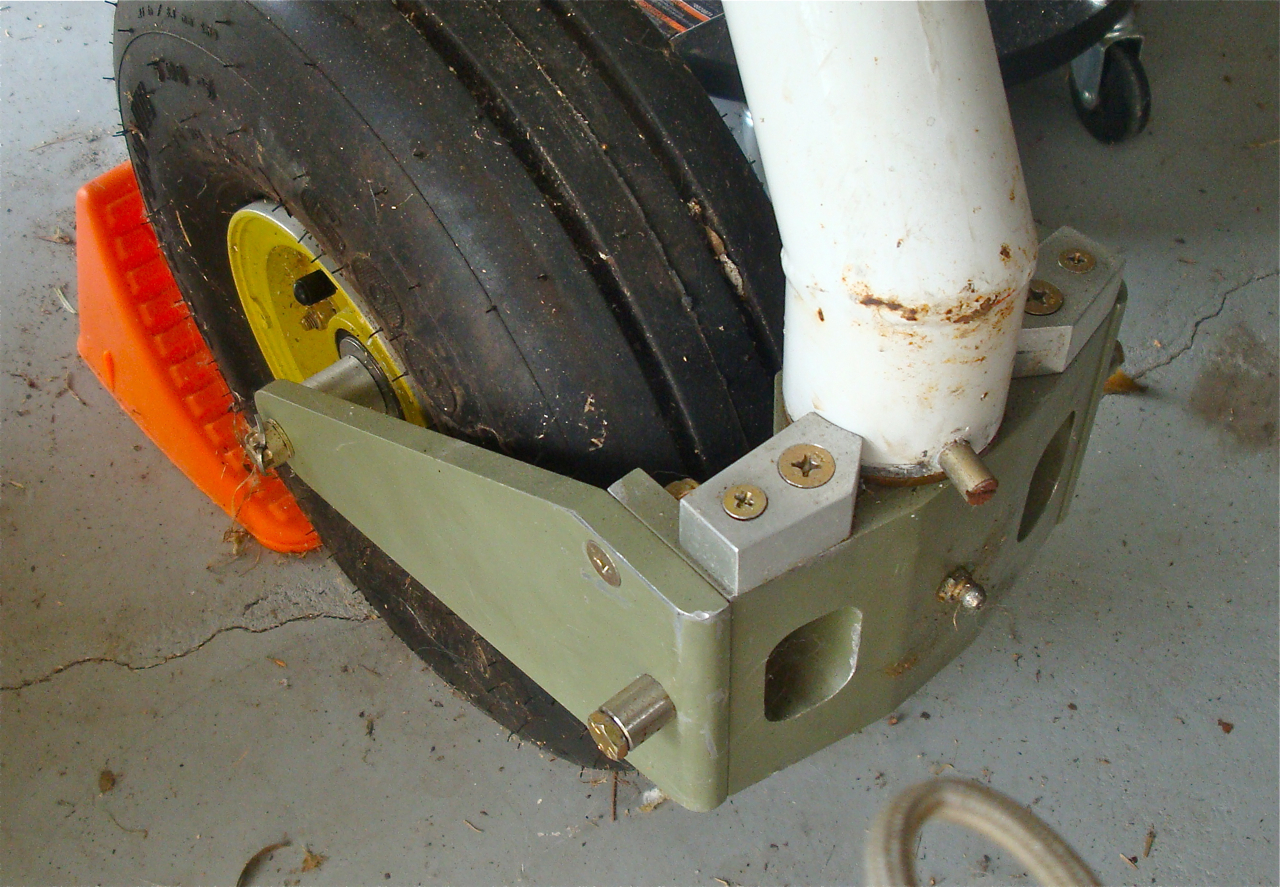

This is a photo of my nose gear. The pin you see inserted in the front of the leg is a "radius stop"
which hit the aluminum stop blocks and prevents the wheel from turning too much to either side.
The pin is solid ss and threaded into the leg. I remember the original instructions in the manual recommended
using a roll pin but many people had problems with it shearing off which is why I beefed up mine.
Are you sure the roll pin in your leg is for holding the bolt? It might be the pin originally meant for a radius stop.
Have you removed the bolt from the leg and saw it wasn't threaded?
Al[img]cid:ii_13870fcd10781927[/img]
|
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |
|
| Filesize: |
1.39 MB |
| Viewed: |
1747 Time(s) |
|
|
|
| Back to top |
|
 |
galinhdz(at)gmail.com
Guest
|
| Posted: Tue Jul 10, 2012 11:28 am Post subject: Roll pin |
|
|
I like the idea of having a fitting on the nose fork so you can grease it without taking the fork completely off. I will be doing this mod to my fork.
Galin
On Tuesday, July 10, 2012, ALFRED ROSA wrote:
| Quote: | Galin,
This is a photo of my nose gear. The pin you see inserted in the front of the leg is a "radius stop"
which hit the aluminum stop blocks and prevents the wheel from turning too much to either side.
The pin is solid ss and threaded into the leg. I remember the original instructions in the manual recommended
using a roll pin but many people had problems with it shearing off which is why I beefed up mine.
Are you sure the roll pin in your leg is for holding the bolt? It might be the pin originally meant for a radius stop.
Have you removed the bolt from the leg and saw it wasn't threaded?
Al[img]cid:ii_13870fcd10781927[/img]
|
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |
|
| Filesize: |
1.39 MB |
| Viewed: |
1745 Time(s) |
|
|
|
| Back to top |
|
|
dptate49(at)yahoo.com
Guest
|
| Posted: Tue Jul 10, 2012 11:43 am Post subject: Roll pin |
|
|
Galin
The nose gear origionally had a "radius stop" which, as I recall (not a very reliable source) was simply a roll pin in the nose rod and one on each side of the fork. The roll pins sheared off with some regularity and I never was able to make a good fix. Just made it a practice to avoid sharp turns. Your solution with blocks fixed on each side of the fork is neat (as long as you use something tougher than a roll pin in the nose rod). Wish I had thought of that.
Dave
From: Galin Hernandez <galinhdz(at)gmail.com>
To: "kis-list(at)matronics.com" <kis-list(at)matronics.com>
Sent: Tuesday, July 10, 2012 1:56 PM
Subject: Re: Roll pin
Yes, I put a borescope up the nose leg and verified there are no threads there. The pin used only holds the bolt from falling out the bottom. The nose gear does not have a "radius stop" pin in the front. It doesn't even have the bolt pin sticking out the front. As soon as I sheared the pin, the bolt fell right out.
Galin
On Tuesday, July 10, 2012, ALFRED ROSA wrote:
| Quote: | Galin,
This is a photo of my nose gear. The pin you see inserted in the front of the leg is a "radius stop"
which hit the aluminum stop blocks and prevents the wheel from turning too much to either side.
The pin is solid ss and threaded into the leg. I remember the original instructions in the manual recommended
using a roll pin but many people had problems with it shearing off which is why I beefed up mine.
Are you sure the roll pin in your leg is for holding the bolt? It might be the pin originally meant for a radius stop.
Have you removed the bolt from the leg and saw it wasn't threaded?
Al[img]cid:1.4265788424(at)web122106.mail.ne1.yahoo.com[/img]
|
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |
|
| Filesize: |
1.39 MB |
| Viewed: |
1744 Time(s) |
|
|
|
| Back to top |
|
|
galinhdz(at)gmail.com
Guest
|
| Posted: Tue Jul 10, 2012 5:23 pm Post subject: Roll pin |
|
|
Well Dave I would still rely on your recollection for things like this. This isn't my solution but I am going to "borrow" it for the airplane.
Galin
On Tue, Jul 10, 2012 at 2:42 PM, David Tate <dptate49(at)yahoo.com (dptate49(at)yahoo.com)> wrote:
| Quote: | Galin
The nose gear origionally had a "radius stop" which, as I recall (not a very reliable source) was simply a roll pin in the nose rod and one on each side of the fork. The roll pins sheared off with some regularity and I never was able to make a good fix. Just made it a practice to avoid sharp turns. Your solution with blocks fixed on each side of the fork is neat (as long as you use something tougher than a roll pin in the nose rod). Wish I had thought of that.
Dave
From: Galin Hernandez <galinhdz(at)gmail.com (galinhdz(at)gmail.com)>
To: "kis-list(at)matronics.com (kis-list(at)matronics.com)" <kis-list(at)matronics.com (kis-list(at)matronics.com)>
Sent: Tuesday, July 10, 2012 1:56 PM
Subject: Re: KIS-List: Roll pin
Yes, I put a borescope up the nose leg and verified there are no threads there. The pin used only holds the bolt from falling out the bottom. The nose gear does not have a "radius stop" pin in the front. It doesn't even have the bolt pin sticking out the front. As soon as I sheared the pin, the bolt fell right out.
Galin
On Tuesday, July 10, 2012, ALFRED ROSA wrote:
| Quote: | Galin,
This is a photo of my nose gear. The pin you see inserted in the front of the leg is a "radius stop"
which hit the aluminum stop blocks and prevents the wheel from turning too much to either side.
The pin is solid ss and threaded into the leg. I remember the original instructions in the manual recommended
using a roll pin but many people had problems with it shearing off which is why I beefed up mine.
Are you sure the roll pin in your leg is for holding the bolt? It might be the pin originally meant for a radius stop.
Have you removed the bolt from the leg and saw it wasn't threaded?
Al[img]cid:1.4265788424(at)web122106.mail.ne1.yahoo.com[/img]
|
|
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
| Description: |
|
| Filesize: |
1.39 MB |
| Viewed: |
1740 Time(s) |
|
|
|
| Back to top |
|
|
fredorosa(at)gmail.com
Guest
|
| Posted: Wed Jul 11, 2012 4:13 am Post subject: Roll pin |
|
|
Credit goes to Bill Schertz. I just copied what he did.
Al
On Tue, Jul 10, 2012 at 9:22 PM, Galin Hernandez <galinhdz(at)gmail.com (galinhdz(at)gmail.com)> wrote:
[quote]Well Dave I would still rely on your recollection for things like this. This isn't my solution but I am going to "borrow" it for the airplane.
Galin
On Tue, Jul 10, 2012 at 2:42 PM, David Tate <dptate49(at)yahoo.com (dptate49(at)yahoo.com)> wrote:
| Quote: | Galin
The nose gear origionally had a "radius stop" which, as I recall (not a very reliable source) was simply a roll pin in the nose rod and one on each side of the fork. The roll pins sheared off with some regularity and I never was able to make a good fix. Just made it a practice to avoid sharp turns. Your solution with blocks fixed on each side of the fork is neat (as long as you use something tougher than a roll pin in the nose rod). Wish I had thought of that.
Dave
|
[b]
| | - The Matronics KIS-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?KIS-List |
|
|
|
| Back to top |
|
|
|
|
