 Posted: Sat Dec 14, 2013 11:41 am Post subject: Cracks in horizontal braces |
 |
|
A prospective customer asked how to inspect the horizontal braces. I told him we could use a customers plane that I was working on as a sample. I didn't expect to find anything since the plane appeared to be regularly maintained (not by me, he was using another mechanic with 'Grumman experience.'). In fact, it had just come out of annual.

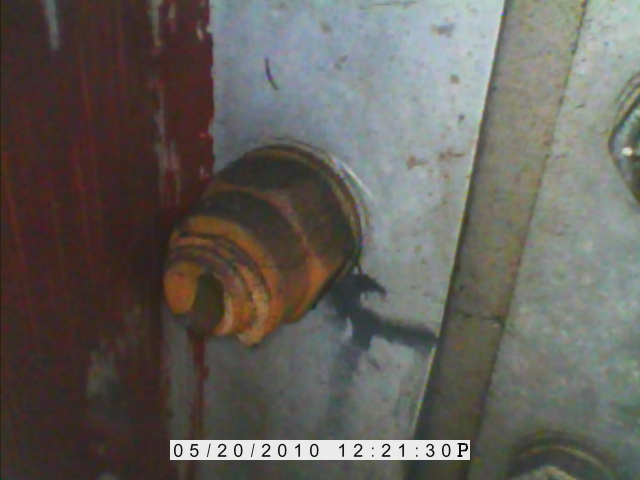

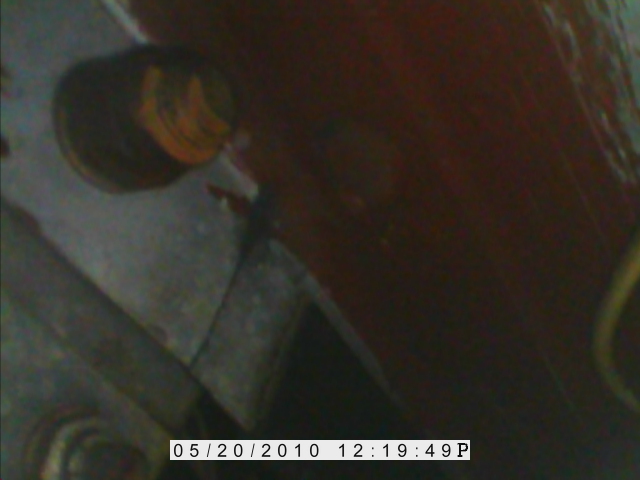

Here is what I found. I took pics with my new 9mm camera.
The right side is cracked all the way through. The left side is cracked at the bolt hole.
The owner won't be happy.
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
| Description: |
|
| Filesize: |
140.47 KB |
| Viewed: |
1490 Time(s) |
|
| Description: |
|
| Filesize: |
160.8 KB |
| Viewed: |
1490 Time(s) |
|
|
|
| Back to top |
|
 |
n76lima(at)mindspring.com
Guest
|
| Posted: Sat Dec 14, 2013 12:34 pm Post subject: Cracks in horizontal braces |
|
|
Yeah, have seen a lot of them with cracks. Usually in the top at the bend radius, though I have a growing stack of debonded, bent and otherwise failed HS forward attach brackets.
Have seen only 2 cracked out of the bolt holes.
If this is the worst structural issue we have on our planes that are more than 30 years old, I'm still happy with the perfect record of ZERO inflight structural failures of the AA/GA/AG/TA fleet.
--Bob Steward
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
n76lima(at)mindspring.com
Guest
|
| Posted: Sat Dec 14, 2013 12:57 pm Post subject: Cracks in horizontal braces |
|
|
WTF? I guess that was Gary's message that was quoted on my reply.
Oh well, what do you want from a free listserv?
--Bob
From: Bob Steward
To: teamgrumman-list(at)matronics.com
Subject: Re: Cracks in horizontal braces
Yeah, have seen a lot of them with cracks. Usually in the top at the bend radius, though I have a growing stack of debonded, bent and otherwise failed HS forward attach brackets.Have seen only 2 cracked out of the bolt holes.If this is the worst structural issue we have on our planes that are more than 30 years old, I'm still happy with the perfect record of ZERO inflight structural failures of the AA/GA/AG/TA fleet.
--Bob Steward
���~��,��g(���M4�G�q���z����.�'�������������������y� J�i��X��ˊ�lN�2���'tg�J��a8�DA��l��h��z�����{�����[�u���'$��ਞ��n�b�yb�Fޖ�-��v�����i�.��a�̞j�z��~'�爝ǧ�+�'?�'^w���� ��%y�k�ơ���i��0g���^r��q�&� z� ��-�' �o��8^�u���$��+y�ky��� 0n�u��n�$��&� �)]z���,r��k����[G�چ���m����h���[azZ\�l0�&y����^��(��3#▋R���j��m���� &ʘ���-����l0�l��Z-��+y�&�iǂ�{.�ا��ky��� 0���q�(� ��q�(���*'����ب�g�J+^����i��0�f����r�(��(���n�b�xm���� &j��',r��r��&�*'�N��*.~����zw���,��h�1�m������ �)����������������8^M�����ˊ�D������,z�^1�k�x�����W���ް֯����hn�0��隟"�ۭ�X���,��Z����I�J��r���*'�
܆+�I�r��yhi��k k�
�>-��Z��vk��k��j+{����m���� ���'�� �o�j�j�+M�����ˊ�a��� 0��k�x���&�֯�����ja��i�����������������������D�H %�S�P�I�������'���j[(j��z��y�h������i���鬙�k�x���&��i���鬙�k�x���&����������������o�����ۡܿ�٥
