OFF-ON-ON Toggle switch?

Matronics Email Lists Forum Index -> AeroElectric-List

View previous topic :: View next topic

Author Message

donjohnston

Joined: 13 Dec 2009
Posts: 231

Posted: Sun Dec 05, 2010 3:00 pm Post subject: OFF-ON-ON Toggle switch?

I need a toggle switch for a fuel pump that will have an OFF, LOW and HIGH setting.  I was thinking of a toggle switch that would be OFF in the down position, LOW in the middle and HIGH in the upper position.



But every toggle switch I've found is ON-OFF-ON. (OFF is the middle position)



Has anyone seen a toggle switch with an OFF-ON-ON configuration?



Thanks,

Don

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

dan(at)azshowersolutions.
Guest

Posted: Sun Dec 05, 2010 3:15 pm Post subject: OFF-ON-ON Toggle switch?

On-On-On...no wjires used on the bottom.



---

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

Ed Anderson

Joined: 10 Jan 2006
Posts: 475

Posted: Sun Dec 05, 2010 3:21 pm Post subject: OFF-ON-ON Toggle switch?

Don, if you type in Toggle Switch "off-on-on" in a google search  window, you will find a large number of sources for the type switch you  want.



Ed



--------------------------------------------------

From:  "donjohnston" <don(at)numa.aero>

Sent: Sunday, December 05, 2010 6:00  PM

To: <aeroelectric-list(at)matronics.com>

Subject: AeroElectric-List:  OFF-ON-ON Toggle switch?



[quote] --> AeroElectric-List message posted by:  "donjohnston" <don(at)numa.aero>



 I need a toggle switch for  a fuel pump that will have an OFF, LOW and HIGH setting.  I was thinking of  a toggle switch that would be OFF in the down position, LOW in the middle and  HIGH in the upper position.



 But every toggle switch I've found  is ON-OFF-ON. (OFF is the middle position)



 Has anyone seen a  toggle switch with an OFF-ON-ON configuration?



 Thanks,

  Don









 Read this topic online  here:



  http://forums.matronics.com/viewtopic.php?p=322386#322386















  ===========

  Support Your Lists  This Month --

  Get Some  the Annual  Contribution link  Terrific Free  www.aeroelectric.com

  HomebuiltHELP  Contribution Web  bsp;                   ===========

  Features  Browse, Chat,   http://www.matronics.com/Navigator?AeroElectric-List

 ===========

  bsp;    via the  ===========







   [quote][b]

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
Ed Anderson
Rv-6A N494BW Rotary Powered
Matthews, NC
eanderson@carolina.rr.com

jloram

Joined: 07 Nov 2009
Posts: 54
Location: United States

Posted: Sun Dec 05, 2010 3:33 pm Post subject: OFF-ON-ON Toggle switch?

You might be able to make one of these work:



http://www.k-four.net/Category.aspx?cid=144



-john-

www.loram.org





[quote] --

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

nuckolls.bob(at)aeroelect
Guest

Posted: Sun Dec 05, 2010 5:17 pm Post subject: OFF-ON-ON Toggle switch?

At 05:12 PM 12/5/2010, you wrote:

  	  Quote:
		  --> AeroElectric-List message posted by: Dan Billingsley <dan(at)azshowersolutions.com>



 On-On-On...no wjires used on the bottom.


    Very good Dan.



    Don, the functionality you need can be configured

    from a two-pole, three-position, progressive transfer

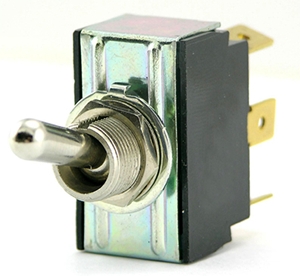

    switch. An exemplar part is the B&C S700-2-10 switch



 [img]cid:.0[/img]

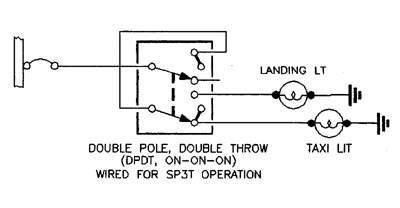

    Exemplar wiring for an off-on-on functionality
